1 INTRODUCTION

PMsense is a PM1.0, PM2.5 and PM10 Particulate Matter transmitter suitable for

outdoor air quality monitoring.

The dust particles concentration is measured using the laser scattering principle.

n optional CO

sensor can be integrated in the transmitter.

The transmitter has a digital RS485 output with MODBUS-RTU or SCII proprietary

protocol. version with two additional 4…20 m (0…10 V on request when ordering)

analog outputs is available. The two analog outputs can be independently associated

with any of the measured parameters.

The measuring circuit of the transmitter can be operated in continuous mode or, in

order to extend the PM sensor lifetime, at cyclic intervals (default operating mode).

The measuring cycle interval is user configurable.

The transmitter is maintenance-free and has fast response, high sensitivity, excellent

stability and long operating life.

PMsense

- 4 -

V1.0

2TECHNICAL SPECIFICATIONS

Particulate Matter

Measuring principle Laser scattering

Measured pollutants PM1.0, PM2.5 and PM10

Measuring range 0…1000 µg/m

(for each pollutant)

Particle size detection range ∅ 0.3…10 µm

Linearity error < 5%

Repeatability < 3%

Sensor warm up time 15 s

Sensor lifetime 5 years approx. in 5 minutes cyclic operating mode (default)

> 10,000 hours in continuous operating mode (1 meas./s)

Temperature drift < 0.01 µg/m

/°C

(only PMBsense…)

Measuring principle Double wavelength NDIR

Measuring range 0…5000 ppm

ccuracy ±(50 ppm+3% of measurement) @ 25 °C and 1013 hPa

Response time < 120 s (air speed= 2 m/s)

Long-term stability 5% of measurement / 5 years

Temperature drift 1 ppm/°C

General specifications

Output RS485 with Modbus-RTU or SCII proprietary protocol

Only PMsense-A: 2 x analog 4…20 m (R

Lmax

= 500 Ω); on

request 2 x 0…10 V (R

Lmin

= 10 kΩ)

Power supply 7…30 Vdc

(15…30 Vdc for 0…10 V analog outputs)

Power consumption 25 m @ 24 Vdc during measurement

4 m in stand-by (only for cyclic operating mode)

The indicated consumption does not include the consumption

due to the analog outputs

Connection M12 8-pole circular connector

Operating conditions -20…+70 °C / 0…95 %RH / 500…1500 hPa

Housing material Polycarbonate

Protection degree Housing equipped with a rain-proof and UV resistant inlet air

filter – IP 53

Dimensions 120 x 94 x 71 (excluding M12 connector)

Weight 330 g

PMsense

- 5 -

V1.0

3INSTALLATION

The transmitter is equipped with a bracket with U-bolt for the fixing to a Ø40…50 mm

mast. It can be fixed to a wall using the bracket only, by removing the U-bolt.

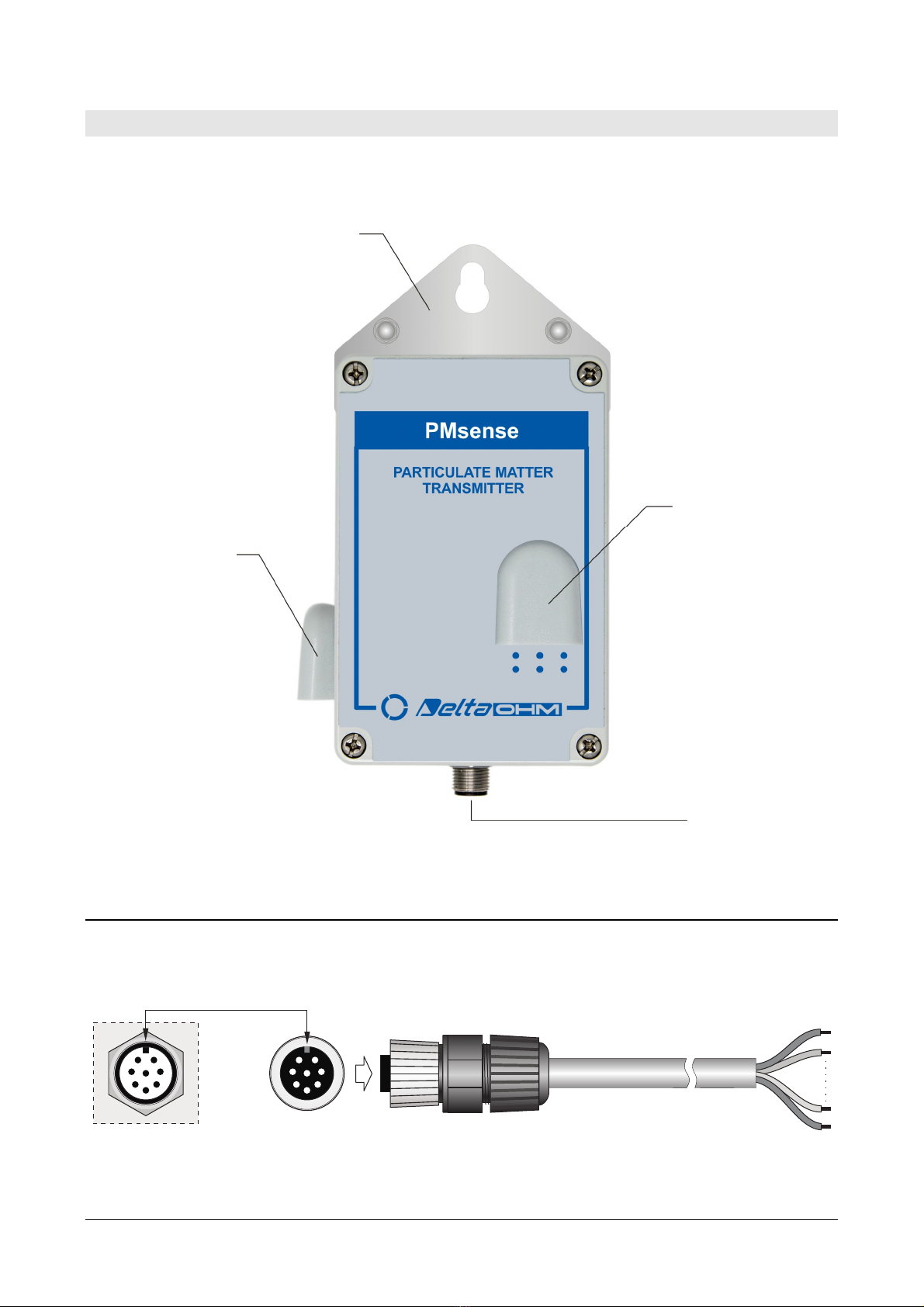

Fig. 3.1: transmitter description

3.1 E

LECTRICAL CONNECTIONS

The transmitter has a M12 8-pole circular connector and uses the CPM12-8DA... op-

tional cables, with M12 8-pole connector on one side and open wires on the other side.

456

81 2

Fig. 3.2: connectors pinout

Transmitter male

connector

(external view)

Connector

Fixing b

racket with

bolt

ir outlet

ir inlet

Cable female connector

(external view)

Connector reference

PMsense

- 6 -

V1.0

Connector

pin N° Function CPM12-8DA…

wire color

1 Power supply negative (GND) Blue

2 Power supply positive (+Vdc) Red

3 Not used ---

4 RS485 /- Brown

5 RS485 B/+ White

6 Digital and analog outputs ground (SGND)* Grey

7 nalog output 1 positve ( OUT1, only PM[B]sense-A) Yellow

8 nalog output 2 positve ( OUT2, only PM[B]sense-A) Green

Cable shield ** Black (thick wire)

* The output ground (SGND) and the negative of the power supply (GND) are short-circuited

inside the transmitter.

* The cable shield is not connected to the M12 connector.

To ensure a good noise immunity, it is recommended to connect the cable shield to

ground (GND).

RS 85 connection:

By default, the instrument has MODBUS address 1 and communication parameters

19200, 8E1. Different parameters can be set using the proprietary protocol or the

MODBUS-RTU protocol.

220Ω

220Ω ShieldShield

Lmax = 1200m

B/+

A/-

B/+

A/-

SGND

GND

+Vdc

B/+

A/-

SGND

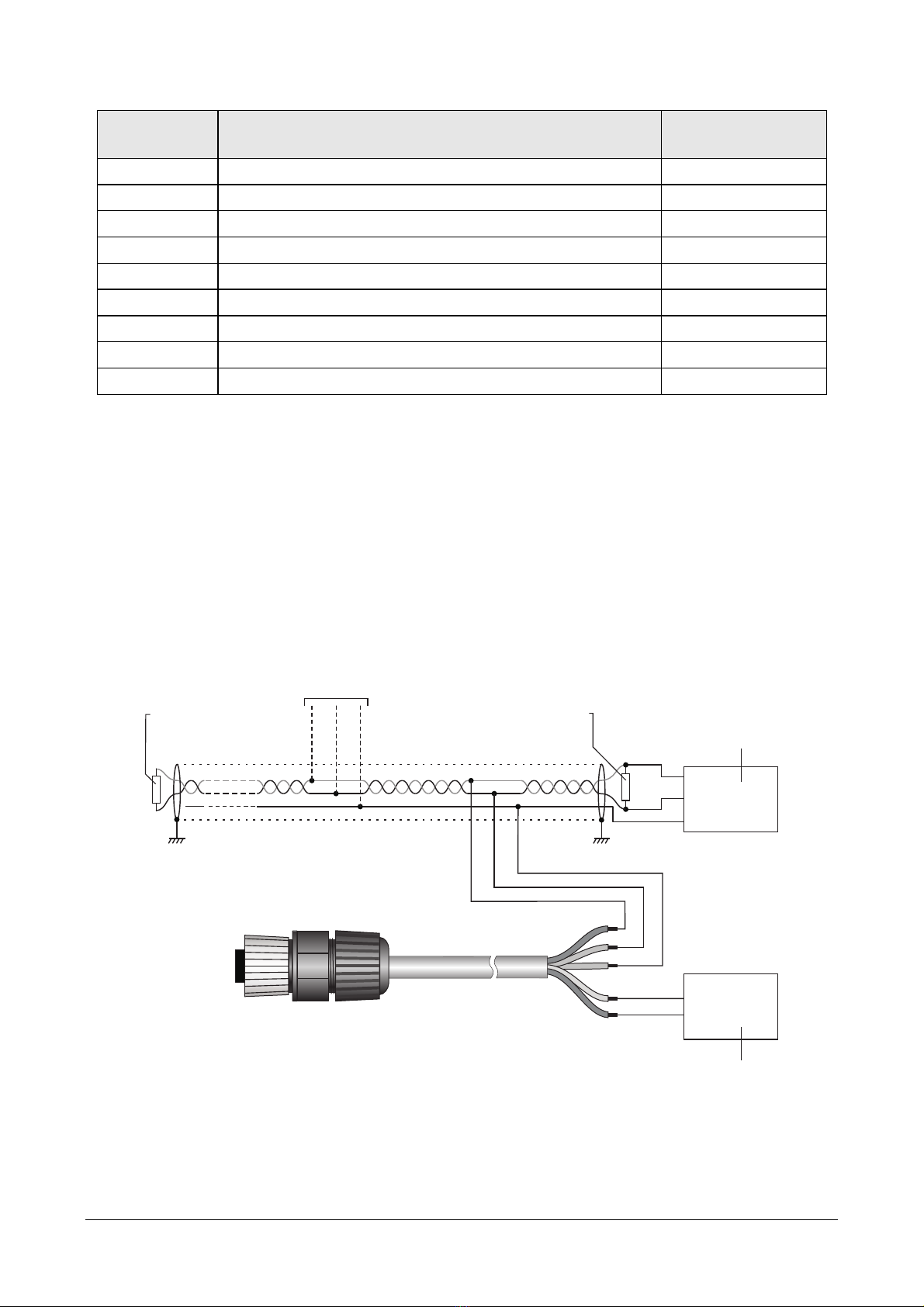

Fig. 3.3: RS 85 connection

Power supply

7…30 Vdc

CPM12-8D … cable

PLC, data logger or

RS485/USB or RS485/RS232

converter for PC

Other sensors with

RS485 output

Termination Termination

PMsense

- 7 -

V1.0

Current analog output (only PM[B]sense-A):

By default, the current analog outputs are 4…20 m , with:

4 m = 0 ppm

20 m = 1000 µg/m

The analog output 1 is associated by default to PM2.5. The analog output 2 is associ-

ated by default to PM10.

With the commands of the proprietary protocol it is possible to associate the analog

outputs to different parameters, set the range 0…20 m for the output and reverse the

direction of the output, so that the output decreases as the measurement increases.

In case of measurement error, the output goes to 22 m .

0/4...20 mA

OUT1

0/4...20 mA

OUT2

SGND

AOUT1

GND

+Vdc +

AOUT2

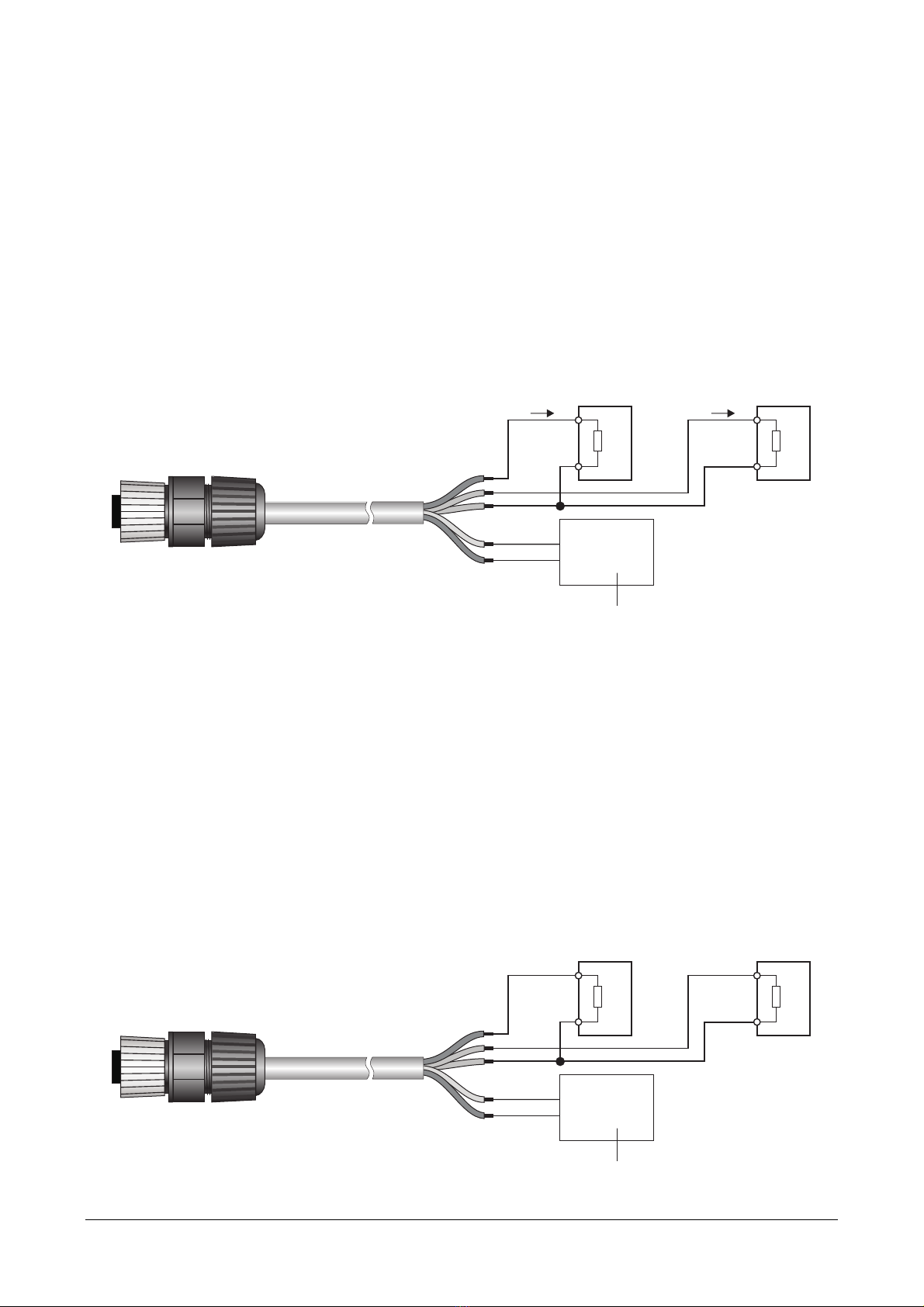

Fig. 3. : current analog outputs connection

Voltage analog output (optional, only PM[B]sense-A):

By default, the voltage analog outputs are 0…10 V, with:

0 V = 0 ppm

10 V = 1000 µg/m

The analog output 1 is associated by default to PM2.5. The analog output 2 is associ-

ated by default to PM10.

With the commands of the proprietary protocol it is possible to associate the analog

outputs to different parameters, set the range 2…10 V for the output and reverse the

direction of the output, so that the output decreases as the measurement increases.

In case of measurement error, the output goes to 11 V.

SGND

AOUT1

0...10 V

OUT1

0...10 V

OUT2

GND

+Vdc

AOUT2

Fig. 3.5: voltage analog outputs connection

Power supply 12…30 Vdc

Lmax

= 500 Ω

CPM12-8D … cable

Power supply 15…30 Vdc

CPM12-8D … cable

Lmin

= 10 kΩ

PMsense

- 8 -

V1.0

CONFIGURATION AND MEASUREMENT

The configuration of the instrument and the reading of the measurements can be done

via the RS485 serial output, both with the proprietary protocol and with the MODBUS-

RTU protocol.

In the first 10 seconds after the instrument power on, it is always active the proprie-

tary protocol. fter 10 seconds from power on, the operating protocol is activated,

which by default is the MODBUS-RTU protocol.

It is possible to keep the proprietary protocol active even after 10 seconds from power on

by sending, before the 10 seconds expire, the command @ of the proprietary protocol.

The proprietary protocol can be set as operating protocol by means of the DP0 command.

The commands of the proprietary protocol and the registers of the MODBUS-RTU pro-

tocol are described in detail in the following chapters.

Particulate Matter measurement modes:

The transmitter can perform the PM measurement in continuous mode, or, in order to

extend the sensor lifetime, at cyclic intervals.

By default, the transmitter is configured to measure at cyclic intervals with an interval

of 5 minutes. The measurement mode and the interval can be configured respectively

by using the CPLS and CPLP commands of the proprietary protocol or the holding reg-

isters with address 15 and 16 of the MODBUS-RTU protocol.

In the measurement mode at cyclic intervals, the PM sensor is activated periodically

for about a minute, at the end of which the measurement is made available and "fro-

zen" (the sensor is deactivated) until the set cyclic measurement interval expires. The

measurement provided is a value averaged during the minute of sensor activation.

In continuous measurement mode the sensor is always active, and the measurement

provided is an averaged value chosen from the following possibilities:

•average over a 10 seconds interval, updated every second;

•average over a 60 seconds interval, updated every 10 seconds (default);

•average over a 15 min interval, updated every minute.

The type of average can be configured by using the CPS command of the proprietary

protocol or the holding registers with address 19 of the MODBUS-RTU protocol.

Status of the transmitter:

There are two LEDs on the internal electronic board of the transmitter: the green LED

indicates the presence of the external power supply (blinks once per second), the red

LED indicates the presence of any measurement errors (normally off, it blinks twice

per second if at least one of the measured parameters is in error).

PMsense

- 9 -

V1.0

5PROPRIETARY PROTOCOL

To use the proprietary protocol, it is necessary to connect the instrument to the PC via

a RS485/USB (e.g. RS51K) or RS485/RS232 converter and use a standard serial

communication program. In the serial communication program, set the COM port

number to which the instrument is connected and the communication parameters as

follows:

•If the MODBUS-RTU protocol is set as the operating protocol in the instrument

(default), set the Baud Rate 57600 and the parameters 8N2 in the serial commu-

nication program, then power cycle the instrument and send the command @

within 10 seconds from the instrument power on.

•If the proprietary protocol is already set as the operating protocol in the instru-

ment, it is possible to operate with Baud Rate 57600 and parameters 8N2 by

sending the command @ within 10 seconds from the instrument power on, or

you can let the 10 seconds pass without sending the command @ and operate

with the communication parameters set in the instrument (default 19200, 8E1).

To change the instrument configuration, the serial command CAL USER ON must be

sent first (the instrument replies with USER C L MODE ON). The command C L USER ON

is automatically disabled after a few minutes of inactivity. If the settings should be only

read, the command C L USER ON is not required.

Below is the list of the serial commands.

Instrument information:

Command Reply Description

G0 Model Instrument model

G1 &Revision| Instrument hardware revision

G2 SN=nnnnnnnn Instrument serial number

G3 Firm.Ver.=x.y Instrument firmware revision

G4 Firm.Date=yyyy/mm/dd Date of firmware revision

GC Fact.Calib.Date= yyyy/mm/dd

User.Calib.Date= yyyy/mm/dd

Cal.Mode=Factory or User

Date of factory calibration

Date of user calibration (CO

only)

Type of calibration active (CO

only)

Protocol:

Command Reply Description

@ &| Keeps the proprietary protocol operational even after 10

seconds from instrument power on. It must be sent within

10 seconds from instrument power on.

DPn &| Sets the operating protocol:

Proprietary if n=0

MODBUS-RTU if n=1

Default : MODBUS-RTU (n=1)

RP & n| Reads the operating protocol set in the instrument.

SM &| ctivates the MODBUS-RTU protocol immediately.

CM n &| Sets the instrument address for the MODBUS-RTU pro-

tocol to n.

The address should range within 1 and 247.

Default : 1

RM & n| Reads the instrument address for the MODBUS-RTU pro-

tocol.

PMsense

- 10 -

V1.0

Note: after sending the DP1 command, the instrument remains with the proprietary protocol.

Send the command SM to activate the MODBUS-RTU protocol immediately, or power cycle the

instrument.

RS 85 communication parameters:

Command Reply Description

CMBn &| Sets the Baud Rate:

1200 if n=0

2400 if n=1

4800 if n=2

9600 if n=3

19200 if n=4

38400 if n=5

57600 if n=6

115200 if n=7

Default : 19200 (n=4)

RMB & n| Reads Baud Rate setting

CMPn &| Sets parity and stop bits:

8N1 if n=0 [No parity, 1 stop bit]

8N2 if n=1 [No parity, 2 stop bits]

8E1 if n=2 [Even parity, 1 stop bit]

8E2 if n=3 [Even parity, 2 stop bits]

8O1 if n=4 [Odd parity, 1 stop bit]

8O2 if n=5 [Odd parity, 2 stop bits]

The number of data bits is fixed to 8.

Default : 8E1 (n=2)

RMP & n| Reads the setting of parity and stop bits.

CMWn &| Sets waiting time after transmission with MODBUS-RTU

protocol:

Immediate reception if n=0 (violates protocol)

Waiting 3.5 characters if n=1 (respects protocol)

Default : Immediate reception (n=0)

RMW & n| Reads the setting of waiting time after transmission with

MODBUS-RTU protocol.

PM measurement settings:

Command Reply Description

CPLSn &| Sets the PM measurement mode:

Continuous if n=0

t cyclic intervals if n=1

Default : t cyclic intervals (n=1)

RPLS & n| Reads the setting of the PM measurement mode.

CPLPn &| Sets the cycle interval for the measurement mode at cy-

clic intervals.

The number of seconds must be greater than 70, in or-

der to allow the sensor to take the measurement.

Default : 300 (=5 min)

RPLP & n| Reads the setting of the cycle interval for the measure-

ment mode at cyclic intervals.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali GHM Attrezzature da laboratorio

GHM

GHM Martens STL50 Manuale utente

Manuali Attrezzature da laboratorio popolari di altre marche

Qiagen

Qiagen DML 3000 Manuale utente

Queensgate

Queensgate NANOSCAN OP400 Manuale di programmazione

Conviron

Conviron GEN1000-GE Manuale utente

Parr Instrument

Parr Instrument 4560 Manuale di istruzioni

IKA

IKA IC control Manuale utente

Integra

Integra DOSE IT Manuale utente

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manuale utente

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manuale utente

NI PXI-5422 Manuale

Collomix

Collomix Aqix Manuale utente

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manuale utente

Ocean Insight

Ocean Insight FLAME-NIR+ Manuale utente

Parker

Parker ALIGN-MG-NA Manuale utente

BD 644787 Manuale utente

DENTAURUM

DENTAURUM Compact Megaplus Manuale utente

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manuale utente

VWR

VWR SAS Super IAQ Manuale utente

illumina

illumina MiSeqDx Manuale utente
