Giant CITYSTORM Manuale utente

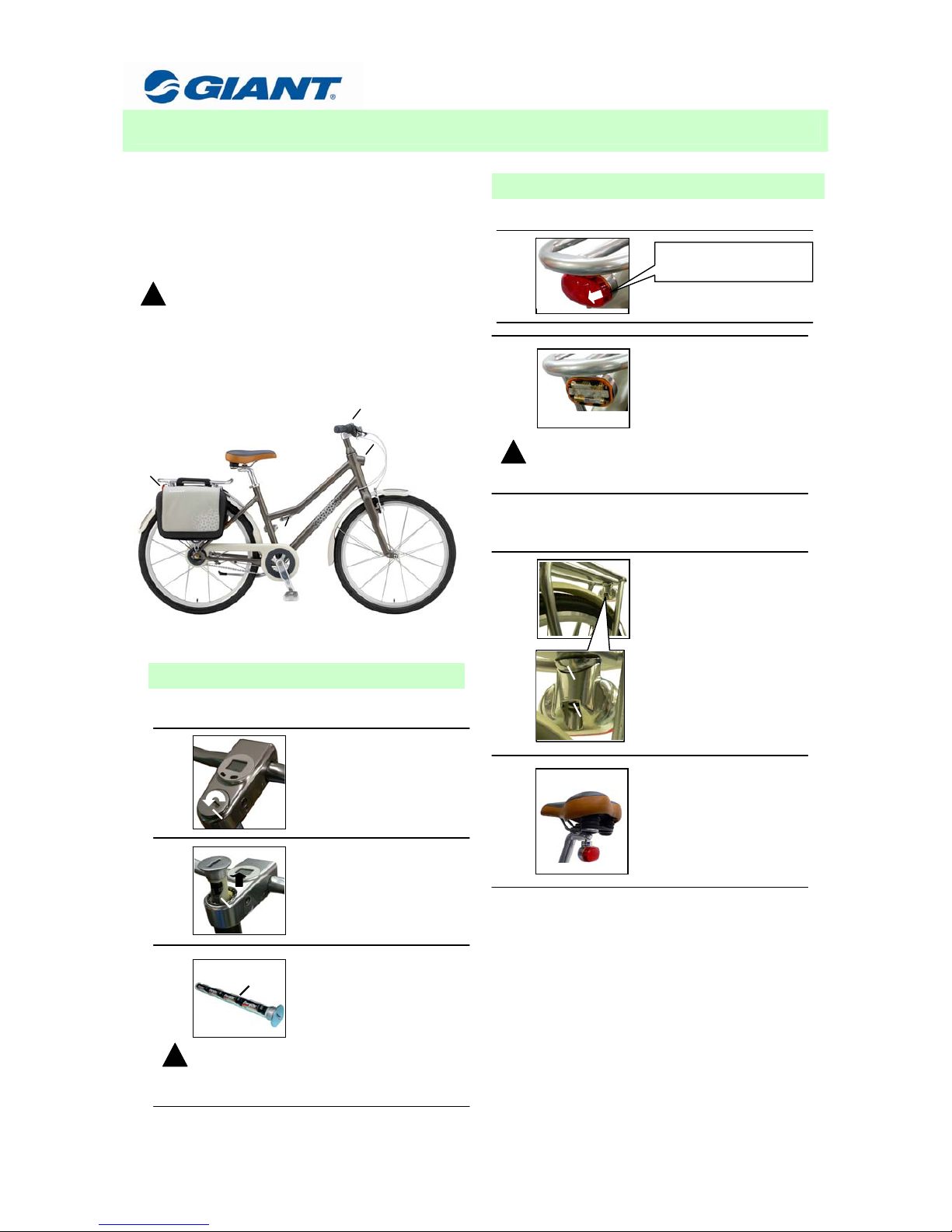

CITYSTORM USER GUIDE

Congratulations on your purchase of a GIANT Citystorm.

GIANT Citystorm represents the latest in design and

engineering, and also requires special care. While Giant

Bicycle engineers have used the best quality, most durable and

lowest maintenance materials in this Citystorm, you must follow

certain guidelines to attain optimal performance and proper

wear characteristics.

WARNING Failure to follow these Instructions will

void your warranty, and may result in hidden damage to

the Citystorm. Damage to the Citystorm can cause loss

of structural integrity, which may result in serious

personal injury.

Lock

Front light

Rear light

Stem watch

Front light

Take out the battery holder

from the stem

CAUTION The battery has polarity (+/- sides), so

be sure to install the battery with the + side upward as

shown in the diagram.

Turn 90° counterclockwise

with a coin to loosen the

battery holder

How to re

lace the batter

Replace the battery (AA SIZE)

with a new one.

Step 3: Battery

Battery holder

Step 1:

Step 2:

Loosen the rear light fixing bolt

with 4mm Hex key.

Remove the rear light and fixing

link.

Install onto saddle IN THE

FOLLOWING ORDER: one

rear light, one fixing bolt.

Tighten the rear light fixing bolt

with 4mm Hex key.

Tightening torque:2.9-5.8Nm

Step 1:

Step 2:

Rear light

How to re

lace the batter

Replace the battery (SIZE AAA)

with a new one.

Step 2:

How to install the rear li

ht onto saddle

CAUTION The battery has polarity (+/- sides), so

be sure to install the battery as shown in the diagram.

Fixing link

Fixing bolt

Take out the cover with coin.

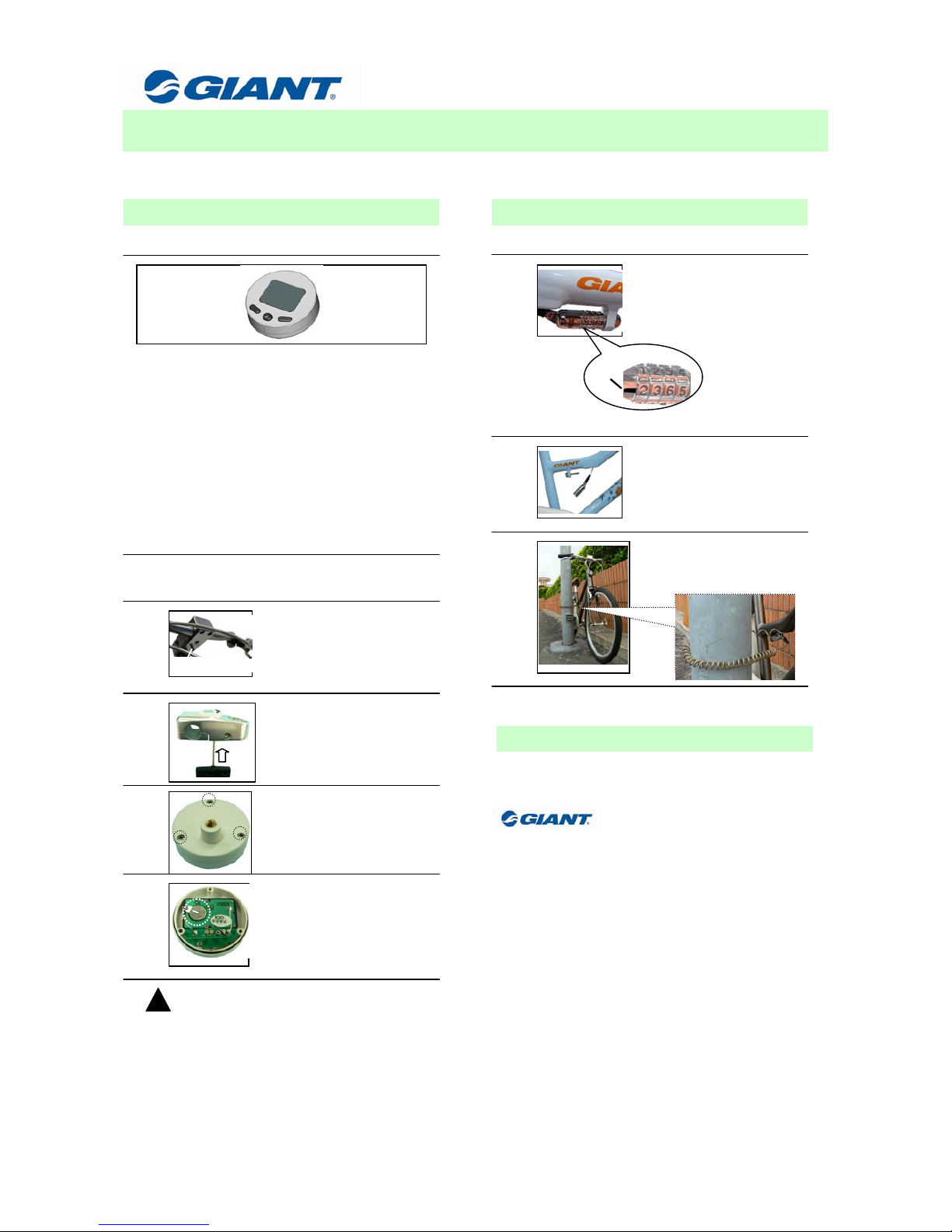

CITYSTORM USER GUIDE

Lock

1688

How to use lock

Adjust dials to let your

combination align with the mark.

Step 1:

Warranty

Please refer to the Giant Owner’s Manual or visit our

website: www.giant-bicycle.com for complete provisions of

the warranty.

After deciding how to lock the

bike, push the lock in and turn to

the lock position.

Step 3:

Stem watch

How to use stem watch?

Method of display the date:

Press the button A to display the DATE.

Method to display the time:

Press the button A twice to display the time.

Method of setting:

Step1: Press the button B twice to enter setting mode.

Step2: Press the button A to change the value.

Step3: Press the button B to confirm the setting and

move to the next digit to be set.

Step4: Set each digit in order from date to time.

Step5: After the minutes have been set, press the button

A to return to the normal display.

How to re

lace the batter

Loosen the stem watch fixing bolt

with 3mm Hex key.

Tightening torque: 1.9-3.4Nm

Step 1:

Push the stem watch up with

3mm Hex key.

Step 2:

Stem watch fixing Bolt

Loosen the cover fixing screw

with screwdriver.

Step 3:

Replace the battery (LR921) with

a new one.

Step 4:

A: SET

B: MODE

CAUTION The battery has polarity (+/- sides), so

be sure to install the battery with the + side upward as

shown in the diagram.

mark

Then release the lock from the

bike.

Step 2:

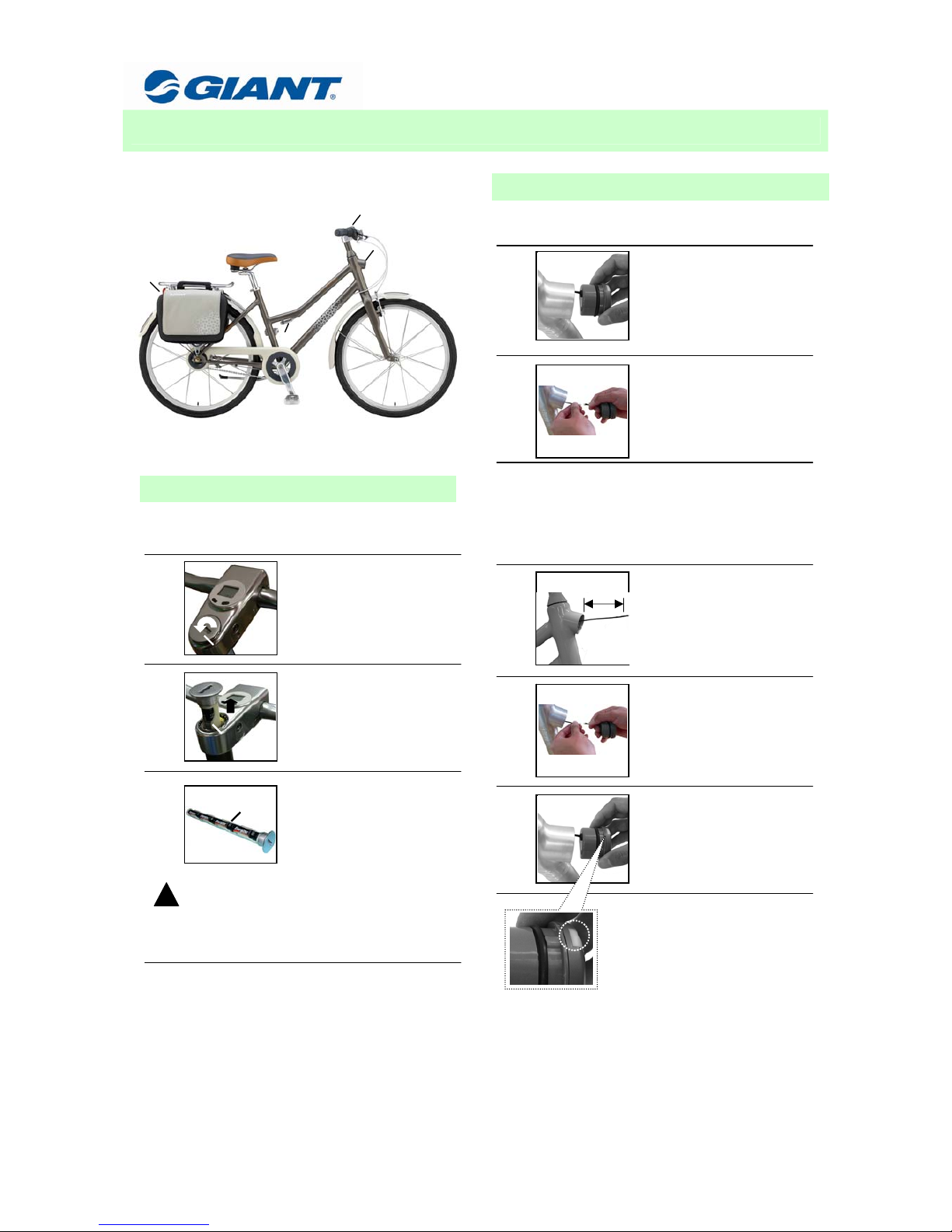

CITYSTORM SERVICE INSTRUCTION

Read these instructions carefully before using, and follow them

for correct use.

Lock

Front light

Rear light

Stem watch

Front light

Take out the battery holder

from the stem

CAUTION The battery has polarity (+/- sides), so

be sure to install the battery with the + side upward as

shown in the diagram.

Turn 90° counterclockwise

with a coin to loosen the

battery holder

■How to replace the battery

Replace with new battery

(AA SIZE).

Step 3: Battery

Battery holder

Step 1:

Step 2:

■ How to assemblethe front light

Note: You must install the front light first

before install the handlebar stem.

Install the front light to the head

tube; make sure the button is

at the top position.

Install the handlebar first and

then connect the front light

connector.

Step 2:

Step 3:

Button

Rotate the front fork and pull out

the wire at the same time, make

sure the length > 150mm.

Step 1:150mm

■ How to disassemble the front light

Disconnect the front light from

the connector.

Step 2:

Pull out the front light from the

head tube.

Step 1:

Button

Front light

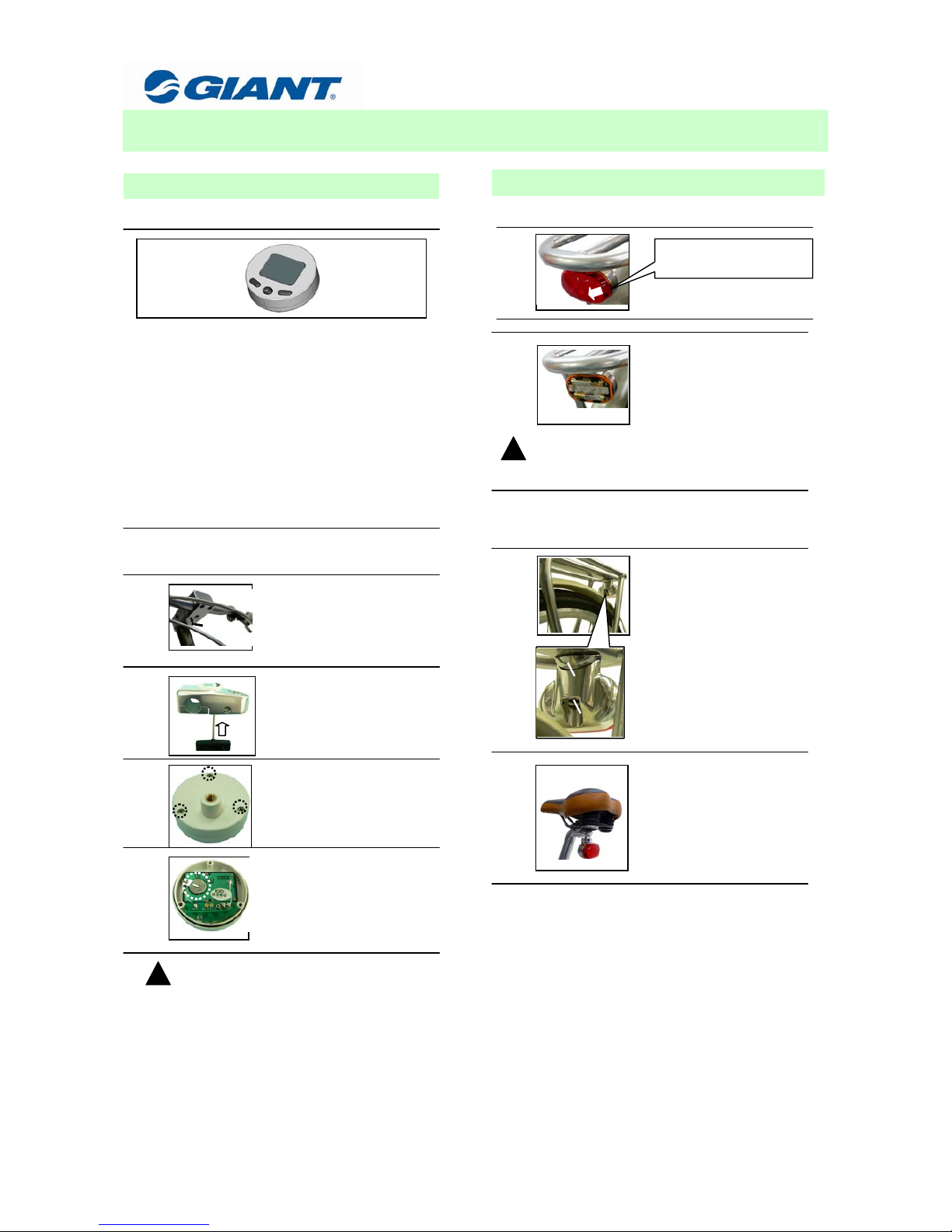

CITYSTORM SERVICE INSTRUCTION

Stem watch

■

How to use stem watch?

Method of displaying the date:

Press the button A to display the DATE.

Method to display the time:

Press the button A twice to display the time.

Method of setting:

Step1: Press the button B twice to enter setting mode.

Step2: Press the button A to change the value.

Step3: Press the button B to confirm the setting and

move to the next digit to be set.

Step4: Set each digit in order from date to time.

Step5: After the minutes have been set, press button A

to return to normal display.

■

How to re

lace the batter

Loosen the stem watch fixing bolt

with 3mm Allen key.

Tightening torque: 1.9-3.4Nm

Step 1:

Push the stem watch up with

3mm Allen key.

Step 2:

Bolt

Loosen the cover fixing screw

with screwdriver.

Step 3:

Replace the battery (LR921) with

a new one.

Step 4:

A: SET

B: MODE

CAUTION The battery has polarity (+/- sides), so

be sure to install the battery with the + side upward as

shown in the diagram.

Loosen the rear light fixing bolt

with 4mm Allen key.

Remove the rear light and fixing

link.

Install onto saddle IN THE

FOLLOWING ORDER: one

rear light, one fixing bolt.

Tighten the rear light fixing bolt

with 4mm Allen key.

Tightening torque:2.9-5.8Nm

Step 1:

Step 2:

Rear light

■

How to re

lace the batter

Replace with new battery

(SIZE AAA).

Step 2:

■

How to install the rear li

ht onto saddle

CAUTION The battery has polarity (+/- sides), so

be sure to install the battery as shown in the diagram.

Fixing link

Fixing bolt

Take out the cover with coin.

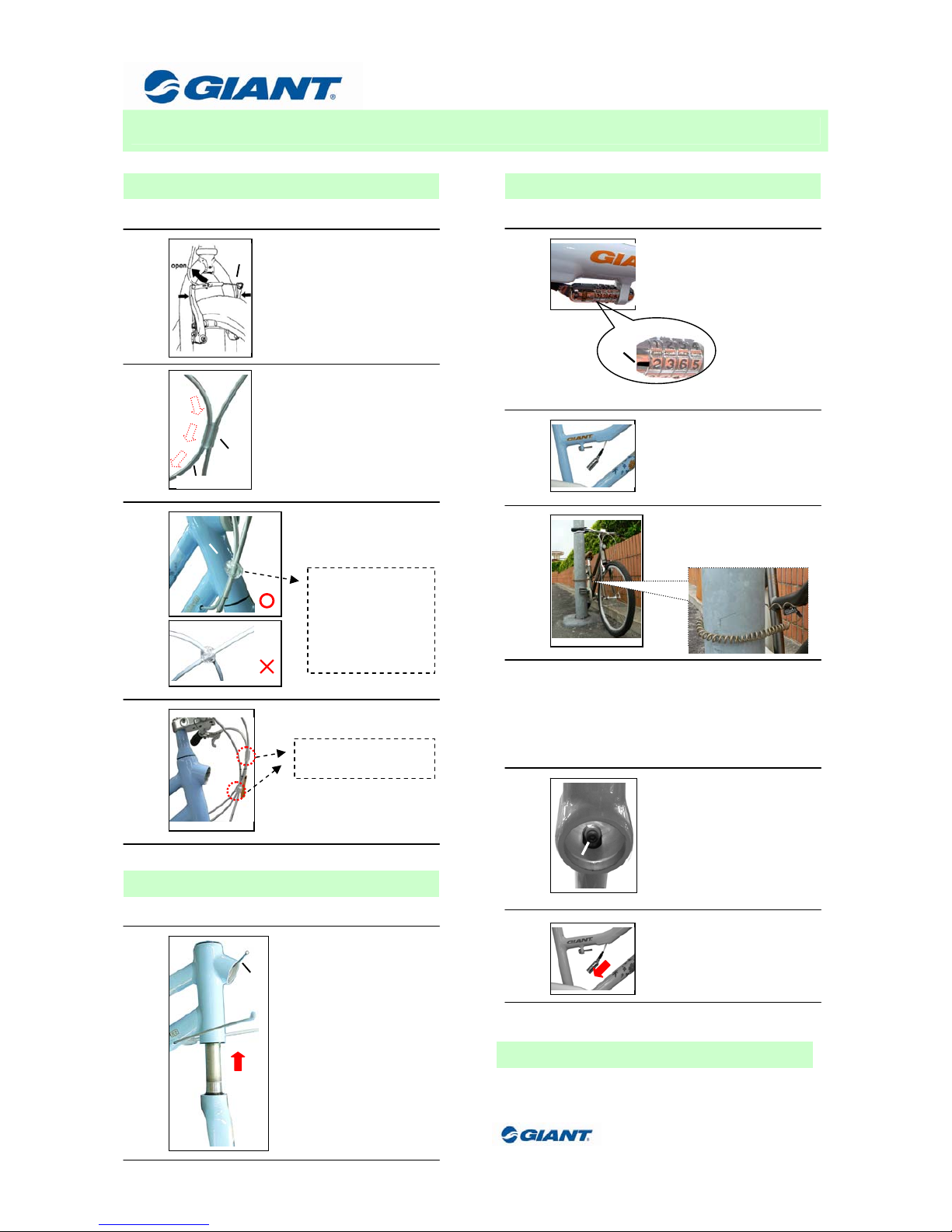

CITYSTORM SERVICE INSTRUCTION

Installation of the front fork

1688

Insert the front fork into head

tube and pull out the wire for the

front light from the head tube.

Step 1:

Wire

Warranty

Please refer to the Giant Owner’s Manual or visit our

website: www.giant-bicycles.com for complete provisions

of the warranty.

■ How to replace the lock

Prior to dismantling the lock

Remove front light from the head tube.(see page 1)

Remove front fork

1688

Loosen the lock fixing bolt with

5mm Allen key.

Tightening torque: 4.9-7.8Nm

Step 1:

Pull out the lock

Step 2:

Step 3: Repeat Steps 1~2 in reverse to install the new lock

Bolt

Installation of the hook

Loosen the cable fixing bolt.

Make sure that the quick release

of the brake is in open position.

Step 1:

Insert the front brake cable

through the hook.

Step 2:

Step 3:

Hook

Front brake cable

Hook

Hold the front brake

cable and shifter

cable with hook.

These two cables

should parallel.

Step 4:

Adjust the hook in the

suitable

osition.

Bolt

Lock

After deciding how to lock the

bike, push the lock in and turn to

the lock position.

Step 3:

1688

How to use lock

Adjust dials to let your

combination align with the mark.

Step 1:

mark

Then release the lock from the

bike.

Step 2:
