Giant FAITH - SERVICE Manuale utente

service |Maestro Service Manual

232

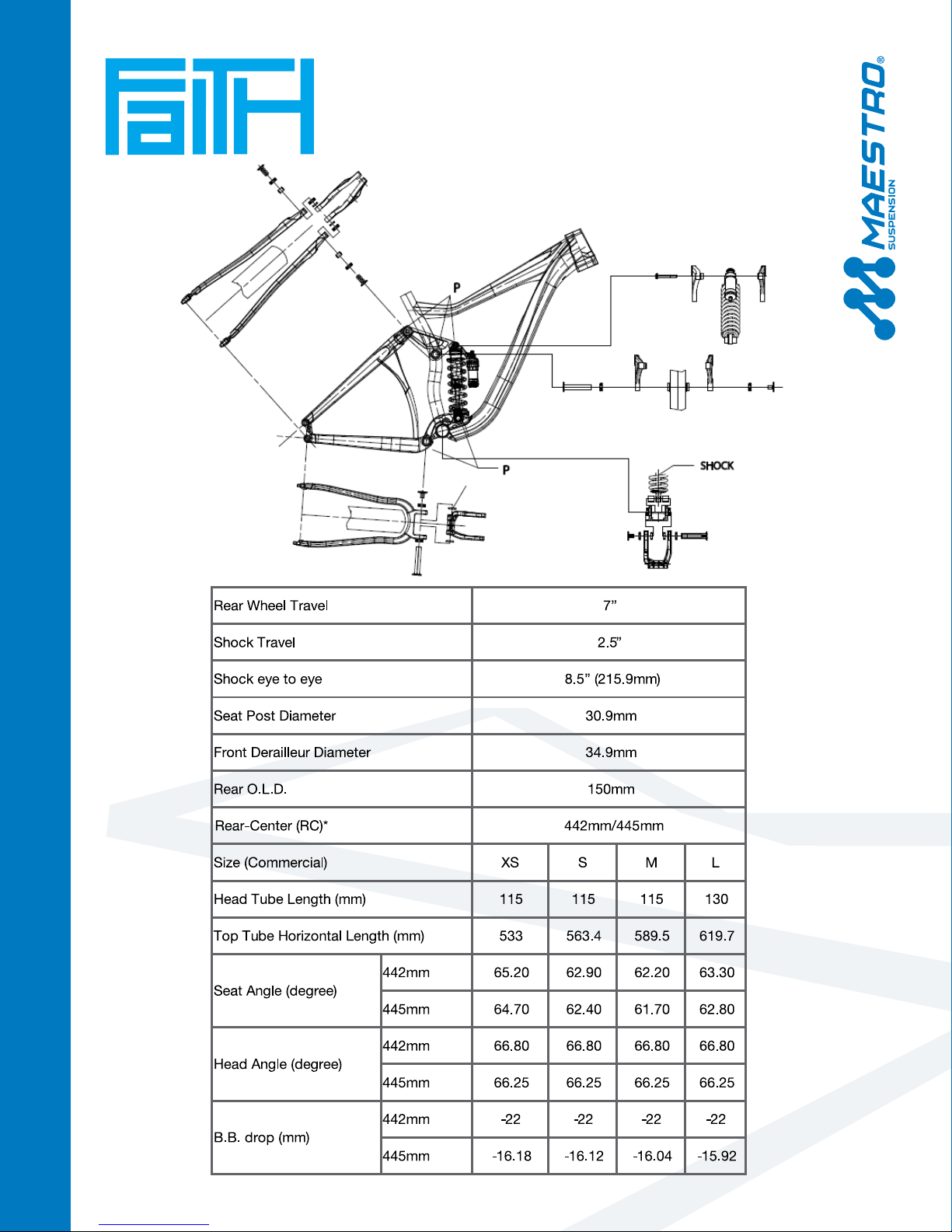

*NOTE: 2010 FAITH IS EQUIPPED WITH INTERCHANGEABLE

DROPOUTS TYPE 1: RC442 AND TYPE 2:RC445.

Torque for P: 120-150 KG- CM

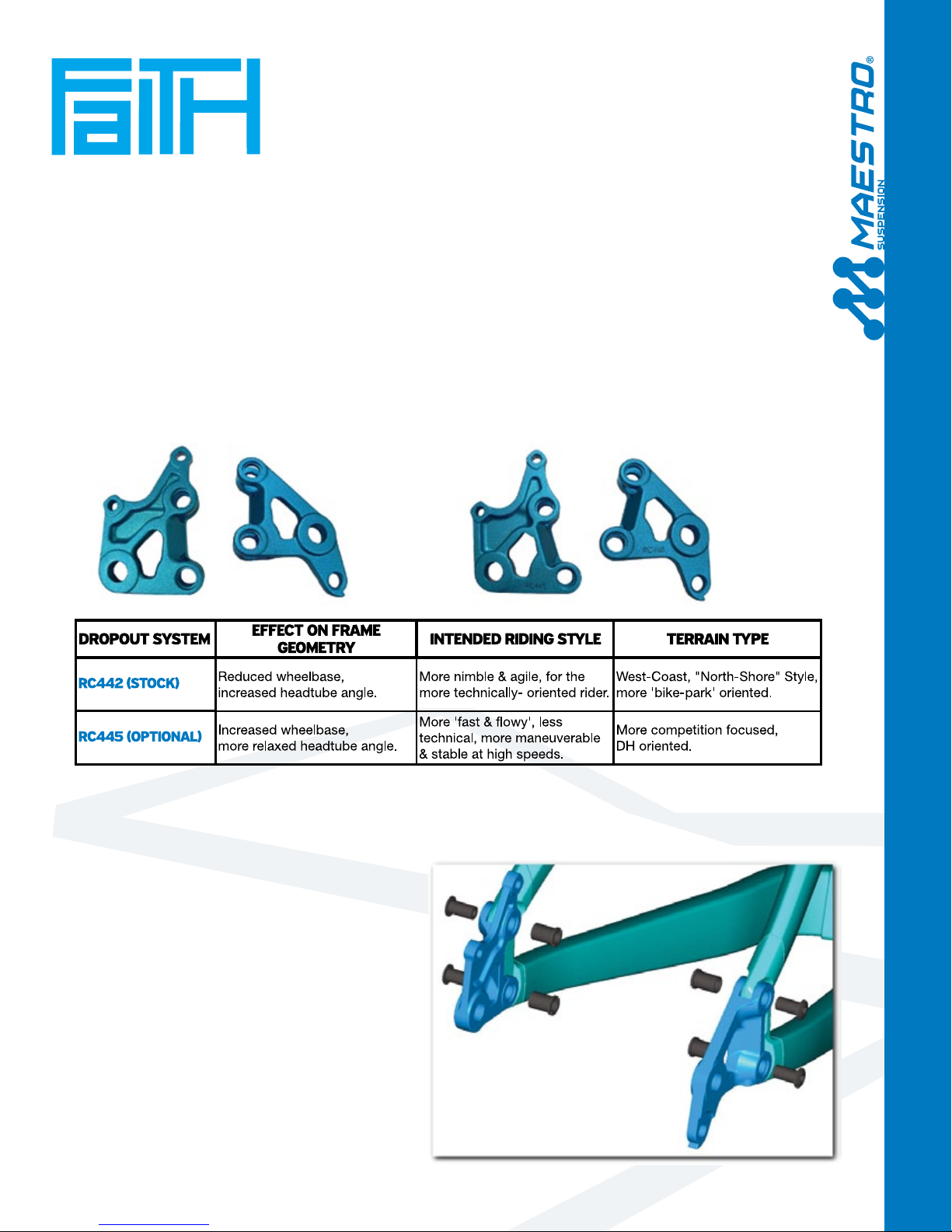

dropout swap guide

How to swap the dropout from Type 1 to Type 2

The dropout on the 2010 FAITH is

uniquely designed to be interchangeable

for improved versatility.

Designed with the direct input of Giant

Pro Freerider, Kurt Sorge, and exclusive to

the 2010 FAITH, this rear dropout system

allows riders to change the bike’s

wheelbase and headtube angle, resulting

in a completely different frame geometry.

Step 1: Use a 5mm Allen key to remove

the rear derailleur from the dropout.

Step 2: Use a 6mm Allen key and 19mm

wrench to remove the thru axle.

Step 3: Use a 5 mm Allen key to remove

the upper and lower dropout mounting

bolt (2 pieces).

Step 4: Install the Type 2 dropout and

tighten to the recommended torque of

80-100 kgf/cm (69-86 in.-lbs).

NOTE: use Loctite Primer and Loctite Blue

Removeable Threadlock, or similar material, on

the threads of the dropout mounting bolts.

Step 5: Clean the threads of the rear

derailleur and thru axle, and reinstall them

to the new dropout.

REQUIRED TOOLS:

--5 mm and 6 mm allen keys

--19 mm wrench

--loctite primer (#7649)

--loctite blue (#242)

Ultimately, it allows your customer to

custom-tune the FAITH’s ride

characteristics to suit their riding style and

terrain type.

Each FAITH comes packaged with two

types of dropouts. The FAITH ships pre-

built with the stock Type 1 dropout

(RC442) installed. You can swap this unit

out for a Type 2 dropout (RC445) system.

Type 1: RC 442 mm Type 2: RC 445 mm

233

service |Maestro Service Manual
