GigaBlue Quad 4K Manuale utente

Manual GIGaBLUe

DIGITAL MULTIMEDIA

RECEIVER

uHD QUAD

www.gigablue.de

Manual GIGaBLUeBox

Initiation

Dear Customer,

thank you have decided to purchase the one GigaBlue UHD Quad 4K.

This manual should help you to connect your GigaBlue box properly and to get to know the

numerous functions better.

The GigaBlue HD Quad Plus is a world first with a fast 2 x 1.7 GHz processor, 4GB of

memory, adapters and a color LCD screen; the possibilities of this multimedia box are very

extensive. They are reached by fast Gigabyte LAN in your private and external network the

highest performance. Furthermore, in software MediaPortal is integrated.

You can use the GigaBlue Box as your Web browser, photo archives, music archives, film

archive and many other functions.

You can adjust the GigaBlue box according to your wishes via plugin Service.

We hope you will enjoy reading the manual, and of course in the use of your GigaBlue UHD

Quad 4K.

Should a problem with your GigaBlue UHD Quad 4K occur please download

http://www.gigablue.de under down the service request form and fill it out completely.

Your Gigablue Team

GIGaBLUeHD Quad Plus

Contents

General Information _____________________ 4

Key Features ___________________________ 4

Safety Instructions _____________________ 5

Notes: Disposal ________________________ 6

Delivery content ________________________ 7

Remote Controls Functions _____________ 8

Front View ____________________________ 10

Rearpannel / Quad 4K__________________ 11

Installation____________________________ 12

Antenna and TV Equipment ____________ 12

TV Devices RCA / Component __________ 13

Start wizard 1_______________________ 14-22

Channel list install_____________________ 22

Turning on and off_____________________ 23

Program selection _____________________ 24

Volume / Audio selection_______________ 25

Sub channels__________________________ 26

TV Radio Switch_______________________ 26

Teletext _______________________________ 27

Subtitle _______________________________ 27

Program Information`s __________________ 28

Program Information’s EPG ____________29-31

Create Bouquet________________________ 31

Add channels _________________________ 32

Delete channels from the favorites list __ 34

Move channels from the favorites list ___ 35

Insert Marker __________________________ 36

Parental control______________________37-40

HDD Operation ________________________ 40

HDMI-CEC ____________________________ 43

Sleep-Timer ___________________________ 44

Language selection ____________________ 45

User mode ____________________________ 45

Time zone ____________________________ 47

Video settings _________________________ 47

Audio settings_________________________ 48

Video output __________________________ 48

Aspect ratios __________________________ 49

Color format___________________________ 49

AC3 Standard _________________________ 49

Network settings_____________________50-53

WLAN setting_______________________ 53-54

Factory reset __________________________ 55

Channel search ________________________55

Tuner Configuration (FBC) ____________ 56-61

Channel automatic scan _______________ 63

Channel search DVB-C ________________ 64

Channel search DVB-T/T2______________ 65

Rotor with USALS _____________________ 66

Manual Scan __________________________ 67

Fast scan _____________________________ 67

Unicable Configuration ________________ 68

Sat>IP ________________________________ 70

GigaBlue SERVER BOX________________ 71

SAT Finder____________________________ 72

Immediately Recording __________________73

EPG Recording ________________________74

Timer_________________________________75

Front panel____________________________ 76

LCD Skin______________________________76

LCD Clock_____________________________77

LED __________________________________77

Information____________________________ 77

Software Update GigaBlue Box ___________79

Software Update via Internet _____________80

Install Firmware ________________________83

Installing Extensions____________________83

PiP Picture in Picture ___________________84

Quad PiP Picture in Picture ______________85

Extensions ____________________________87

User Interface / Basic Settings____________88

Button allocation _______________________ 88

User Interface / Skin ____________________ 89

Weather_______________________________89

Position and Size_______________________89

Webbrowser GigaBlue Box_______________ 90

Web interface__________________________92

GigaBlue Player for Mobile devices________92

Problem-solving________________________93

Technical Specifications_________________94

Technical Specification ________________ 96

Universal Remote Control________________ 97

Universal Remote Control________________ 98

Installing the HDD ______________________ 99

Installing the Tuners ___________________ 100

General Information

You can view the GigaBlue Box numerous HD and SD programs,

are sent via satellite optional DVB-C / T. In this manual the installation of GigaBlue box and

the procedure for implementation will explains various functions. In addition, special

functions are explained in details which are available only at the box GigaBlue. So you can

use these functions optimally. The skin shown here is the default skin, in other skins only

the graphical user interface, but the function remains the same changes.

Key Features

• Fully compatible with MPEG-2/4 and DVB-S / S2

• Resolution: 20160p,1080p, 1080i, 720p, 576p, 576i

• Digital Audio with AC-3 support by SPDIF

• User-friendly, on-screen menu system Linux

• Various channel editing functions

(Favorites, Lock, Rename, Delete and Sort)

• Automatic search for newly added transponders

• (automatic network search)

• Easy and fast software upgrade via USB or Internet

• Timer function, automatic on / off with the appropriate setting of the function (once, daily,

weekly and monthly)

• Automatic system for moving bookmarked channels

• Electronic TV / Radio program (EPG)

• Video connectors: HDMI, RCA, COMPONENT

• RS-232

• Different switch types, LNB types and NTSC / PAL monitor types

• SCPC and MCPC receivable from C / Ku band satellite

• Multi LNB controlled by DiSEqC 1.0, 22 kHz

• Automatic PAL / NTSC conversion

• Last channel is automatically saved

• Play multimedia files like MP3, videos and pictures in HD quality

• PVR on HDD or Network

• Media Portal, Streaming

• Timeshift (time shifting)

• Plugin Service (extensions)

• HDMI CEC control

• PiP & Quad PiP (Picture in Picture)

• Built-in UPnP server / client

• Web Browser

• IP TV, IP Radio

General Information

This GigaBlue product was manufactured according to international safety standards.

Please read all safety and operating instructions before operating the product carefully and keep

all safety and operating instructions in your records.

Safety Instructions

• Setting up the GigaBlue Box

The GigaBlue Box may only be operated in closed rooms.

• Power supply: External power supply 12 V 4 A

Outlets, extension cords or the power adapter must not be overloaded, since the risk of electric

shock or fire could result.

• Liquids

The device must not come into contact with dripping or splashing. Do not place objects filled with

liquids such as vases or glasses on the instrument.

• Clean the GigaBlue Box

Before cleaning the GigaBlue Box from the power disconnect. No liquid or

Use aerosol cleaners. Clean the appliance only with a damp cloth

• Ventilation

the ventilation slots on the top of GigaBlue Box may not be covered, so that proper ventilation of

GigaBlue box is ensured. Direct

Sunlight and installation in addition to a heating add to the GigaBlue box damage.

• Connect the LNB's and TV

The GigaBlue box must be disconnected from the mains before you connect the LNB's or TV.

• Repair or replacement

Opening or removing the covers of the user to dangerous voltages or other hazards may be

suspended.

Repair or replacement may be carried out only by qualified technicians. Furthermore, void the

warranty, the user should make changes to the GigaBlue box.

General Information

Notes: Disposal

The GigaBlue Box packaging consists entirely of recyclable materials.

Perform these exclusively that for you in your state, appropriate system.

The GigaBlue Box may at end of life not be disposed of with normal household waste but must

be brought to a collection point for the recycling of electrical and electronic equipment.

The symbol on the product, the instruction manual or the packaging indicates.

The materials are recyclable according to their labeling.

By recycling, material recycling or other forms of utilizing old devices, you make an important

contribution to environmental protection.

Please ask where the disposal facility is requested from your local municipality.

Also make sure that the dead batteries of the remote control and electronic waste from entering

the household waste.

You are thereby making an important contribution to environmental protection.

General Information

Delivery content

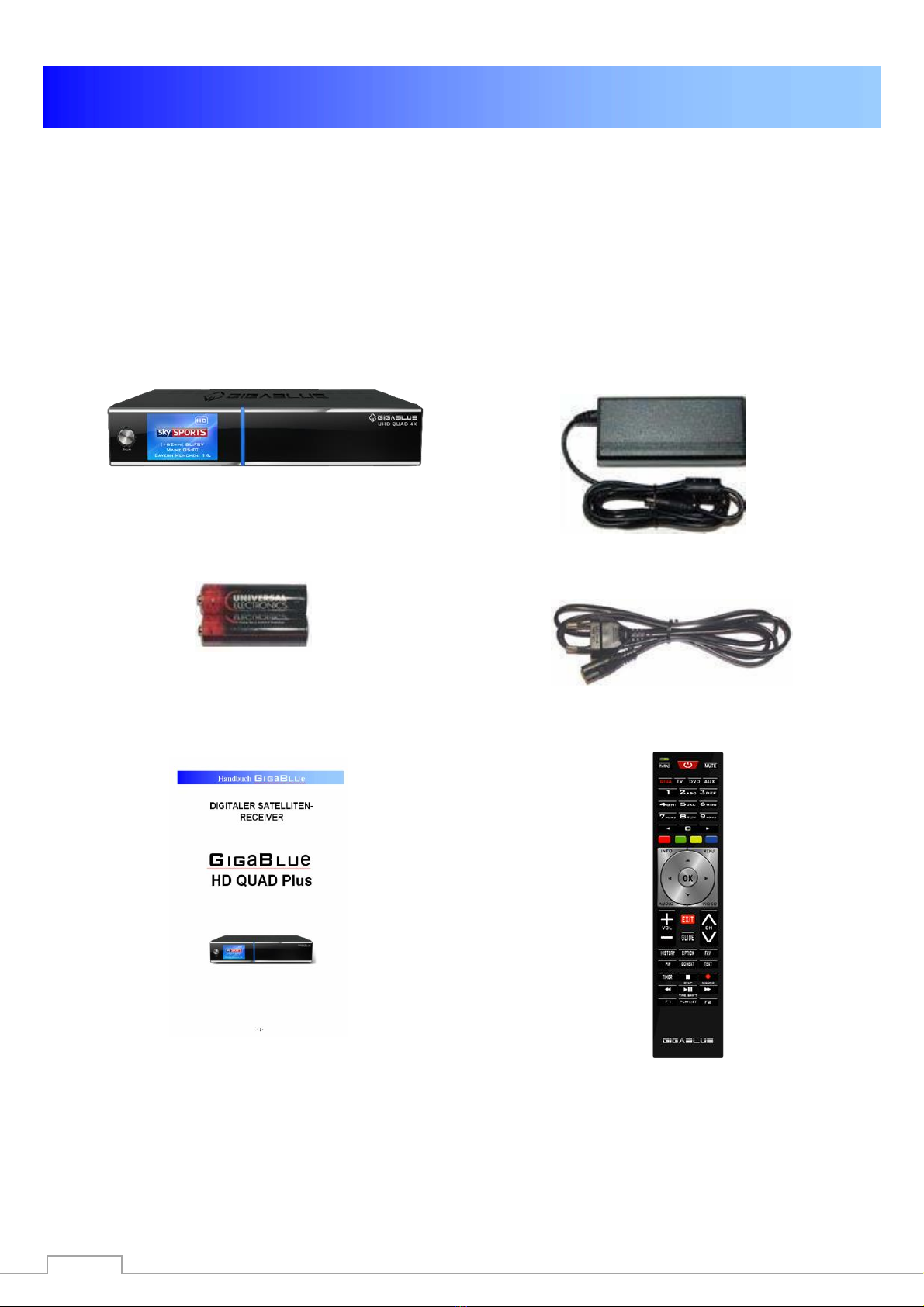

Please verify that you have received the GigaBlue box complete with all accessories.

•GigaBlue UHD Quad 4K

•Power supply and cord

•GigaBlue Remote Control

•User Manual

•Batteries

GigaBlue UHD Quad 4K

Power supply

2 Batteries Mignon 1,5 V 220 V Connection cable

User Manual

Remote Control

General Information

Remote Controls Functions

General Information

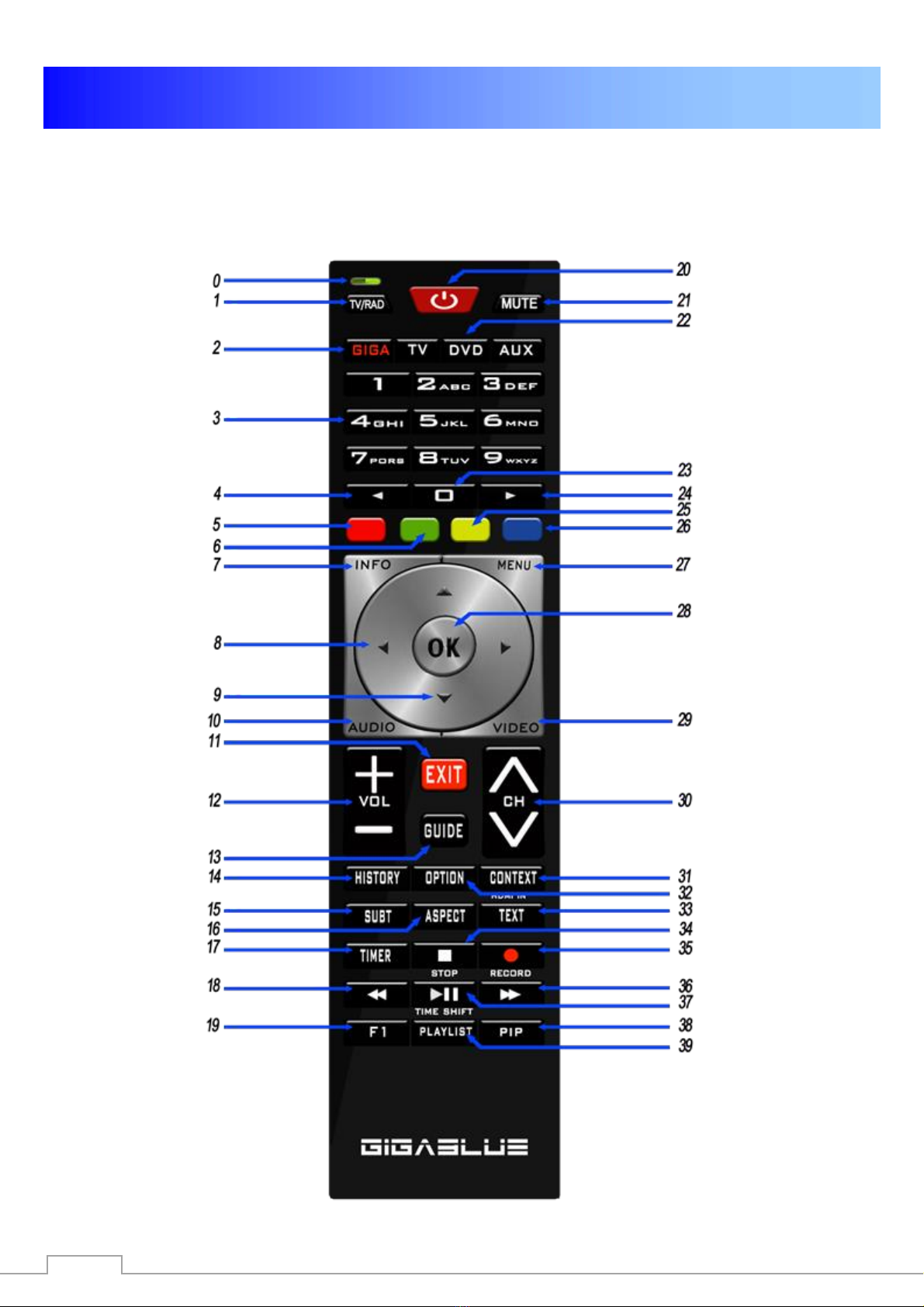

Remote Control Functions

1. Switching TV/Radio

2. Giga , TV, Aux, DVD

3. Number field

4. Numeric keypad ◄

5. Red function Button

6. Green function Button, Plugin/Save

7. Information on the receiving channel

8. Arrow button ◄ lift and ►right

9. Channel list button ▲+ ▼-

10. Select Audio button

11. Exit

12. Volume ▲+ ▼ -

13. EPG (Electronic Program Guide)

14. History button

15. Subtitels button

16. Aspect button

17. Timer button

18. Control button reverse ◄◄

19. Freely programmable button

20. Power on/off

21. sound on/off

22. Universal function TV/DVD/AUX

23. Go back to the previous channel 0

24. Numeric keypad ►

25. Timeshift start

26. Bluepannel button

27. Menü button

28. OK button

29. Video button

30. Program ▲+ ▼-

31. Context button

32. Option channels

33. Teletext / Virtuell keyboard

34. Stop button

35. Recording button

36. Control button forward ►►

37. Play / Pause Timeshift ►||

38. PiP button (Picture in Picture)

39. HDD Atchive button

40. Control Recording / Music

Caution: if GigaBlue remote GigaBlue Box not

operated, please press the button GIGA

General Information

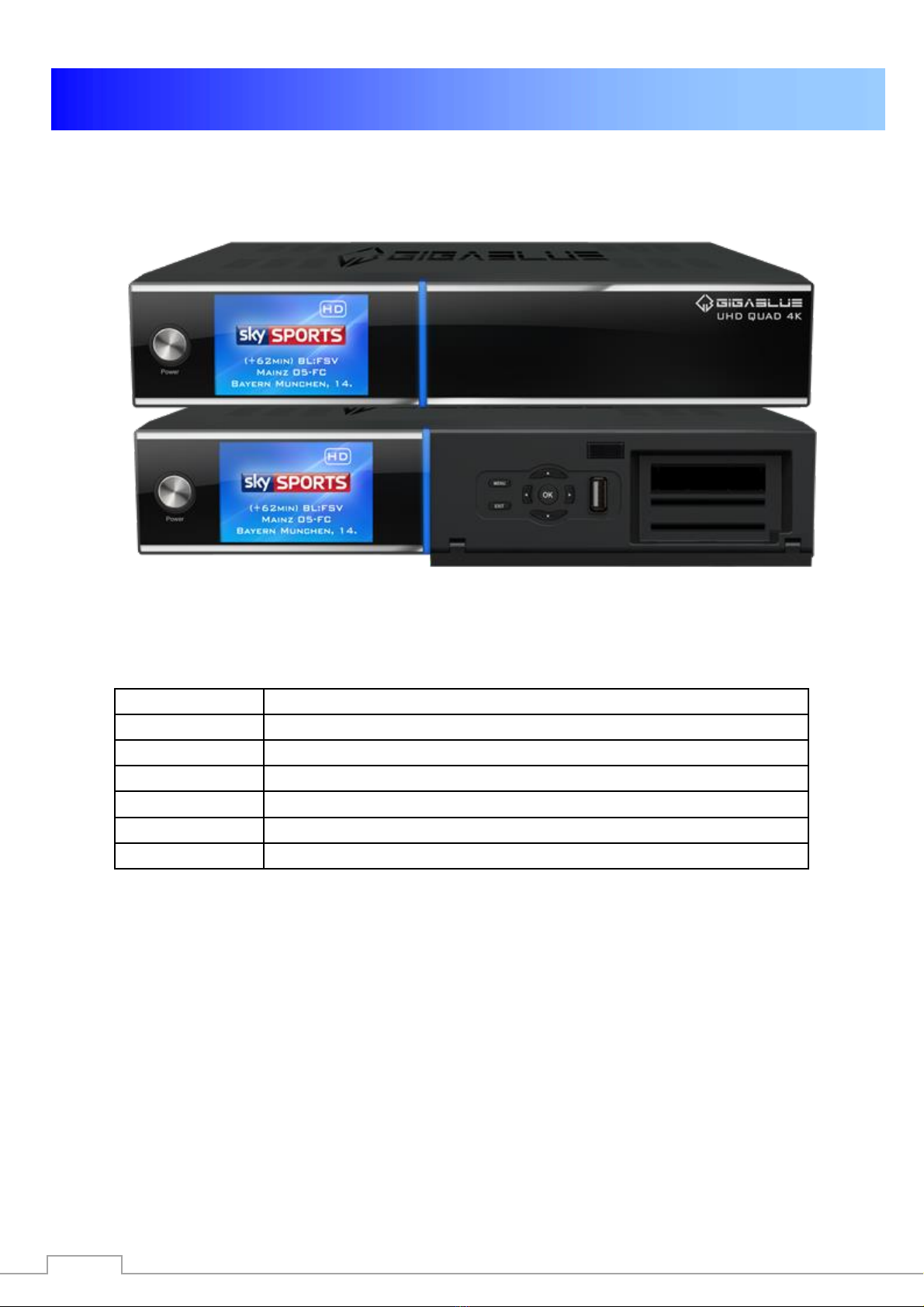

Front View

Power on/off

Turns GigaBlue box to standby

Opens the menu

Exit

Exits the menu / channel list

◄

A channel back / Navigate menu

►

A channel forward / Navigate menu

▲

Channel list Open / Navigating the Menu

▼

Channel list Open / Navigating the Menu

Indice

Altri manuali GigaBlue Ricevitore

GigaBlue

GigaBlue hd quad plus Manuale utente

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
