Gigabyte GP-ASACNE6800TTTDA Manuale utente

GP-ASACNE6800TTTDA/

GC-4XM2G4

Userʼs Manual

12WE6-4XM2G4-10AR

GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.

Also, to reduce the impacts on global warming, the packaging materials of this product are

recyclable and reusable. GIGABYTE works with you to protect the environment.

- 2 -

FAN

GC-4XM2G4

iTE®

Super I/O

M2_1

60 8042

M2_2 M2_3 M2_4

110

60 8042 110

M2_LED1/2/3/4

SW3

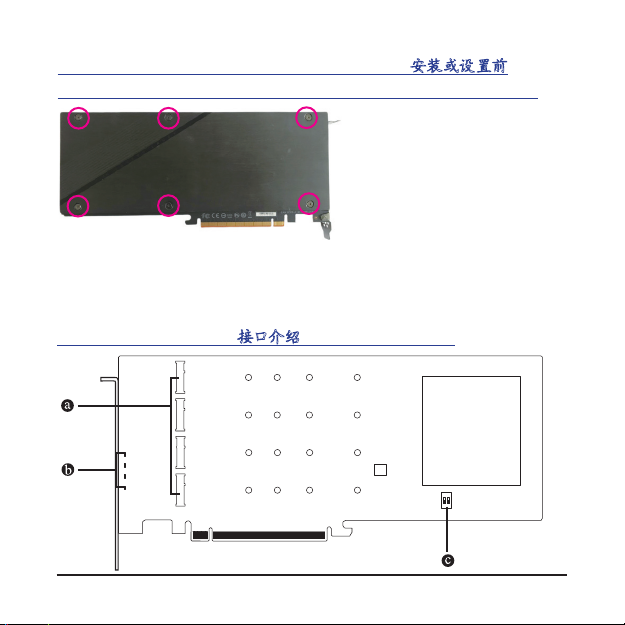

Unfasten the six screws fromthe backof the

adapter card witha screwdriver and then remove

the backplate.

請用螺絲起子卸下位於轉接卡背

面的六個螺絲，再將外殼移除。

请用螺丝起子卸下位于扩展卡背

面的六个螺丝，再将外壳移除。

ドライバーを使用してアダプター

カードの背面から6本のネジを外

し、

バックプレートを取り外します。

나사 드라이버로 어댑터 카드

뒷면에서 6 개의 나사를 풀고 후면

판을 제거하십시오.

Before Installting or Setting up• 安裝或設定前 • 安装或设置前

インストールまたはセットアップする前に •설치 또는 설정하기 전에

Connectors• 插座介紹 • 接口介绍 • コネクター • 커넥터

- 3 -

OFF

1 2

First Card/第一張卡 ON ON

Second Card/第二張卡 ON OFF

Third Card/第三張卡 OFF ON

M2_1/M2_2/M2_3/M2_4 (M.2 Socket 3 Connectors/M.2 Socket 3插座)

You can install M.2 PCIe SSDs in the connectors.

您可以安裝M.2 PCIe SSD至這些插座。

您可以安装M.2 PCI-E SSD至这些插槽。

コネクタに M.2 PCIe SSD をインストールできます。

커넥터에 M.2 PCIe SSD를설치할 수있습니다.

M2_LED1/23/4 (M.2 Activity Indicator LEDs/M.2 動作指示燈)

The LED blinks when your M.2 PCIe SSD is beingaccessed.

當M.2 PCle SSD有存取動作時指示燈即會亮起。

当M.2 PCI-E SSD有读写动作时指示灯就会亮起。

M.2 PCIe SSD にアクセスしているときに LED が点滅します。

M.2 PCIe SSD에액세스하면 LED가깜박입니다.

SW3

If you want to install more than one adapter card, make sure to follow the table below

to set the address priority for each card.

若您安裝兩張以上的轉接卡，請依照下表設定轉接卡的位址順序。

若您安装两张以上的扩展卡，请依照下表设置扩展卡的位置顺序。

複数のアダプタカードをインストールする場合は、以下の表に従って、各カ

ードのアドレス優先度を設定してください。

두개이상의 어댑터 카드를 설치하려면 아래 표를 따라 각카드의 주소 우선

순위를 설정하십시오.

- 4 -

產品規格

介面 PCI Express x16插槽，支援x16或x8運作規格(如安裝在x8

運作規格的插槽，僅支援M2_1/M2_2插座)

LED 4 個M.2 動作指示燈

儲存設備介面 4個M.2插座(支援Socket3，M key，type 2242/2260/2280/22110

PCIe x4 SSD)

支援RAID 0、RAID 1及RAID 10功能 (註一)

M.2 儲存設備 4個M.2 2TB Gen4 SSD (註二)

尺寸 26.2cmx 11.5cm

(註一) 支援RAID的模式，可能依使用平台而不同。

(註二) 只有GP-ASACNE6800TTTDA提供此設備。

Product Specications

Interface PCI Express x16, compatible withPCI Express x16 and x8 slots

(If the adpater card is installed in a x8 slot, only the M2_1 and

M2_2 connectors can be used.)

LED 4 x M.2 activity LEDs

Storage Interface 4 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110

PCIe x4 SSD support)

Support for RAID 0, RAID 1, and RAID 10 (Note 1)

M.2 Storage 4 x M.2 2TB Gen4 SSDs (Note 2)

Dimension 26.2cm x 11.5cm

(Note 1) Supported RAID levels vary by platform.

(Note 2) Included only withthe GP-ASACNE6800TTTDA model.

- 5 -

产品规格

接口 PCI-E x16插槽，支持x16或x8运行规则（如安装在x8运行

规格的插槽，仅支持M2_1/M2_2插槽）

LED 4个M.2动作指示灯

存储设备接口 4个M.2插槽(支持Socket3，M key，type2242/2260/2280/22110

PCIe x4 SSD)

支持RAID 0、RAID 1及RAID 10功能 (注一)

M.2 存储设备 4个M.2 2TB Gen4 SSD (注二)

尺寸 26.2cmx 11.5cm

(注一) 支持RAID的模式，可能依使用平台而不同。

(注二) 只有GP-ASACNE6800TTTDA提供此设备。

製品の仕様

インター

フェイス

PCI Express x16、PCI Express x16 および x8 スロットと互換

性があります

（アダプタカードが x8 スロットに取り付けら

れている場合、M2_1 および M2_2 コネクタのみを使用で

きます

。）

LED 4 x M.2 アクセス LED

ストレージ

インター

フェイス

4xM.2

コネクタ

（ソケット3、Mキー、

タイプ2242/2260/2280/22110

PCIe x4 SSD 対応）

RAID 0、RAID 1、

および RAID 10 対応 (注1)

M.2 ストレージ 4 x M.2 2TB Gen4 SSD (注2)

サイズ 26.2cmx 11.5cm

(注1) 対応する RAID レベルはプラットフォームによって異なります。

(注2) GP-ASACNE6800TTTDA モデルにのみ含まれています。

- 6 -

제품 사양

인터페이스 PCI Express x16 및x8 슬롯과 호환되는 PCI Express x16

인터페이스(Adpater 카드가 x8 슬롯에 설치된 경우 M2_1 및

M2_2 커넥터 만사용할 수있습니다.)

LED M.2 작동 LED 4 개

저장 장치

인터페이스

4 개의 M.2 커넥터 (소켓 3, M 키, 2242/2260/2280/22110 유형

PCIe x4 SSD 지원)

RAID 0, RAID 1 및RAID 10 지원 (주1)

M.2 저장 장치 M.2 2TB Gen4 SSD 4 개(주2)

치수 26.2cmx 11.5cm

(주1) 지원되는 RAID 레벨은 플랫폼에 따라 다릅니다.

(주2) GP-ASACNE6800TTTDA 모델에만 포함됩니다.

- 7 -

Step 1:

Remove the M.2 protective films from the

heatsink cover and adapter card as indicated.

步驟一：

請先撕除外殼及轉接卡上的M.2 導熱片

保護膜。

步骤一：

请先撕除外壳及转接卡上的M.2导热垫

保护膜。

ステップ1:

示されているように、

ヒートシンクカバーと

アダプターカードから M.2 保護フィルムを

取り外します。

1 단계:

표시된대로 방열판 덮 개 및어댑터

카드에서 M.2 보호 필름을 제거하십시오.

(Note) For the GC-4XM2G4 only.

(註) 只有GC-4XM2G4需要此步驟。

(注) 只有GC-4XM2G4需要此步骤。

(注) GC-4XM2G4 のみ。

(주) GC-4XM2G4 만해당됩니다.

Installing an M.2 SSD (Note)• 安裝M.2 SSD (註) • 安装M.2 SSD (注)•M.2 SSD

のインストール (注) • M.2 SSD 설치 (주)

- 8 -

Step 2:

Use a screw driver to unfasten the screw

and standoff. Locate the proper mounting

hole for the M.2 SSD to be installed and

then screw the standoff rst. Then slide it

into the connector at an angle.

步驟二：

請用螺絲起子依序將螺絲和螺柱

拆下，依實際要安裝的M.2 SSD規

格找到適合螺絲孔位之後，先鎖

上螺柱，再將M.2 SSD以斜角方式

放入插座。

步骤二：

请用螺丝起子依序将螺丝和螺柱

拆下，依实际要安装的M.2 SSD规

格找到适合螺丝孔位之后，先锁

上螺柱，再将M.2 SSD以斜角方式

放入插槽。

ステップ2:

ドライバーを使用して、

ネジとネジ受け

を外します。取り付ける M.2 SSD の適切

な取り付け穴を見つけ、最初にネジ受け

をねじ込みます。次に、M.2 SSD を斜めに

コネクタへ差し込みます。

2 단계:

나사 드라이버를 사용하여 나사와 스탠드

오프를 풉니 다.M.2 SSD를설치할 올바른

장착 구멍을 찾은 다음 먼저 스탠드

오프를 조입니다.그런 다음 커넥터에

비스듬히 밀어 넣으십시오.

- 9 -

Step 3:

Press the M.2 SSD down and then secure it

with the screw.

步驟三：

壓住M.2 SSD之後，再將螺絲鎖上。

步骤三：

压住M.2 SSD之后，再将螺丝锁上。

ステップ3：

M.2 SSD を押し下げてから、

ネジで固定し

ます。

3 단계:

M.2 SSD를아래로 누른 다음 나사로

고정하십시오.

- 10 -

Regulatory Notices

United States of America, Federal Communications Commission Statement

Supplier's Declaration of Conformity

47 CFR § 2.1077 Compliance Information

Product Name: PCIe add in card

Trade Name: GIGABYTE

Model Number: GP-ASACNE6800TTTDA / GC-4XM2G4

Responsible Party – U.S. Contact Information: G.B.T. Inc.

Address: 17358 Railroad street, City Of Industry, CA91748

Tel.: 1-626-854-9338

Internet contact information: https://www.gigabyte.com

FCC Compliance Statement:

This device complies with Part 15 of the FCC Rules, Subpart B, Unintentional Radiators.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio

Interference Regulations of the Canadian Department of Communications. This class B digital apparatus complies with Canadian

ICES-003.

Avis de conformité à la réglementation d'Industrie Canada

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

European Union (EU) CE Declaration of Conformity

This device complies with the following directives: Electromagnetic Compatibility Directive 2014/30/EU, Low-voltage Directive

2014/35/EU, RoHS directive (recast) 2011/65/EU & the 2015/863 Statement. This product has been tested and found to comply

with all essential requirements of the Directives.
