B450M K

User's Manual

Rev. 1001

For more product details, please visit GIGABYTE's website.

https://www.gigabyte.com/Motherboard/B450M-K-rev-10?m=ma#kf

GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.

Also, to reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

For detailed product information, carefully read the User's Manual.

For quick set-up of the product, refer to the Quick Installation Guide on GIGABYTE's

website.

https://download.gigabyte.com/FileList/Manual/mb_manual_installation-guide_103.pdf?m=sw

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Box Contents.................................................................................................... 5

Chapter 2 Hardware Installation .....................................................................................6

2-1 Installation Precautions.................................................................................... 6

2-2 Product Specications...................................................................................... 7

2-3 Installing the CPU .......................................................................................... 10

2-4 Installing the Memory..................................................................................... 11

2-5 Installing an Expansion Card ......................................................................... 12

2-6 Back Panel Connectors.................................................................................. 13

2-7 Internal Connectors........................................................................................ 15

Chapter 3 BIOS Setup ..................................................................................................24

Chapter 4 Installing the Operating System and Drivers................................................26

4-1 Operating System Installation ........................................................................ 26

4-2 Drivers Installation.......................................................................................... 27

Chapter 5 Appendix ......................................................................................................28

5-1 Conguring a RAID Set.................................................................................. 28

Regulatory Notices.................................................................................................... 29

Contact Us ................................................................................................................ 30

- 4 -

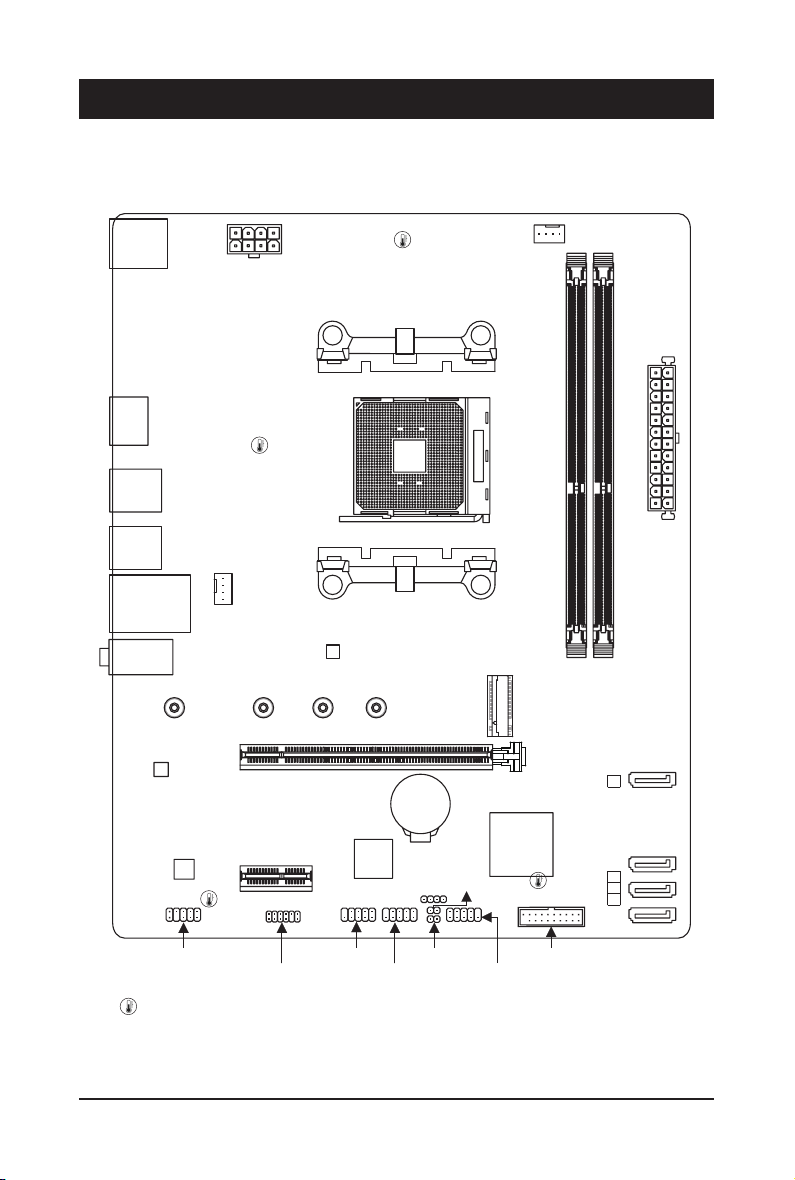

1-1 Motherboard Layout

Chapter 1 Product Introduction

Temperature sensor

KB_MS CPU_FAN

SYS_FAN1

ATX

B450M K

AUDIO

DDR4_2

DDR4_1

BAT

ATX_12V

AMD

B450

R_USB30_1

HDMI

CODEC

M_BIOS

PCIEX16

PCIEX1 iTE®

Super I/O

Realtek®

GbE LAN

F_USB30

SPEAKER

F_USB1 F_PANEL

F_USB2F_AUDIO

SATA3

012

USB_LAN

Socket AM4

R_USB30_2

CLR_CMOS

TPM

M2F_32G

80 60 42110

SATA3

- 5 -

1-2 Box Contents

5B450M K motherboard

5User's Manual

5One SATA cable

5I/O Shield

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

- 6 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

Chapter 2 Hardware Installation

- 7 -

2-2 ProductSpecications

CPU AMD Socket AM4, support for:

AMD Ryzen™5000 Series Processors/

AMD Ryzen™5000 G-Series Processors/

AMD Ryzen™4000 G-Series Processors/

3rd Generation AMD Ryzen™processors/

2nd Generation AMD Ryzen™processors/

1st Generation AMD Ryzen™processors/

2nd Generation Ryzen™with Radeon™Vega Graphics processors/

1st Generation Ryzen™with Radeon™Vega Graphics processors/

Athlon™with Radeon™Vega Graphics Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset AMD B450

Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for DDR4 2667 (Note 1)/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version, HDCP 2.2, and HDR.

Maximum shared memory of 16 GB

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To

congure 7.1-channel audio, access the audio software for audio settings.

LAN Realtek®GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots CPU:

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (Note 1)

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and

PCIe 3.0 x4/x2 (Note 2) SSD support)

* Refer to "2-7 Internal Connectors," for the installation notices for the M.2 connector.

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

(Note 1) Actual support may vary by CPU.

(Note 2) Supports only M.2 SATA SSDs when using an Athlon™with Radeon™Vega Graphics Processors.

- 8 -

USB CPU:

- 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through

the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S

module only)

1 x speaker header

1 x Clear CMOS jumper

1 x chassis intrusion header

Back Panel

Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x HDMI 2.0 port

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1 x 128 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

- 9 -

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

- @BIOS

- EasyTune

- Smart Backup

- System Information Viewer

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

LAN bandwidth management software

Operating

System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Support for Windows 7 64-bit

* Please download the "Windows USB Installation Tool" from GIGABYTE's website

and install it before installing Windows 7.

Form Factor Micro ATX Form Factor; 24.4cm x 19.5cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

&Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices.

https://www.gigabyte.com/Motherboard/B450M-K-rev-10?m=dl#support-dl

&Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest version

of apps.

https://www.gigabyte.com/Support/Utility/Motherboard?m=ut

- 10 -

2-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

Installing the CPU

Completely lift up the CPU socket locking lever. Locate the pin one (denoted by a small triangle) of the CPU

socket and the CPU. Once the CPU is positioned into its socket, place one nger down on the middle of the

CPU, lowering the locking lever and latching it into the fully locked position.

Do not force the CPU into the CPU socket before the CPU socket locking lever is lifted up, or

damage to the CPU and CPU socket may occur.

&Please visit GIGABYTE's website for details on hardware installation.

http://www.gigabyte.com/WebPage/210/quick-guide.html?m=sw

AM4 CPU

A Small Triangle Marking

Denotes CPU Pin One

AM4 CPU Socket

A Small Triangle Marking

Denotes Pin One of the Socket

Completely lift up the

CPU socket locking lever

Indice

Altri manuali Gigabyte Hardware per computer

Gigabyte

Gigabyte GSmart MD800 Manuale utente

Gigabyte

Gigabyte R133-X11-AAB1 Manuale utente

Gigabyte

Gigabyte GH-ESB21-TH Manuale utente

Gigabyte

Gigabyte 3D Galaxy II GH-WIU02 Manuale utente

Gigabyte

Gigabyte GC-CI11M-B Manuale utente

Gigabyte

Gigabyte GC-WBAX2400M Manuale utente

Gigabyte

Gigabyte Z690 AORUS ELITE STEALTH Manuale utente

Gigabyte

Gigabyte GA-K8NS Ultra-939 Manuale utente

Gigabyte

Gigabyte GC-MAPLE RIDGE Manuale utente

Gigabyte

Gigabyte MC13-LE0 Manuale utente

Gigabyte

Gigabyte AORUS LIQUID COOLER Series Manuale utente

Gigabyte

Gigabyte A520M K Manuale utente

Gigabyte

Gigabyte U8300 Manuale utente

Gigabyte

Gigabyte GT-U7200 Manuale utente

Gigabyte

Gigabyte GP-ASACNE6800TTTDA Manuale utente

Gigabyte

Gigabyte GC-TITAN RIDGE 2.0 Manuale utente

Gigabyte

Gigabyte 3D Cooler Ultra Manuale utente

Gigabyte

Gigabyte GT-U7000-RH Manuale utente

Gigabyte

Gigabyte GC-WBAX210 Manuale utente

Gigabyte

Gigabyte GA-8I915G Duo Manuale utente

Gigabyte

Gigabyte GN-WIAG02 Manuale utente

Gigabyte

Gigabyte GSmart MD800 Manuale utente

Gigabyte

Gigabyte GH-PCU23-VE Manuale utente

Gigabyte

Gigabyte Z590M GAMING X Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente

Advantech

Advantech ASMB-935 Series Manuale utente
