Gigabyte GA-K8NS Ultra-939 Manuale utente

GA-K8NS Ultra-939

User's Manual

AMD Socket 939 Processor Motherboard

Rev. 1002

12ME-K8NSU939-1002

without the expressed, written permission of GBT.

Trademarks

Third-party brands and names are the property of their respective owners.

Notice

Please do not remove any labels on motherboard, this may void the warranty of this motherboard.

Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.

The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a

commitment to update the information contained herein.

Oct. 7, 2004

Mother Board

GA-K8NS Ultra-939

Motherboard

Oct. 7, 2004

GA-K8NS Ultra-939

- 4 -GA-K8NS Ultra-939 Motherboard

English

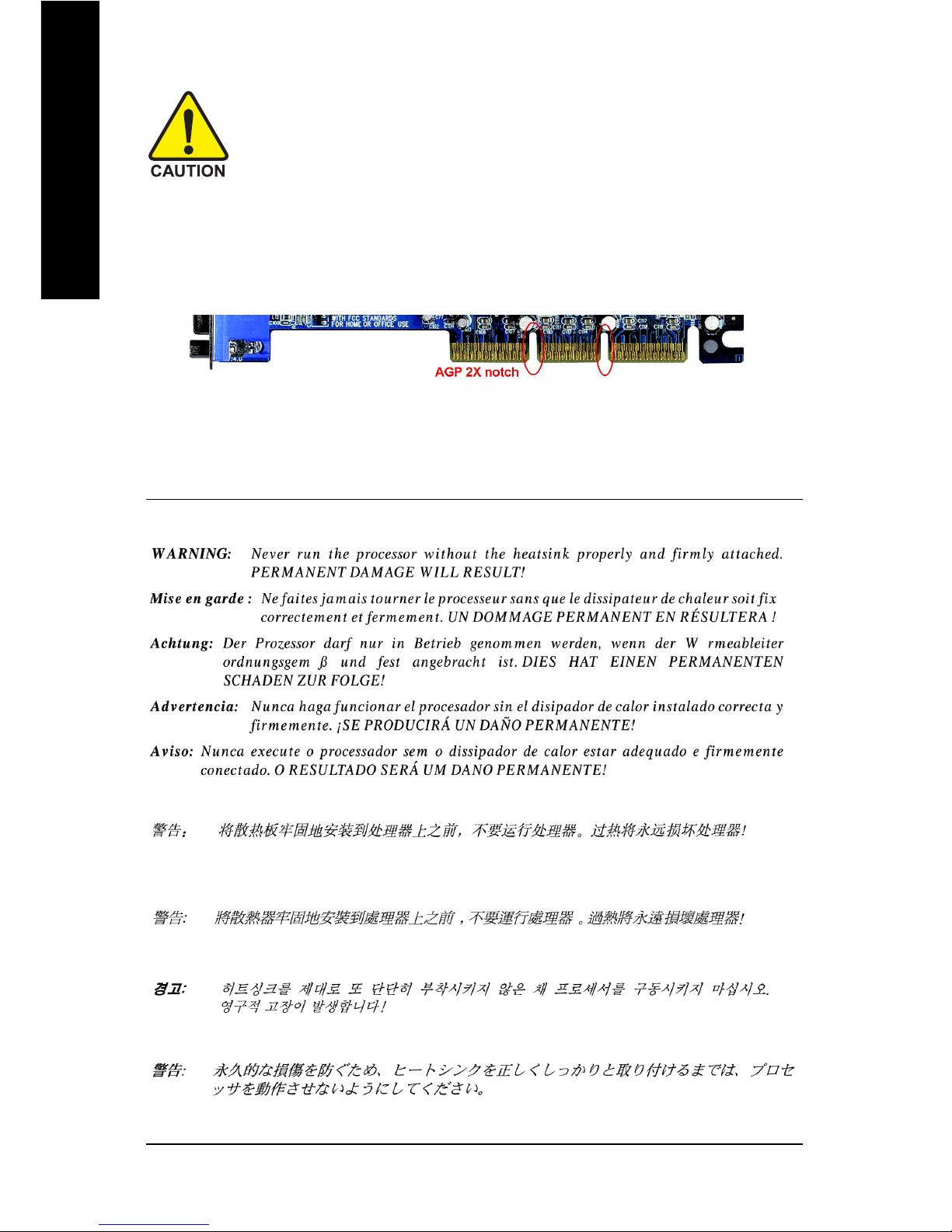

When you installing AGP card, please make sure the following notice is fully understood and

practiced. If your AGP card has "AGP 4X/8X (1.5V) notch" (show below), please make sure

your AGP card is AGP 4X/8X.

Caution: AGP 2X card is not supported by nVIDIA®nForce3TM Ultra. You might

experience system unable to boot up normally. Please insert an AGP 4X/8X card.

AGP 4X/8X notch

Read Me First!

English

- 5 -

Prepare your computer...

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow some precautions whenever you

work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have one,

touch both of your hands to a safely grounded object or to a metal object, such as the power

supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or other

components.

4. Place components on a grounded antistatic pad or on the bag that came with the components

whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX power

connector on the motherboard.

Installing the motherboard to the chassis...

If the motherboard has mounting holes, but they don't line up with the holes on the base and there

are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the

mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so

be careful of your hands). In this way you can still attach the motherboard to the base without worrying

about short circuits. Sometimes you may need to use the plastic springs to isolate the screw from the

motherboard PCB surface, because the circuit wire may be near by the hole. Be careful, don't let the

screw contact any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it

may damage the board or cause board malfunctioning.

- 6 -GA-K8NS Ultra-939 Motherboard

English

Table of Contents

Read Me First! ........................................................................................ 4

Chapter 1 Introduction ............................................................................ 8

Features Summary ...................................................................................... 8

GA-K8NS Ultra-939 Motherboard Layout ................................................. 10

Block Diagram ........................................................................................... 11

Chapter 2 Hardware Installation Process ............................................. 13

Step 1: Install the Central Processing Unit (CPU)..................................... 14

Step 2: Install Memory Modules ................................................................ 16

Step 3: Install Expansion Cards ................................................................ 18

Step 4: Install I/O Peripherals Cables ....................................................... 19

Step 4-1: I/O Back Panel Introduction............................................................................ 19

Step 4-2: Connectors Introduction .................................................................................. 21

Chapter 3 BIOS Setup ......................................................................... 35

The Main Menu (For example: BIOS Ver. : E1) ........................................ 36

Standard CMOS Features......................................................................... 38

Advanced BIOS Features .......................................................................... 40

Integrated Peripherals ............................................................................... 42

Power Management Setup ....................................................................... 46

PnP/PCI Configurations ............................................................................. 48

PC Health Status........................................................................................ 49

MB Intelligent Tweaker(M.I.T.).................................................................. 50

Table of Contents

English

- 7 -

Top Performance ...................................................................................... 51

Select Language ....................................................................................... 51

Load Optimized Defaults ........................................................................... 52

Set Supervisor/User Password .................................................................. 52

Exit Without Saving .................................................................................... 53

Save & Exit Setup ....................................................................................... 53

Chapter 4 Technical Reference ........................................................... 55

@BIOSTM Introduction ............................................................................... 55

Flash BIOS Method Introduction ............................................................... 56

2- / 4- / 6- / 8- Channel Audio Function Introduction ................................. 63

Jack-Sensing and UAJ Introduction .......................................................... 69

Xpress Recovery Introduction ................................................................... 71

Serial ATA BIOS Setting Utility Introduction ............................................... 74

Chapter 5 Appendix ............................................................................. 81

- 8 -

GA-K8NS Ultra-939 Motherboard

English

CPU ySocket 939 for AMD Althlon™64 / 64FX processor (K8)

y2000MHz system bus

ySupports core frequencies in excess of 3000+ and faster

Chipset ynVIDIA®nForce3TM Ultra

Memory y4 184-pin DDR DIMM sockets, support up to 4GB DRAM (Max.)(Note 1)

ySupports Dual Channel DDR400/333/266/200 DIMM

Slots y1 AGP slot supports 8X/4X(1.5V) mode

y5 PCI slots

IDE Connections y2 IDE connection (UDMA 33/ATA 66/ATA 100/ATA 133),

allows connection of 4 IDE devices

FDD Connections y1 FDD connection, allows connection of 2 FDD devices

Onboard SATA y4 Serial ATA connectors

y2 ports from nVIDIA®nForce3TM Ultra controller (SATA0_SB, SATA1_SB);

2 ports from SiI3512 controller (SATA0_SII, SATA1_SII)

Peripherals y1 parallel port supporting Normal/EPP/ECP mode

y2 Serial ports (COMA & COMB)

y8 USB 2.0/1.1 ports (rear x 4, front x 4 via cable)

y3 IEEE1394b ports (requires cable)

y1 front audio connector

y1 IrDA connector for IR/CIR

y1 PS/2 keyboard port

y1 PS/2 mouse port

Onboard LAN yOnboard Marvell 8001 chip (10/100/1000 Mbit) (LAN1)

yOnboard ICS 1883 chip (10/100 Mbit)(LAN2)

y2 RJ45 ports

to be continued...

Chapter 1 Introduction

Features Summary

(Note 1) Due to standard PC architecture, a certain amount of memory is reserved for system usage

and therefore the actual memory size is less than the stated amount. For example, 4 GB of

memory size will instead be shown as 3.xxGB memory during system startup.

Introduction

English

- 9 -

OnboardAudio yALC850 CODEC (UAJ)

ySupports Jack Sensing function

ySupports 2 / 4 / 6 / 8 channel audio

ySupports Line In/ Line Out/ MIC connection

ySurround Back Speaker (by optional Surround-Kit)

ySPDIF In / Out

yCD In / Game connector

Onboard SATA RAID yOnboard nVIDIA®nForce3TM Ultra chipset

(SATA0_SB, SATA1_SB) ySupports data striping (RAID 0) or mirroring (RAID 1) function

ySupports data transfer rate of up 150 MB

ySupports a maximum of 2 SATA connections

On-Board SATA RAID yOnboard Silicon Image SiI3512 chipset

(SATA0_SII, SATA1_SII) ySupports data striping (RAID 0) or mirroring (RAID 1) function

ySupports data transfer rate of up 150 MB

ySupports hot plugging function

ySupports a maximum of 2 SATA connections

I/O Control yIT8712

Hardware Monitor yCPU / System / Power fan speed detection

yCPU / System / Power fan failure warning

yCPU temperature detection

yCPU warning temperature

ySystem voltage detection

yCPU smart fan control

yThermal shutdown function

BIOS yUse of licensed AWARD BIOS

ySupports Dual BIOS/Q-Flash, Multi-Language BIOS

Additional Features ySupports @BIOS

ySupports EasyTune

Overclocking yOver voltage via BIOS (CPU/DDR/AGP/HT-Link)

yOver clock via BIOS (CPU/AGP)

Form Factor yATX size form factor; 30.5cm x 24.4cm

- 10 -GA-K8NS Ultra-939 Motherboard

English

nVIDIA®

nForce™3

Ultra

CD_IN

GA-K8NS Ultra-939

KB_MS

COMB

LPT

USB

LAN1

(Gigabit

Ethernet)

ATX_12V

SOCKET 939

CPU_FAN

IDE1

IDE2

DDR2

COMA

PWR_LED

BAT

PCI1

PCI2

PCI3

F_USB1

IT8712

MAIN

BIOS

CODEC

PWR_FAN

DDR3

PCI4

PCI5

GAME

F_AUDIO

BACKUP

BIOS

SiI3512

SATA1_SII

RAM_LED

ATX

IR_CIR

NB_FAN

DDR1

SPDIF_IO

SUR_CEN

2X_DET

AUDIO

F_PANEL

F1_1394

INFO_LINK

AGP

USB

LAN2

(10/100)

FDD

SATA0_SII

ICS1883

TSB82AA2

F2_1394

Marvell

8001

TSB81BA3

F_USB2

CLR_CMOS

DDR4

SATA0_SB SATA1_SB

SYS_FAN

GA-K8NS Ultra-939 Motherboard Layout
