Gigabyte U8300 Manuale utente

U8300

USB Hybrid TV Dongle

User's Manual

English

Deutsch

Français

Español

Русский

Türkçe

Polski

Česky

Português

English

- 2 -

Chapter 1 Introduction

Thanks for your purchasing. It is highly recommended that you check all the functions

that the device supports carefully before using the program. This manual will guide you

through the essential information of how to use this application program.

VIVOTM is a multi-functional, graphical and easy-to-use application software that offers

you the most comprehensive multimedia entertainment enjoyment. Please notice that

the multimedia functions may vary depending on the product you purchased.

1.1Software Features

●It’s a multi-functional, graphical software application program that consumes less RAM

space and CPU capacity.

●Time-shifting: Any programs can be paused and continued whenever you want.

●PIP/POP (Picture-In-Picture/Picture-Out-Picture): You can watch different TV

programs simultane-ously by multi-displays and drag/adjust screens.

●It supports multi-viewing of programs/channels (programs/channels must be from the

same stream/TV service provider)

●It supports 3x3, 4x4, 5x5, L Type and Circle Type multi-channel preview.

●It supports schedule-recording function to record your favorite TV shows.

●It supports analog recording in MPEG1, MPEG2, MPEG4, H.264, PSP, and IPod

formats

●It supports Digital Zoom in Original, 2X, 3X and 4X

●Adjustments in viewing windows: Full Screen, Sizable Screen and Borderless Screen

●It supports Program stream (PS) and Transport stream (TS) digital recording format.

●It supports decoding of digital TV for HDTV and H.264

English

- 3 -

1. Please select the device type (e.g.

digital, analog or hybrid) you purchased

and click “Next”.

2. Select the signal source (the signal

strength may vary depending on the

product you purchased and the area you

live), and click “Next”.

3. Please select the country you live

and then click “Channel Scan”.

1.2TV Setup

1.2.1 Channel Scanning

When you run VIVOTM for the ﬁrst time, the system will guide you through the necessary

steps of chan-nel scanning.

English

- 4 -

4. Click “Exit” to finish the setup after

the scanning is completed.

Note you may load default channel list

to watch TV without the waiting time for

channel scanning.

1. Select your device and signal source

such as Digital, Analog (Cable or

Antenna), Video (Composite, S-Video).

VIVOTM will import the signal source

you select. It is recommended that you

select the signal source that your device

supports.

Antenna TV: If you choose Antenna

TV, please make sure your antenna (for

analog TV reception) is properly installed

and is able to receive signals.

Cable TV: If you want to watch Cable

TV, please ensure that you have properly

plugged your analog (cable) TV cord to

the wall outlet of your cable TV.

Video: If you want to watch DVD videos,

it’s available through the additional

Composite, S-Video input. Please check

if the device you have supports this

function.

2. IF you’d like to listen to FM radio,

please click FM button directly. Please

make sure that the product you

purchased supports this function.

1.2.2 Source Input

English

- 5 -

Chapter 2 Digital TV

You can watch live Digital TV with VIVOTM Once you have done your initial setup (source

input and channel scan), you can enjoy watching and recording TV program with this

multi-functional software ap-plication.

Note Make sure your device supports digital signal in order to watch digital TV.

2.1Main Panel

Exit

EPG

FM Mode

Display Ratio

Left Audio

Schedule

Recording

Time Shifting

Channel

preview

Minimize

Teletext

Setup

OSD

Right Audio

Open Bar

Snapshot

About

Subtitle

Playback

Default Color

Audio Mode/

Mute

Source Input


Capture

Mute Mode/

Audio

Hotkey Bar

Buttons

English

- 6 -

2.2TV Panel

Capture: Click to capture the scenes you like. Once you capture the scene, it is saved

in your Video Path.

Capture

EPG

Channel Up

Channel

Preview

Time-Shifting

SAP

Volume Down

Snapshot

Display Ratio

Volume Up

Channel

Down

Audio Mode/

Mute

Control Buttons

English

- 7 -

If you’d like to stop capture, click caption button again or right click on the screen and

then enable “Stop Capture”.

Time Shifting: This icon enables Time-shifting function once clicked. Time Shifting

function records the TV program you are currently watching.

This function enables you to pause/fast-forward/rewind TV shows so you won’t miss any

part when you left the show for something else. Control buttons deﬁne as table below.

Forward

Stop Backward Pause

Audio Mode/Mute

English

- 8 -

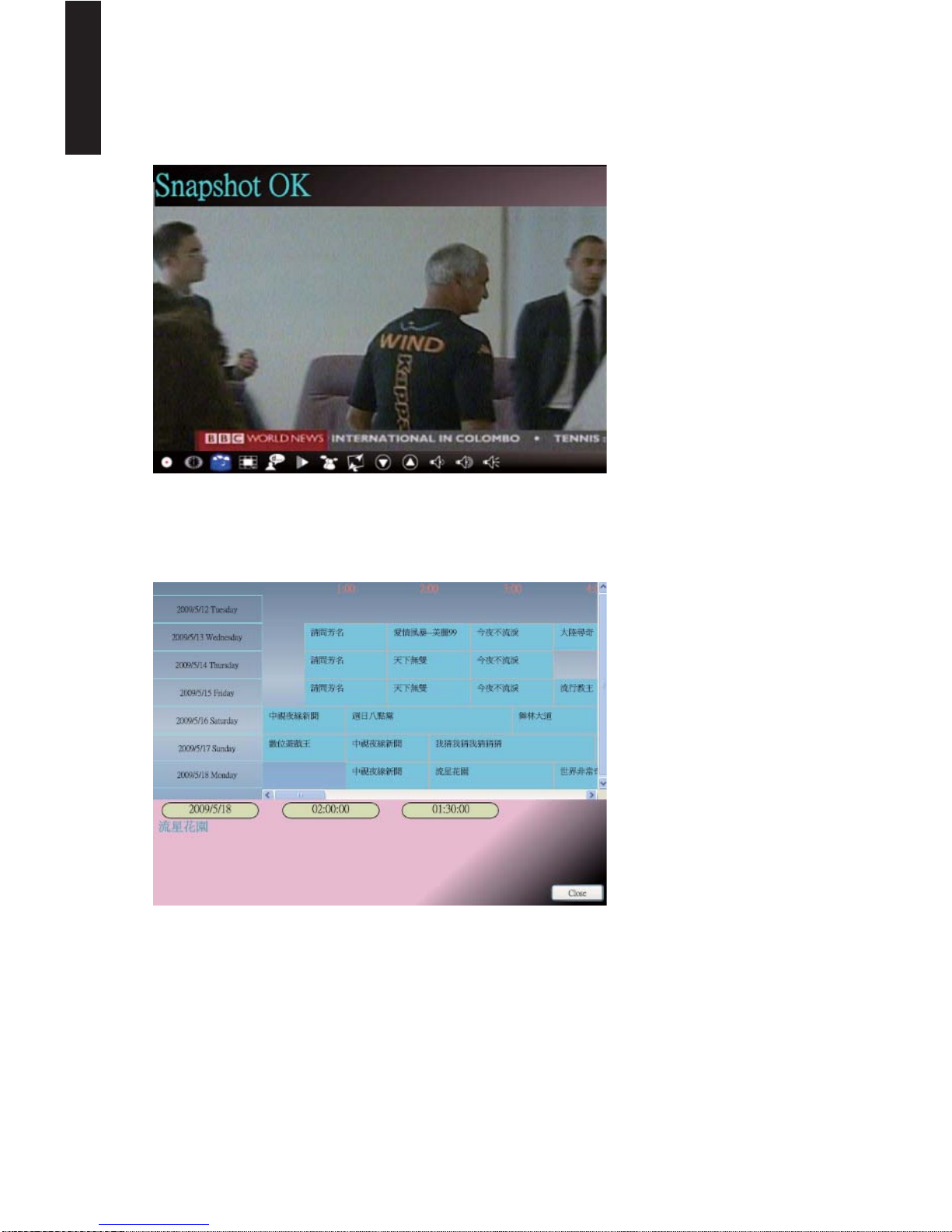

Snapshot: You can click the “Snapshot” icon to take snapshots. When the screen

shows “Snapshot OK”, it means the image has been successfully taken into your ﬁle

folder as picture ﬁles.

Channel-preview: Channel list preview from the beginning. You can set preview format

and interval in Setup page (Refers to Chapter 6).

EPG: You can receive and view information of TV programs of each digital TV channel

with this function.

SAP: Turn On/Off SAP sound (Depends on TV program provider)

Display Ratio: Change ratio base on a routine setting. (Free/4:3/16:9/Base on source)

Channel Down/UP: Select previous or next channel.

Volume Down/UP: Adjust TV volume to be loud or quiet

Audio/Mute Mode: Turn TV volume on or off.

English

- 9 -

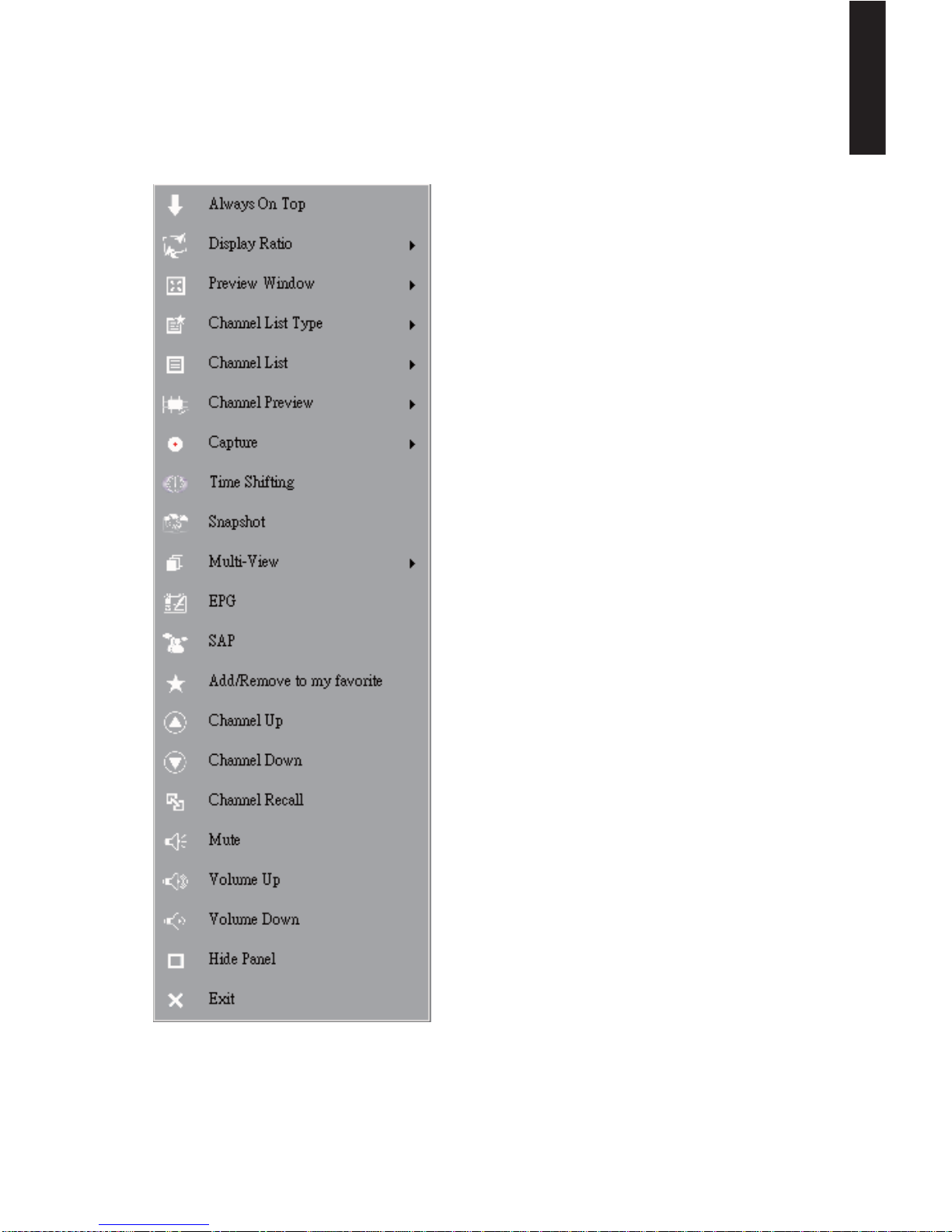

2.3The Tool Menu

While you are watching digital TV on VIVOTM, you can enable the Tool Menu with a

mouse right-click. The Tool Menu allows you to access and activate functions of VIVOTM,

which provides you another op-tion besides the icons on the interface.

Always On Top: Enables VIVOTM to remain on top of all other application windows. It is

the same if you click on the “Always On Top” at the upper right corner of the regular TV

mode window.

English

- 10 -

Display Ratio: You can adjust your display ratio when you move your mouse cursor to

the arrow at the -as you click on the Display Ratio function icon on the interface.

Free: The initial ratio when you start VIVOTM and you can adjust it by dragging the edge

of the VIVOTM window.

Base On Source: The display ratio will be based on the signal source.

Apply To All Channels: If you select this option, the adjusted display ratio will be applied

to all of your available channels.

Preview Window: You can change your TV viewing screen to Full Screen, Sizable

Screen or Borderless Screen.

Channel List Type: There are two types of Channel List Type – Normal or My Favorite.

You can select which type to load your channel list. It is the same as you do in the

Channel Setting page. The default is Normal.

Channel List: Displays your available channels. It’s the same as you open the Channel

Setting.
