Gigabyte G-MAX TA1 Manuale utente

FCC COMPLICANCE STATEMENT

For Users in the USA

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of FCC Rules. These rules

are designed to provide reasonable protection against harmful interfer-

ence when the equipment is operated in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy, and

if not installed and used in accordance witch the installation., May cause

harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the

equipment off and on, you are encouraged to try to correct the interference

by one or more of the following measures:

* Reorient the receiving antenna

* Increase the separation between the equipment and receiver.

* Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

* Consult the dealer or an experienced radio/TV technician for help.

Notes:



Unauthorized changes or modifications may void the user's right to operate the

equipment.

Only equipment certified to comply with Class B (computer input/output devices,

terminals, printers, etc.) should be attached to this equipment and all such

equipment must be connected with shielded interface cables.

User’s Manual

English

Introduction

Thank you for purchasing TA series. Please read the following instructions carefully to

ensure you can use this product safely.

Please follow the warning signs and instructions of the product.

Please disconnect the product from the power source before unloading and clean-

ing it.

Do not rub the inside of the product with a wet cloth or expose the product to water in

any case.

Please turn the power off before connecting or assembling any peripheral.

May/2003

¡½¡½

¡½

Product features

TA series has been equipped with the motherboards developed by Gigabyte Technol-

ogy to ensure the best performance under Windows environment.

Rack-mounted case design provides easy assembly and maintenance, and makes

system upgrade a piece of cake!

Warning

Improper battery installation may cause explosion.

Use only the same or equivalent batteries for eplacement.

Dispose batteries as instructed by their manufacturers.

English

User’s Manual

¡½¡½

¡½

Specifications

-Product specification

-PC case

-TA series Motherboard

-Power supply unit

-24X Slim CD-ROM or DVD-Rom (Optional)

-PCMICA Slot (optional)

-2.5-inch Slim HDD (Optional)

-Power cord

-Keyboard and mouse (Optional and subject to real products at shipment)

-Accessories

System Assembly Manual

Driver CD

Ribbon cable

Screws for Slim HDD and Slim CD-ROM

¡½¡½

¡½

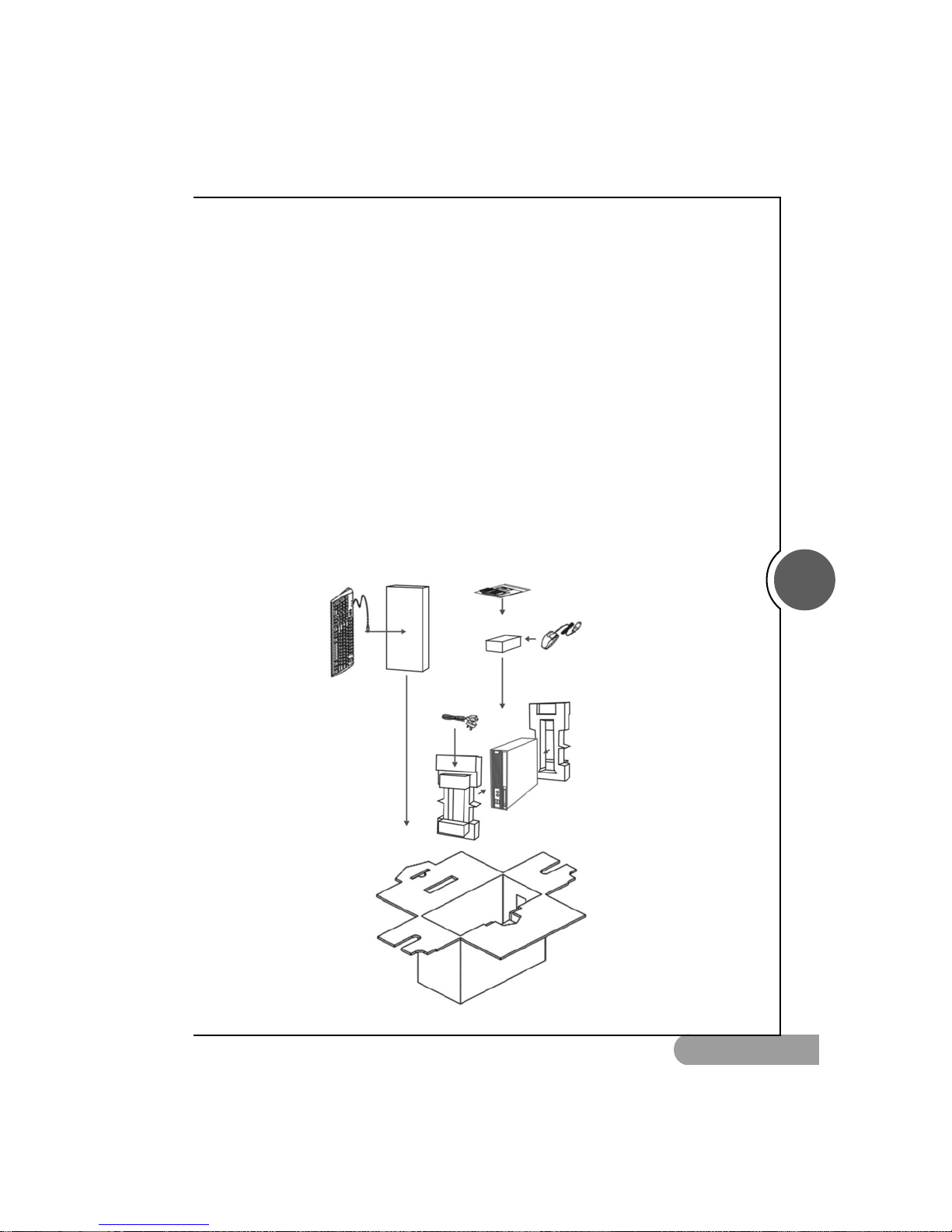

System Packing

Manual and

Driver CD

*mouse

((

(Optional))

))

)

*Keyboard

((

(Optional))

))

)

Power cord

0Specification with “Option” are subject to change without notice.

User’s Manual

English

( TA2)

1.PC case

Overall dimension

With side cover: 70(W)mm x 236(H)mm x 213(D)mm

Without side cover: 64(W)mmx230(H)mmx213(D)mm

Materials of the case has been tested to comply with the UL specification and designed for space and

screw saving purposes. Users simply need to remove one screw from the back to unload the case

cover and access to the inside of the case. Moreover, the case has been designed with anti EMI

function and complies with standard PC safety standards.

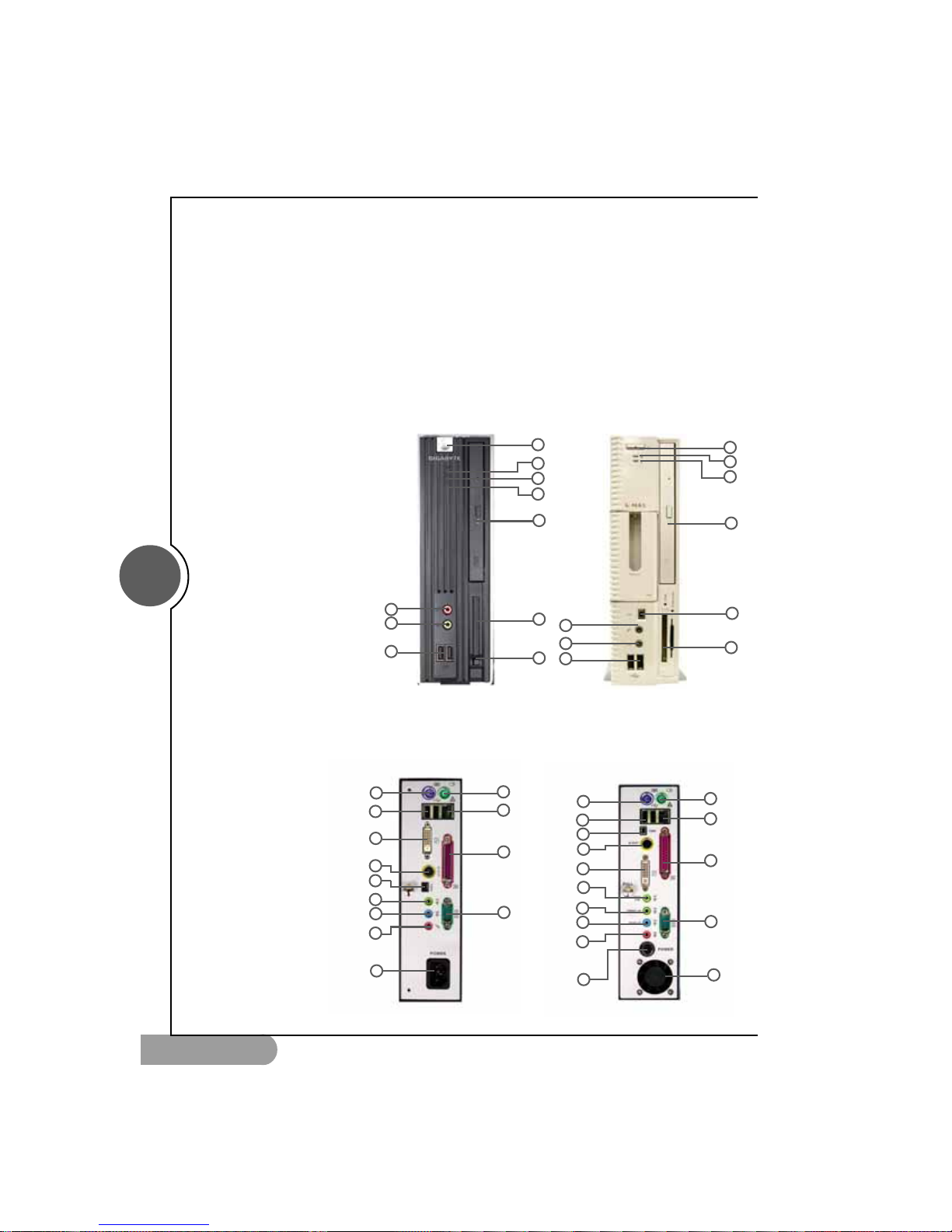

2.Parts on Panels

Front Panel

1.MIC

2.Audio Out

3.USB Ports

4.Power Button

5.Power LED

6.LAN LED

7.HDD LED

8.CD Button

9.PCMCIA Slot

10.PCMCIA Button

11.JIEEE1394

12.6 in 1 Card

Rear Panel

1.Keyboard (PS2)

2.USB port

3.VGA/DVI

4.COM 1

5.Audio Out

6.Audio In

7.MIC

8.Power Cord

9.Mouse (PS2)

10.LAN (RJ45)

11.LPT

12.COM 2

13.SPDIFOut

14.System FAN

15.IEEE 1394

16.S Video

( TA4)

( TA ) ( TC )

English

User’s Manual

3. System equipment installation

¡½¡½

¡½

Unload case

Step 1: Remove the screw from the bottom of the case.

Step 2: Grasp the handle on the panel and pull out the case.

¡½¡½

¡½

Installing hard drive

Step 1: Fix the hard drive on the base with screws and connect the hard drive with the IDE

ribbon cable.

Screwstands(Attention!Installhard driveontopof thescrewstandson thebase.)

(Attention!Makesurethatthe red(fool-proof)wireontheribboncableshould beconnectedtoPIN1 oftheharddriveasshownbelow.)

Red (fool-proof) wire should be connected to PIN 1.

User’s Manual

English

Pin 1

Step 2: Fix the hard drive with its rack on the four posts and connect the ribbon cable to

the IDE connector (J1).

¡½¡½

¡½

Installing DOM (DISK On Module)

Step 1: Install DOM on the DOM slot (J1).

Attention! Make sure that DOM and HDD cannot be used at the same time.

¡½¡½

¡½

Installing DOC (Disk On Chip)

Step 1: Install DOC on the DOC slot (U12)

Attention! Use 3.3V DOC.

English

User’s Manual

¡½¡½

¡½

Installing CD-ROM

Step 1: Fix the slim CD-ROM on the base with 4 screws (2 on each side).

Step 2: Slide slim CD-ROM and the base to the rack (J4).

Step 3: Fix the CD-ROM and the base on the rack with 2 screws.

User’s Manual

English

¡½¡½

¡½InstallingPCMCIA

Step 1: Fix PCMCIA card next to chassis with screws.

Step 2: Unload the part from another side of the PC. Then fix the PCMCIA card on the bolts

and Fix the PCMCIA Card with screws.

( C3 Type)

( P4 Type)

English

User’s Manual

DDR

Make sure the direction of the foolproof groove must be the same as that of the

memory slot on the motherboard.

Clicks at sides of the RAM module

SDRAM

Align the fool-proof clicks on the bottom of the RAM module to the socket, and the locks on the

socket should securely lock on the clicks at sides of the module as shown in the above picture.

¡½¡½

¡½

Installing memory

¡½¡½

¡½Notes

1. Please use high quality CDR or CDRW to prevent disks from breaking when running at high

speed.

2. Specification of hardware is subject to change without notice.

3. Please visit our site at http://www.gigabyte.com.tw/ to download the latest version of

drivers.

¡½¡½

¡½Cautions

Improper battery installation may cause explosion. Use only the same or equivalent batteries

for replacement. Dispose batteries as instructed by their manufacturers.
