Gigabyte H663 Manuale utente

This publication, including all photographs, illustrations and software, is protected

nor any of the material contained herein, may be reproduced without written

consent of Giga-byte Technology Co., Ltd.

The information in this document is subject to change without notice. The

manufacturer makes no representations or warranties with respect to the contents

hereof and specifically disclaims any implied warranties of merchantability or

ﬁtness for any particular purpose. The manufacturer reserves the right to revise

this publication and to make changes from time to time in the content hereof

without obligation of the manufacturer to notify any person of such revision or

changes.

Trademark Recognition

Gigabyte and Giga-byte are trademarks of Giga-byte Technology Co., Ltd.

Microsoft and Windows XP are trademarks of Microsoft Corporation.

All other product names used in this manual are the properties of their respective

owners and are acknowledged.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital

device pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Changes or modiﬁcations not expressly approved by the parties responsible for compliance

could void the user’s authority to operate the equipment.

Important Safety Information

We recommend that you read this section carefully before using the H663 / H663-RH.

These safety and usage instructions will ensure that you enjoy many years safe use of the

H663 / H663-RH. Keep this manual for future reference.

Warning Symbols on the H663 / H663-RH Case

Be sure to read the power rating label on the bottom of the H663 / H663-RH before

operation.

Caution:

Before connecting power to the H663 / H663-RH, make sure the power source is

within the range of AC 100~240V, 50~60 Hz.

Do not attempt to service the H663 / H663-RH yourself. If the unit gets wet or

you think it is damaged, have the unit serviced. Do not open the unit case for any

reason.

RATING

LABEL

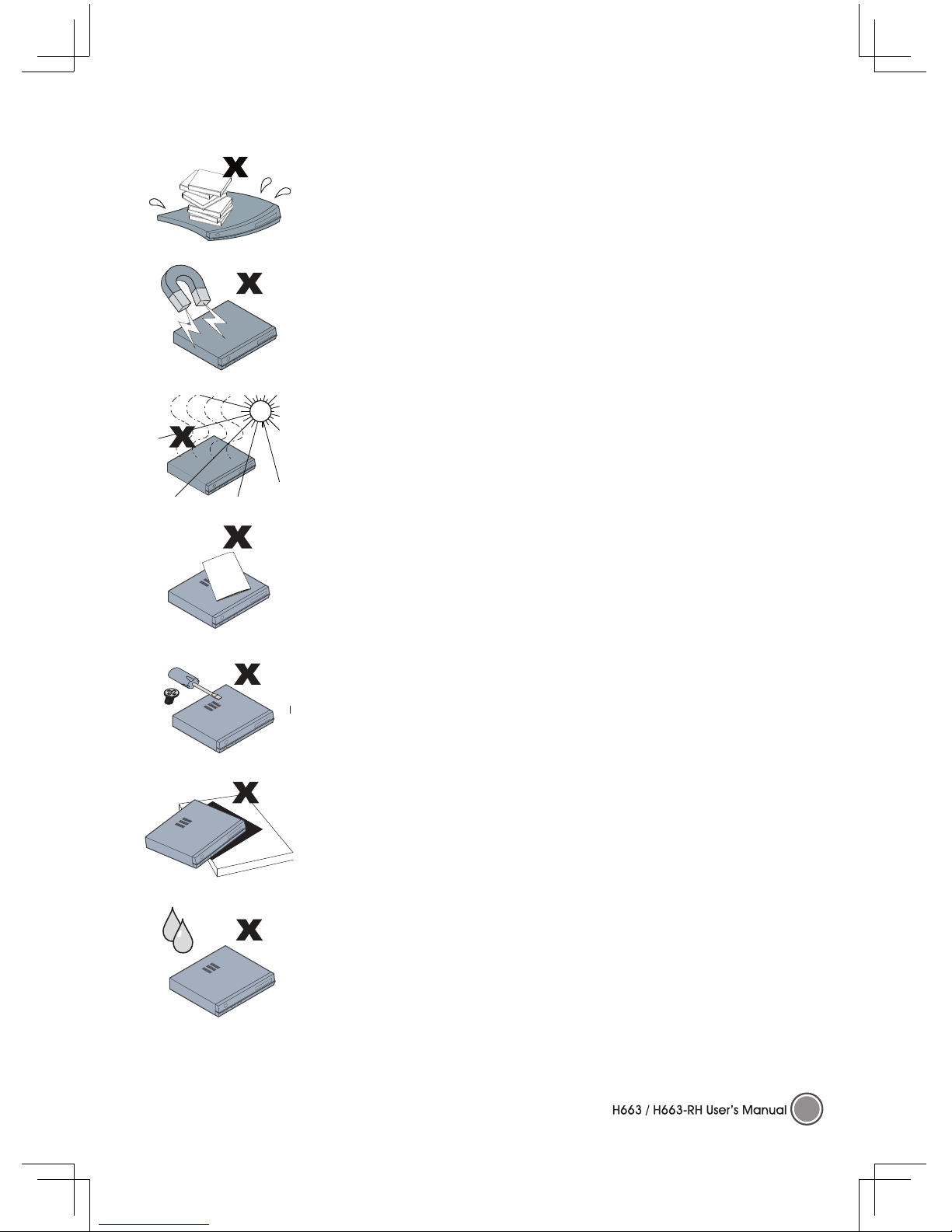

General Safety Information

• Do not place heavy objects such as books or bags on the unit.

• Avoid placing objects with strong magnets built in too close to the

unit. If you suspect stereo speakers may interfere with the unit, try

moving the speakers away from the unit.

• Avoid using the system in direct sunlight, or near a heating device.

• To prevent the unit from overheating, do not cover the air

ventilation openings on the top, sides, or the rear.

• Do not open the unit case. Do not attempt to service the H663

/ H663-RH yourself. For servicing, contact qualified service

personnel.

• Do not place the unit on an unstable surface, cart, or stand.

• Avoid exposing the H663 / H663-RH to moisture or excessive

humidity.

• Follow all warnings and cautions in this manual and on the unit case.

III

Power Safety

• Only use the supplied power cord.

• Do not place anything on the power cord. Place the power cord where it will not be in the

way of foot trafﬁc.

• Remove the batteries from the remote control when storing or not in use for a prolonged

period.

• Before connecting power to the H663 / H663-RH, make sure the power source is within

the range of AC 100~240V, 50~60 Hz.

HDD Partition:

It is strongly recommend not to partitioning the hard disk.

Manual Styles

The following styles are used in this manual to alert you to important information.

Note Style

Provides additional information on the topic at hand.

Provides information that should not be overlooked.

Alerts you to situations that may damage the unit or cause personal injury.

Provides helpful information on the topic at hand.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

CONTENTS

Chapter One Getting Started

1.1 Packing Checklist .................................................................................. 1

1.2 Features at a Glance ........................................................................... 2

Front View .............................................................................................. 2

Rear View ............................................................................................... 3

1.3 VFD (Vacuum Fluorescent Display) Message .................................... 4

1.4 Remote Control Functions ................................................................... 8

1.5 Inserting the Remote Control Batteries ............................................... 9

1.6 Keyboard Functions .............................................................................. 9

Using the Trackball and Buttons .......................................................... 10

Shortcut Buttons .................................................................................... 10

1.7 Inserting the Keyboard Batteries ......................................................... 10

1.8 Set Up for Keyboard Linkage ............................................................... 11

1.9 Remote Control and Kayboard Operating Range .......................... 11

Chapter Two Connecting Input Devices

2.1 Basic Connections for the H663 / H663-RH ........................................12

Chapter Three Maintenance

3.1 Cleaning the H663 / H663-RH ...............................................................13

3.2 Troubleshooting ......................................................................................13

Appendix A Speciﬁcations .........................................................................15

Packing Checklist

Carefully unpack the H663 / H663-RH and check that besides this User Manual the following items

are included:

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not

work.

Getting Started

Two AA for RF keyboard &

two AA for remote controller

(MCE) (Option)

Adapter

3.5 RCA Cable

H663 / H663-RH

RF Keyboard (Option)

Utility Driver CDRecovery CD (Option)

3.5 x 2 Audio Cable

IR Cable for

Set Top Box (Option)

S Cable (RCA Cable)

(4 pin)

Remote Control (Option)

►Front View

Item Description

1. Power Button

Press the power button to turn the H663 / H663-RH on. Press

the pwer button again to set H663 / H663-RH in Suspend

mode. Press and hold the power button few seconds to turn

the H663 / H663-RH off.

2. IEEE 1394 (4-pin) Connects IEEE 1394-enabled devices.

3. USB 2.0 Port(s) Two USB ports allows user to connect USB devices such as

external game pads, pointing devices, and keyboard.

4. RF Receiver Switch RF Keyboard learning button.

5. LED Indicator RF Keyboard LED status indicator.

6. IR Window Interfaces with infrared devices ( for MCE RC only).

7. Menu / Exit Button Invoke main menu or exit current screen.

8. Arrow Buttons Navigated in the menu.

9. Enter Button Conﬁrm selected items.

10. Return Button Backward to the previous screen.

11. VFD VFD (Vacuum Fluorescent Display).

See page 4 for more detailed information.

12. Card Reader 6-in-1 card reader.

13. DVD Super Multi DVD-Multi Recoder.

14. DVD Eject Push to enject a disc from the DVD drive.

Features at a Glance

1 2 4 5 7 8 12

314

9 106 11 13

►Rear View

Item Description

1. Power Jack Connects the power cord DC Jack here.

2. MIC-In Accepts microphone line-in devices

3. Line-Out Connects to audio line-out devices

(e.g., speakers, headphones, an ampliﬁer).

4. Line-In Accepts audio line-in devices

(e.g., audio CD players).

5. S/PDIF decoder Digital audio output connector.

6. VGA Port (15-pin) Connects to a display device

(e.g., external monitor, LCD projector).

7. USB 2.0 Port(s) Two USB ports allows user to connect USB devices such as

external game pads, pointing devices, and keyboard.

8. IEEE 1394 Port (6-pin) Connects to IEEE 1394 devices.

9. Network Jack Connects to an Ethernet 10/100/1000-based network.

*10. S-Video Port S-Video input.

*11. CATV Cable-TV input.

12. Video Out Connector for video output.

13. DVI-I Port Connects to digital monitor.

14. IR Blaster(s) (Option)

This IR blaster can be taught the remote control codes for any

set-top box and provides control of a wide range of other PC

applications.

* The position of port may be varied by models.

1 2 4 53 6 7 9

IR BLASTER

1 2

10 11

13 14

VFD (Vacuum Fluorescent Display) Message

The LED display on the front of the H663 / H663-RH displays status information. As well

as disc

information, the following messages display in the LED display:

Item Description

1. Volume Level Displays the volume level.

2. Volume Level Displays the volume level.

3. Mode Displays the current mode.

4. Status Bar Display time information, media play time, and mode status.

►Normal Windows Mode (Media Center Applications are not run) / Sleep Mode

Status:

1. The system is turn on in normal Windows mode. Media Center applications are not run.

2. System is sleeping.

Description:

1. Time is shown. The clock control by VFD MCU.

2. Volumes of audio in left and right are shown.

3. Run Disk is stop.

►Start to run Media Center Applications / On Meida Center Home Frame

Status:

1. Press “Start” button to run Media Center applications

and the system is in Media Center Home frame.

2. User can use ▲ and ▼ to choose the wanted multi-

media in MCE.

Description:

1. No display information

shown.

2. Run Disk is stop.

►My Video Mode

Status:

When “My Videos” is selected, the screen is on video frame and stop mode.

Description:

1. “VIDEO” is shown

2. Run Disk is stop till the

media is played.
