Gigabyte GZ-FW1CA-AJS Manuale utente

3D Mercury

English User’s Manual

GZ-FW1CA-AJS/AJB

English

Thank you for purchasing Gigabyte Tech. thermal product. Gigabyte Tech. is dedi-

cated to the integration of casing water/air-cooling solution technology to provide

users with the most optimal solution for thermal dissipation. The five features of

3D Mercury series casing include state-of-the-art design, built-in liquid cooling

system, system security, easy installation and etc. For further information and

specifications of the “3D Mercury” series, please visit Gigabyte Tech. website.

(http://www.gigabyte.com.tw)

The following are not covered by the warranty:

1. Using the product incorrectly or in a manner other than the designed pur-

pose.

2. Nonobservance of the proper operation provided.

3. Malfunction due to interference from other devices.

4. Unapproved modification of the product.

5. Consequential damage to other objects due to the product’s fault.

6. Malfunction arising from natural hazards, e.g. earthquake, lightning, fire, and

floods.

7. The product’s warranty label has been removed or damaged.

8. The devices inside, including power supply, hard disk, CD-ROM drive,

motherboard, ventilator, etc, are not detached from the casing prior to trans-

portation of the computer system, resulting in damage to the casing or other

computer-related devices.

9. Any loss/damage caused by failure to follow the installation process with in

the user manual.

Caution

Failure to wear gloves during installation of computer products may cause bodily

harm or damage to your devices. Incorrect connector installation may possibly

burn out the motherboard and other components. Be sure to observe the instruc-

tions in the installation manual.

English

Table of Contents

1. Components Introduction 4

1-1 Casing’s Internal Structure 4

1-2 Front, Rear, and Left Side Panel Structure 5

2. Features 6

3. Specification Features 8

4. Installation Instruction 9

4-1 Installation of Power Supply 9

4-2 Installation of Motherboard 11

4-3 Installation of Add on Card 12

4-4 Installation of Front Multi-Media I/O Ports 13

4-5 Connection of Fan Power Cables 14

4-6 Installation of 5.25” Front Device Bay 15

4-7 Installation of 3.5” Front Device Bay 15

4-8 Installation of 3.5” Internal Device Bay 15

4-9 Application of Security Lock 16

4-10 Application of Foot Supports 16

4-11 Application of Transparent Side Panel 17

4-12 Application of Liquid Cooling System 17

4-13 4-way Splitter Valve Instruction and User Manual 20

4-14 Liquid Cooling System Maintenance 24

English

1. Power Supply Bay

2. PCI Tool-Free Fastener

3. Motherboard tray and PCI Slot panel

4. 5.25” Front Device Bay

5. 3.5” Front Device Bay

6. 3.5” Internal Device Bay

7. Foot Support

8. Tool Enclosure

a. Stand off x 12 b. Power Extension

Cable x 2

c. 3.5” device Securing

Runner x 10

d. Key x 2

e. Wire clamp x 2 f. Motherboard Secur-

ing Screw x 12

g. Power Supply Secur-

ing screw x 4

h. AM2 Water block

bracket

Extended screw for

securing power sup-

ply retainer plate.

j. Extended power sup-

ply retainer plate.

k. Gigabyte Liquid Cool-

ant x 2

1. Components Introduction

1-1 Casing’s Internal Structure

English

9. Front Cable Kit

1-2 Front, Rear, and Left Side Panel Structure

a) Left Side Panel

a. USB 2.0 x 2 b. Audio (HD & AC97) c. IEEE1394

(Multi-connectors)

d. 3-Pin Fan Connector e. Power SW/Reset SW/HDD

LED Connector

f. Motherboard 2-pin connec-

tor and 4-pin connector to

power supply.

Side Grill for LCS air intake

Latch

Left Side Panel

Security Lock

Transparent/Mesh Side Panel

English

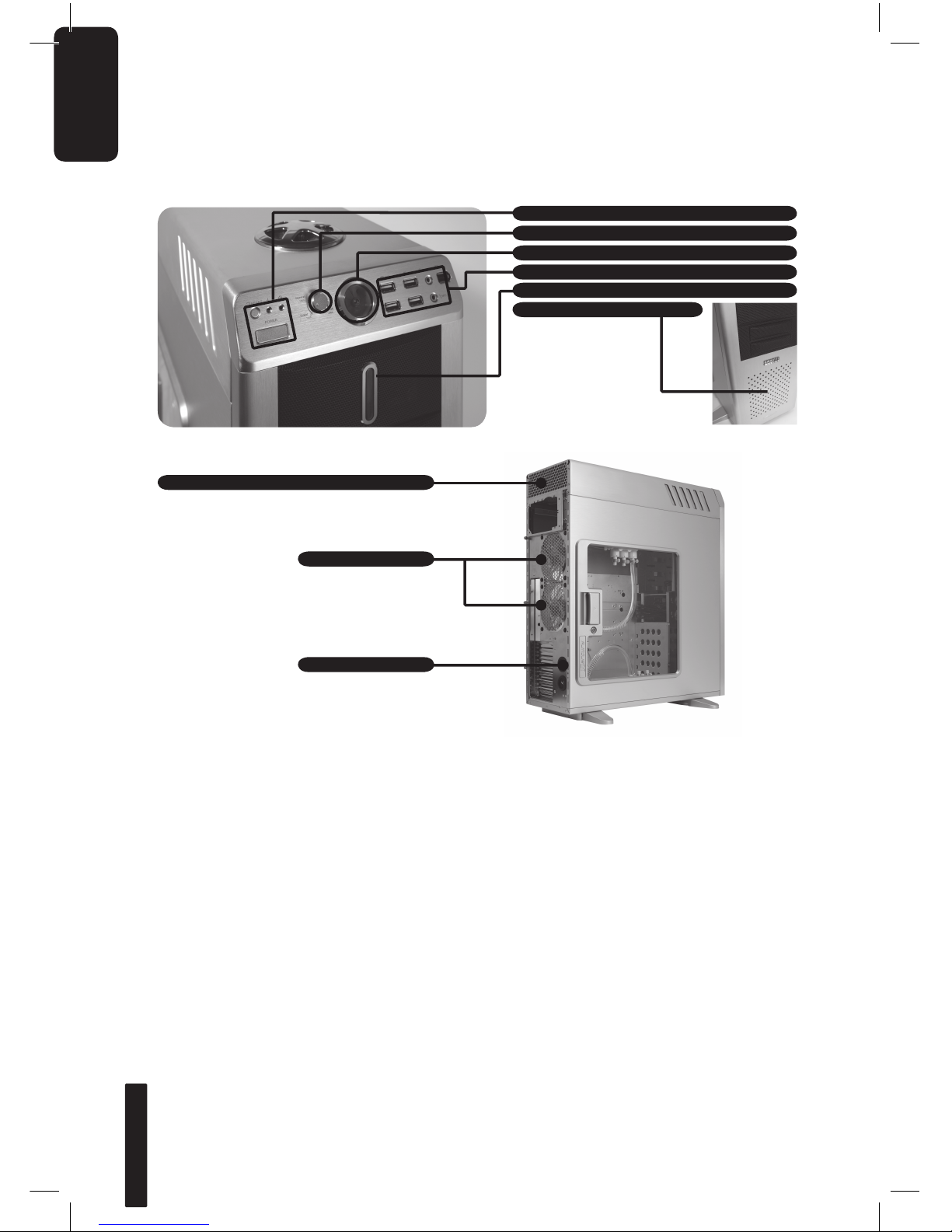

b) Front Panel

c) Rear Panel

2. Features

- All new Upgrade, Extremely Big Volume

Extended Body, for easy installation and service, support SLI, Cross Fire Dual/

Quad multi-graphic cards, and support 12” x 13” motherboard.

- High Quality Design

Gigabyte Tech. top-class full tower thermal solution casing Lightweight aluminum

alloy with hair-line brush anodized finishing Full-open aluminum side panel door

design, with hair-line brush anodized finishing.

Hot air release vent from LCS radiator

Power / Reset Switches and LED light

LCS radiator fan speed controller

LCS flow indicator

Front Multi-Media I/O port

Coolant Level Gauge

Front 12cm Fan

Dual Rear fans

LCS Tube Outlets

English

- Complete Support

Complete front panel multi-media support, including 4 x USB 2.0, 1 x IEEE1394, 1 x

audio jacks (HD & AC97)

Full Support of Gigabyte Tech. thermal solution LCS and air-cooling products lines

Support ATX / Micro ATX / Mini ATX / E-ATX / CEB motherboard.

- Integration of Cooling Technology

Aluminum alloy chassis for accelerating system cooling performance Gigabyte

Liquid Cooling System situated in the top interior of the chassis. A 400L/hr strong

silent water pump. Automobile standard, aluminum radiator with dual 12cm silent

fan on either side. Pure copper CPU water block. 2 x 4-way splitter valve for easy

upgrading. Only a few easy steps to complete installation.

- System Security

Viewing window at the front of the chassis to see the coolant level in tank.

Automobile standard tubes used to prevent bending and inadequate water flow.

LCS flow indicator.

Auto-induction of low water-level protection (LWP) and over temperature protection

(OTP).

Side panel security lock to provide optimal system security.

Reinforced nickel-plated rear panel.

1.0mm reinforced aluminum structure.

- Convenience of Assembly

Integrated LCS already installed, tested and ready to use.

Scratch-resistant processing that ensures safety during assembly.

Tool-free installation design.

Detachable tool enclosure to store tools, screws and cables.

A single-handed latch to open the side panel, for easy disassembly.

English

3. Specification Features

Model: GZ-FW1CA-AJS/AJB

Case Type: FULL TOWER

Size: 205 x 620 x 535 (W x H x D)

Front Bezel Material: Aluminum

Color: Silver/Black

Side Panel: Vent mesh/Transparent acrylic

Body Material: Aluminum (1.0mm) / nickel-plated SECC (1.0mm)

Net weight: 12KG

5.25” drive bay (external): 4 Controller

3.5 drive bay (external): 2

3.5 drive bay (internal): 5

PCI slot: 7

Motherboard size: ATX / Micro ATX / Mini ATX / E-ATX / CEB

System Fan (Front): 1 x 12cm Silent Blue LED fan (1000 RPM)

System Fan (Rear): 2 x 12cm Silent Blue LED fan (1000 RPM)

LCS Fan (Top): 2 x 12cm adjustable fan (1000 RPM - 2600 RPM)

Multi-Media I/O port: 4 x USB 2.0 / 1 x IEEE1394 / 1 x audio jacks HD & AC97

English

4. Installation

Instruction

Please follow the reference

sections in order for installation

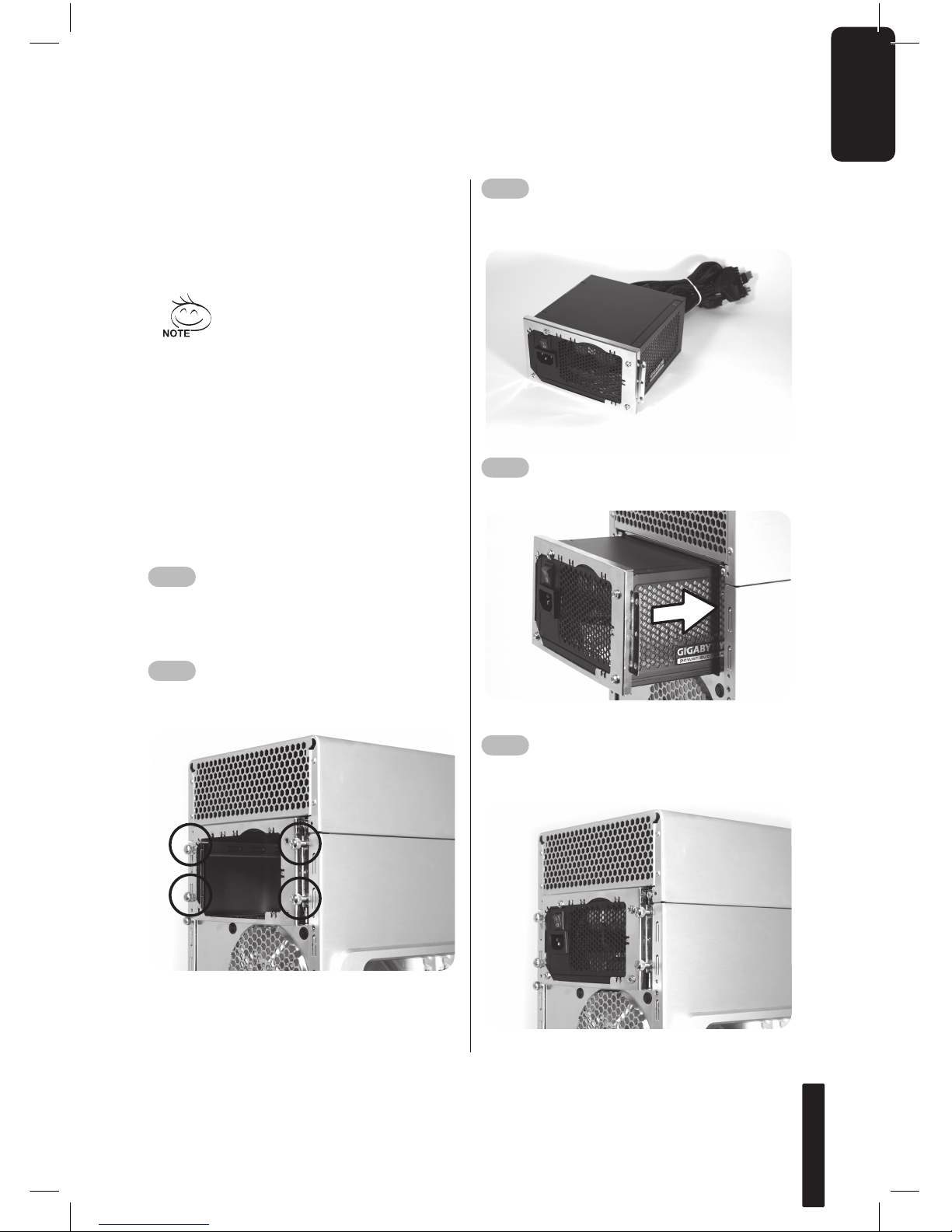

4-1 Installation of Power

Supply

To facilitate the installation, it is recom-

mended to set the chassis upright on the

table.

Required Tools: power supply securing

screw x 4

4-1-1 Remove the thumb screws of the

left side panel and detach the left panel

by unlatching the side panel.

4-1-2 Remove the thumb screws of the

power supply retainer plate at the back

of the chassis and remove.

4-1-3 Secure the power supply onto

the retainer plate, by using the 4 fixed

screws.

4-1-4 Slide in the power supply from the

rear of the chassis.

4-1-5 Use the thumb screws to secure

the power supply retainer plate to the

rear of the chassis.

English

4-1-6 If a longer power supply is used,

please use the extended power supply

retainer plate and secure with the ex-

tended screws.

4-1-7 If an irregular size power supply is

used which obstructs the product’s slid-

ing through the rear, please install the

power according to the method men-

tioned below. A cross screwdriver will be

needed for this procedure.

4-1-7a

Remove the thumb screws of the

side panels and detach both side

panels.

4-1-7b

Remove the thumb screws of the

power retainer plate at the rear

of the chassis, and remove the

power retainer plate.

4-1-7c Secure the power supply onto

the retainer plate, by using the 4

fixed screws.

4-1-7d

Remove the screws on the top

cover of the chassis, two at the

rear and two on either side of the

chassis.

4-1-7e Remove the top cover after re-

moving the lid to the coolant tank.
