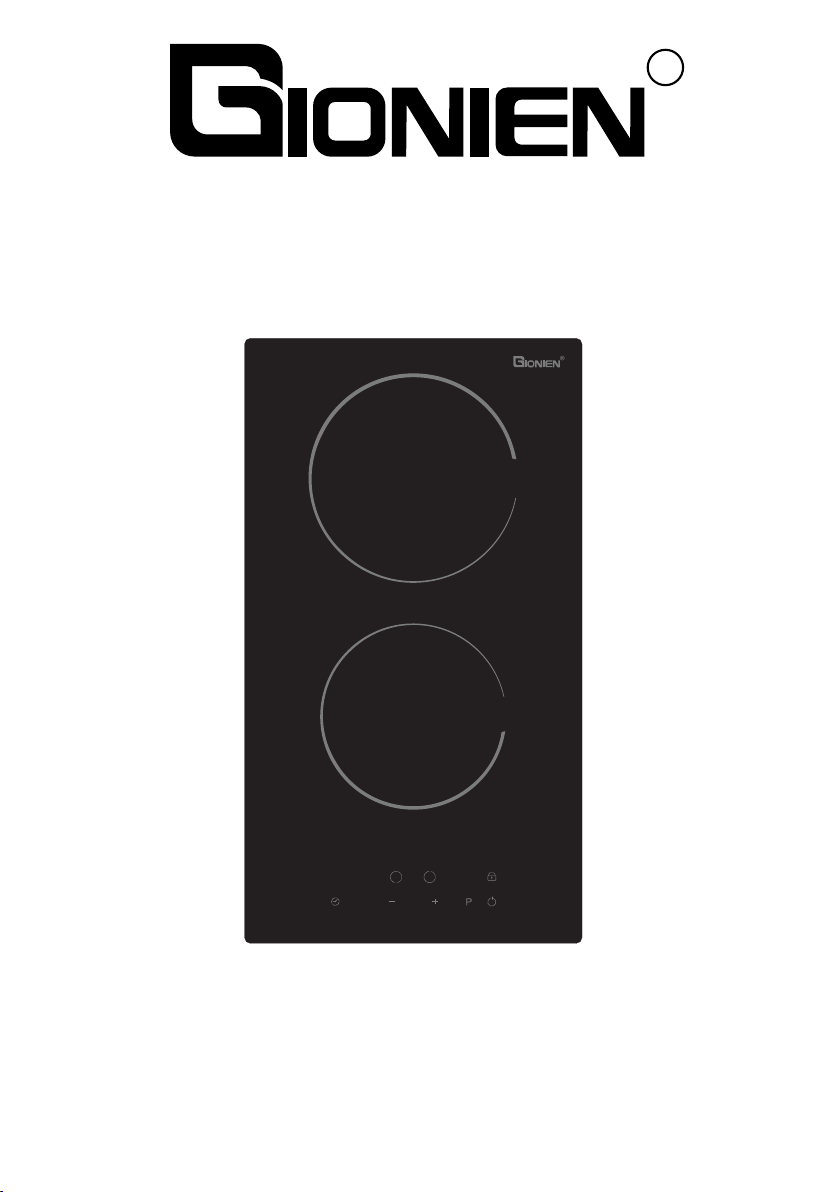

GIONIEN GIT230SP Manuale utente
Induction Hob
R
Instruction Manual / Installation Manual
MODEL: GIT230SP/GITS352G3
ES
EN
DE
FR
Installation, use and maintenance instructions
Anweisungen für die Installation, den Gebrauch, die Wartung Instructions
pour l’installation, l’utilisation, l’entretien
Instrucciones para la instalación, el uso, el mantenimiento
Anweisungen
2
21
42
63
I N D U C T I O N
I N D U C T I O N
2
Safety Warnings
Your safety is important to us.Please read this
information before using your cooktop.
The appliance is not to be used by persons
(including children) with reduced physical,
sensory or mental capabilities,or lack of
experience and knowledge,unless they have
been given supervision or instruction.Children
being supervised not to play with the
appliance.Cleaning and user maintenance
shall not be made by children without
supervision.
WARNING:The appliance and its accessible
parts become hot during use.
Care should be taken to avoid touching
heating elements.
Children less than 8 years of age shall be kept
away unless continuously supervised.
Warning:If the surface is cracked,switch off
the appliance to avoid the possibility of electric
shock,for hob surfaces of glass-ceramic or
similar material which protect live parts.
Warning:A steam cleaner is not be used.
Metallic objects such as knives,forks,spoons
and lids should not be placed on the hob
surface since they can get hot.
After use,switch off the hob element by its
control and do not rely on the pan detector.
EN
3
That the appliance is not intended to be
operated by means of external timer or
separated remote-control system.
Danger of fire:Do not store items on the
cooking surfaces.
CAUTION:The cooking process has to be
supervised.A short term cooking process has
to be supervised continuously.
WARNING:Unattended cooking on a hob with
fat or oil can be dangerous and may result in a
fire.
If the supply cord is damaged,it must be
replaced by the manufacturer,its service
agent or similarly qualified persons in order to
avoid a hazard.
Never try to extinguish a fire with water,but
switch off the appliance and then cover flame
e.g. with a lid or a fire blanket.
WARNING:Use only hob guards designed by
the manufacturer of the cooking appliance or
indicated by the manufacturer of the appliance
in the instructions for use as suitable or hob
guards incorporated in the appliance.The use
of inappropriate guards can cause accidents.
Power cord can’t accessible after installation.
4
Congratulations
on the purchase of your new Induction Hob.
We recommend that you spend some time to
read this Instruction / Installation Manual in
order to fully understand how to install
correctly and operate it.
For installation, please read the installation
section.
Read all the safety instructions carefully before
use and keep this Instruction /Installation
Manual for future reference.
Product Overview
Top View
I N D U C T I O N
I N D U C T I O N
5
Heating zone Power Heating Zone Max.Power
（220-240V~ 50/60Hz）
1200W/1500W（Booster）(230~)
2000W/2300W（Booster）(230~)
Total Rating Power
(GIT230SP/GITS352G3) 2800W/3500W(230~)
Reference Description
AZone select key
BChild lock key
CON/OFF key
DPower regulating key(reduce)
EPower regulating key(increase)
FTimer key
GBoost control key
User interface
P
6
Heat Settings
The settings below should only be taken as a guide. The power of the
induction coils will vary depending on the size and material of the pan.
For this reason it is possible that the settings will need to be adjusted
slightly to suit your pans. As you use the hob, you will get to know
which settings suit your pans best. When using new pans that you are
not familiar with, set the power level below the one specified.
Power level
1-2
3-4
5-6
7-8
9/P
Recommended Use
•Keep warm
•Melting chocolate, butter
•Defrosting and heating
•Cooking rice or porridge
•Braising
•Simmering
•Goulash
•cooking pasta
•Roasting/frying with little oil
•stir-frying
•boiling water
Hints and Tips
Problem Possible causes What to do
The hob cannot
be turned on. No power.
Make sure the hob is connected
to the power supply and that it
is switched on.
Check whether there is a power
outage in your home or area.
The touch
controls are
difficult to
operate.
Make sure the touch control
area is dry and use the ball of
your finger when touching the
controls.
The glass is
being scratched.
Rough-edged cookware.
Unsuitable, abrasive
scourer or cleaning
products being used.
Use cookware with flat and
smooth bases.
Some pans make
crackling or
clicking noises.
This may be caused by
the construction of your
cookware (layers of
different metals vibrating
differently).
This is normal for cookware
and does not indicate a
fault.
The induction
hob makes a low
humming noise
when used on
a high heat
setting.
This is caused by the
technology of induction
cooking.
This is normal, but the noise
should quieten down or
disappear completely when
you decrease the heat
setting.
Fan noise
coming from
the induction
hob.
A cooling fan built into
your induction hob has
come on to prevent the
electronics from
overheating. It may
continue to run even after
you’ve turned the
induction hob off.
This is normal and needs no
action. Do not switch the
power to the induction hob
off at the wall while the fan
is running.
Pans do not
become hot and
appears in the
display.
The induction hob cannot
detect the pan because it
is not suitable for
induction cooking.
Use cookware suitable for
induction cooking.
The induction hob cannot
detect the pan because it
is too small for the
cooking zone or not
properly centred on it.
Centre the pan and make
sure that its base matches
the size of the cooking zone.
7
There may be a slight
film of water over the
controls or you may be
using the tip of your
finger when touching
the controls.
8
technology.It works by electromagnetic vibrations generating heat directly in the
pan,rather than indirectly through heating the glass surface.The glass becomes
hot only because the pan eventually warms it up.
Before using your New Induction Hob
• Read this guide,taking special note of the ‘Safety Warnings’ section.
• Remove any protective film that may still be on your Ceramic hob.
Using the Touch Controls
• The controls respond to touch,so you don’t need to apply any pressure.
• Use the ball of your finger,not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean,dry,and that there is no object
(e.g. a utensil or a cloth) covering them.Even a thin film of water may
make the controls difficult to operate.
iron pot
magnetic circuit
ceramic glass plate
induction coil
induced currents
A Word on Induction Cooking
Induction cooking is a safe,advanced,efficient and economical cooking
9

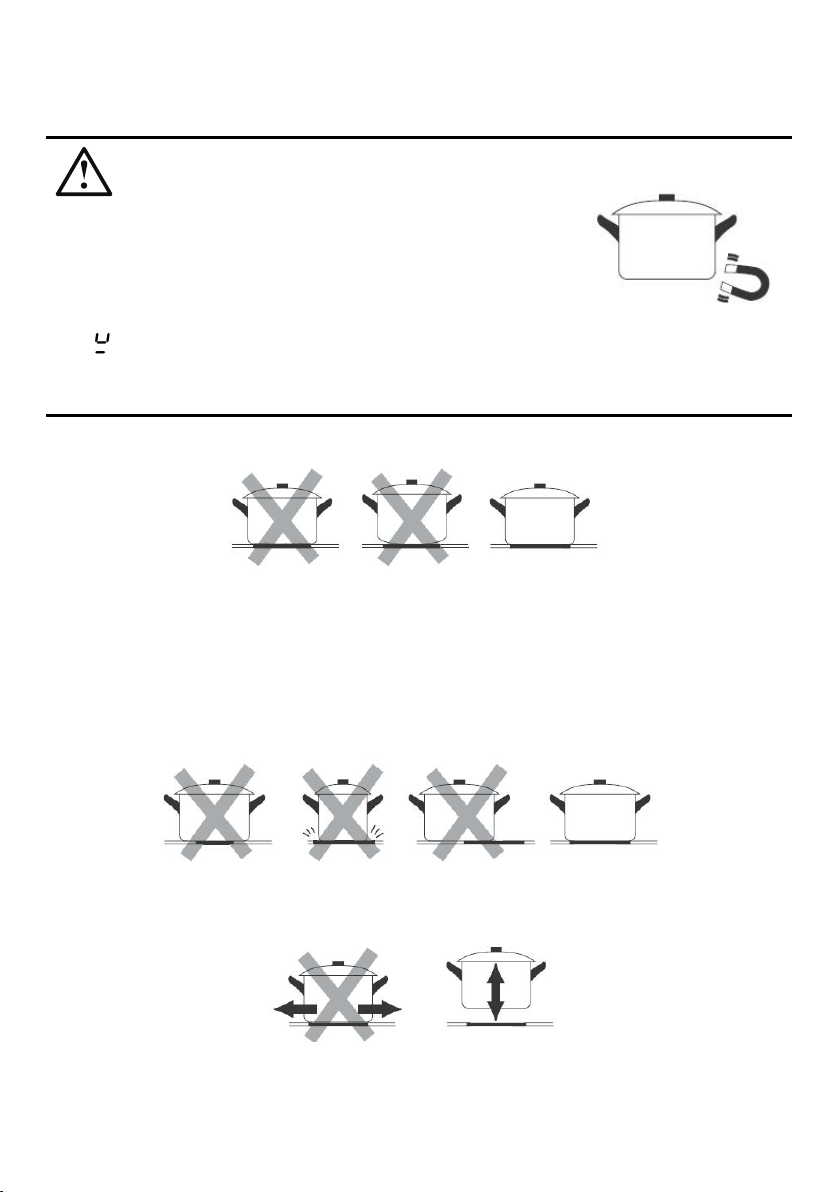

• You can check whether your cookware is suitable by carrying out
a magnet test.Move a magnet towards the base of the pan.If it is
attracted,the pan is suitable for induction.
• If you do not have a magnet:
1. Put some water in the pan you want to check.
2. If does not flash in the display and the water is heating, the pan is suitable.
• Cookware made from the following materials is not suitable:pure stainless steel,aluminum or
copper without a magnetic base,glass,wood,porcelain,ceramic,and earthenware.
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth,sits flat against the glass,and is the
same size as the cooking zone.Use pans whose diameter is as large as the graphic
of the zone selected.Using a pot a slightly wider energy will be used at its
maximum efficiency.If you use smaller pot efficiency could be less than expected.
Pot less than 140 mm could be undetected by the hob.Always centre your pan on
the cooking zone.
Always lift pans off the ceramic hob – do not slide,or they may scratch the glass.
Choosing the right Cookware
• Only use cookware with a base suitable for induction
cooking.Look for the induction symbol on the packaging
or on the bottom of the pan.
10

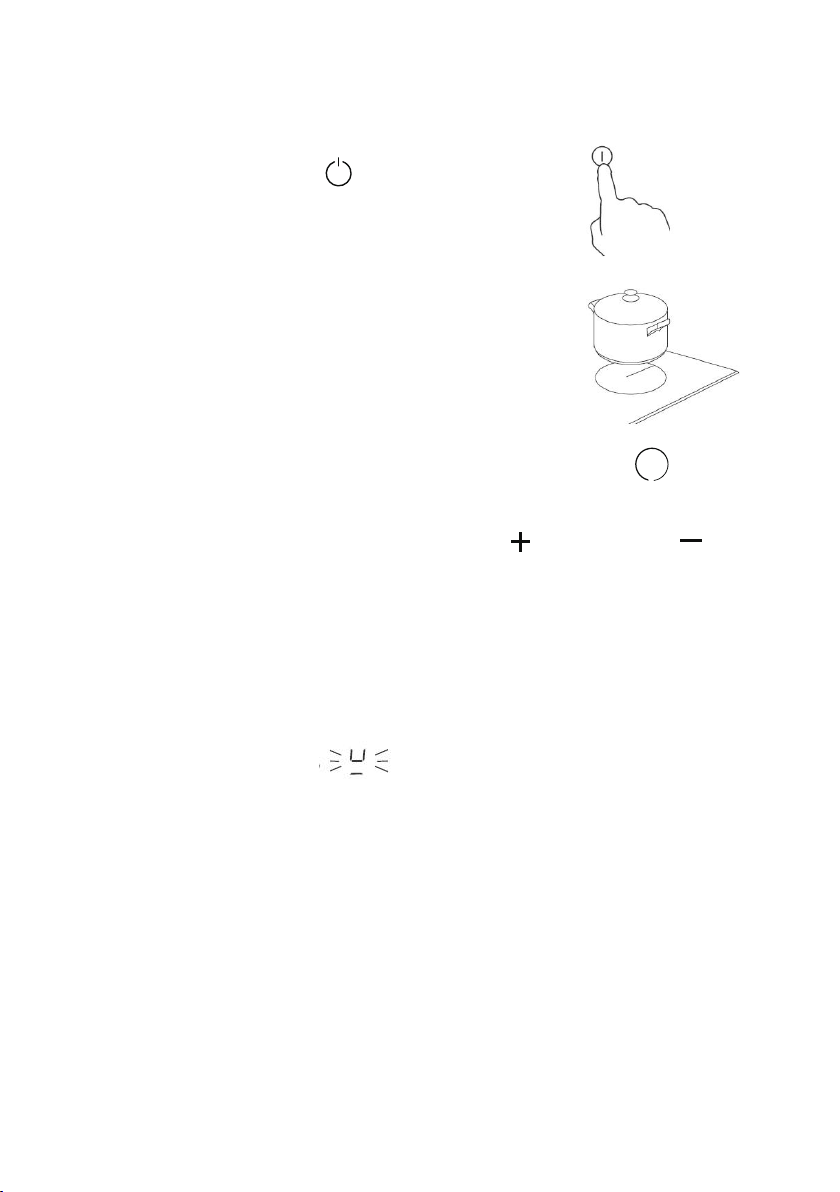

Using your Induction Hob
To start cooking
1. Touch the ON/OFF key(C)” ”for 3 seconds.
After power on,the buzzer beeps once,all displays
show “– “,indicating that the induction hob has
entered the state of standby mode.
2. Place a suitable pan on the cooking zone that
you wish to use.
• Make sure the bottom of the pan and the surface
Of the cooking zone are clean and dry.
3. According to the heating zone where the pan is placed,select a relevant
zone select key by pressing the relevant zone select key(A) “ ”.The
symbol“0”,selected will stay fully it.
4. Select the power level by pressing the key (E)” ” or the key(D)” ”
5. The power level will start at 5.Pressing the “+”will count up the power levels
from 5 to 9 in numerical order.Pressing the “-”key will take the power
straight from 9 to 0
• If you don’t choose a heat setting within 1 minute,the induction hob will
automatically switch off.You will need to start again at step 1.
• You can modify the heat setting at any time during cooking.
alternately with the heat setting
If the display flashes
This means that:
• You have not placed a pan on the correct cooking zone or,
• The pan you’re using is not suitable for induction cooking or,
• The pan is too small or not properly centred on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone.
The display will automatically turn off after 1 minutes if no suitable pan is
placed on it.
