Connecting the device

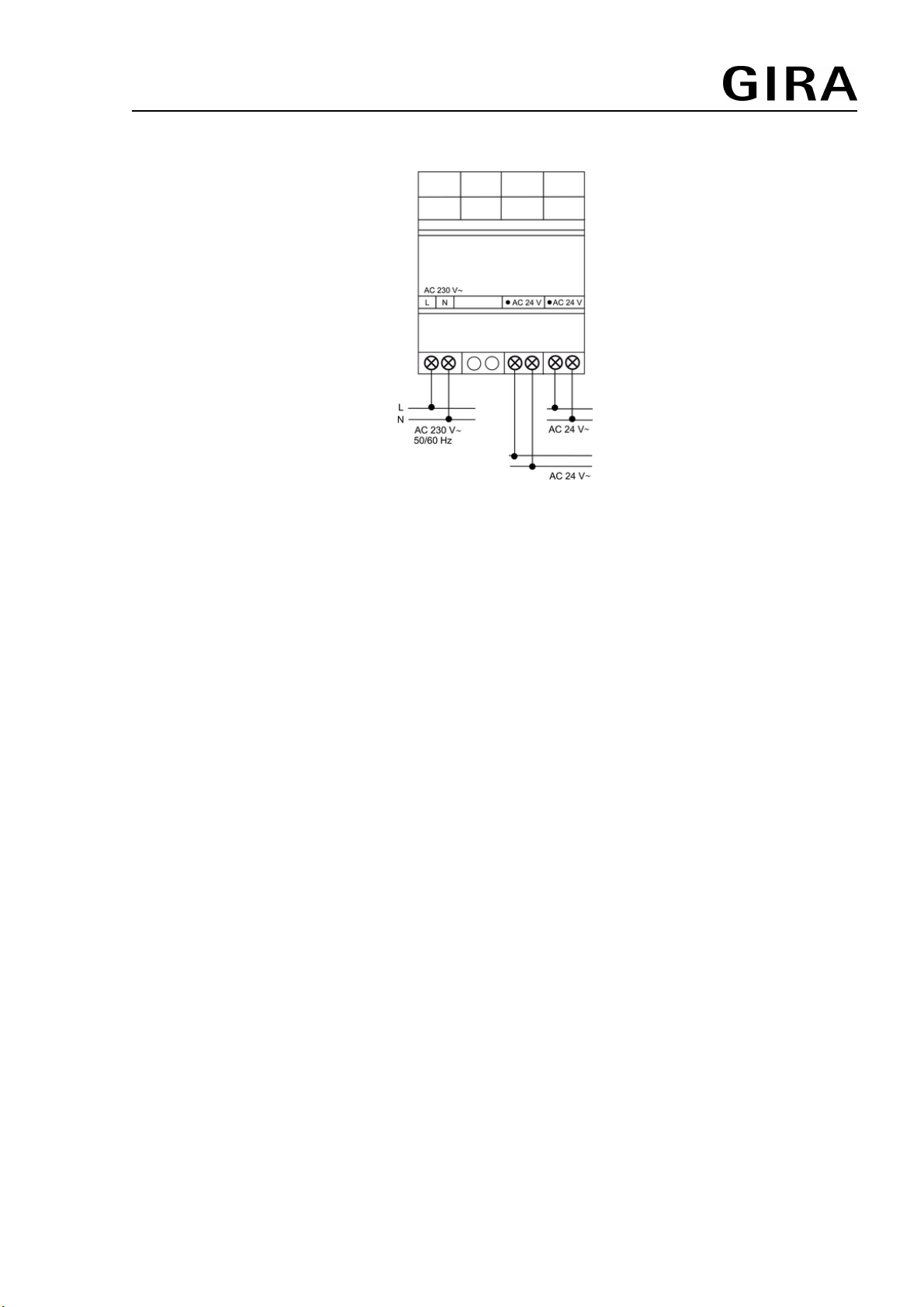

Figure 1
o Connect the device according to the connection diagram (Figure 1).
4 Appendix
4.1 Technical data
Rated voltage AC 230 V ~
Mains frequency 50 / 60 Hz
Output current max. 1 A
Output voltage AC 24 V
Storage/transport temperature -25 ... +70 °C
Ambient temperature -5 °C ... +40 °C
Relative humidity max. 93 % (No moisture condensation)
Weight approx. 550 g
Fitting width 72 mm / 4 modules
Connection mode Screw terminal
Single stranded 0.5 ... 4 mm²
finely stranded with conductor sleeve 0.14 ... 2.5 mm²
finely stranded without conductor sleeve 0.34 ... 4 mm²
4.2 Troubleshooting
Power has failed.
Short-circuit and overload protection has activated.
Check for overload.
Check output cable for short-circuit.
i Automatic restart after cooling off or elimination of short-circuit.
4.3 Warranty
The warranty is provided in accordance with statutory requirements via the specialist trade.
Please submit or send faulty devices postage paid together with an error description to your
responsible salesperson (specialist trade/installation company/electrical specialist trade). They
will forward the devices to the Gira Service Center.
32551322 10499206 I00 20.05.2011 2/3
