98GC2763B
MULTI CHANNEL WALL SWITCH
PRODUCT DESCRIPTION
The 98GC2763B is a Multichannel RF transmitter, powered by three 3v Lithium

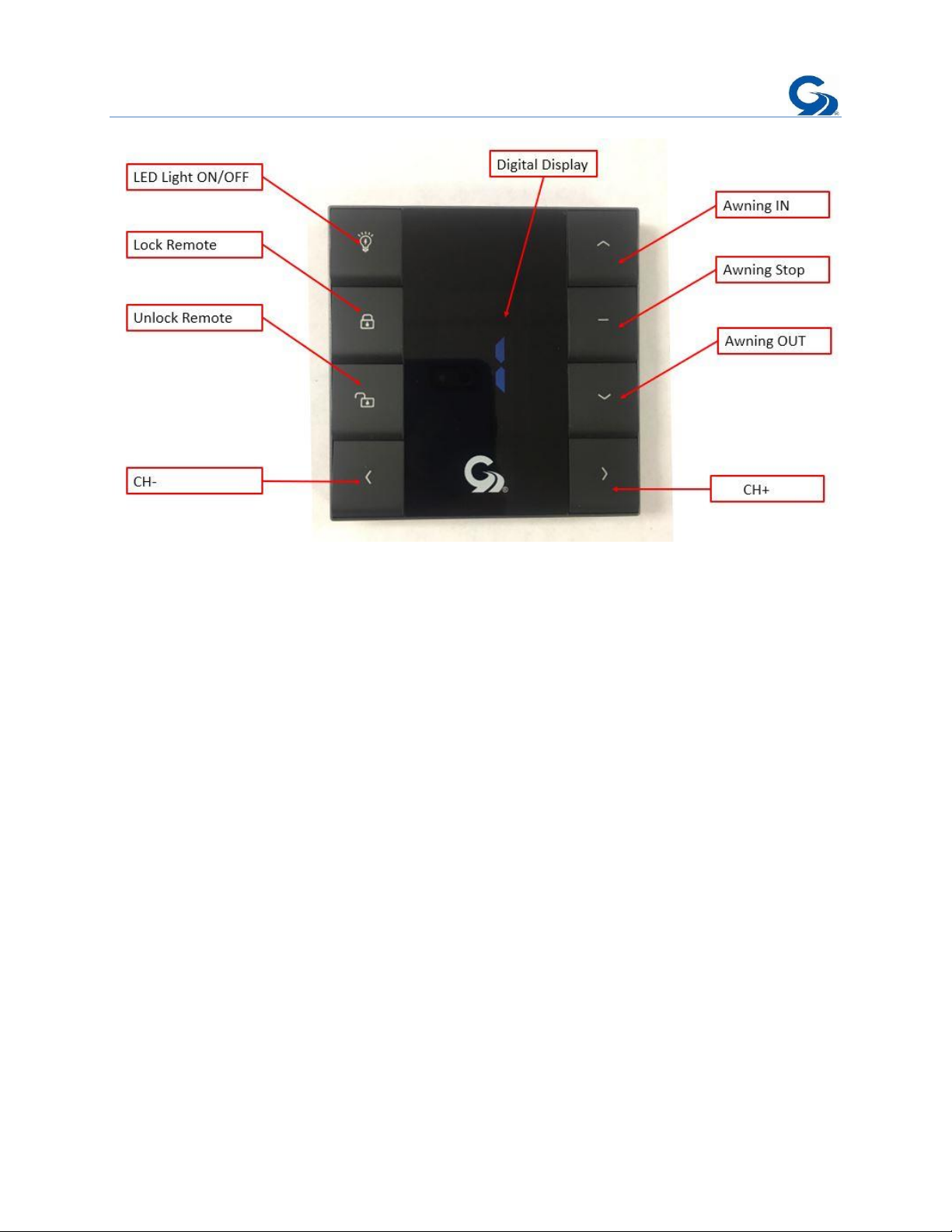

batteries (CR2430) designed to control up to 20 awnings. See figure 8 for description
of each pad.
16
Fig.8
Programming a Wall Switch to 98GC274B
a. Supply power to the GC274B
b. Press and hold the MIDDLE and RIGHT buttons on the GC274 (Fig 3) for
about 3 seconds until the Green LED starts to flash.
c. Press STOP (Fig. 1): The Green LED will stop blinking and remain illuminated.
d. Press the IN button (Fig.8) on the REMOTE DEVICE being programmed. The
Green LED on the motor controller will extinguish.
17

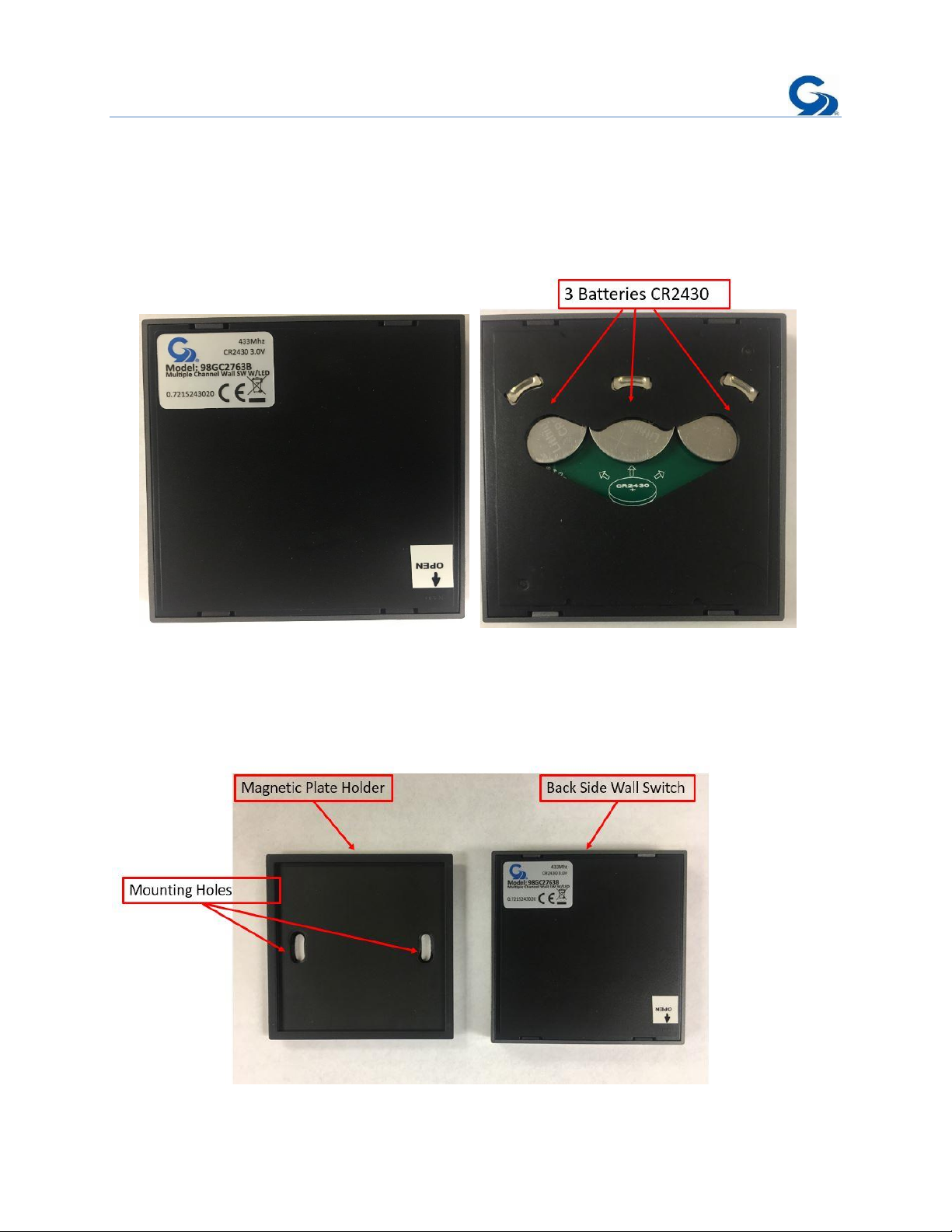

To find the batteries turn the wall switch over and using a small flate screw driver pull
the cover off, the cover has the word “open” on the right bottom corner, see Fig.9
below.
•The Battery compartment, (into which three CR2430 3v Lithium battery should
be inserted as shown)
Fig.9
Magnetic Holder.- This new G link transmitter was designed with a magnetic plate
holder to keep it in place and make it more user friendly. See Fig 10 below.
Fig.10
