Gofanco HD20Ext Manuale utente

18G HDMI 2.0 CAT Extender

with IR - 70m

User's Guide

G4-0091A

P/N: HD20Ext

Thank you for purchasing from gofanco. Our

products aim to meet all your connectivity needs

wherever you go. For optimum performance

and safety, please read the instructions carefully

and keep this User’s Guide for future reference.

If you need more information about our

products, please visit www.gofanco.com. For

technical support, please email us at

[email protected]. For drivers/manuals

download, please go to www.gofanco.com/

download.

Important Safety Notices

Please read safety instructions carefully before

installation and operation.

• Please pay close attention to all warnings

and hints for this device

• Do not expose this unit to rain, heavy

moisture, or liquid

• Do not repair the device or open the

enclosure without professional guidance

to avoid electric shocks. Doing so may void

your warranty

• Keep the product in a well-ventilated

location to avoid damage from overheating

• Shut off power and make sure environment

is safe before installation

• Do not plug the HDMI cables and IR cables

in/out when the device is in use to avoid

cable damage. Make sure they are plugged

into the correct ports

• Use the included DC24V power adapter

only. Make sure the specification matches

if using 3rd-party DC power adapters

Introduction

The 18G HDMI 2.0 CAT Extender with IR - 70m

extends Ultra High Definition 4K HDR HDMI

signals from a source device to a display device

up to 70 meters over a single CAT6 cable.

Features

• TransmitsHDMIsignalsfromsourcedevice

to display device up to 70 meters using

economical CAT6 cabling

• Supports HDMI 2.0, up to 4K @60Hz YUV

4:4:4, HDR, HDCP 2.2

• Supports bi-directional IR remote control

function to control the source device or

display device from long distances

• With a 4K source: Supports simultaneous

4K output (TX) & 1080p (RX) via

downscaling

• The Transmitter's HDMI loopout allows for

a local display and monitoring of the

extended display

PackageContents

• 18G HDMI 2.0 CAT Extender with IR - 70m

(1 Transmitter & 1 Receiver)

• 1x IR Blaster cable and 1x IR Receiver cable

• 1x Power adapter (12VDC/1A)

• User's guide

Installation Requirements

1. HDMI source device (computer, DVD

player, XBOX, PS3, etc)

2. HDMI display device (SDTV/Monitor,

HDTV/Monitor, projector, etc.)

3. UTP/STP CAT6 cable following

IEEE-T568B wiring standard

Product Layout

Transmitter TX Front and Rear Panel

1. RJ45 Out: Connects to the Receiver's RJ45 In

usinga CAT cable. Itsupports PoC to power

the Receiver. The orange LED illuminates

when there is a valid HDMI signal. The

Green LED illuminates when power is

applied

2. IR In: Connects to the included IR Receiver

cable to control the remote display device

from the HDMI source location

3. IR Out: Connects to the included IR Blaster

cable to control the HDMI source device

from the remote display location

4. HDMI Out: Connects to an HDMI display

for local monitoring of the remote display

5. HDMI In: Connects to your HDMI source

6. PowerJack:Connectsto the included power

adapter

7. EDID Management:

•EDID Bypass: Press the button with a

paper clip or other sharp object to learn the

EDID from the remote display connected to

the Receiver's HDMI Out

•EDID Copy Tx/3s: Press and hold the

button down for 3 seconds to copy the EDID

from the local display connected to the

Transmitter's HDMI out

•Default: The source device learns EDID

from the TV with the lowest resolution. To

restoredefault setting, press and holddown

while powering cycling the unit, then

release 6 seconds after power is back on

Receiver RX Front and Rear Panel

1. HDMIOut:ConnectstoyourHDMIdisplay

2. RJ45 In: Connects to the Transmitter's RJ45

Out using a CAT cable. It supports PoC to

power the Receiver. The orange LED

illuminates when there is a valid HDMI

signal. The Green LED illuminates when

power is applied

3. IR In: Connects to the included IR Receiver

cable to control the remote display device

from the HDMI source location

4. IR In: Connects to the included IR Blaster

cable to control the HDMI source from the

remote display device location

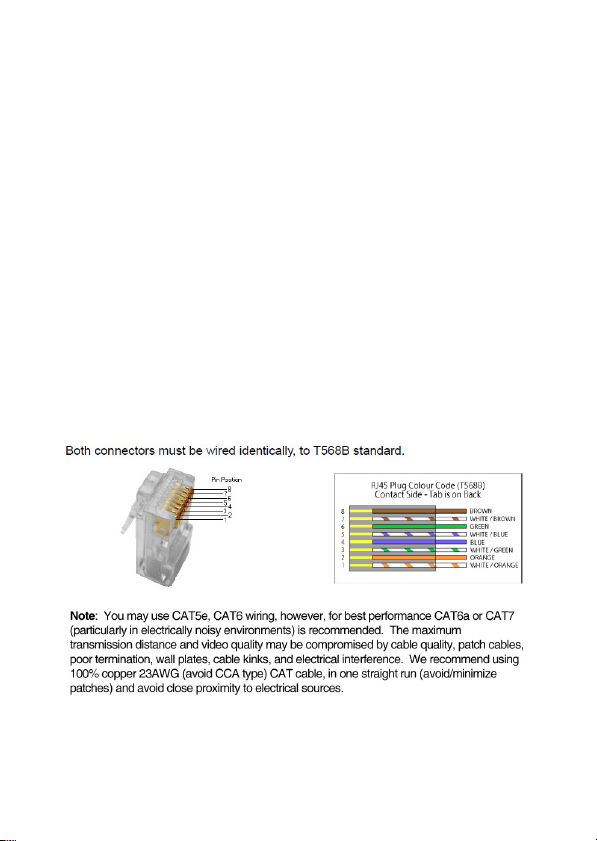

CAT Cable Wiring

We suggest both RJ45 connectors be wired

identically using T568B wiring standard for the

best performance and compatibility.

Product Layout Continued

Hardware Installation

1. Power off all devices including your HDMI

source and HDMI display(s).

2. Connect your HDMI source device to the

Transmitter's HDMI In connector with an

HDMI cable (HDMI cable not included).

3. Optional: Connect your HDMI display to

theTransmitter'sHDMI Out connector with

an HDMI cable (HDMI cable not included)

for local monitoring of the HDMI signal.

4. Optional: Connect the IR cable to the

Transmitter's IR port. Face the IR eye

towards your HDMI device's IR window.

This connection is needed only if you need

to control your HDMI device from the

remotelocation.Seetheapplicationdiagram

on page 9 for proper cable connection.

5. PlugaCAT6cablebetweentheTransmitter's

RJ45 Out and Receiver's RJ45 In.

6. Connect your HDMI display to the

Receiver's HDMI Out connector with an

HDMI cable (HDMI cable not included).

7. Optional: Connect the IR cable to the

Receiver'sIRport. Thisconnectionisneeded

only if you need to control your HDMI

device from the remote location. See the

application diagram on page 9 for proper

cable connection.

8. Plug the included power adapter into the

Transmitter's power jack, then plug the

power adapter into a reliable power source.

One power adapter will power both the

Transmitter and Receiver.

9. Power on all connected devices.

10. The HDMI extender is ready for use.

Application Diagram

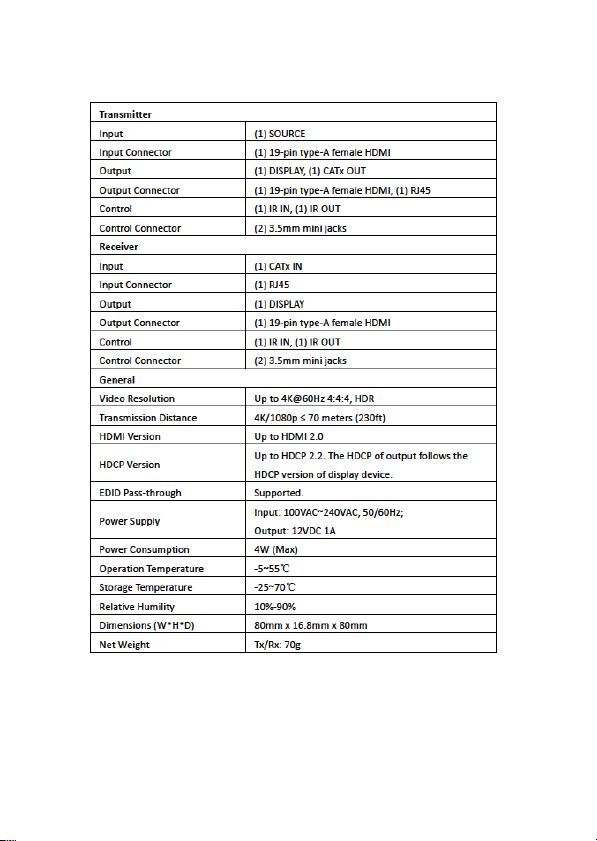

Specifications
