Gofanco HDBITT4K22 Manuale utente

HDMI HDbitT Extender 4K

HDCP 2.2 - 120m

User's Guide

G4-0072A

Part Number:

HDBitT4K22 (Kit)

HDBitT4K22-RX (Receiver)

Thank you for purchasing from gofanco. Our products

aim to meet all your connectivity needs wherever you

go. For optimum performance and safety, please read

the instructions carefully and keep this User's Guide for

future reference. If you need more information about

our products, please visit www.gofanco.com. For

technical support, email us at [email protected].

For drivers/manuals download, please go to

http://www.gofanco.com/download.

Important Safety Notices

Pleasereadsafetyinstructionscarefullybeforeinstallation

and operation.

• Please pay close attention to all warnings and hints

for this device

• Do not expose this unit to rain, heavy moisture, or

liquid

• Do not put any items into the device or attempt to

modify its operation

• Do not repair the device or open the enclosure

without professional guidance to avoid electric

shocks. Doing so may void your warranty

• Keep the product in a well-ventilated location to

avoid damage from overheating

• Shut off power and make sure environment is safe

before installation

• Do not plug the HDMI cables and IR cables

in/out when the device is in use to avoid cable

damage. Make sure they are plugged into the

correct ports

• Use the included power adapters only. Make sure

the specification matches if using 3rd-party DC

power adapters

Introduction

TheHDMI HDbitTExtender 4K HDCP 2.2-120m extends

4K HDMI signals over one Cat6 cable up to 120m (394ft)

with IR support.

Features

•HDMI 1.4 and HDCP 2.2 compliant

•Supports up to 4K@30Hz resolution

•Extends HDMI signal up to 120 meters (394ft) over

a single Cat6 cable

•Supports One-to-One, One-to-Many, or Cascade

configurations

•Additional Receivers (part # HDBitT4K22-RX) sold

separately

•Supports IR remote control function to control the

source device from long distances

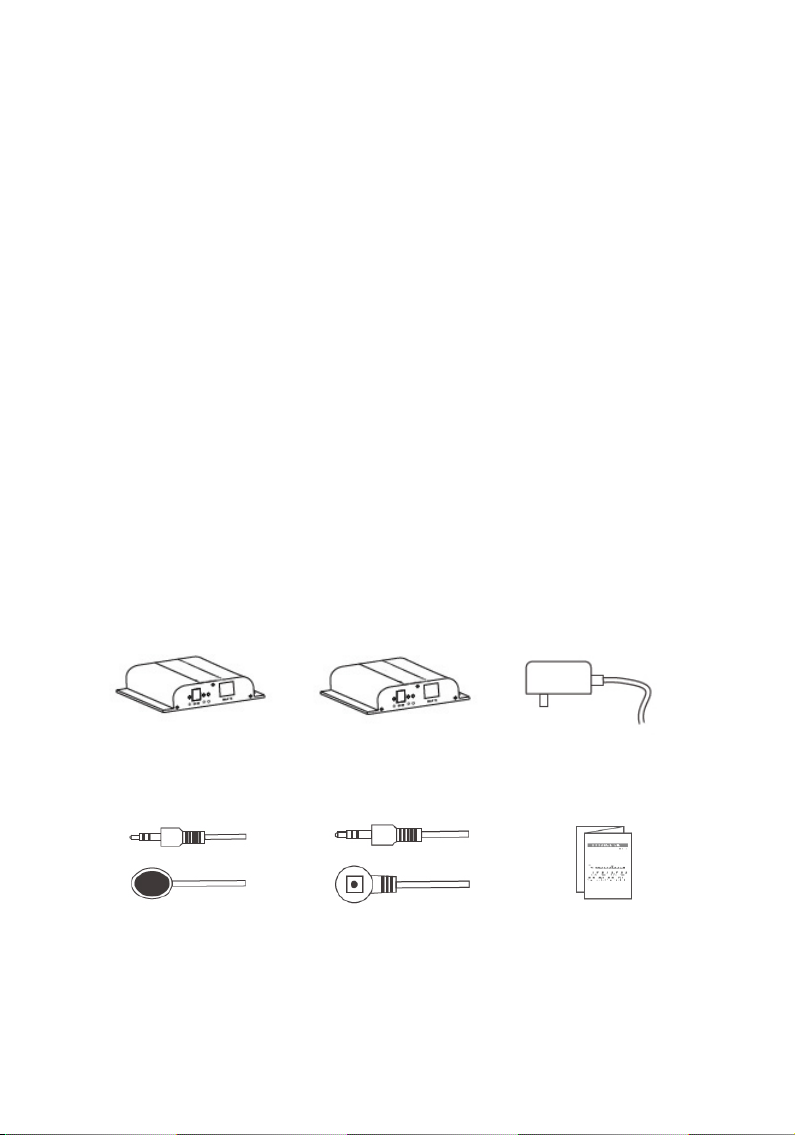

PackageContents

Transmitter (1pc) Power Adapter

5VDC/2A (2pcs)

IR Blaster Cable (1pc) User's Guide (1pc)

Receiver (1pc)

IR Receiver Cable (1pc)

Product Layout

Figure 1: Transmitter (TX)

1HDMI In: Connect your HDMI source here with an

HDMI cable (cable not included)

2IR Out: Infrared 3.5mm socket. Plug IR Blaster

Cable here. See instructions on page 6.

3Reset: Press to reset if the HDMI Extender doesn't

work properly

4Power LED: On when the Transmitter is powered

5Power Jack: Connect the included power adapter

here

6Activity LED: Blinks during data transmission

7Link LED: On when the Cat6 cable is connected/

linked properly to Transmitter's and Receiver's RJ45

8RJ45 Out: Link to Receiver's RJ45 In using a

Cat6 cable

Figure 2: Receiver (RX)

1HDMI Out: Connect your HDMI display here with

an HDMI cable (cable not included)

2IR In: Infrared 3.5mm socket. Plug IR Receiver

Cable here. See instructions on page 7.

3Reset: Press to reset if the HDMI Extender doesn't

work properly

4Power LED: On when the Receiver is powered

5Power Jack: Connect the included power adapter

here

6Activity LED: Blinks during data transmission

7Link LED: On when the Cat cable is connected/

linked properly to Transmitter's and Receiver's RJ45

8RJ45 In: Link to the Transmitter's RJ45 Out via a

Cat6 cable

Installation Requirements

1. HDMI source device (DVD player, set top box, PC,

etc.)

2. HDMI display device (SDTV/Monitor, HDTV/

Monitor, projector, etc.)

3. HDMI cables (not included)

4. UTP/STP CAT6/6A/7 cable, following IEEE-568B

wiring standard

Hardware Installation

To achieve optimal performance, Cat6 cable is

recommended.

1. Power off all devices including your HDMI source

and HDMI display.

2. Connect your HDMI source to the Transmitter's

HDMI In connector.

3. Optional: Connect the IR Blaster Cable to the

Transmitter's IR Out port. Face the eye towards

your HDMI source device's IR window. This

connection is needed only if you need to control

your HDMI source from the remote location.

4. Connect your Cat6 cable between the Transmitter's

RJ45 Out and Receiver's RJ45 In.

Cat Cable Wiring

We suggest both RJ45 connectors be wired identically

using T568B wiring standard for the best performance

and compatibility.

Connection Diagram

1. One-to-One:ExtendsHDMIsignals up to120 meters

over a single Cat6 cable.

Transmitter Receiver

5. ConnectyourHDMI display tothe Receiver's HDMI

Outconnector withan HDMI cable (HDMI cable not

included).

6. Optional: Connect the IR Receiver Cable to the

Receiver's IR In port. This connection is needed

only if you need to control your HDMI source

device from the remote location.

7. Plug the included power adapters into the

Transmitter's and Receiver's Power Jacks, then plug

both power adapters into reliable power outlets.

8. Power on your HDMI source device and HDMI

displays. The extender is ready for use.

DVD

IR Blaster IR Receiver

Display

Cat Cable

HDMI In HDMI Out

3. Cascade: Unlimited extension using dedicated

network routers/switches.

2. One-to-Many: Extend and split using dedicated

network router/switch.

- One Transmitter (TX) to several Receivers (RX).

-Additional Receivers (part # HDBitT4K22-RX) sold

separately.

Transmitter

Receiver

Cat Cable Cat Cable

Cat Cable

HDMI In

HDMI Out

Display

Switch

Switch Switch

DVD

DVD Transmitter

Receiver

FAQ & Solutions

Q1: The TV displays "Waiting for connection..." on the

right corner:

A: 1. Check whether the power adapter of Transmitter

(TX) and Receiver (RX) or Network Router/Switch

(if used) is connected.

2. Make sure the network cable (Cat6) is firmly

connected between the TX and RX.

Q2: The TV displays "Please check the TX input signal":

A: 1. Make sure the HDMI source device is connected

to the Transmitter (TX) and powered on.

2. Use other HDMI cables to connect.

3. If still doesn't work, connect the HDMI source

device to the TV directly to see if there's a signal.

Q3: The HDMI extender isn't working properly:

A: 1. Please check the cable lengths are within below:

- HDMI cables: 2 meters

- Network cable (Cat6): 120 meters

2. Press the "Reset" button on the TX and RX and

reconnect.

Q4: Whenplaying 4K source, the screen is black without

content:

A: 1. Make sure both TV and HDMI cable support

HDMI 1.4 specification

2. Press the "Reset" button on the TX and RX and

reconnect.

Specifications

Item Specification

Compliance HDMI 1.4, HDCP 2.2

Transmission protocol HDbitT

HDMI input resolution

480i@60Hz, 480p@60Hz, 576i@50Hz,

576p@50Hz, 720p@50/60Hz,

1080i@50/60Hz, 1080p@50/60Hz,

4Kx2K@24/25/30Hz

HDMI output resolution 1080p@60Hz, 4Kx2K@30Hz

Transmission distance

Cat5: Up to 80m (262ft)

Cat5e: Up to 100m (328ft)

Cat6: Up to 120m (394ft)

IR signal 20KHz - 60KHz

Operating temperature 32 - 140 F (0 - 60 C)

Power adapter 5VDC / 2A

Power consumption TX: 6W; RX: 4W

Dimensions TX & RX: 4.22" (L) x 3.7" (W) x 0.93" (H) each

Weight TX & RX: 0.37 lbs (each)
