Gold Note Machiavelli Red Manuale utente

Machiavelli Red

Owner’s Manual

Thank you for your purchase of the MACHIAVELLI RED stereo cartridge.

Read these Operating Instructions carefully before using your MACHIAVELLI RED and keep it for future reference.

Before Using

1. The Stylus is very delicate. Applying excessive force to the stylus, such as pressing with a finger can break it. Handle the

cartridge with the utmost care.

2. A powerful magnet is used in the cartridge. Note that carelessly bringing a steel screwdriver or other such item near the

cartridge will result in it being attracted by the magnet and may result in damage to the stylus, so care must be taken.

Fig. 1

Fig. 2

Method of Use

1. Mounting the cartridge on the tone arm Head-Shell

using the supplied Allen Wrench and one set of the

2,5mm screws. Adjust it to the stylus position specified

for the turntable system you are using mounting it

properly without tilting or turning it. (See Figure 1.)

7KHRXWSXWWHUPLQDOVDUHFRORXUVFRGHGIRULGHQWLIL-

cation as illustrated in Figure 2. Match the colors of

the tone arm head-shell leads to the terminals and

connect each other properly.

NOTE:

When connecting the cartridge, be sure to use the

tipped leads and press them onto the terminals. Apply-

ing heat to the output terminals of the cartridge, such

as in direct soldering, will cause internal damage to the

cartridge, such as wire breakage.

RED(right ch. +)

GREEN

(right ch. -)

WHITE(Left ch. +)

BLUE

(Left ch. -)

Package Content

&DUWULGJHERG\

6WDLQOHVV6WHHOQRPDJQHWLFWZRVHWVRIKHDGVKHOOIL[LQJPPVFUHZV

PP$OOHQ:UHQFK

2ZQHU·V0DQXDO

The 0DFKLDYHOOL5HG is the new *ROG1RWH high-output MC phono cartridge features easy internal impedance and

high gain to enables great sound performance matched with any MM phono preamp or MC phono properly set-up.

The Machiavelli Red aluminum alloy light and rigid cantilever handles a high precision Elliptical diamond developed with

Adamant-Namiki, the world most famous professional Diamond manufacturer.

The diamond tip is mechanically inserted and blocked into the new cantilever that is consequently handled by a special

pipe increases the structure rigidity.

The cantilever suspension is made by elastic no deformable harmonic steel spring rigidly blocked to eliminate vibrations

enhancing the tracking ability of the cartridge the best.

Besides, the increased lighted body of the cartridge, featuring only 10gram mass enables superb vibration control.

The thin and long gold plated pin connectors enable the ideal contact with arm cinches; the good contact unable energy

dispersion and better grounding for a more silent music background to reach all minor details listening to the music.

Because the Machiavelli Red 130ohm high internal impedance and 2.0mV output level it can be easily matched with any

active phono preamp MM and even correctly set-up MC ones, without Step-Up transformers.

Please Note: to preserve the uniqueness all Machiavelli Red cartridges have the serial number indelibly engraved in the

recessed area of the top of the cartridge body.

63(&,),&$7,216

Typology: MC High Output Phono Cartridge

Output level: 2.0mV

Frequency response: 10-40000Hz

,PSHGDQFH

6XJJHVWHGORDG.

Compliance: 10×10-6cm/dyne

Channel separation: >28dB

Suggested tracking weight: 1.8 to 2.1g

Cantilever: Aluminum

Diamond: Micro Elliptical

Diamond size: 7.5×15.5µm

Coil Wire: Copper

Magnet: Samarium-Cobalt

Mounting hole diamond distance: 9mm

3K\VLFDO

Total weight: 10g

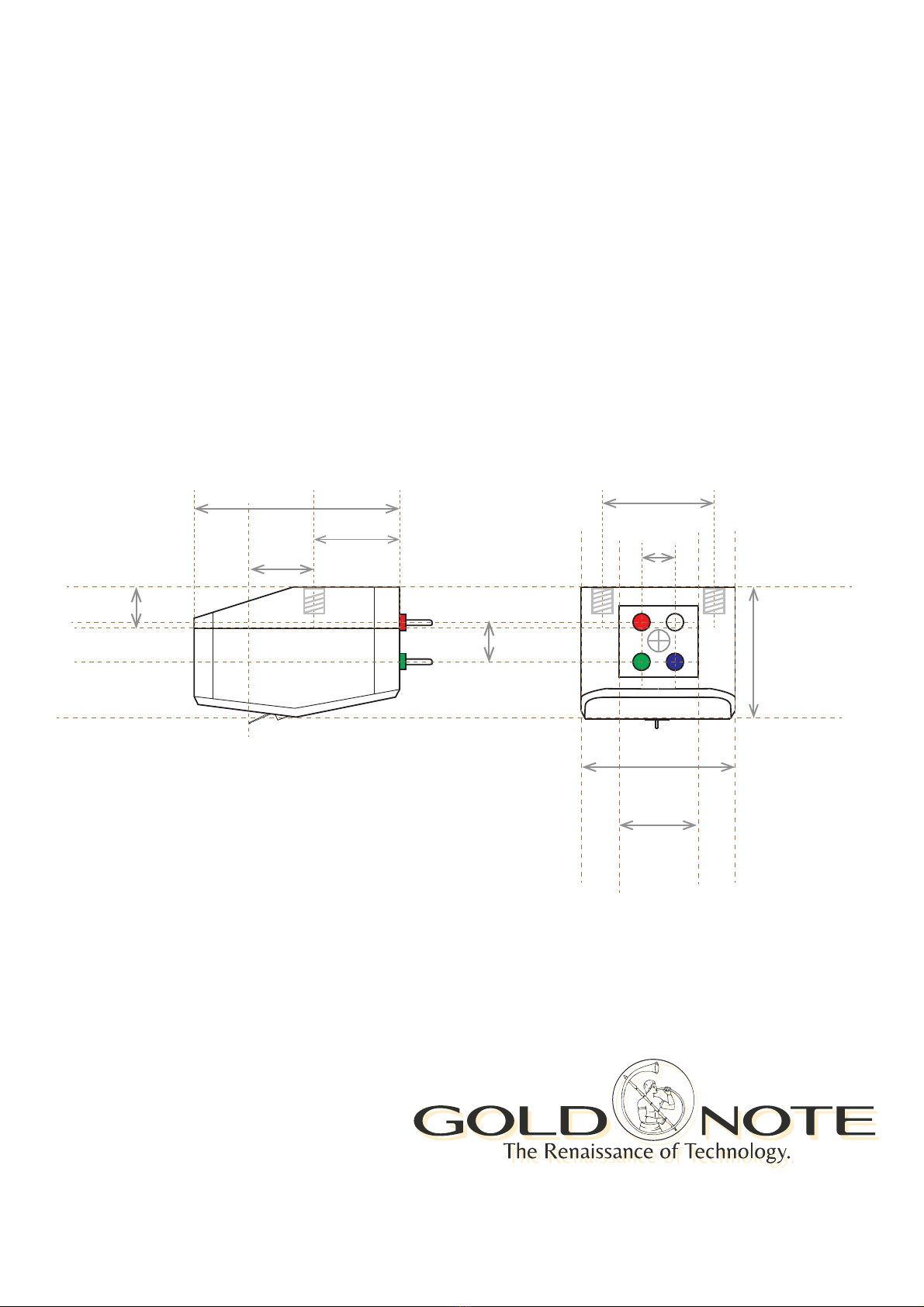

16,5mm

19,1mm

9,8mm

12,7mm

11mm

9mm

25,9mm

4,2mm

5mm

Via della Gora, 6

Montespertoli (Florence) Italy 50025

Tel. + 39 0571 675005

Fax. + 39 0571 675013

www.goldnote.it
