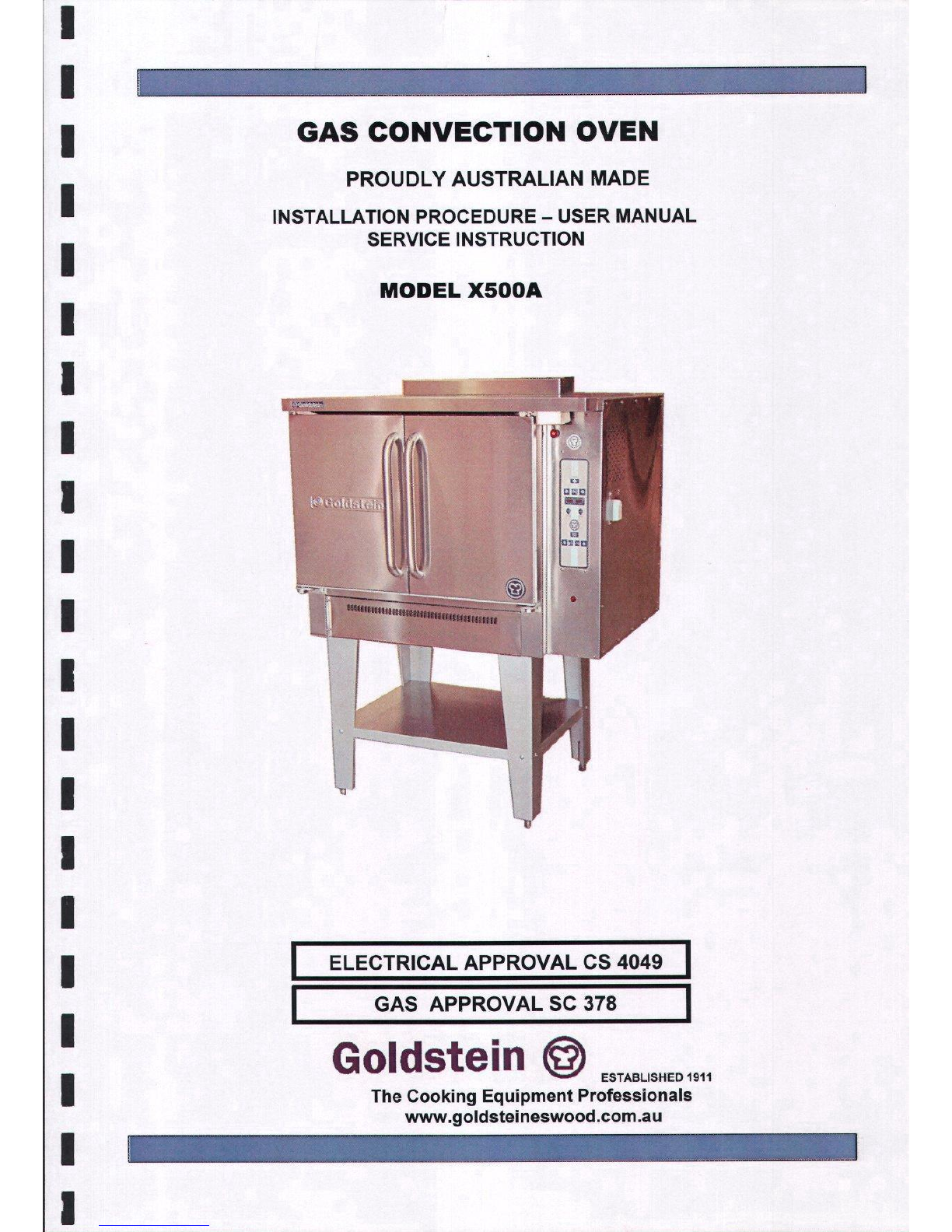

GAS CONVECTION OVEN

PROUDLY AUSTRALIAN MADE

INSTALLATION PROCEDURE −USER MANUAL

SERVICE INSTRUCTION

MODEL X500A

IIi ELECTR'CAL APPROVAL CS 40~' II

GAS APPROVAL SC 378

IGoldstein ~)

IESTABLISHED t911

The Cooking Equipment Professionals

www.goldstaineswood.com.au

10.

11.

12.

13.

14.

15.

16.

17.

18.

Goldstein0

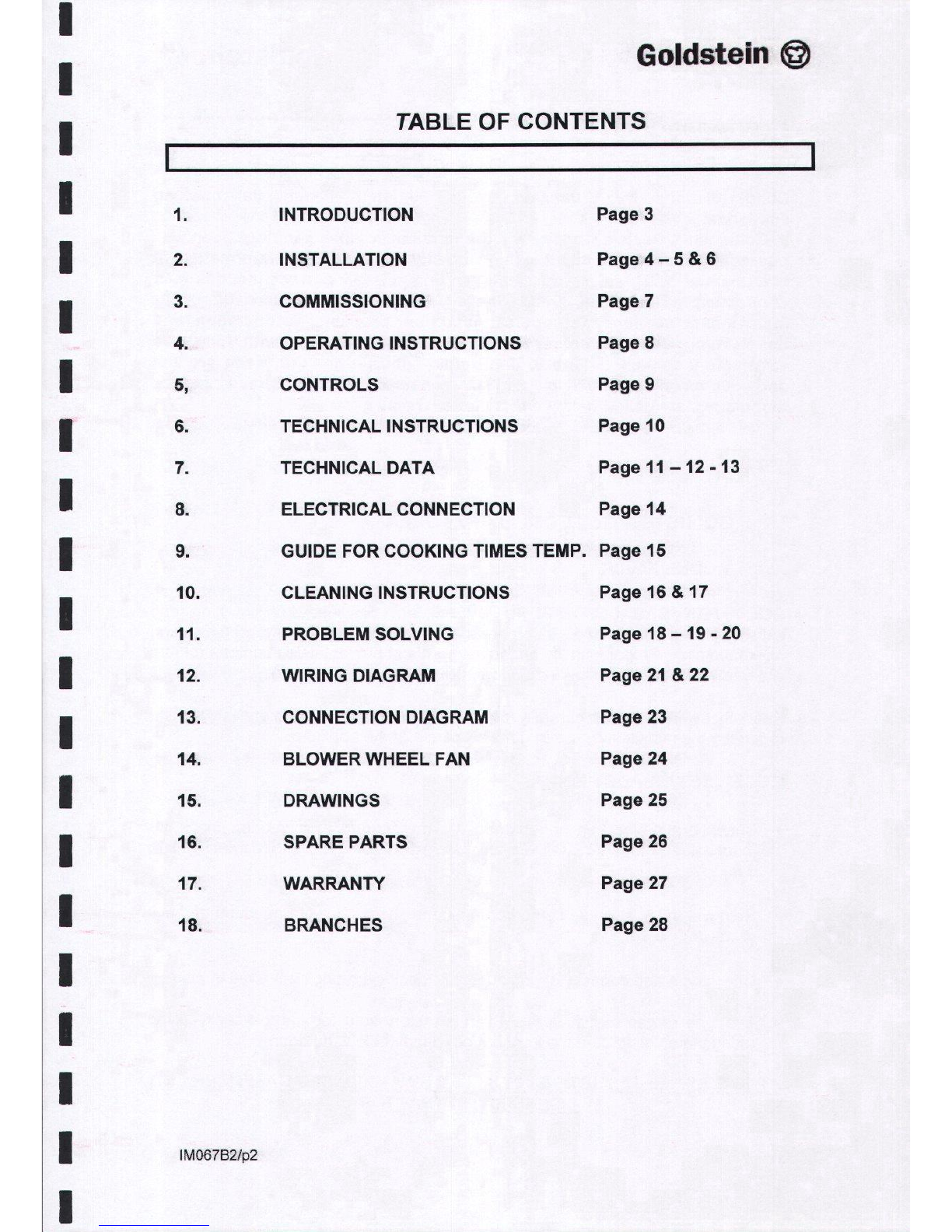

TABLE OF CONTENTS

INTRODUCTION Page 3

INSTALLATION Page 4 −5& 6

COMMISSIONING Page 7

OPERATING INSTRUCTIONS Page 8

CONTROLS Page 9

TECHNICAL INSTRUCTIONS Page 10

TECHNICAL DATA Page 11 −12 −13

ELECTRICAL CONNECTION Page 14

GUIDE FOR COOKING TIMES TEMP. Page 15

CLEANING INSTRUCTIONS Page 16 & 17

PROBLEM SOLVING Page 18 −19 −20

WIRING DIAGRAM Page 21 &22

CONNECTION DIAGRAM Page 23

BLOWER WHEEL FAN Page 24

DRAWINGS Page 25

SPARE PARTS Page 26

WARRANTY Page 27

BRANCHES Page 28

IM067B2/p2

Goldstein0

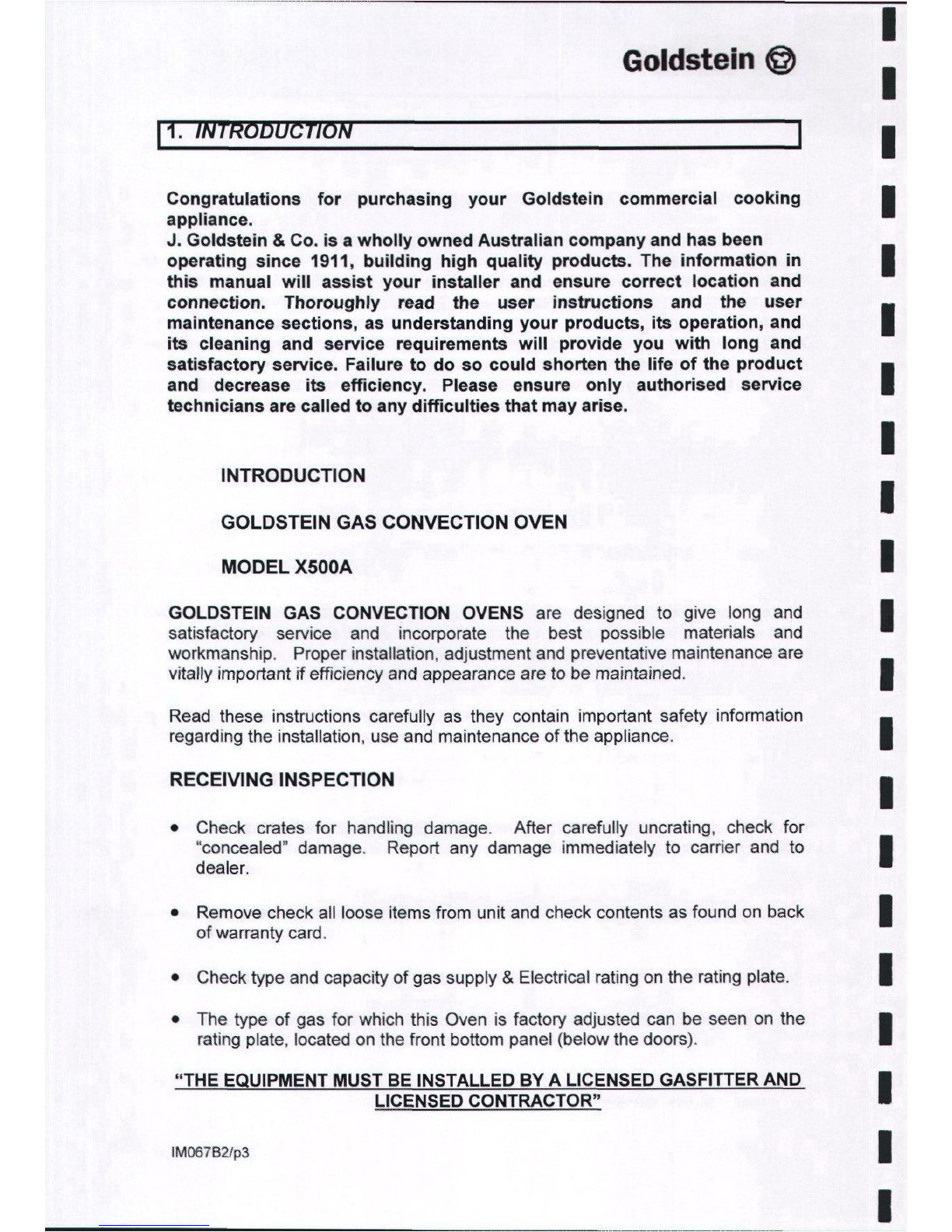

I 1. INTRODUCTION I

Congratulations for purchasing your Goldstein commercial cooking

appliance.

J. Goldstsin & Co. is awholly owned Australian company and has been

operating since 1911, building high quality products. The information in

this manual will assist your installer and ensure cor~ct location and

connection. Thoroughly mad the user instructions and the user

maintenance sections, as understanding your products, its operation, and

its cleaning and service requirements will provide you with long and

satisfactory service. Failure to do so could shorten the life of the product

and decrease its efficiency. Please ensure only authorieed service

technicians are called to any difficulties that may arise.

INTRODUCTION

GOLDSTEIN GAS CONVECTION OVEN

MODEL X500A

GOLDSTEIN GAS CONVECTION OVENS are designed to give long and

satisfactory service and incorporate the best possible materials and

workmanship. Proper installation, adjustment and preventative maintenance are

vitally important if efficiency and appearance are to be maintained.

Read these instructions carefully as they contain important safety information

regarding the installation, use and maintenance of the appliance.

RECEIVING INSPECTION

•Check crates for handling damage. After carefully uncrating, check for

"concealed" damage. Report any damage immediately to carrier and to

dealer.

•Remove check all loose items from unit and check contents as found on back

of warranty card.

•Check type and capacity of gas supply & Electrical rating on the rating plate.

•The type of gas for which this Oven is factory adjusted can be seen on the

rating plate, located on the front bottom panel (below the doors).

"THE EQUIPMENT MUST BE INSTALLED BY A LICENSED GASFITTER AND

LICENSED CONTRACTOR"

IM067B2/p3

Goldstein

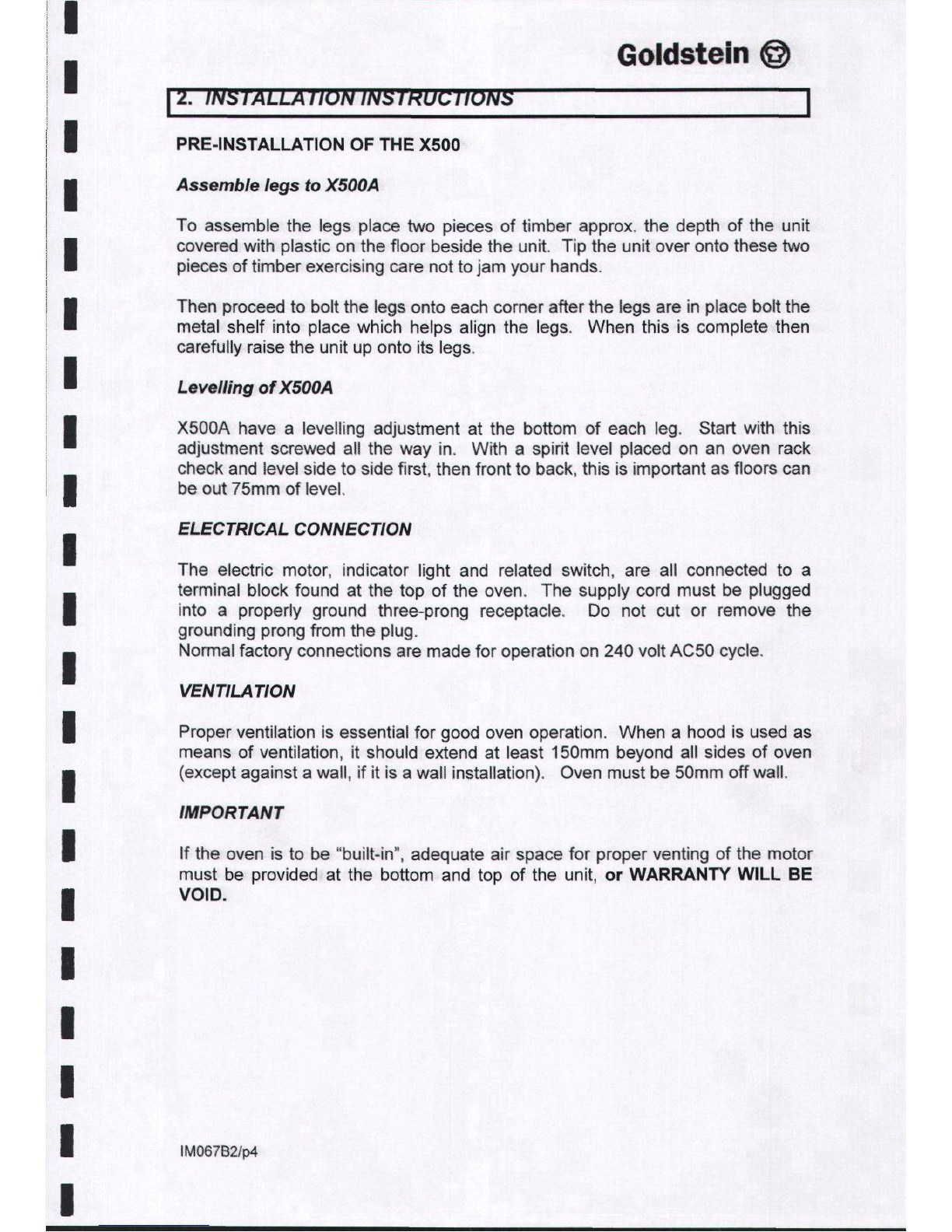

I Z. IN~ TALLA TION IN~ TI~U(; I IUN3 I

PRE−INSTALLATION OF THE X5O0

Assemble legs to XSOOA

To assemble the legs place two pieces of timber approx, the depth of the unit

covered with plastic on the floor beside the unit. Tip the unit over onto these two

pieces of timber exercising care not to jam your hands.

Then proceed to bolt the legs onto each comer after the legs are in place bolt the

metal shelf into place which helps align the legs. When this is complete then

carefully raise the unit up onto its legs,

Levelling of XSOOA

X500A have alevelling adjustment at the bottom of each leg. Start with this

adjustment screwed all the way in. With aspirit level placed on an oven rack

check and level side to side first, then front to back, this is important as floors can

be out 75mm of level.

ELECTRICAL CONNECTION

The electric motor, indicator light and related switch, are all connected to a

terminal block found at the top of the oven. The supply cord must be plugged

into aproperly ground three−prong receptacle. Do not cut or remove the

grounding prong from the plug.

Normal factory connections are made for operation on 240 volt AC50 cycle.

VENTILATION

Proper ventilation is essential for good oven operation. When ahood is used as

means of ventilation, it should extend at least 150mm beyond all sides of oven

(except against awall, if it is awall installation). Oven must be 50mm offwall.

IMPORTANT

If the oven is to he "built−in", adequate air space for proper venting of the motor

must be provided at the bottom and top of the unit, or WARRANTY WILL BE

VOID.

IIM067B2/p4

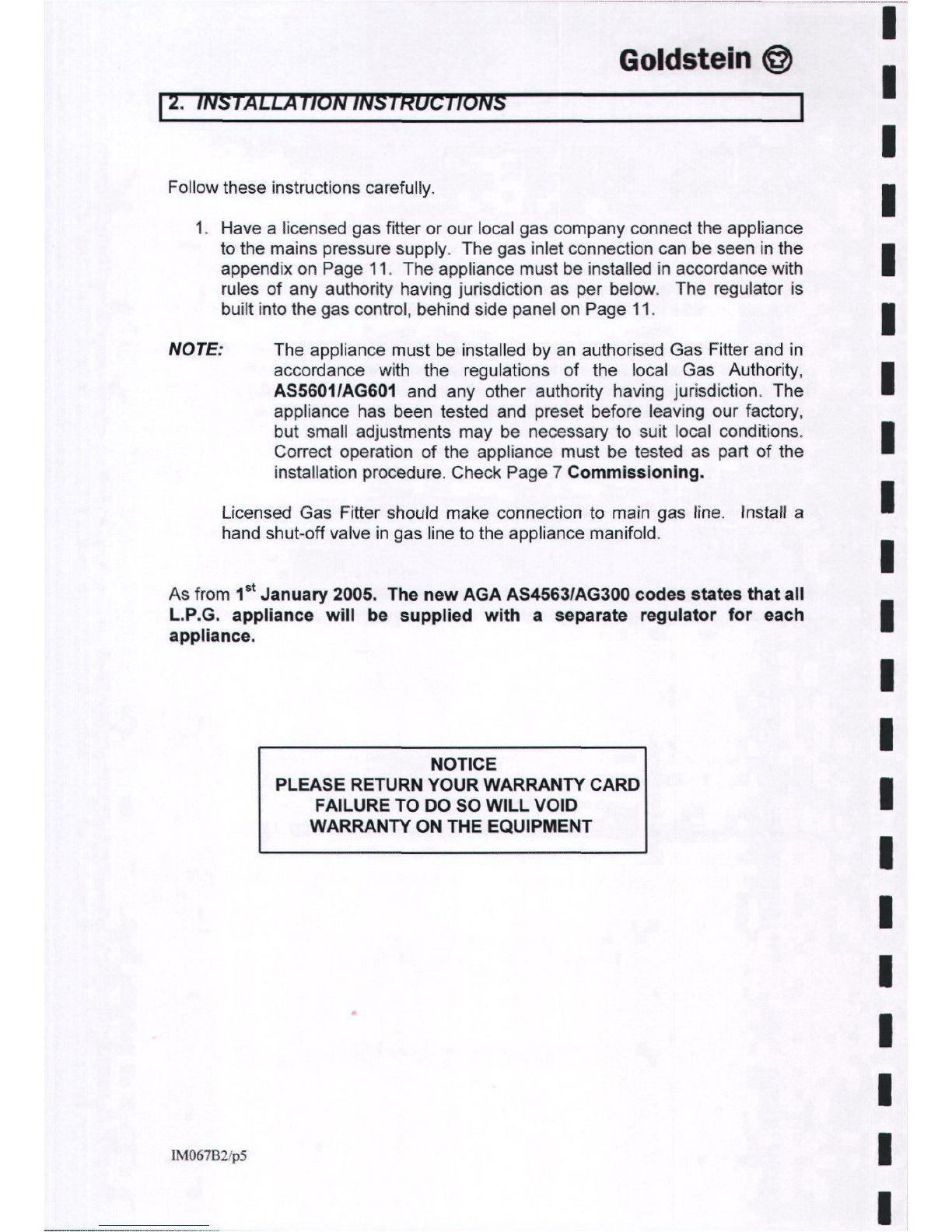

2. INSTALLATION IN~$1HUI~IIUN~

Goldstein0

Follow these instructions carefully.

1. Have alicensed gas fitter or our local gas company connect the appliance

to the mains pressure supply. The gas inlet connection can be seen in the

appendix on Page 11, The appliance must be installed in accordance with

rules of any authority having jurisdiction as per below. The regulator is

built into the gas control, behind side panel on Page 11.

NOTE: The appliance must be installed by an authodsed Gas Fitter and in

accordance with the regulations of the local Gas Authority,

AS56011AG601 and any other authority having jurisdiction, The

appliance has been tested and preset before leaving our factory,

but small adjustments may be necessary to suit local conditions.

Correct operation of the appliance must be tested as part of the

installation procedure, Check Page 7 Commissioning.

Licensed Gas Fitter should make connection to main gas line, Install a

hand shut−off valve in gas line to the appliance manifold.

As from Ist January 2005. The new AGA AS45631AG300 codes states that all

L,P.G, appliance will be supplied with aseparate regulator for each

appliance.

NOTICE

PLEASE RETURN YOUR WARRANTY CARD

FAILURE TO DO SO WILL VOID

WARRANTY ON THE EQUIPMENT

]M067B2:p5

Goldstein@

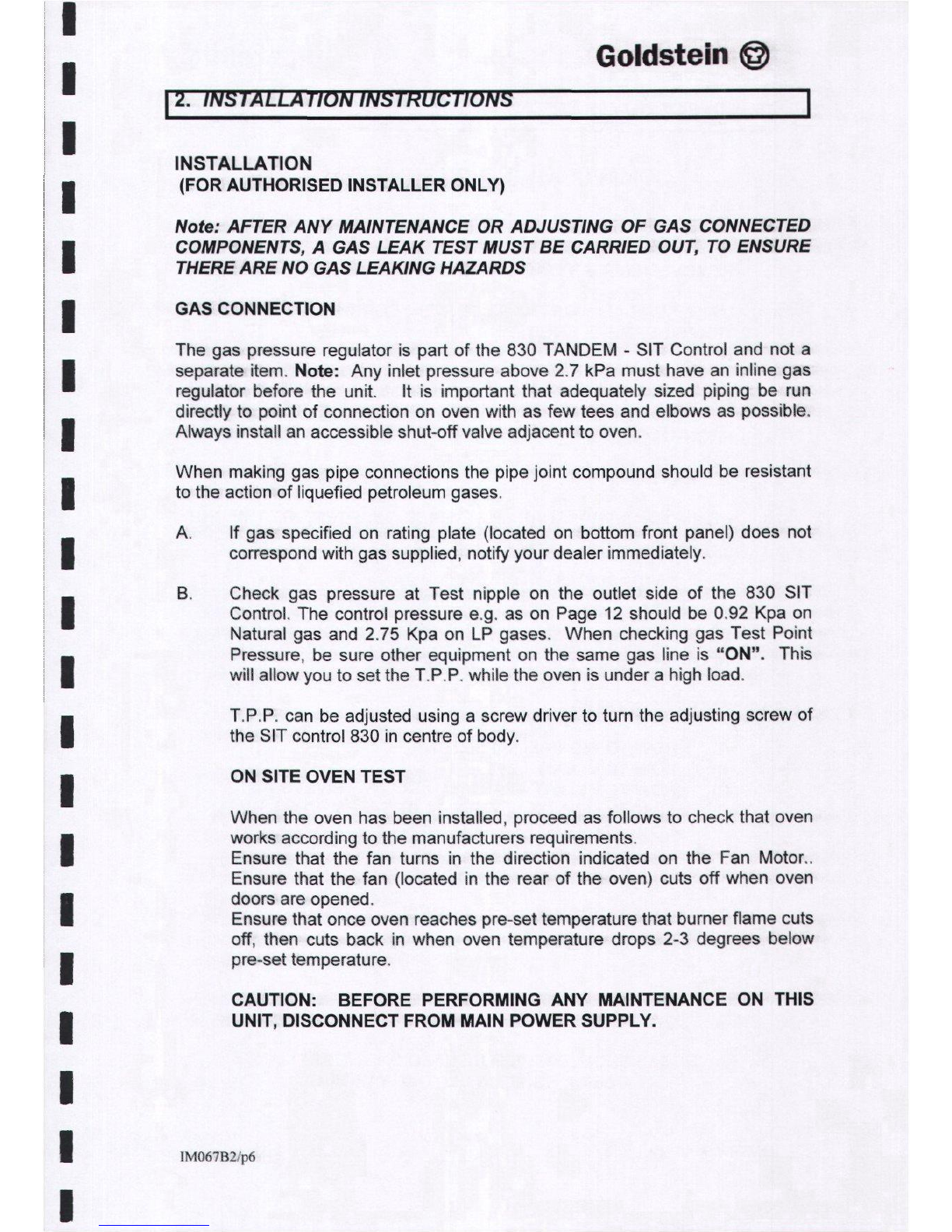

I 2. INSTALLATION IN~THUGTIUN~ i

INSTALLATION

(FOR AUTHORISED INSTALLER ONLY)

Note: AFTER ANY MAINTENANCE OR ADJUSTING OF GAS CONNECTED

COMPONENTS, AGAS LEAK TEST MUST BE CARRIED OUT, TO ENSURE

THERE ARE NO GAS LEAKING HAZARDS

GASCONNECTION

The gas pressure regulator is part of the 830 TANDEM −SIT Control and not a

separate item, Note: Any inlet pressure above 2,7 kPa must have an inline gas

regulator before the unit, It is important that adequately sized piping be run

directly to point of connection on oven with as few tees and elbows as possible.

Always install an accessible shut−off valve adjacent to oven.

When making gas pipe connections the pipe joint compound should be resistant

to the action of liquefied petroleum gases.

A, If gas specified on rating plate (located on bottom front panel) does not

correspond with gas supplied, notify your dealer immediately.

B, Check gas pressure at Test nipple on the outlet side of the 830 SIT

Control. The control pressure e.g. as on Page 12 should be 0.92 Kpa on

Natural gas and 2.75 Kpa on LP gases. When checking gas Test Point

Pressure, be sure other equipment on the same gas line is "ON". This

will allow you to set the T.P.P. while the oven is under ahigh load.

T.P.P. can be adjusted using ascrew driver to turn the adjusting screw of

the SIT control 830 in centre of body.

ON SITE OVEN TEST

When the oven has been installed, proceed as follows to check that oven

works according to the manufacturers requirements.

Ensure that the fan turns in the direction indicated on the Fan Motor..

Ensure that the fan (located in the rear of the oven) cuts off when oven

doors are opened.

Ensure that once oven reaches pre−set temperature that burner flame cuts

off, then cuts back in when oven temperature drops 2−3 degrees below

pre−set temperature.

CAUTION: BEFORE PERFORMING ANY MAINTENANCE ON THIS

UNIT, DISCONNECT FROM MAIN POWER SUPPLY,

IM067B2/p6

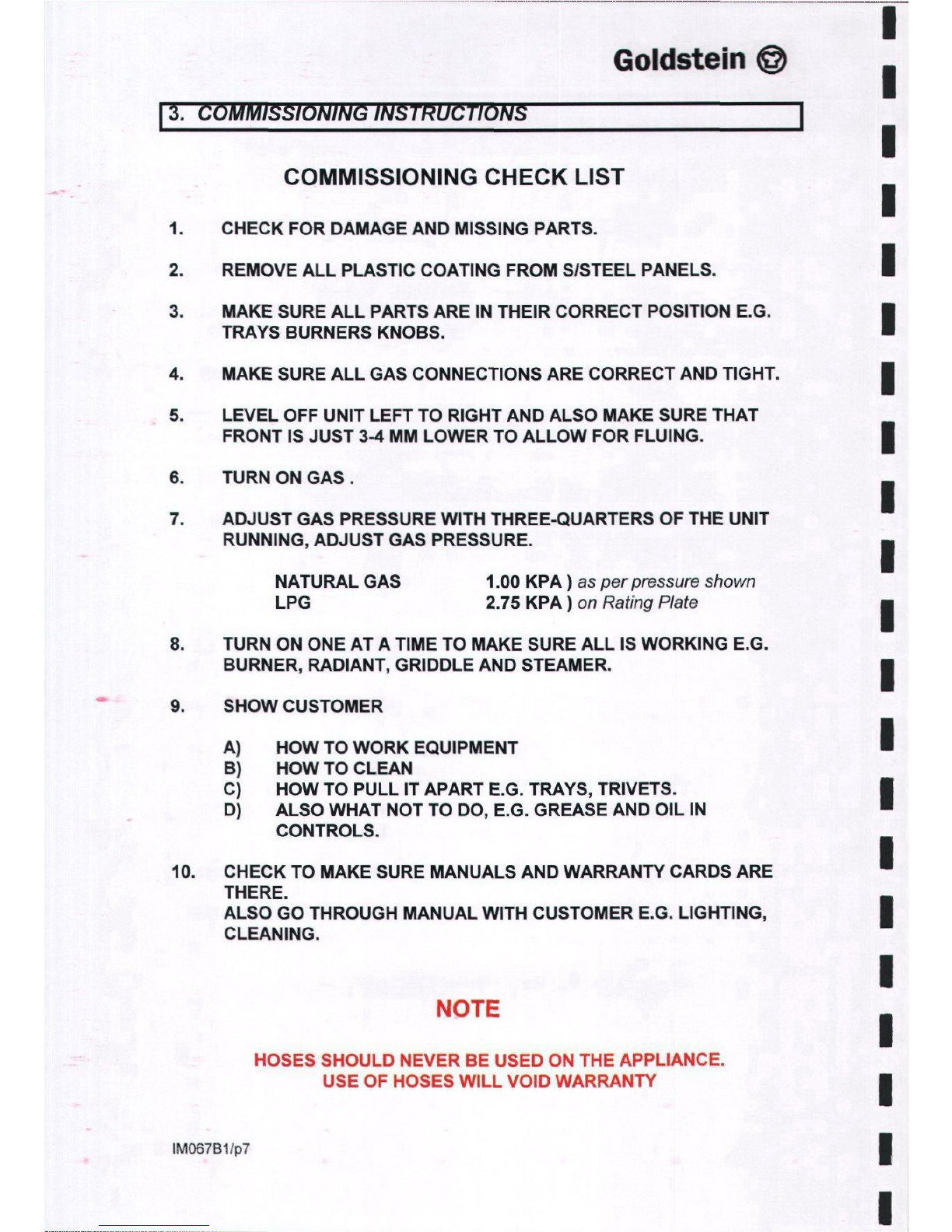

1 3. COMMISSIONING INSTRUCTIONS

10.

Goldstein0

COMMISSIONING CHECK LIST

CHECK FOR DAMAGE AND MISSING PARTS.

REMOVE ALL pLASTIC COATING FROM SlSTEEL PANELS.

MAKE SURE ALL PARTS ARE IN THEIR CORRECT PosITION E.G.

TRAYS BURNERS KNOBS.

MAKE SURE ALL GAS CONNECTIONS ARE CORRECT AND TIGHT.

LEVEL OFF UNIT LEFT TO RIGHT AND ALSO MAKE SURE THAT

FRONT IS JUST 341MM LOWER TO ALLOW FOR FLUING.

TURN ON GAS.

ADJUST GAS PRESSURE WITH THREE−QUARTERS OF THE UNIT

RUNNING, ADJUST GAS PRESSURE.

NATURAL GAS 1.00 KPA )as per pressure shown

LPG 2.75 KPA )on Rating P/ate

TURN ON ONE AT A TIME TO MAKE SURE ALL IS WORKING E.G.

BURNER, RADIANT, GRIDDLE AND STEAMER.

SHOW CUSTOMER

A) HOW TO WORK EQUIPMENT

B) HOW TO CLEAN

C) HOW TO PULL IT APART E.G. TRAYS, TRIVETS.

D) ALSO WHAT NOT TO DO, E.G. GREASE AND OIL IN

CONTROLS.

CHECK TO MAKE SURE MANUALS AND WARRANTY CARDS ARE

THERE.

ALSO GO THROUGH MANUAL WITH CUSTOMER E.G. LIGHTING,

CLEANING.

NOSES SHOULD NEVER BE USED ON TNE APPLIANCE,

USE OF NOSES WILL VOID WARRANT~

IM067B1/p7

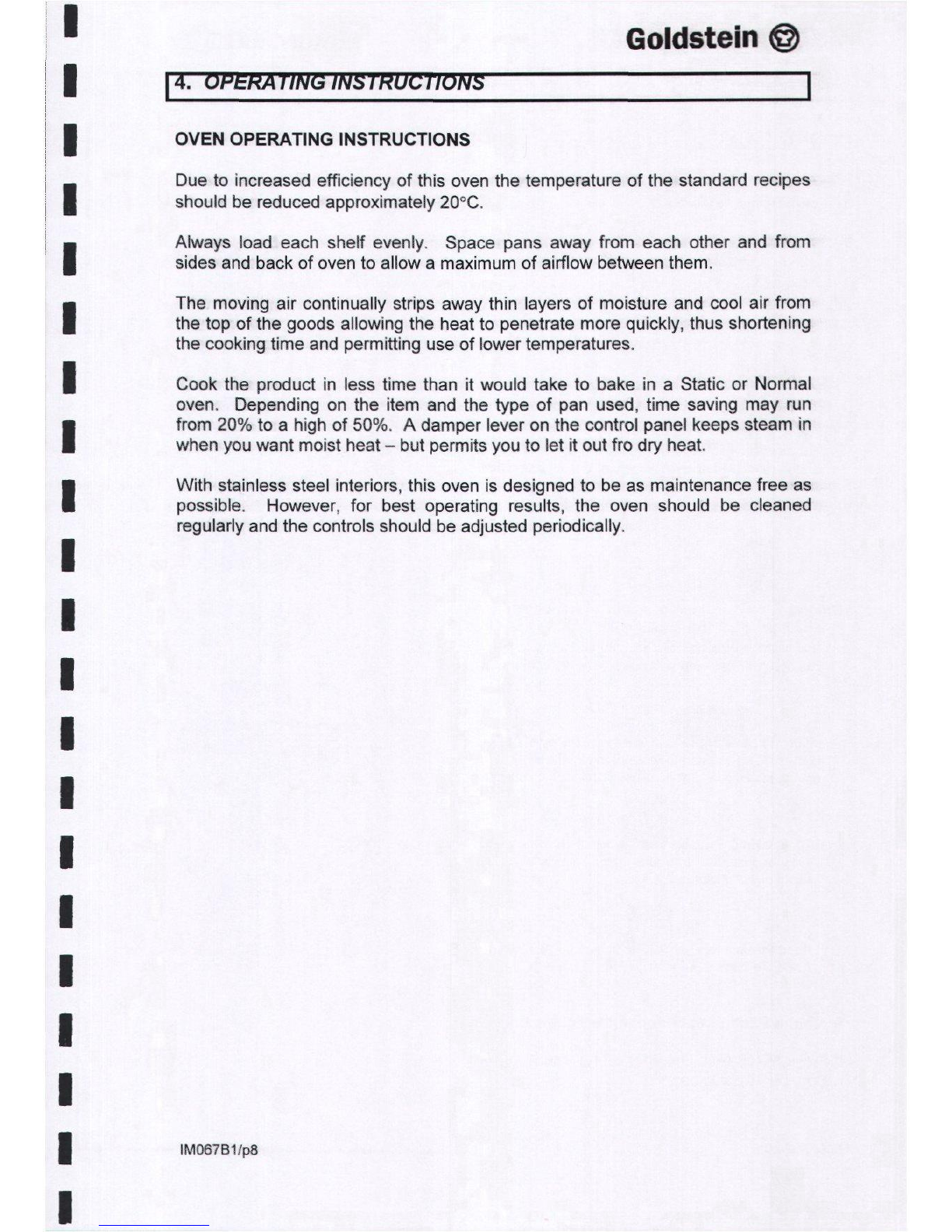

]4. OPEI~J~,TIN(~ IN,.~TRU(.:,TION5

GoldsteinO

OVEN OPERATING INSTRUCTIONS

Due to increased efficiency of this oven the temperature of the standard recipes

should be reduced approximately 20°C.

Always load each shelf evenly, Space pans away from each other and from

sides and back of oven to allow amaximum of airflow between them.

The moving air continually strips away thin layers of moisture and cool air from

the top of the goods allowing the heat to penetrate more quickly, thus shortening

the cooking time and permitting use of lower temperatures.

Cook the product in less time than it would take to bake in aStatic or Normal

oven. Depending on the item and the type of pan used, time saving may run

from 20% to ahigh of 50%. A damper lever on the control panel keeps steam in

when you want moist heat −but permits you to let it out fro dry heat.

With stainless steel interiors, this oven is designed to be as maintenance free as

possible. However, for best operating results, the oven should be cleaned

regularly and the controls should be adjusted periodically.

1M067B1/p8

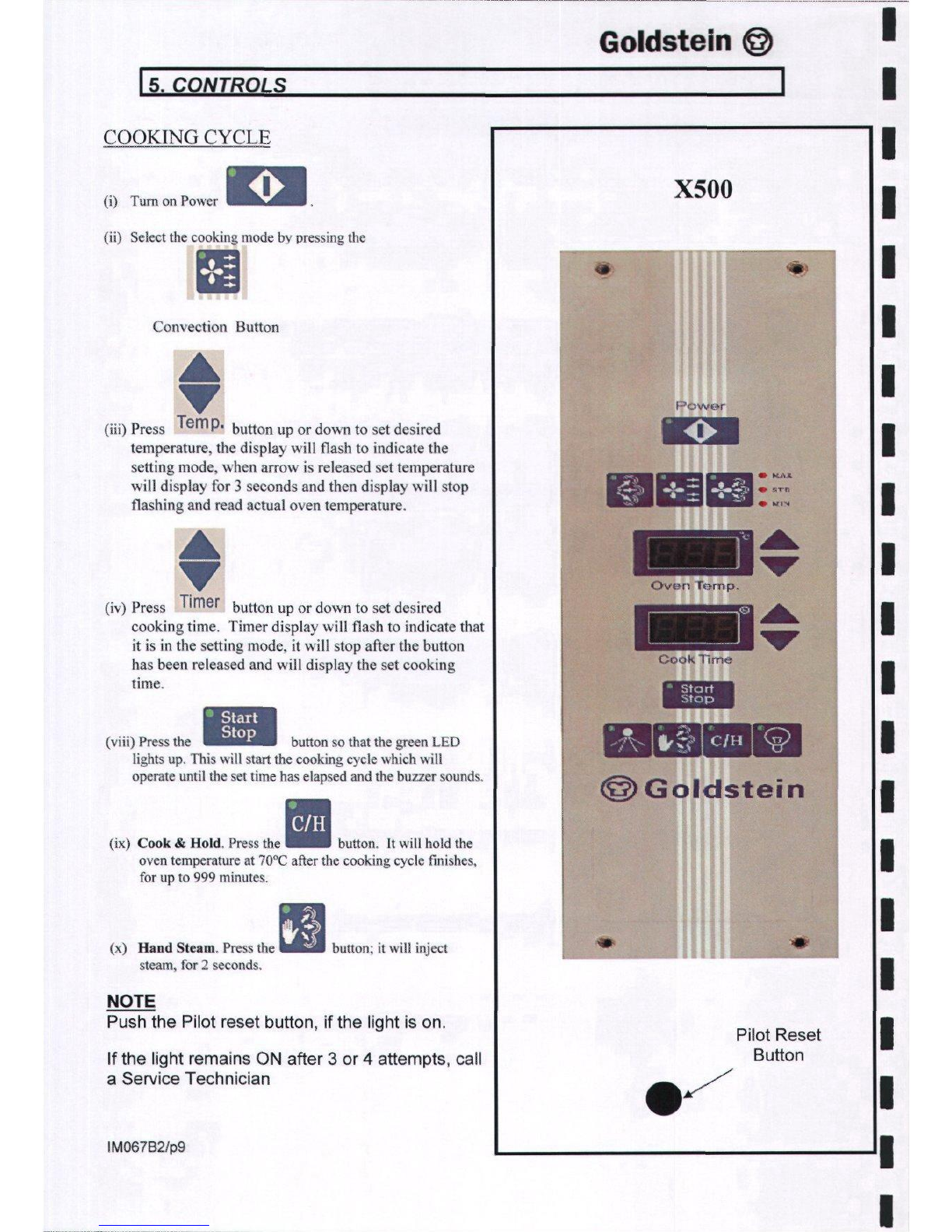

15. CONTROLS Goldstein0II

COOKING CYCLE

(ii) Select the cooking mode by pressing the

Convection Button

Off)Press bullon up or down to set desired

temperature, the displa3, will flash to indicate the

setting mode, when arrow is released set temperature

will display for 3 seconds and then display will stop

flashing and read actual oven temperature.

(iv) Press button up or down to set desired

cooking time. Timer display will flash to indicate that

it is in the setting mode, it will stop after the button

has been released and will display the set cooking

time.

(viii) Press the button so that the green LED

lights up. This will start the cooking cycle which will

operate until the set time has elapsed and the buzzer sounds,

(ix) Cook & Hold. Press the /button. It will hold the

oven temperature at 70°C after the cooking cycle finishes,

for up to 999 minutes.

(x) Hand Steam Press the ~ button; it will inject

steam, for 2 seconds,

NOTE

Push the Pilot reset button, if the light is on.

If the Eight remains ON after 3 or 4attempts, call

aService Technician

IMC67B2/p9

X500

Pilot Reset

Button

1 6. TECHNICAL INSTRUCTIONS

Goldstein0

GAS CONNECTION

Have alicensed gas fitter or your local Gas Authority connect the appliance.

It is recommended that avalve and union be installed close to the appliance for

disconnection in the event of service.

Check thoroughly for gas leaks before attempting to light the appliance.

Check that all burners are in position.

Peel off all protective plastic and remove any glue with asolvent.

IMPORTANT

READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE LIGHTING AND USE.

GAS INLET CONNECTION

19mrn NB BSP from below the appliance, 6gram from the right hand side looking at the

front of the appliance as shown on Page 11

Electrical connection is atwo (2) metre Three (3) pin flexible lead as shown on Page 11.

As from Ist January 2005. The new AGA AS4563/AG300 codes states that all L.P.G.

appliance will be supplied with aseparate regulator for each appliance.

IM067B2/p10

Altri manuali per X500A

Indice

Altri manuali goldstein Forno a convezione

goldstein

goldstein X500A Manuale utente

Manuali Forno a convezione popolari di altre marche

Aroma

Aroma ABT-266SC Manuale utente

Smeg

Smeg ALFA341VE Manuale utente

homark

homark 01-711000 Manuale di istruzioni

Vulcan-Hart

Vulcan-Hart C4ED Manuale utente

Whirlpool

Whirlpool OBI M50 Manuale utente

Jenn-Air

Jenn-Air SVE47600 Manuale utente

Waring

Waring WCO500 Manuale utente

Dometic

Dometic DOTRC11B Manuale utente

NuWave

NuWave PRO PLUS 2 Manuale utente

Moffat

Moffat turbofan E25 Manuale utente

Whirlpool

Whirlpool GSC278 Manuale utente

Deni

Deni Quick-n-Easy 10400 Manuale del proprietario

Sharp

Sharp R-980J Manuale utente

Wells

Wells WVOC-4HF Manuale utente

Convotherm

Convotherm The MINI OES-6.08 Manuale utente

DeLonghi

DeLonghi AD699 Manuale utente

LG LSWS306ST Manuale utente

DeLonghi

DeLonghi AS-1070 Manuale utente

goldstein X500A Guida di riferimento

Manuali Forno a convezione popolari di altre marche
