Goodman GPH13H Manuale utente

SF-GPH13H www.goodmanmfg.com 11/11

Submittal Data Form

Job Name

Location

Purchaser

Order No.

Engineer

Unit No.

Model No.

Unit Designation

Performance Data Certied By:

Standard Features

• Energy-efcient compressor with internal relief valve

• PSC blower motor; EEM blower motor on 5-ton units

• Quiet horizontal discharge

• Copper tube/aluminum n coil

• Totally enclosed, permanently lubricated condenser

fan motor

• Fully charged system

• Electric heat kit available as a eld-installed option

• AHRI Certied; ETL Listed

Cabinet Features

• Heavy-gauge galvanized-steel cabinet

• Attractive Architectural Gray powder-paint nish

• Fully insulated blower compartment has convenient

access panels

• Louvered condenser coil protection

• One footprint; three heights

Contents

Performance Data

Certied Dimensions

Accessories List

GPH13H

PackaGeD Heat PumP

13 Seer / 2 to 5 tonS

* Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive

the 10-Year Parts Limited Warranty, online registration is required within 60 days of installation. Online

registration not required in California or Quebec.

Job Name Locaon Job Name Locaon

2 www.goodmanmfg.com SF-GPH13H4 SF-GPH13H www.goodmanmfg.com 3

PerFormance Data For SPlit SyStem

noteS

Cooling Performance Supply Air Blower Performance

Total Capacity MBH Total Supply Air CFM

Sensible Capacity MBH Ext. Stac Pressure IWG

Outdoor Design TMP ºF DB / WB Blower Speed RPM

Air Temp entering Power Output Required BHP

Evaporator Coil ºF Motor Rangs HP

Power Input Required kW Power Input Required kW

(less blower motor)

Electrical Data

 Power Supply

Total Heang Capacity kW Total Unit Amps

BTU/h Max Overcurrent Device:

Fuse Breaker Amps

Job Name Locaon Job Name Locaon

2 www.goodmanmfg.com SF-GPH13H4 SF-GPH13H www.goodmanmfg.com 3

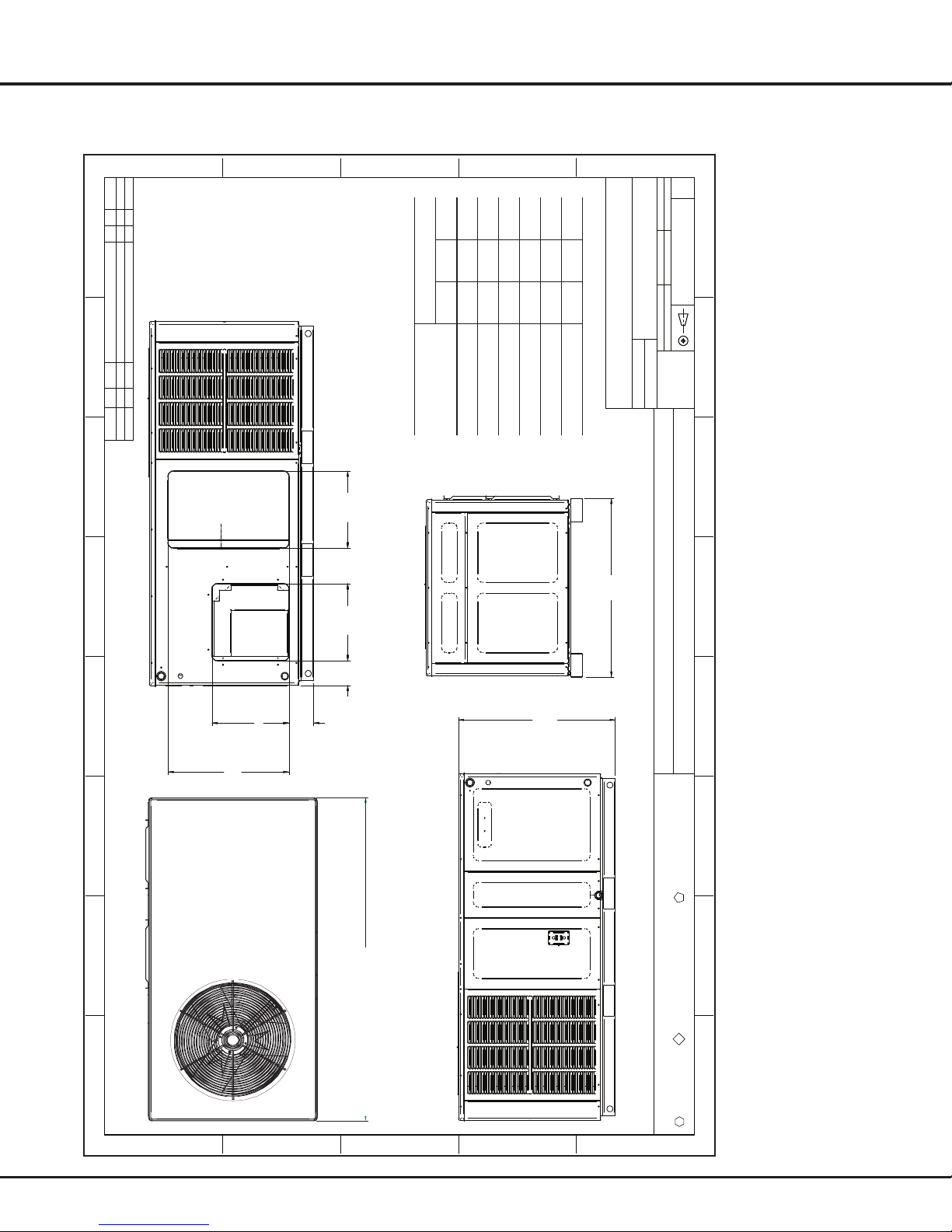

certiFieD DimenSionS

8765 4

876 54

CONFIDENTIAL PROPERTY OF THE GOODMAN MANUFACTURING COMPANY, L.P. NOT TO BE DISCLOSED TO OTHERS, COPIED, OR USED FOR ANY PURPOSE

EXCEPT AS AUTHORIZED IN WRITING. MUST BE RETURNED UPON DEMAND, ON COMPLETION OF ORDER, OR OTHER PURPOSE FOR WHICH IT WAS LENT.

COMPONENTS AND MATERIALS SPECIFIED HEREIN WILL ALSO CONFORM TO THE APPLICABLE SECTION OF GOODMAN MSP 824.01 WORKMANSHIP

STANDARD FOR FIT, FEEL AND FINISH.

SPECIAL CHARACTERISTICS:

= 6SIGMA = CRITICAL CHARACTERISTIC = SIGNIFICANT CHARACTERISTIC

GSZ130

DATE: 11-20-08

ENG:

DWN BY: GL DO NOT SCALE DRAWING

GSZ130 A

REV

CHK BY: PAMELA CYRILIEN SHT 1 OF 1

THE GOODMAN MANUFACTURING

COMPANY, L.P.

TOLERANCES:

ANGLES ± 1.5°

.X : ± .1

.XX : ± .03

.XXX : ± .015

HOLE Ø : ± .005

TUBE CUT LG: ± .063

DRAWING TO BE INTERPRETED IN

ACCORDANCE WITH ASME Y14.100

DIMENSIONS ARE IN INCHES

UNLESS OTHERWISE NOTED

ECN REV DESCRIPTION CHK DR DATE

XXXXXXX A-GL 11-20-08INITIAL RELEASE

ZONE

XXXXX

661.0mm

35.57

903.4mm

26.50

673.1mm 26.50

673.1mm

GPH13H

66.542





 



 











 

W” D” H”

GPH1324H41** 66½ 34 30

GPH1330H41** 66½ 34 30

GPH1336H41** 66½ 34 35

GPH1342H41** 66½ 34 35

GPH1348H41** 66½ 34 38⅔

GPH1360H41** 66½ 34 38⅔

Job Name Locaon Job Name Locaon

4 www.goodmanmfg.com SF-GPH13H4 SF-GPH13H www.goodmanmfg.com 4

acceSSorieS liSt





 

 

Downow Economizer PCE101-103 PCE101-103

Downow Plenum Kit PCP101-103 PCP101-103

Downow Plenum Kit (R-8) PCP101-103 R8 PCP101-103 R8

Elbow Flashing w/ R-8 Liner PCEF101-103 PCEF101-103

Emergency Heat Relay OT/EHR18-60 OT/EHR18-60

External Horizontal Filter Rack GPGHFR101-103 GPGHFR101-103

Horizontal Economizer PEHH101-103 PEHH101-103

Manual Damper PCMD101-103 PCMD101-103

Manual Damper- Horizontal Applicaon PCMDH101-103 PCMDH101-103

Motorized Damper PCMDM101-103 PCMDM101-103

Outdoor Thermostat w/ Lockout Stat OT18-60A OT18-60A

Roof Curb PCCP101-103 PCCP101-103

Square to Round SQRPC101 SQRPC102/103

Square to Round for Horizontal Applicaon SQRPCH101 SQRPCH102/103
