Goodman TSTATG1152-2 Manuale utente
Air Conditioning & Heatin g
Model TSTATG1152- 2
Digital Thermostat
5+2 Day Programmable
1-Heat & 1-Cool
Heat Pump Compatible
Battery or System Powered
Backlit Digital Display
Fahrenheit or Celsius
Owner ’s Manual
Tha nk good nes s fo r Go odm an.
TM
Service Filter Indicator
Page 2
Contents Page #
Time Period Programming
Advanced Setup
Battery Replacement
Weekday Programming
Weekend Programming
Normal Operation
Page #
Safety Warnings
Location of Controls
Programmed Operation
Advanced Features
Overview
Manual Operation
Warranty
Display
Clock Set
Factory Defaults
Calibration
OWNER'S MANUAL TSTATG1152-2
CAUTION Follow Installation Instructions carefully.
DISCONNECT POWER TO THE HEATER -
AIR CONDITIONER BEFORE REMOVING
THE OLD THERMOSTAT AND INSTALLING
THE NEW THERMOSTAT.
WARNING
P/N TSTATG1152-2
Page 3
Safety Warnings
CAUTION
FIG. 1
OWNER'S MANUAL
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
The two Alkaline “AA” batteries must be replaced at
least once every 12 months to ensure proper
operation. The Low Battery icon (fig. 1) will
appear on the display when it is time to replace
the batteries. If the thermostat is connected to
24v power, the batteries should still be installed, but
are not required.
When is displayed the batteries must be replaced
immediately. The manufacturer cannot be liable for
improper operation of the thermostat if the batteries are
not immediately replaced.
Annual battery replacement is especially critical in
locations subject to freezing temperatures. The
thermostat will be unable to turn on the heating system
if the batteries are exhausted.
TSTATG1152-2

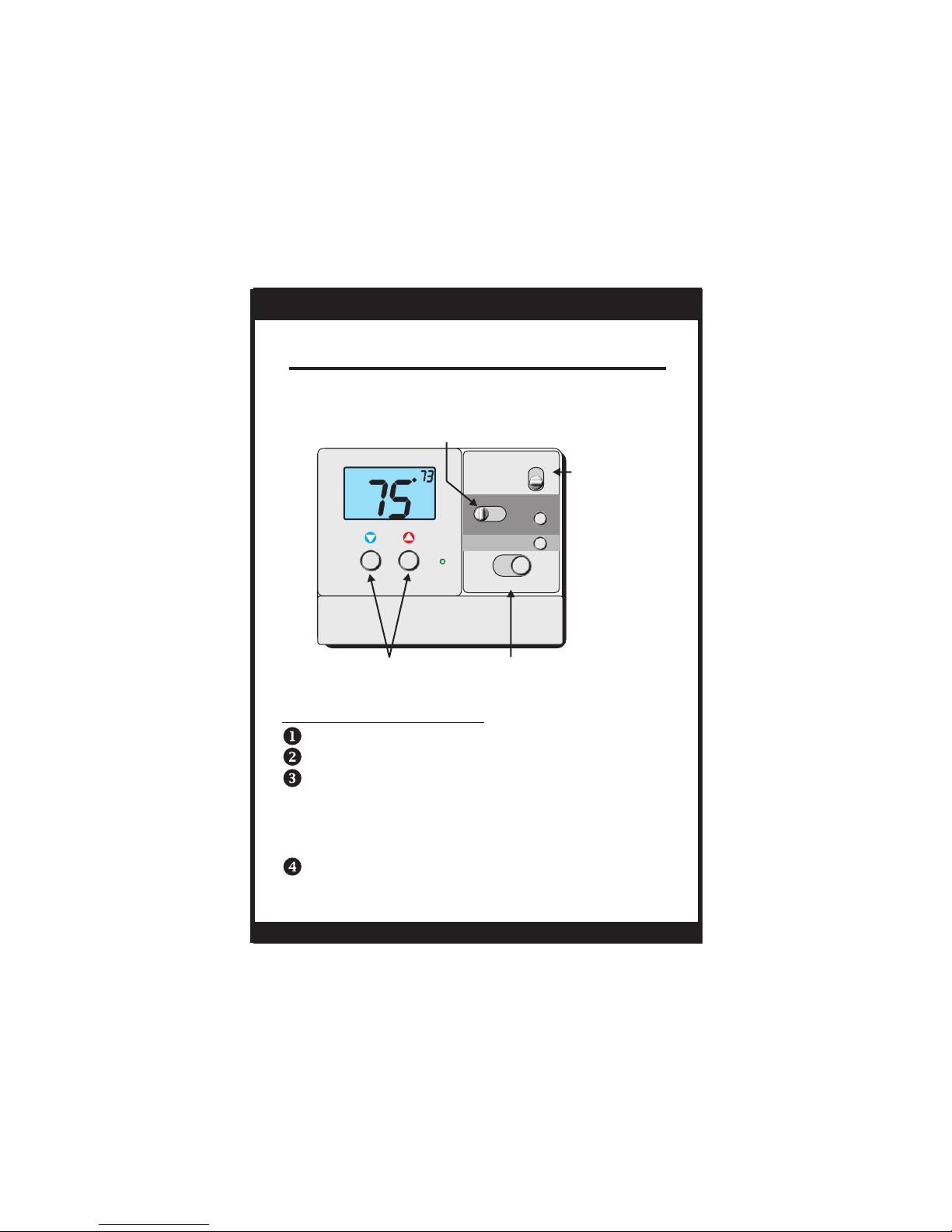

Location of Controls
Page 4
OWNER'S MANUAL
TSTATG1152-2
NEXT BUTTON
RESET FILTER
How to Use: Press and
hold the RESET FILTER
button to clear the
icon from the
display (pg 5). To adjust
when the icon
appears, see Advanced
Setup screens (pg 18).
FILTER
FILTER
COOLER &
WARMER
BUTTONS
PROGRAM SWITCH
RUN program
Program OFF
SET program
SET
HEAT
Su
PM
I2:00
:
BATTERIES
COOL
OFF
PROGRAM
RUN OFF SET
RESET
FILTER
FAN
NEXT
HEAT
AUTO
ON On or Auto
FAN SWITCH
For programming
How to use: The NEXT
button is used to advance
from one step to the next
in the programming and
advanced setup screens
(pgs 11 - 19).
BI-COLOR LED
Heat or Cool demand
indicator when system
powered: Red = Heat
Green = Cool
MODE
SWITCH
Cool, Off,
or Heat
88
88
SET
MTuWThF
SaSu
AM
PM MorningEvening
Day
Night
HEAT
COOL
I2:00
:
FILTER
Page 5

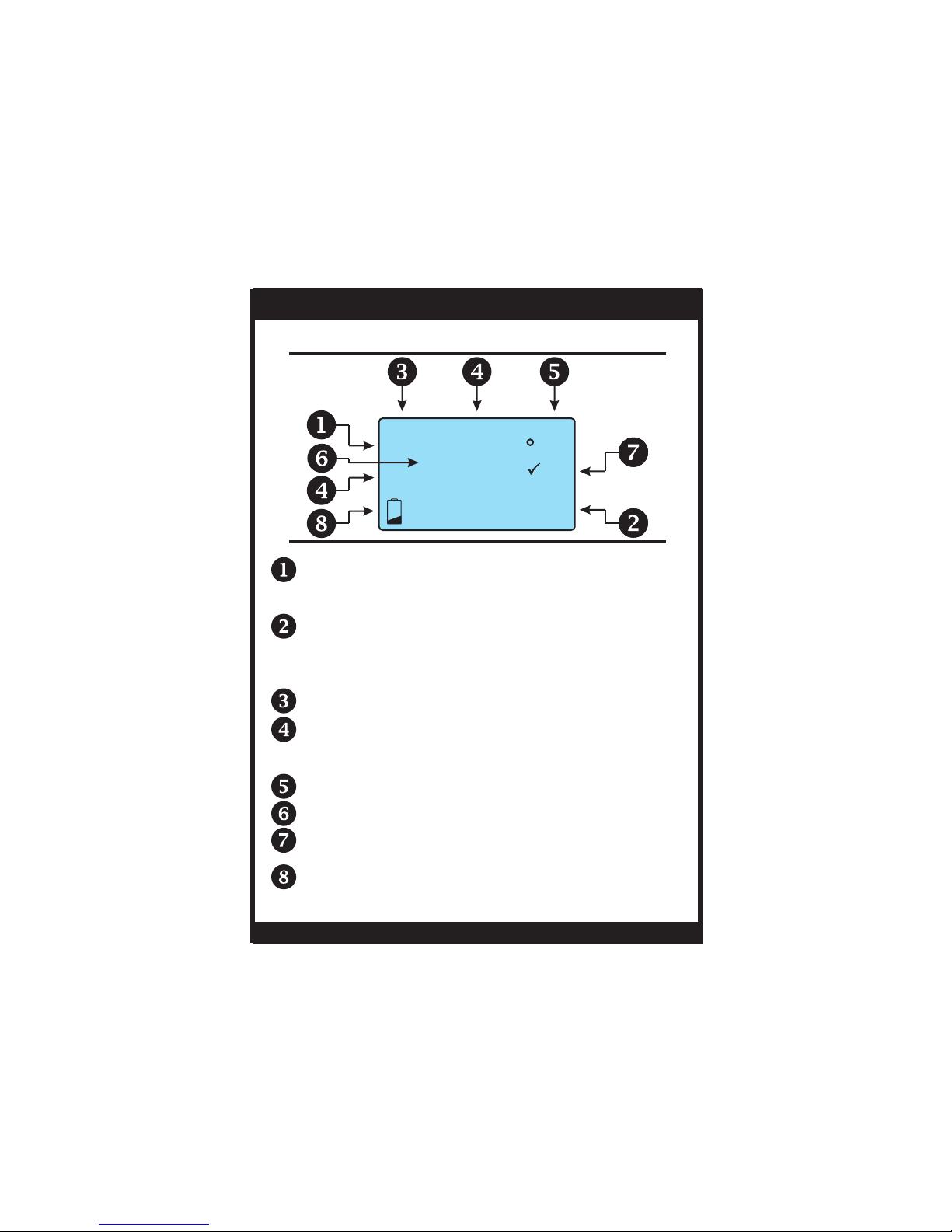

Display
Day of the week. When programming, MTuWThF
represent the five weekdays and SaSu represent the
two weekend days.
Clock Display.
Desired set temperature.
Current room temperature.
Time period indicators. These indicate the part of
the program that is currently active, if the Program
Switch is positioned to RUN.
Indicates when the filter should be serviced. Appears
after 0 - 1950 hours of blower operation (adjustable).
Indicates batteries need replacement.
Heat and Cool indicators. In normal operation, Heat or
Cool appears, depending on the Mode Switch position.
When heat or cool is energized, the Heat or Cool
indicator will flash.
OWNER'S MANUAL TSTATG1152-2
Page 6

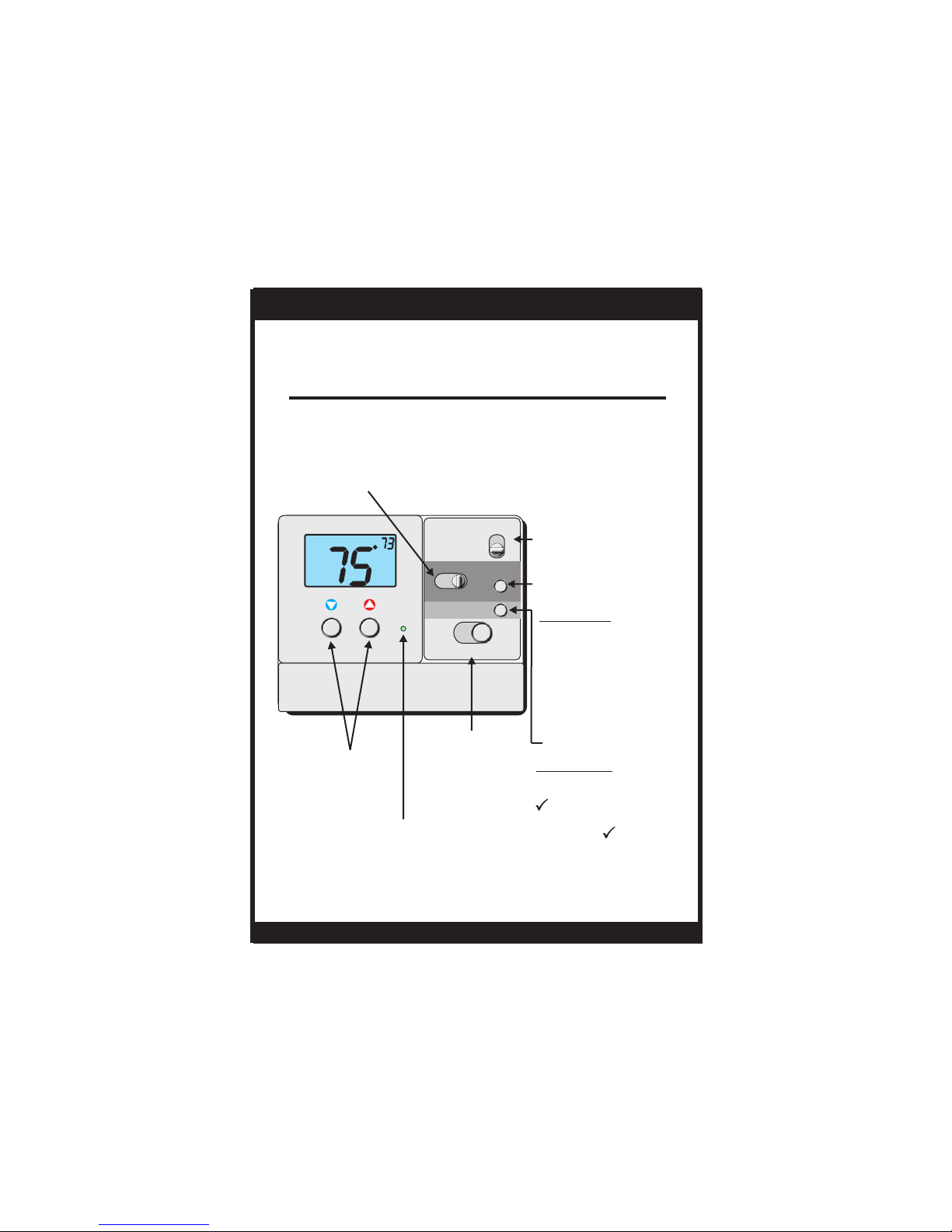

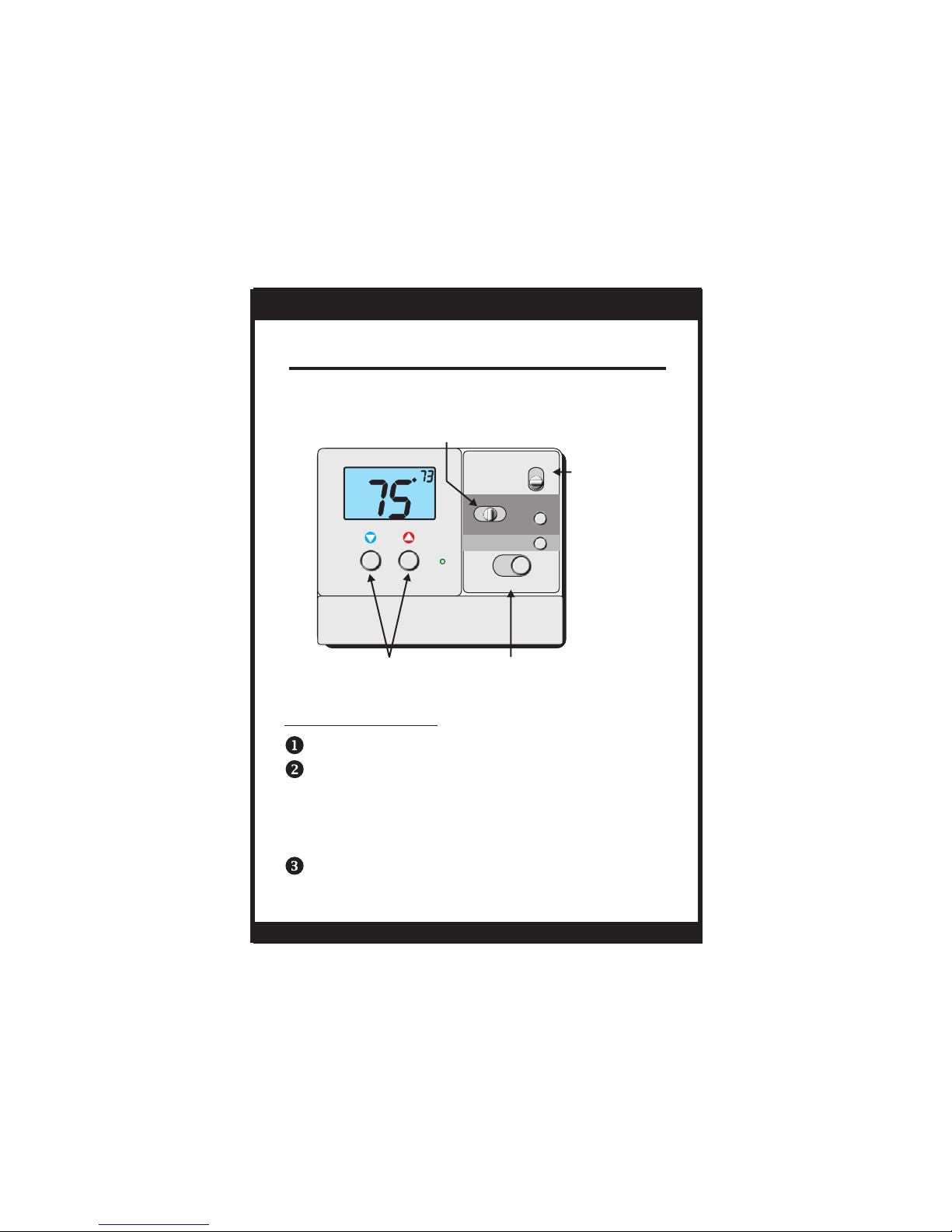

Normal Operation
OWNER'S MANUAL
Manual Operation (Program Switch OFF)
Select Cool or Heat with the Mode Switch.
Normally leave the fan switched to Auto.
In Fan Auto, the fan will turn on only with a heat
or cool demand. When Fan On is selected, the
fan will run continuously.
Adjust the desired set temperature with the
COOLER and WARMER buttons.
TSTATG1152-2
COOLER & WARMER
BUTTONS
PROGRAM SWITCH
RUN program
Program OFF
SET program
MODE SWITCH
Cool, Off, or Heat
SET
HEAT
Su
PM
I2:00
:
BATTERIES
COOL
OFF
PROGRAM
RUN OFF SET
RESET
FILTER
FAN
NEXT
HEAT
AUTO
ON
On or Auto
FAN SWITCH
Page 7
OWNER'S MANUAL TSTATG1152-2
Normal Operation
Programmed Operation
Select Cool or Heat with the Mode Switch.
Normally leave the fan switched to Auto.
In Fan Auto, the fan will turn on only with a heat
or cool demand. When Fan On is selected, the
fan will run continuously.
The desired set temperature may be temporarily
overridden. The thermostat will revert to the
programmed settings in the following time period.
Select RUN with the Program Switch.
COOLER & WARMER
BUTTONS
PROGRAM SWITCH
RUN program
Program OFF
SET program
MODE SWITCH
Cool, Off, or Heat
SET
HEAT
Su
PM
I2:00
:
BATTERIES
COOL
OFF
PROGRAM
RUN OFF SET
RESET
FILTER
FAN
NEXT
HEAT
On or Auto
FAN SWITCH
AUTO
ON
Page 8
OWNER'S MANUAL TSTATG1152-2

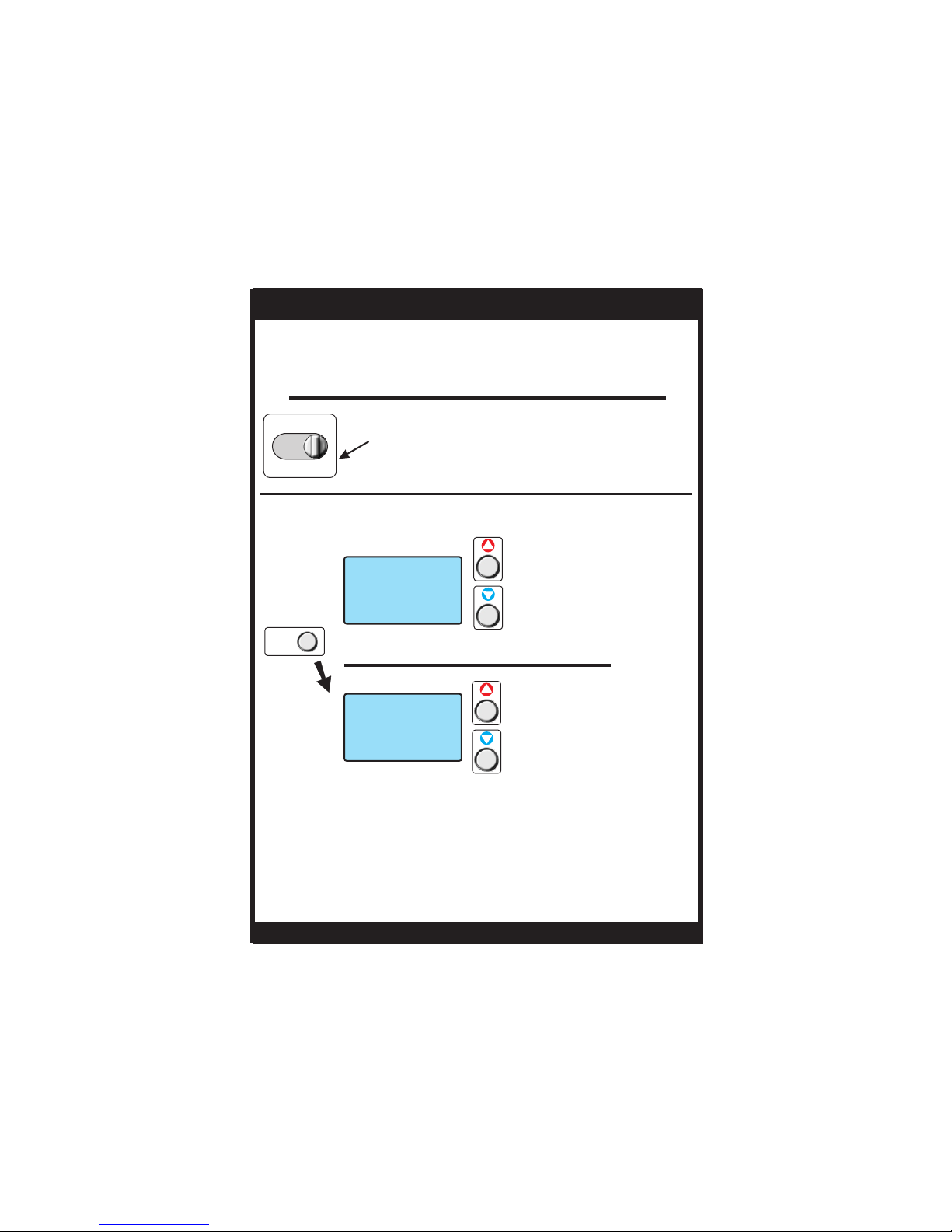

Clock Set
Use these buttons to
adjust the current time.
Use these buttons to
adjust the current day.
Setting the time & day are the first two steps after
sliding the Program Switch to SET.
Slide the Program Switch to the SET position.
This thermostat is preprogrammed from the
factory to operate 1 or 2-Stage equipment without
the need for further programming. To optimize the
installation of this thermostat follow the instructions
in the Advanced Setup section.
PM
6:00
:
Su
Press NEXT
to advance
To slew the time more rapidly, push and hold the
COOLER or WARMER buttons.
PROGRAM
RUN OFF SET
NEXT
Time Period Programming
PROGRAM SWITCH
Page 9
Overview
Slide the Program Switch to the SET position.
The blinking icon(s) on the display may be
changed by pressing the COOLER or
WARMER buttons.
After the blinking icon is changed to the desired
selection, press the NEXT button.
Each item in the time period programming screens will flash
and can be modified with the COOLER & WARMER buttons.
Continue the steps above until programming is complete.
Slide the Program Switch to RUN and the thermostat
will run the time period programming.
If the Program Switch is in the OFF position, the thermostat
will not run the time period program. In this case, the
thermostat will be a manual heat or cool only thermostat.
OWNER'S MANUAL TSTATG1152-2
PROGRAM
RUN OFF SET
OWNER'S MANUAL
Page 10
TSTATG1152-2

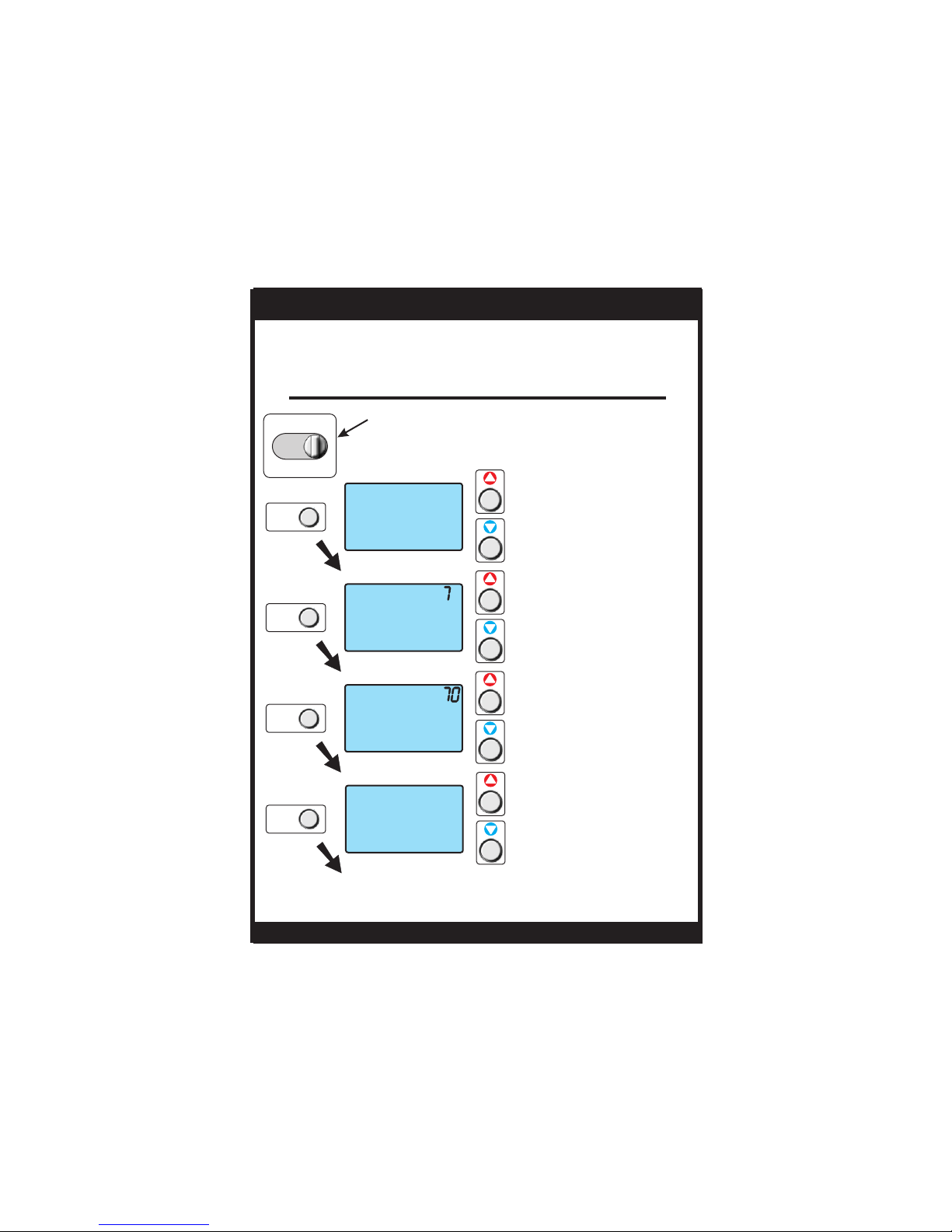

Weekday Programming
Next Page
Time Period Programming
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance
Press NEXT
to advance
Setting the time & day are the first two steps after
sliding the Program Switch to SET (page 8).
Use these buttons to
adjust the start time for
the morning time period.
Use these buttons to
adjust the cool setpoint for
the morning time period.
Use these buttons to
adjust the heat setpoint for
the morning time period.
Use these buttons to
adjust the start time for
the day time period.
MTuWThF
AM Morning
6:00
:
8
SET
MTuWThF
AM Morning
COOL
6:00
:
SET
MTuWThF
AM Morning
HEAT
6:00
:
MTuWThF
AM
Day
8:00
:
PROGRAM
RUN OFF SET
NEXT
NEXT
NEXT
NEXT
