Thermostat TSTATG2111
4Z95
Air Cond itioning& Heating
Page 14.1
Section 14 Contents:
Adjusting the Heat/Cool
Differential..............................14.2
Adjusting the Cycles
Per Hour..................................14.3
Adjusting the Deadband..........14.4
Adjusting the Minutes of
Run-Time Before the
Next Stage...............................14.6
Selecting 2nd Stage Turn
Off Temperature.....................14.7
SECTION 14
Timers and Deadbands
14
The Table of Contents divides the thermostat features into sections
making it easier to quickly find information.
In addition, this manual also has an Index to help you find any information
regarding this thermostat quickly.
Header shows section #
and title of section
Section contents
Visible section tab
on the side of the
page
Section and page #
The first page of each section contains a more detailed Table of Contents
for each section, such as the example page shown below.
Page ii
How to Use This Manual Air Cond itioning& Heating
Air Conditi oning& Heatin g
Glossary of Terms
Page iii
Auto-Changeover: A mode in which the thermostat will turn on
the heating or cooling based on room temperature demand.
Cool Setpoint: The warmest temperature that the space should
rise to before cooling is turned on (without regards to
deadband).
Deadband: The number of degrees the thermostat will wait, once
setpoint has been reached, before energizing heating or cooling.
Differential: The forced temperature difference between the
heat setpoint and the cool setpoint.
Heat Setpoint: The coolest temperature that the space should
drop to before heating is turned on (without regards to
deadband).
Icon: The word or symbol that appears on the thermostat
display.
Mode: The current operating condition of the thermostat (i.e. Off,
Heat, Cool, Auto, Program On).
Non-Programmable Thermostat: A thermostat that does not
have the capability of running the Time Period Programming.
Programmable Thermostat: A thermostat that has the capability
of running the Time Period Programming.
Temperature Swing: Same as Deadband.
Time Period Programming: A program that allows the
thermostat to automatically adjust the heat setpoint and/or the
cool setpoint based on the time of day.
Air Cond itioning& Heating
2
Table of Contents
Page iv
1
3
6
7
8
9
10
11
12
13
4
5
Quick Start
Getting to Know Your
Thermostat
Setting Clock
Basic Operation
Viewing the Outdoor
Temperature
Programming the
Daily Schedule
Thermostat Display
Options
Programming Run-
Time Alerts
Electric Heat and
Heat Pump Operation
Factory Defaults and
Calibration
Accessories
Advanced Setup Table
Programming the Fan
Operation
14
Timers and Deadbands
Air Cond itioning& Heating
Section 1 Contents:
Front Panel Buttons.....................1.2
Display Features...........................1.3
Page 1.1
SECTION 1
Getting to Know Your Thermostat
1
Air Cond itioning& Heating
Page 1.2
1

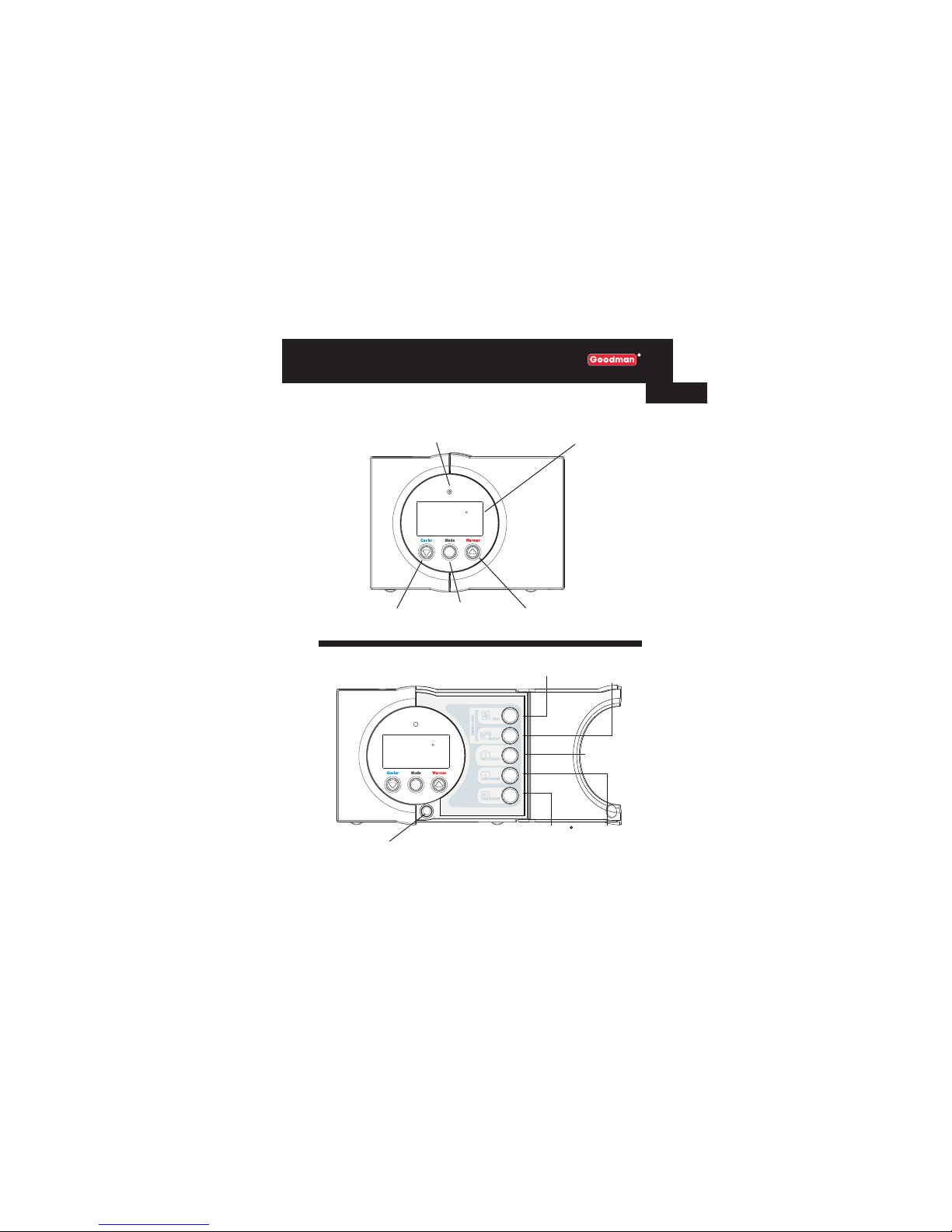

Front Panel
PROGRAMOUTDOOR
SET CLOCK
FAN
QUICK RELEASE FOR
ACCESSORY PORT
(pg. 13.1)
Mode
Button
Backlit LCD Display
Heat or Cool Demand Indicator
Red = Heat, Green = Cool
sometimes refer-
red to as the
DOWN button
[ ]Cooler Button
sometimes refer-
red to as the
UP button
[ ]
Warmer Button
SETUP
HEAT
COOL
Auto
72
74
68
12:00
Pm
72
74
68
12:00
Pm
Air Cond itioning& Heating
Auto
HEAT
COOL
Page 1.3
Mode Indicators -
Selects the operational mode of the equipment.
HEAT - Indicates the heating mode.
COOL - Indicates the air conditioning mode.
AUTO - Indicates the system will automatically changeover
between heat and cool modes as the temperature varies.
OFF - Indicates heating and cooling is turned off.
PROGRAM ON - Indicates the time period program is enabled to
run.
Section 4
Display Features
Clock - Section 3
Indicates the current time. This clock is also used to program
the time period schedule.
Room Temperature Display - Section 5
Indicates the current room temperature and displays the outdoor
temperature when selected.
Desired Set Temperature - Section 4/5
Indicates desired room temperature(s).
Outside icon - Section 5
Indicates the temperature displayed is from the optional outdoor
sensor.
1
1
1
Morning, Day, Evening & Night icons - Section 6
Indicates the day part of the time period program.
Evening
FanOn
AUXHEAT
COOL
AUTO
OFFON
Morning
DayNight
Service Filter
Pan UV Light
Program On
StartStop Setup
Outside
LO
HI
188
88
88
18:88
Am
Pm
Air Cond itioning& Heating
Page 1.4
Setup icon -
Indicates the thermostat is in the setup mode.
Fan On icon - Section 7
Indicates constant, continuous fan operation.
When Fan On is not lit - indicates the fan will only operate when
necessary to heat or to cool.
Service Filter icon - Section 9
Appears when the filter should be serviced under normal conditions.
Adjustable from 0 - 1950 hours of blower operation.
icon - Section 8
Indicates the keypad has been locked.
StartStop icon - Section 6
Appears when programming timer functions.
AuxHeat icon - Page 11.4
Indicates the Heat Pump is currently using 2nd stage electric
strip heat.
UV Light icon - Section 9
Appears when the UV bulb should be serviced under normal
conditions. Adjustable from 0 - 1990 days of operation.
Sections 6-11
Display Features 1
Evening
FanOn
AUXHEAT
COOL
AUTO
OFFON
Morning
DayNight
Service Filter
Pan UV Light
Program On
StartStop Setup
Outside
LO
HI
188
88
88
18:88
Am
Pm
Air Cond itioning& Heating
Page 2.1
Section 2 Contents:
Setting the Clock .........................2.2
Selecting the Heat or Cool
Mode............................................2.3
Selecting Your Desired
Temperature................................2.4
Using the Fan Button...................2.4
Note: Following the instructions in this section will allow you to
operate your thermostat using the factory default settings. These
settings are depicted in the illustrations throughout this manual.
SECTION 2
Quick Start
2
Air Cond itioning& Heating
