Goodmans GDR11 Manuale utente
2
A
DR10 Di
g
ital TV Receiver
2GDR11 Digital TV receiver
Contents
What's in the box?....................................................................3
What the on-screen symbols mean.....................................17
How to turn the receiver on for the first time.................20
How to turn the receiver off................................................25
Important information about over-air downloads.........26
How to turn the receiver back on from standby.............27
How to tune in TV and radio stations................................27
Important information about searching for new
channels....................................................................................28
The menu screens ...................................................................43
Safety information.................................................................80
Help and advice.......................................................................84
Product specification .............................................................86
3
3
A
DR10 Set To
p
Bo
x
3
A
DR10 Di
g
ital TV Receiver 3
3
A
DR10 Set To
p
Bo
x
3
GDR11 Digital TV receiver

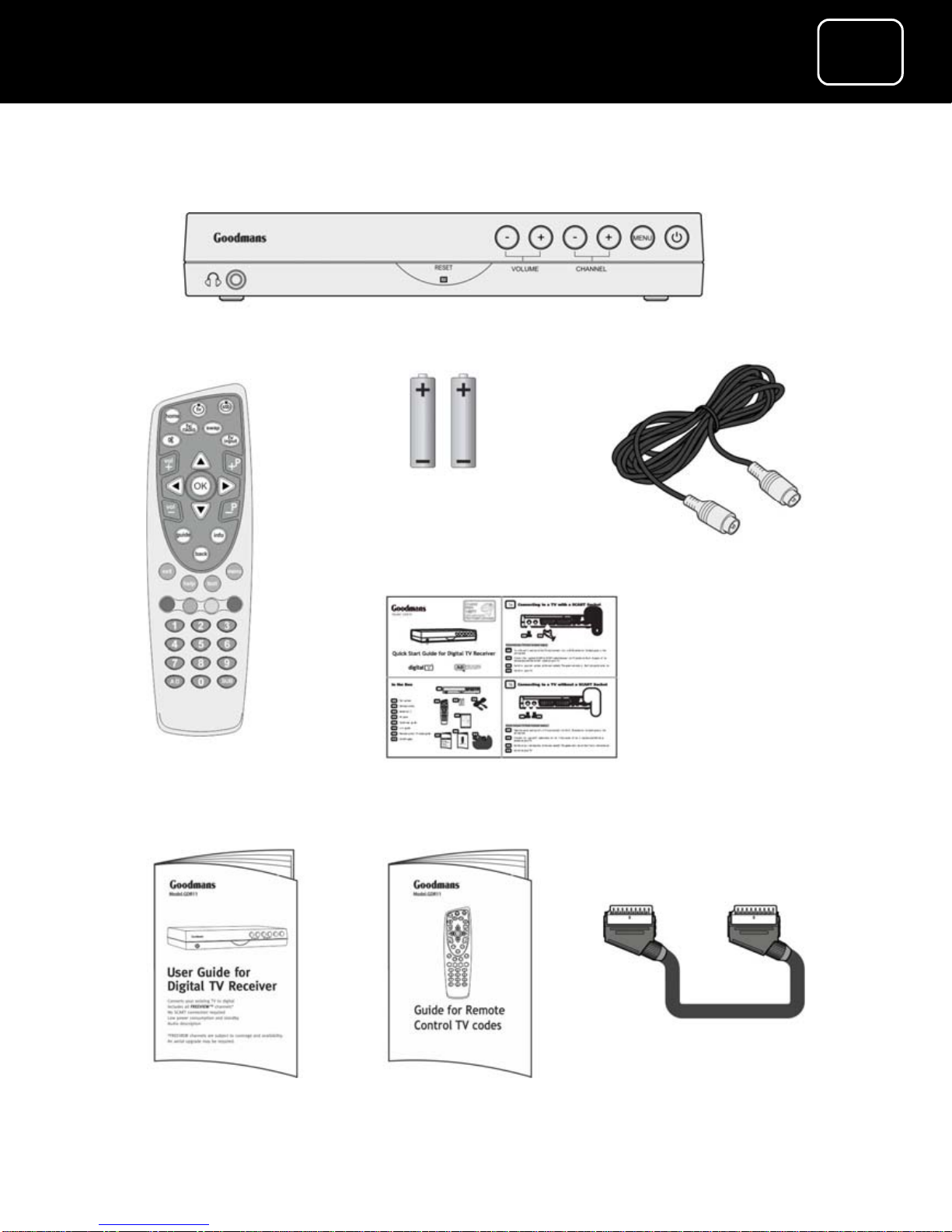

What's in the box?
Receiver
Two batteries
RF cable
Remote
control Quick-start guide
SCART cable
Guide to remote-
control TV codes guide
User guide
4
A
DR10 Di
g
ital TV Receiver
4GDR11 Digital TV receiver
Receiver
Front panel
1. Volume buttons
2. Channel buttons (these buttons go up and down
the list and go through the on-screen menus)
3. Menu button
4. Standby and on and off light (switches the
receiver on and off or, if it is pressed quickly, it
can be used as the OK button)
5. Reset button (this switches the receiver off and
on again when it isn’t working properly)
6. Headphone socket (3.5 millimetres)
1 3
5
2 4
6
5
5
A
DR10 Set To
p
Bo
x
5
A
DR10 Di
g
ital TV Receiver 5
5
A
DR10 Set To
p
Bo
x
5
GDR11 Digital TV receiver
1. Mains cable
2. Socket for factory use only
3. SCART out socket (to your VCR)
4. SCART out socket (to your TV)
5. ‘RF IN’socket (to your TV aerial)
6. ‘RF OUT’socket (to your TV or VCR)
21 3 4 5 6
Back panel
6
A
DR10 Di
g
ital TV Receiver
6GDR11 Digital TV receiver
Remote control buttons
3
5
7
10
11
13
14
16
18
19
20
22
15
21
9
8
12
6
4
1
2
17
7
7
A
DR10 Set To
p
Bo
x
7
A
DR10 Di
g
ital TV Receiver 7
7
A
DR10 Set To
p
Bo
x
7
GDR11 Digital TV receiver
Number
on
diagram
Button name What the button does
1 <home> Goes to the first channel in your list
(usually BBC 1)
2 Switches your TV on or off (if you have
set up this feature)
3 Switches the receiver on and off (onto
standby)
4 Switches between TV and radio
5 Switches between the channel you’re
watching and the channel you were
previously watching
6 Mutes the receiver volume (it can also
mute your TV if you have set up this
feature)
7 Selects the channel the receiver is set up
on (if you have set up this feature)
8 Increases or reduces the receiver volume.
These buttons can also increase or
reduce your TV volume (if you have set
up this feature)
9 Moves around the on-screen menus
10 Goes up and down the channel list
8
A
DR10 Di
g
ital TV Receiver
8GDR11 Digital TV receiver
Number
on
diagram
Button name What the button does
11 Selects options on the on-screen menu
(This button also shows the channel list
if you press it while watching TV.)
12 Enters and exits the TV electronic
programme guide (EPG)
13 Gives programme information on the TV
screen
This button also shows your favourite
channels list when you are on the
channel list screen.
14 Goes back to the previous screen you
were on
15 Exits the menu system and goes back to
the last programme you were watching
16 Enters and exits the menu screen
17 Enters and exits the help screen
18 Gives digital teletext
19 Red, yellow,
green and blue
buttons
Changes or goes to different options
when you are on the digital text pages
9
9
A
DR10 Set To
p
Bo
x
9
A
DR10 Di
g
ital TV Receiver 9
9
A
DR10 Set To
p
Bo
x
9
GDR11 Digital TV receiver
Number
on
diagram
Button name What the button does
20 to
Chooses channel numbers and
numbers on menus that go to different
options
21 Switches the audio description on and
off
22 Switches subtitles on and off
10
A
DR10 Di
g
ital TV Receiver
10 GDR11 Digital TV receiver

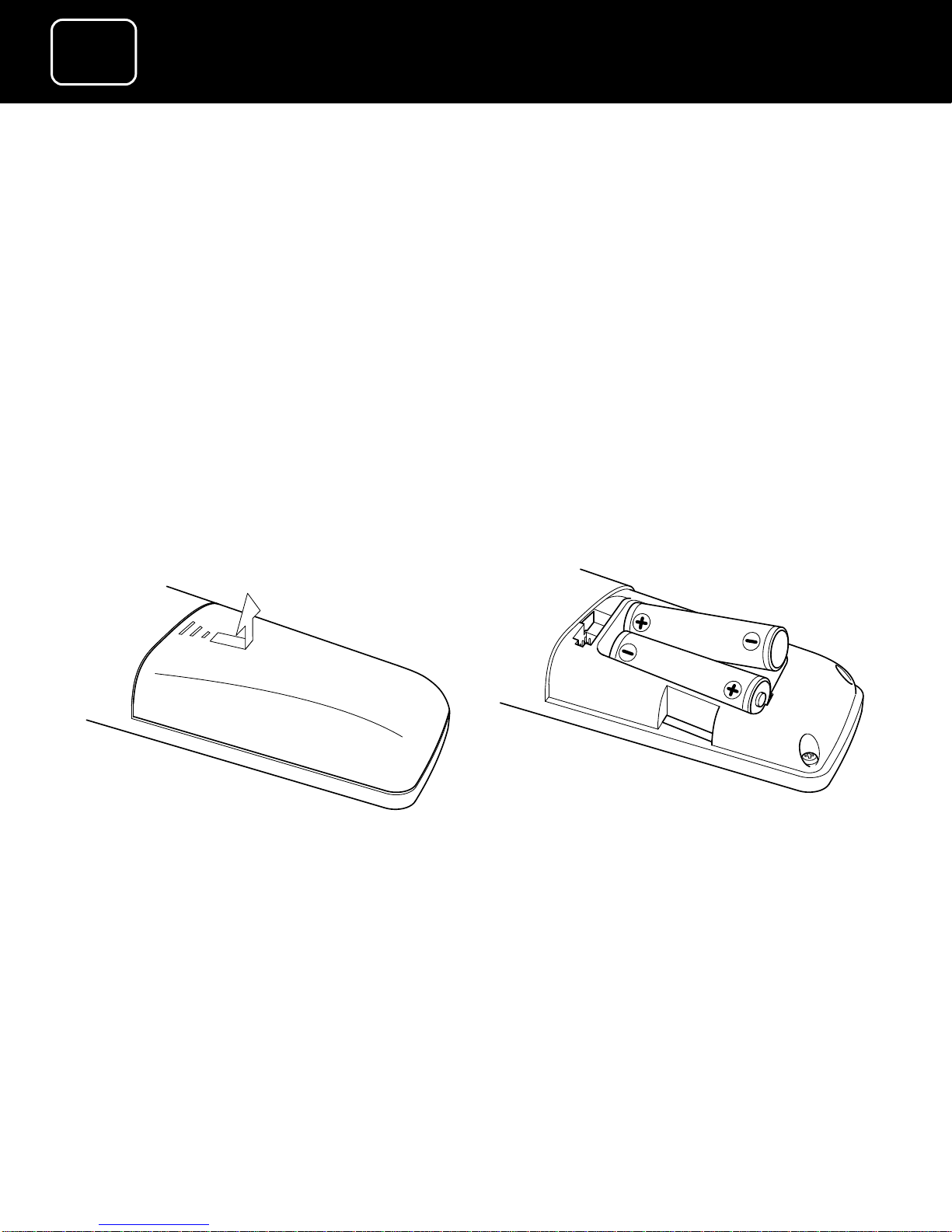

Putting batteries in the remote control
1Remove the battery cover from the remote control.
2Look at the polarity diagram (the ‘+’ and ‘-’ symbols) printed on
inside of the battery case. (This diagram tells you which way
round to put the batteries in the remote control.)
3Put two AA batteries in the battery as shown in the diagram
and in line with the markings on the batteries (‘+’ goes next to
‘+’, ‘–’ goes next to ‘–’).
4Replace the cover.
