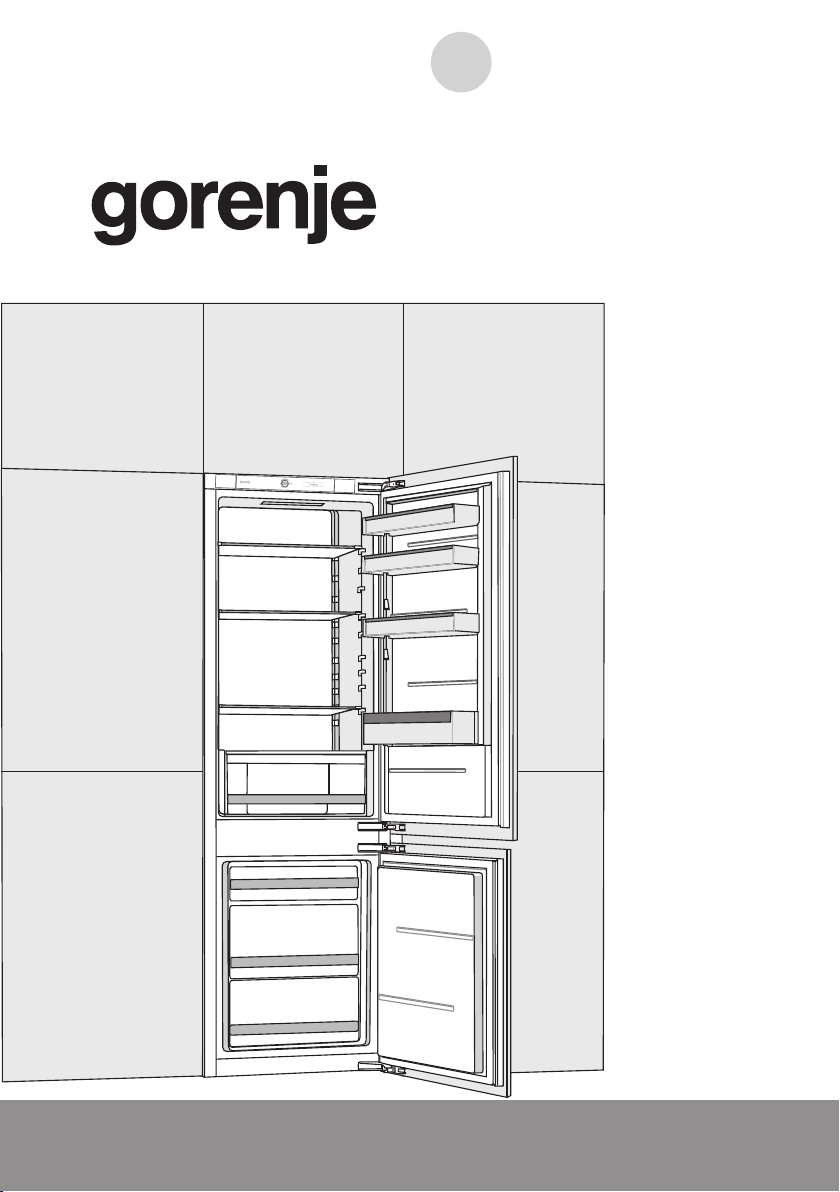

Gorenje RKI2181E1 Manuale tecnico
EN
DETAILED
INSTRUCTIONS FOR USE
OF UPRIGHT
REFRIGERATOR AND
FREEZER
www.gorenje.comwww.gorenje.com
2
564569
We thank you for the confidence you have shown by purchasing
our appliance which is designed to simplify your life. To make the use of the
product easier, we have supplied detailed instructions for use, and installation
instructions supplied on a separate sheet. The instructions should allow you to
learn about your new appliance as quickly as possible.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
The refrigerator is intended for storing fresh food at temperatures above 0°C.
The freezer is intended for freezing fresh food and for long-term storage of
frozen food (up to one year, depending on the type of food).
Please visit our website where you can enter your appliance model number,
indicated on the rating plate or the warranty sheet, to find detailed description
of your appliance, tips on use, troubleshooting, service information, instructions
for use etc.
http://www.gorenje.com
Important safety warning
General warnings and tips
i
Protecting the environment
!
Do not wash in the dishwasher
Link to the EU EPREL database
The QR code on the energy label supplied with the appliance provides a web
link to the registration of this appliance in the EU EPREL database. Keep
the energy label for reference together with the user manual and all other
documents provided with this appliance.
It is possible to find information related to the performance of the product
in the EU EPREL database using the link https://eprel.ec.europa.eu and the
model name and product number that you can find on the rating plate of the
appliance.
For more detailed information about the energy label, visit www.theenergylabel.eu.
3
CONTENTS
564569
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
4 IMPORTANT NOTES AND PRECAUTIONS
4 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
5 IMPORTANT SAFETY INSTRUCTIONS
8 IMPORTANT INFORMATION ON THE USE OF APPLIANCE
9 ENVIRONMENT PROTECTION
10 ADVICE FOR SAVING POWER WITH REFRIGERATION
APPLIANCES
11 INSTALLATION AND CONNECTION
13 APPLIANCE DESCRIPTION
14 OPERATING THE APPLIANCE
19 APPLIANCE INTERIOR EQUIPMENT
23 RECOMMENDED DISTRIBUTION OF FOOD IN THE
APPLIANCE
24 STORING FOOD IN THE REFRIGERATOR
29 STORING FOOD IN THE FreshZone DRAWER
30 FREEZING AND STORING FROZEN FOOD
30 Freezing procedure
31 Important warnings on freezing
31 Storing industrially frozen food
32 Frozen food storage time
32 Defrosting frozen food
33 DEFROSTING THE APPLIANCE
34 CLEANING THE APPLIANCE
35 TROUBLESHOOTING
37 INFORMATION ABOUT APPLIANCE NOISE
MISCELLANEOUS
STORING AND
FREEZING FOOD
4
IMPORTANT NOTES AND
PRECAUTIONS
Before connecting the appliance to the power mains, please
read carefully the instructions for use which describe the
appliance and its correct and safe use. The instructions
apply to several appliance types/models; thus, settings or
equipment may be described herein which is not available
in your appliance. We recommend saving this instruction
manual for future reference and attach it to the appliance if
it is sold in the future.
Check for any damage or irregularities on your appliance. If
you find your appliance is damaged, notify the retailer from
which you have purchased the appliance.
Before connecting the appliance to the power mains, let
the appliance rest in a vertical position for a minimum of 2
hours. This will reduce the possibility of operation faults due
to the effect of transport on the cooling system.
564569
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME
i
5
564569
IMPORTANT SAFETY INSTRUCTIONS
!
The appliance must be connected to the power mains and
grounded in compliance with the effective standards and
regulations.
WARNING! Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
Before cleaning the appliance, unplug it from the power
mains (unplug the power cord from the wall outlet).
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
If LED lighting does not work, call a service technician. Do
not attempt a repair of the LED lighting yourself, as there is
danger of contact with high voltage!
WARNING! Do not use any electric devices inside the
appliance, except for those allowed by the manufacturer
of this refrigeration appliance.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor
stability of the appliance, make sure it is installed as
instructed.
!
!
!
WARNING! Risk of fire/flammable materials.
6
564569
Danger of frostbite
Never put frozen food in your mouth and avoid touching
frozen food as this may cause frostnip or frostbite.
Safety of children and vulnerable persons
The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Cleaning and user maintenance shall not be made by
children without supervision.
Remove the packaging intended to protect the appliance
or particular parts during transport and keep it outside the
reach of children.
It presents danger of injury or suffocation.
For European markets only
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
7
564569
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an
environmentally friendly yet flammable gas R600a. Make
sure that no parts of the cooling system are damaged. A
gas leak is not hazardous to the environment, but it could
cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly,
disconnect the appliance from the power mains, and call a
service technician.
8
564569
The appliance may not be used outdoors and it may not be
exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
If the appliance will be out of use for an extended period of
time, switch it off using the relevant button, and unplug it
from the power mains. Empty the appliance, defrost it, clean
it, and leave the door ajar.
In case of an error or power supply failure do not open the
freezer compartment unless the freezer has not operated
for over 16 hours. After this period, use the frozen food or
provide sufficient cooling (e.g. a replacement appliance).
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
i
IMPORTANT INFORMATION ON THE USE
OF APPLIANCE
WARNING! This appliance is intended to be used in
household and similar applications such as:
– staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
9
564569
The symbol on the product or its packaging indicates that the product
should not be treated as normal household waste. The product should be
taken to an authorized collection centre for waste electric and electronic
equipment processing. Correct disposal of the product will help prevent
any negative effects on the environment and health of people which could
occur in case of incorrect product removal. For detailed information on
removal and processing of the product, please contact the relevant municipal
body in charge of waste management, your waste disposal service, or the
store where you bought the product.
Packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without any
hazard to the environment.
!Removing an obsolete appliance
To protect the environment, take the obsolete appliance to
an authorized home appliance collection centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
ENVIRONMENT PROTECTION
WARNING! Do not damage the refrigerant circuit.
This will also prevent pollution.
i
Technical information on the appliance
Rating plate can be found in the appliance interior. It
indicates data on voltage, gross and net volume, type
and amount of refrigerant, and information on the climate
classes.
If the language on the rating plate is not the language of
your choice or the language of your country, replace it with
the one supplied.
10
ADVICE FOR SAVING POWER
WITH REFRIGERATION
APPLIANCES
i
564569
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is
unobstructed.
• Condenser unit on the rear wall should be kept clean (see chapter Cleaning
the appliance).
• If the gasket is damaged or does not provide a perfect seal for any reason,
have it replaced as soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the refrigerator, allow it to cool down to room
temperature.
• Defrost frozen food in the refrigerator compartment.
• To make use of the entire freezer compartment interior volume, remove
some of the drawers as described in the instruction manual.
• Defrost your conventional freezer when an approximately 3–5 millimetre
layer of frost or ice has built up on the refrigerated surfaces.
• Make sure the layout of shelves in the compartment is uniform and that
the food is placed so that the air can freely circulate in the appliance
interior (observe the recommended placement of food as described in the
instructions).
• In appliances with a fan, do not block the fan slots or vents.
• If you do not need the fan or the ionizer, switch them off to reduce power
consumption.
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Gorenje Frigorifero
Gorenje
Gorenje RF6151BW Manuale utente
Gorenje
Gorenje RF6325OAL Manuale utente
Gorenje
Gorenje COMBI FS-600 Manuale utente
Gorenje
Gorenje RB4092ANW Manuale utente
Gorenje
Gorenje RBIU6091AW-SA Manuale tecnico
Gorenje
Gorenje ORB153BK-L Manuale operativo e di manutenzione
Gorenje
Gorenje RI1502LA4 Manuale utente
Gorenje
Gorenje RK62FSY2W Manuale operativo e di manutenzione
Gorenje
Gorenje X6012-17a Manuale utente
Gorenje
Gorenje RKI 5294 W Manuale utente
Gorenje
Gorenje RIU609FA1 Manuale tecnico
Gorenje
Gorenje COMBI FS-600 Manuale tecnico
Gorenje
Gorenje NRKI5182A1 Manuale tecnico
Gorenje
Gorenje NRF8181MX Manuale tecnico
Gorenje
Gorenje NRS9182VXB1 Manuale tecnico
Gorenje
Gorenje RIU 6158 W Manuale utente
Gorenje
Gorenje NRK6192AS4 Manuale utente
Gorenje
Gorenje NRF7191CW4 Manuale tecnico
Gorenje
Gorenje HKS3661EF Manuale utente
Gorenje
Gorenje NRKI419EP1 Manuale tecnico
