Grace BLOCK ROCKiT Manuale utente

4th Rail Accessory

Instructions

Quilt Frame Assembly Instructions

Table of Contents

Warranty ....................................................................................................................................2

Tools Needed..............................................................................................................................3

Box Components.........................................................................................................................3

Hardware Components ................................................................................................................3

4th Rail Holder Assembly Attachment ...........................................................................................4

Geared Rail Assembly..................................................................................................................5

Rail Attachment...........................................................................................................................6

Fabric Attachment.......................................................................................................................6

Appendix A.................................................................................................................................7

Jim M. Bagley, GraceWood, Inc

(Reproduction Prohibited)

Version 2.1

Warranty

1-800-264-0644

Warranty Information for your Launch Pad Quilting Frame

The Launch Pad Quilting Frame has a One-Year limited warranty on all parts. The Grace Company will

repair or replace, at its discretion, any part with problems due to our manufacturing, or defects in

materials. This warranty does not cover parts damaged through misuse, improper storage, improper

assembly, loss, natural events, and willful destruction. Parts must be returned to the Grace Company,

shipping prepaid, before we can repair or replace them. We will promptly return the repaired/re-

placed part at our expense if done within a year of the purchase date.

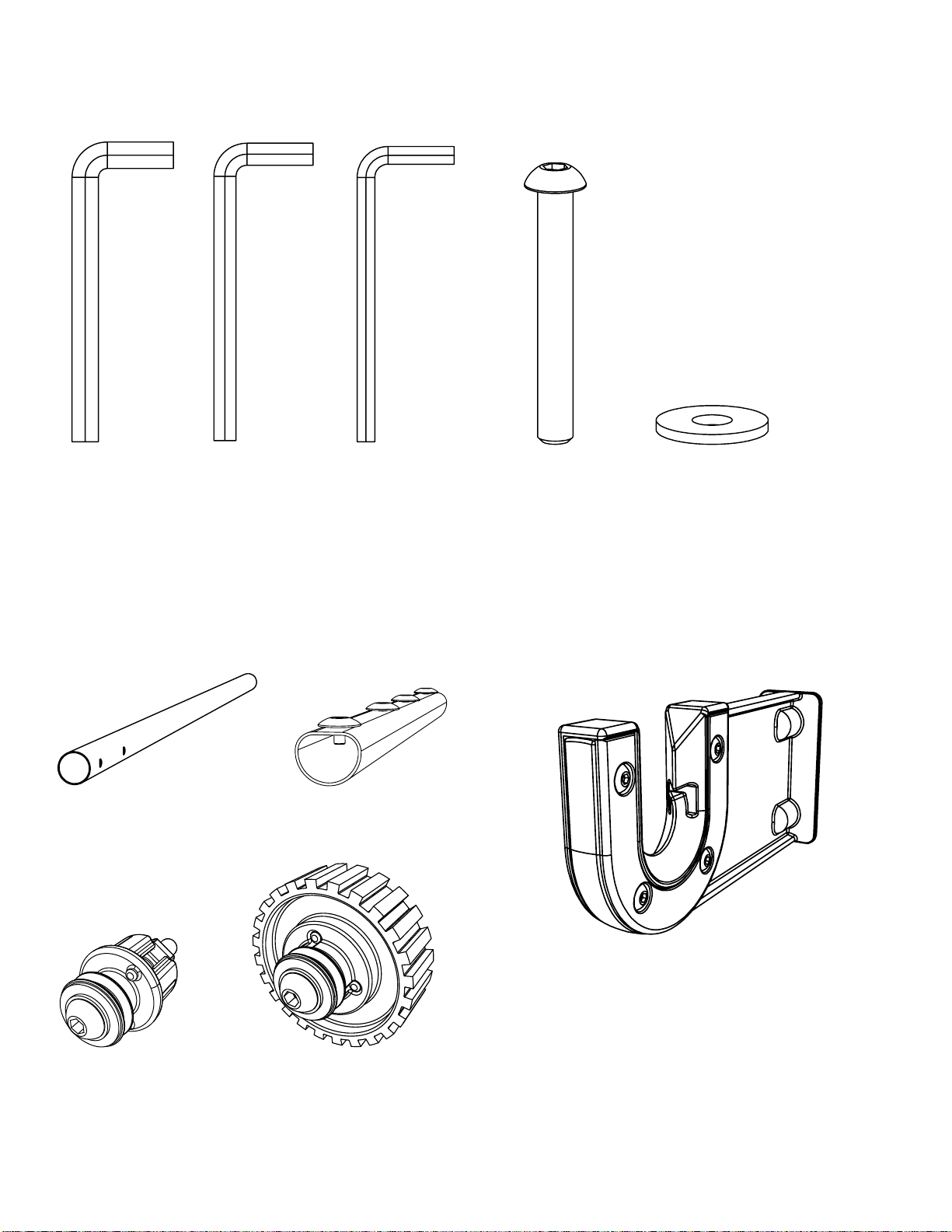

Tools Needed

03-10742 03-10741 03-10167

1x 1x 1x

See Appendix for Part and Assembly Number References.

Hardware Components

03-11160

Box Components

04-11005

01-A100175

1x1x

01-A100181 01-A100182

03-11159

01-A100184

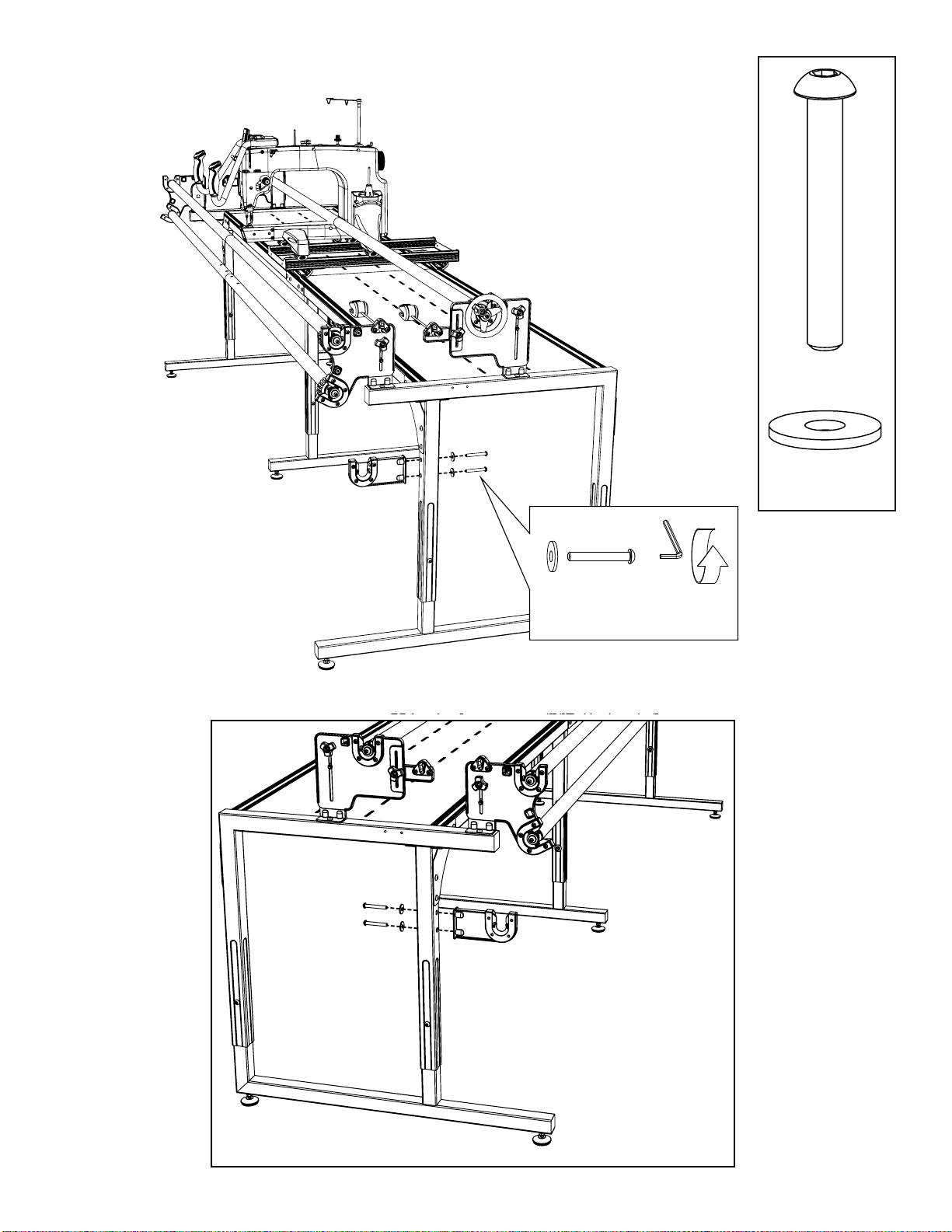

4th Rail Holder Assembly Attachment

03-11160

03-10741

03-11160

03-11159

01-A100184

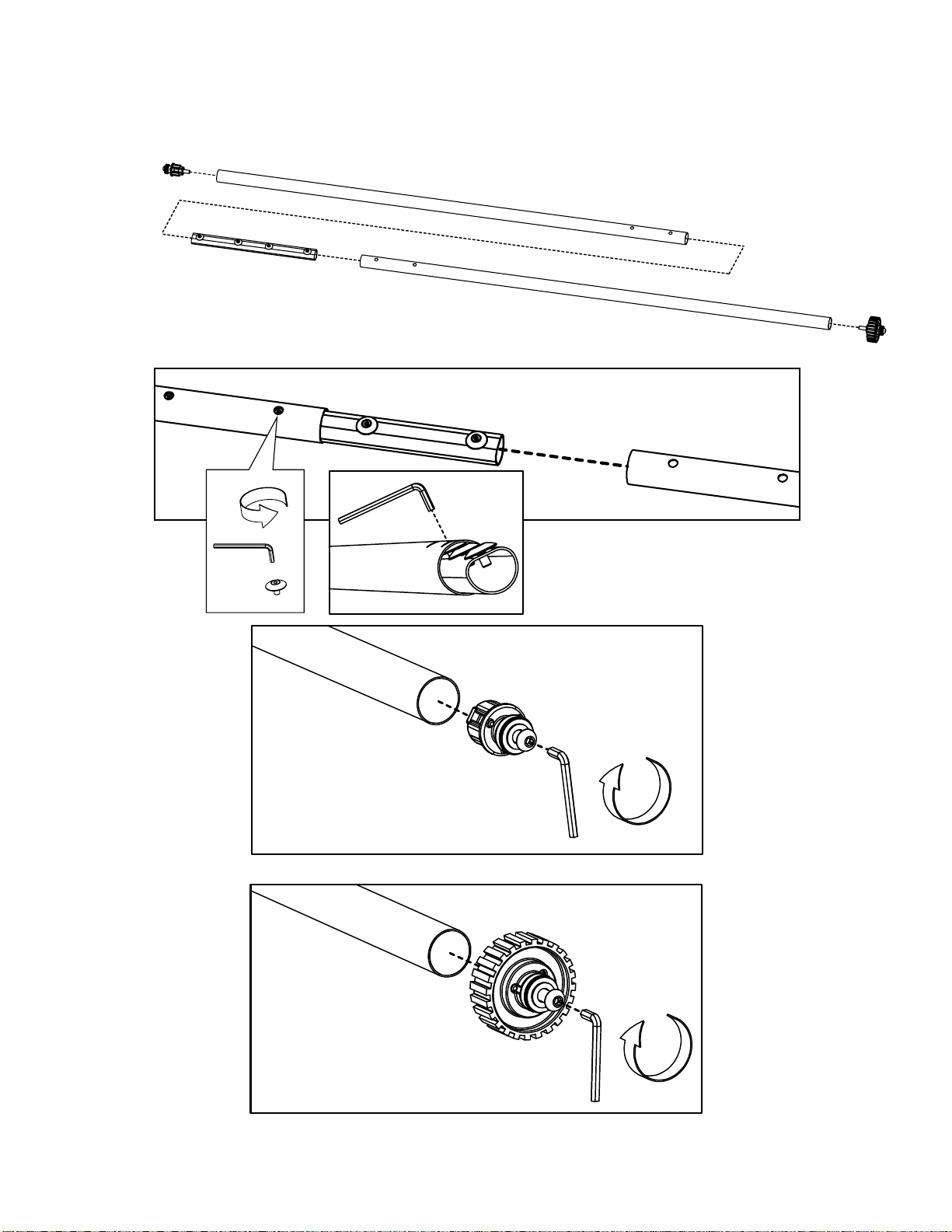

Geared Rail Assembly

01-A100175

04-11005

01-A100181

01-A100182

04-11005

100022

03-10167

03-10742

01-A100182

03-10742

01-A100181

03-10167

Note: Leave the connector bolts attached

to the coupler and unscrew the connector

bolt inside the sleeve of the rail until tight.

*INS-LP008

Take Up Leader

Backing Leader

Top Leader

Batting

Rail Attachment

Fabric Attachment

Section 1-1: Tape the leaders to the rails

and pin the fabric to the leaders. Tape the

batting to the 4th Rail.

*INS-LP008

Part Number Description

03-10742 6mm Allen Wrench

03-10741 5mm Allen Wrench

03-10167 4mm Allen Wrench

04-11005 38mm Rail

03-11160 M8 x 60mm SBHCS

03-11159 M8 Washer 20mm OD x 11mm

ID x 1.5mm

Appendix A

Assembly

Number Description

01-A100175 Rail Coupler Assembly

01-A100181 Rail End Non-Ratcheting

01-A100182 Rail End Ratcheting

01-A100184 4th Rail Bracket

*INS-LP008 Geared Rail Assembly with

Handwheel

* Are for instruction purposes only.
