Grandhall BC-161A Manuale utente

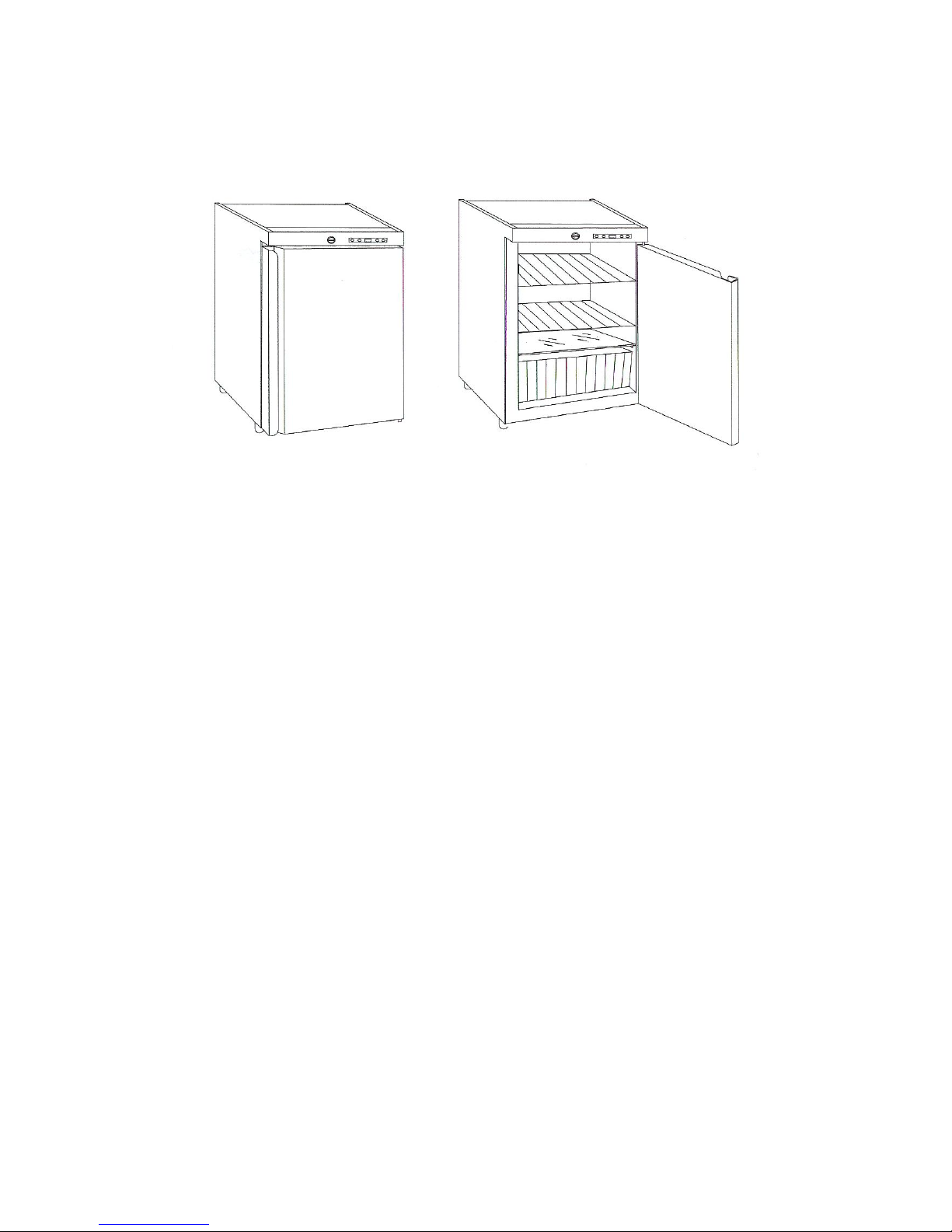

BC-161A Turbo Outdoor Refrigerator
Before Putting Into Use
Important
Placing and Installation
Description of the Appliance
Operation Control
Use
Maintenance and Cleaning
Changing the Direction of opening the Door
Trouble Shooting Guide
1
Thank you for buying a Grand Hall appliance!
We hope it will successfully serve your requirements for many years.
This Refrigerator can be for indoor and outdoor use and is intended for storing beverages and
fresh foods at temperatures higher than 0°C/32°F.
SAVE THESE INSTRUCTIONS
Before Putting Into Use……………… 2 Use………………………………………… 9
Instructions for Use Storing Fresh Foods
We care for the Environment Maintenance and Cleaning…………… 10
Tips for Energy Savings Automatic Defrosting of the Refrigerator
Important………………………………… 3 Cleaning of the Appliance
Disposing of Worn Out Appliances Switch Off the Appliance When Not In Use
Placing and Installation……………….. 4 Changing the Direction of
Choosing the Right Place Opening the Door…………………………11
Placing the Self-standing Appliance Trouble –Shooting Guide………………..12
Connection to Power Supply
Description of the Appliance………….7
Operation Control………………………8
2
Before Usage
Before connecting the appliance to an electrical power supply, let it stand for about 2 hours
to reduce the possibility of malfunctions in the cooling system due to transport handling.
Clean the appliance thoroughly, especially in the interior( See Cleaning and Maintenance)
In case the interior accessories are not correctly placed, rearrange them as described in
“Description of the Appliance”.
Instructions for Use
These instructions for use are intended for the user.
They provide descriptions of the appliance and proper operating procedures for safe use.
SAVE THESE INTRUCTIONS:
We Care for the Environment
Our products are environmentally friendly as individual packaging materials are clearly
marked.
These instructions are printed either on recycled paper or chlorine free bleached paper.
When ready to dispose your appliance, please call your nearest authorized service agent.
(See Disposing of Worn Out Appliance)
Tips for Energy Savings
Try not to open the door too often, especially when the weather is hot and humid. Once
you open the door, close it as soon as possible.
Periodically check if the appliance is sufficiently ventilated (adequate air circulation behind
the appliance).
Set the thermostat from higher to lower settings as soon as possible (depends on how full
the appliance, ambient temperatures etc).
Before loading the appliance with packages of fresh foods, make sure that they are cooled
to normal temperature (excluding soups).
Ice and frost layers increase energy consumption, so clean the appliance as soon as the
frost layer is 3-5mm thick.
If the gasket is damaged or the door seal is poor, energy consumption is substantially
higher. To restore efficiency, replace the gasket.
Always consider instructions stated in sections Positioning and Energy Saving Tips,
otherwise the energy consumption is substantially higher.
3
Important
The appliance must be properly connected to an electrical power supply. (See: Connection
to Power Supply).
If the food has a strange smell or color, throw it away, because it is very likely that it is
spoiled and therefore is dangerous to consume.
Always disconnect the appliance from the power supply before cleaning the appliance,
replacing the light bulb and / or attempting repairs. WARNING: repairs should be
performed by qualified service personnel only.
Do not defrost the appliance with other electric appliances (for example a hair dryer) and
never attempt to scrape /remove ice/frost with sharp objects. Use only enclosed tools or
tools recommended by the manufacturer.
The refrigerating system of the appliance is filled with refrigerant and oil, so when the
appliance is damaged, handle it with care and dispose of it in compliance with
environmental protection safeguards. (See: We Care for the Environment.)
The rating plate containing Model No/Serial No and other technical date specific to this
unit, is located either inside the unit or outside on the rear wall.
If there is any damage to the power supply cord, please contact local service center for
help! WARNING: repairs should be performed by qualified service personnel only.
Dispose of Worn Out Appliances
When your appliance finally wears out, dispose of it in a safe and harmless manner. If the
appliance is equipped with a door lock that can not be opened from the inside (lock, bolt),
make sure the lock is removed, disable or destroyed before being discarded. This will
make it impossible for children to accidentally lock themselves inside the appliance and
suffocate.
The refrigerator system of the appliance is filled with refrigerant and insulating substances
which should be separately treated and processed. Call your nearest authorized service
agent or specialized servicing center. If you are unable to locate one, contact your local
authorities or your distributor.
4
Placing and Installation
CHOOSING THE RIGHT PLACE
Place the appliance in a dry and regularly ventilated place. Never place the appliance near
heat emitting devices
(e.g. cooking appliances, radiators, water heaters or similar devices).
The appliance should be positioned at least 3cm away from electric or gas cooking
appliances and at least 30cm away from oil or coal fired stoves. If this is not possible, use
an appropriate insulation barrier.
Behind the appliance there should be a free space at least 200 c㎡wide and above the
appliance kitchen units (cupboards) should be at least 5 cm away from the appliance in
order to assure adequate ventilation.
Since this product has many ventilation holes underneath, please make sure there is a
gap of at least 3cm between the bottom of the product and the ground & there is nothing
stuck underneath.
INSTALLATION
Place the appliance firmly on a solid base. There are two wheeled feet underneath, but two
fixed feet on front side underneath. So if you want to move the appliance, hold the front side,
pull / push the appliance to the required location.
NOTICE CARD

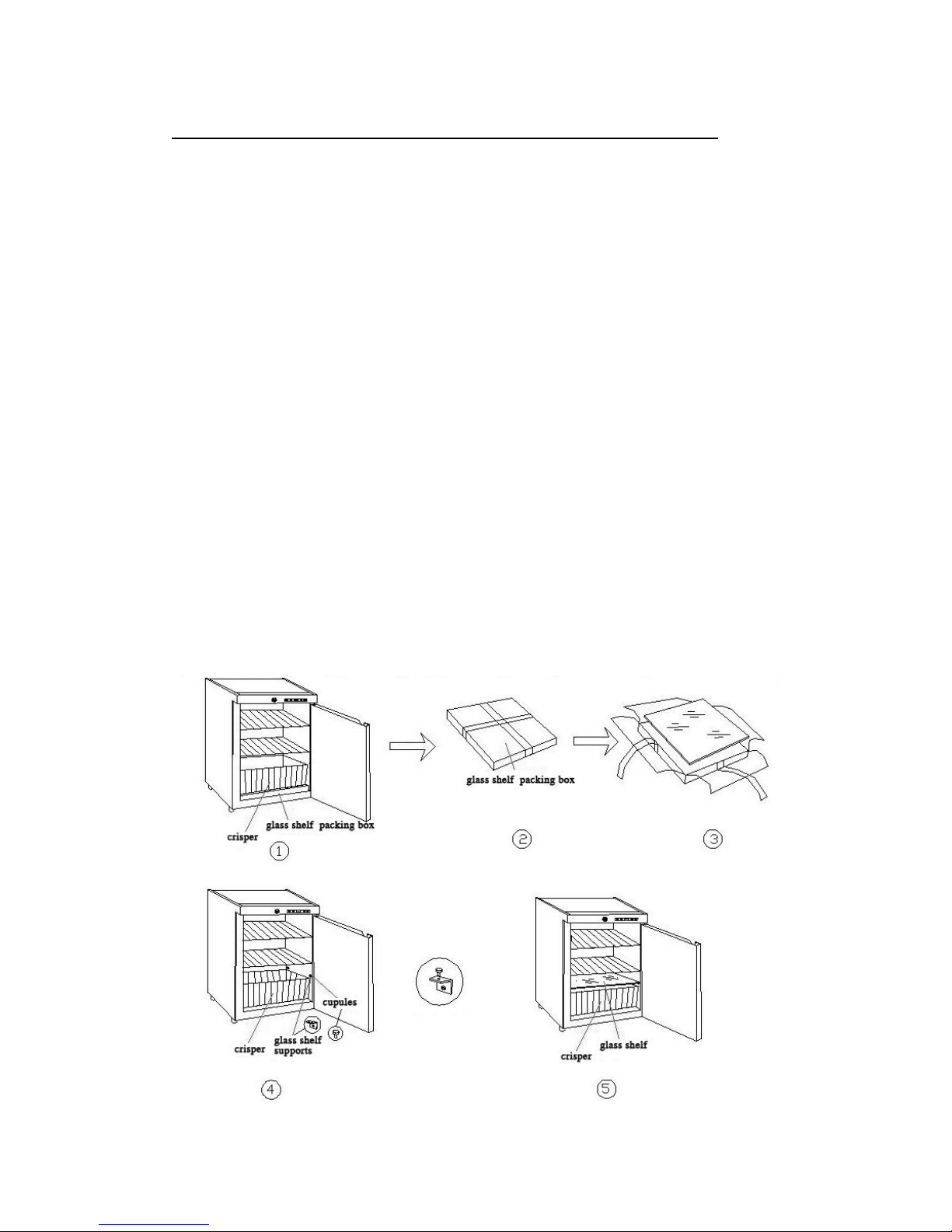

For unpacking and installing the glass shelf:
5
①Open the door; the glass shelf is packed under the crisper;
②Take out the glass shelf packing box;
③Unpack the box, take out the glass shelf;
④Fix the four supports and add four cupules on them;
⑤Put the glass shelf on the four cupules & make sure it is steady.

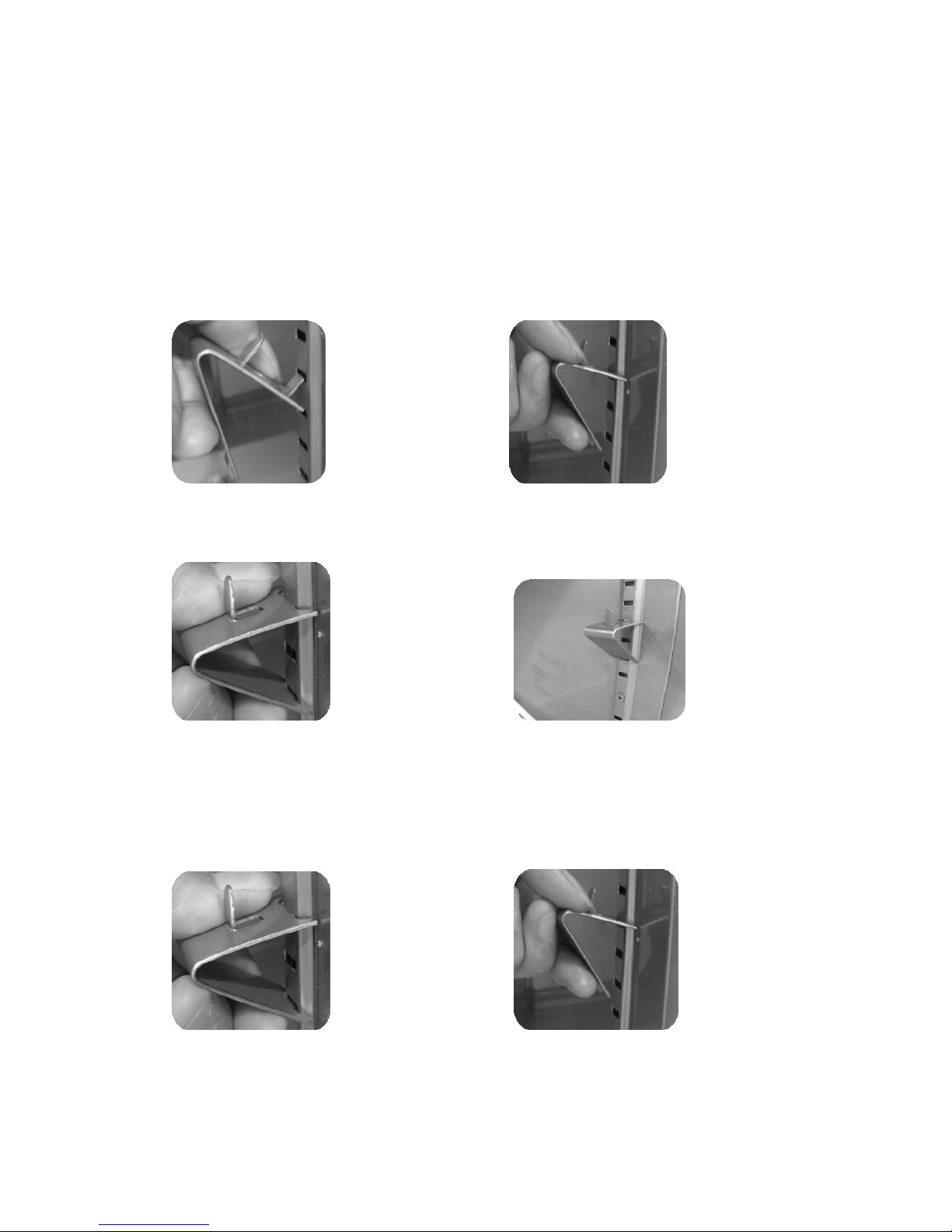

Fixing the “K”clip:
（ⅰ） （ⅱ）
Put the peg into the hole you choose; Press it downwards with your thumb;
（ⅲ） （ⅳ）
With your other fingers pushing on the Done.
slanting side, put the other peg into the third hole.

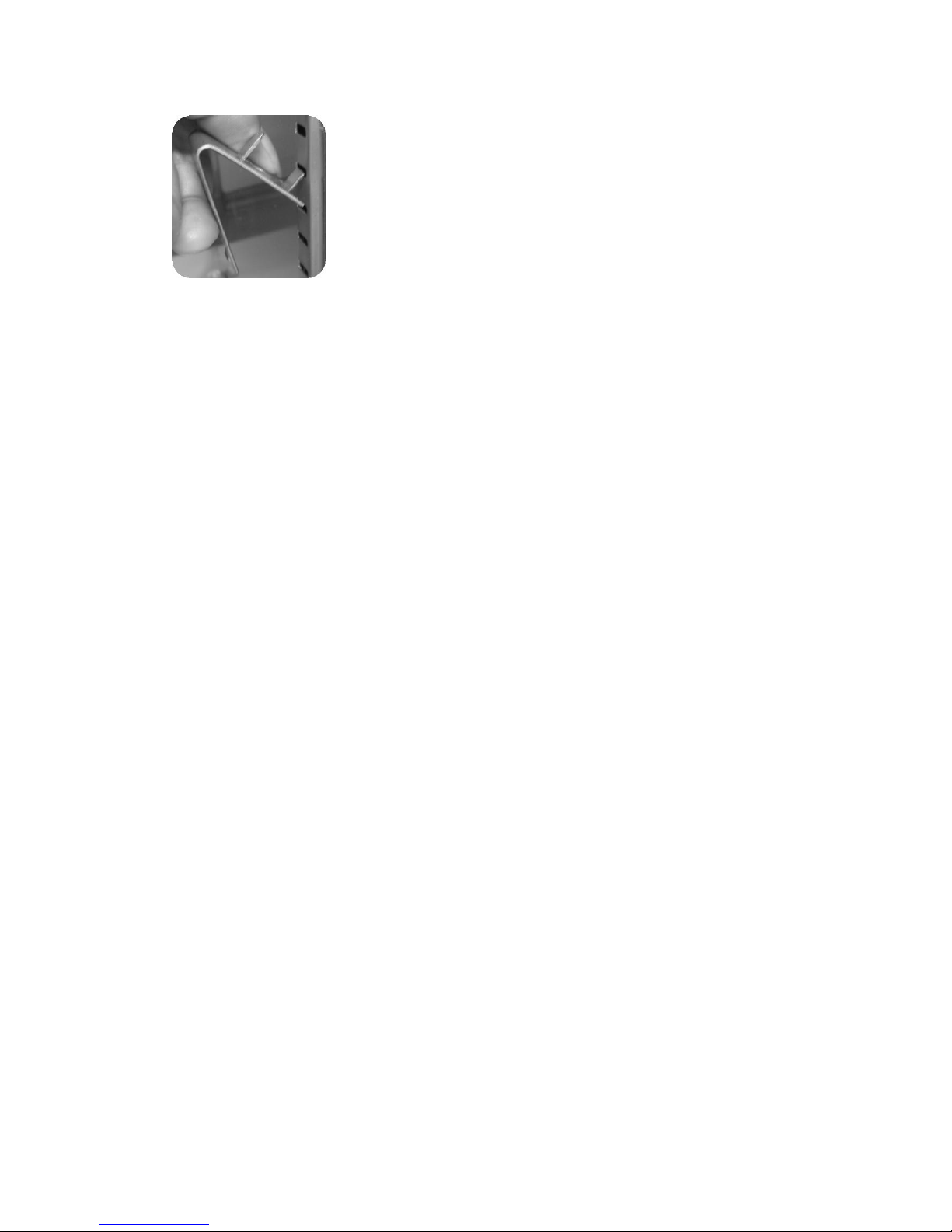

Removing the “K”clip:
（ⅰ） （ⅱ）
With your fingers pushing on the slanting side; Pull out the peg on the slanting side;
（ⅲ）
6
Pull out the other peg
WARNING
Instructions pertaining to the risk of fire, electric shock, or injury to persons.
GROUNDING INSTRUCTIONS
For your personal safety, this appliance must be rounded. In the event of a malfunction or
break down, grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current. This appliance is equipped with a power cord having equipment
grounding conductor and grounding plug. The plug must be plugged into an appropriate wall
outlet that is installed and grounded in accordance with all existing local codes and ordinances.
Consult a qualified electrician or serviceman if the grounding instructions are not clearly
understood or if doubt exists as to whether the appliance is properly grounded.
CONNECTION TO POWER SUPPLY
Connect the appliance power cord and plug to a properly grounded wall outlet. The required
nominal voltage and frequency are indicated on the rating plate (inside the unit or on the
exterior rear wall of the unit).
7

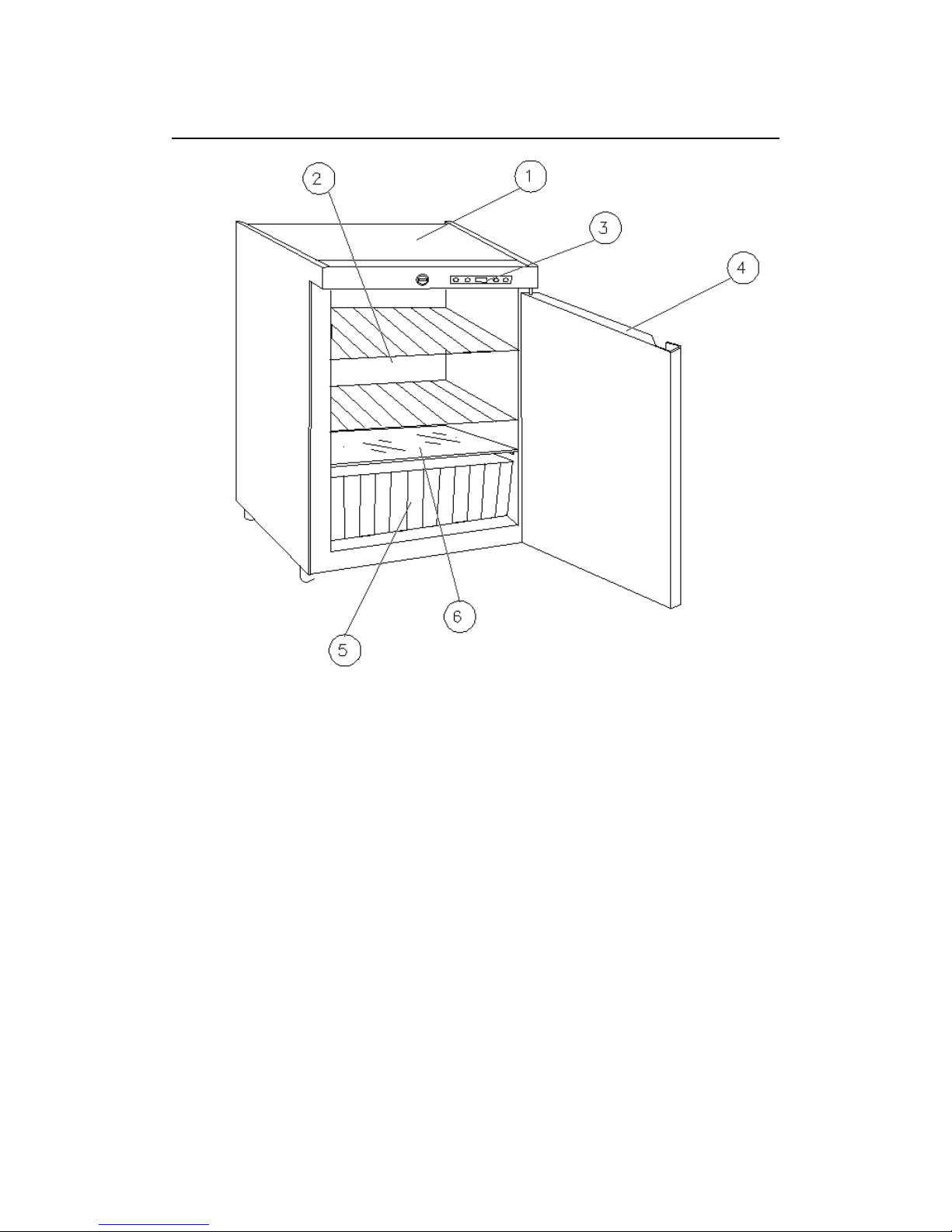

Description of the Appliance
①Cold Cube: Made of stainless steel; can be cleaned with alcohol or detergent.
②Evaporator
③Control Panel: You can set the temperature (See: Operation Control) & control the
illuminating light on the control panel (See: Illumination in the interior of the Refrigerator).
④Door: Made of stainless steel; with replaceable gasket
⑤Fruit and Vegetable Crisper: The crisper drawer is on the bottom of the appliance under
the glass shelf. You can pull out or push in conveniently with wheels and slides.
⑥Glass shelf: It can pride level place for articles; you can also see loading contents in the
Crisper through the glass.
8
Operation Control
The temperature of the refrigerator is controlled by setting the touchpad on the control panel.
indicator of indicator of
refrigeration ℃/℉
BC-161A
a) Temperature control: Press button, choose or to adjust the
temperature. Keep your fingers on or for over 2 s can realize
consecutive up or down. If without actions, 6 s later, it will show actual temperature inside.
(adjustable temperature range: 32℉~50℉)
b) Indicator light of refrigeration: when the compressor is on, the indicator light is on; when
the temperature is stable on the set temperature, the indicator light is off; during latency
period, the light is twinkling.
c) Illumination in the Interior of the Refrigerator:
When the refrigerator door is open, the light is on; when closed, the light is off.
d) ℃/℉conversion: when you press
you can make conversions between ℃and ℉; when LED2 is on, it shows temperature
in ℉;when LED2 is off, it shows temperature in ℃.
e) Restore to default settings: Press twice, and then put your fingers on for
6 s, it twinkles, which means all parameters have been restored to default settings. It will
return to normal status in 6 s.
9
Use
Storing Fresh Foods
Proper use of the appliance, adequate packed food, correct temperature and taking into
account hygienic precautions will substantially influence the quality of the food stored.
Foods to be stored in the refrigerator should be properly packed so as to prevent mixing
various moisture degrees and odors (in polyethylene bags or sheet, aluminum foil, was
paper, or stored in covered containers or bottles).
Before storing food in the refrigerator, remove excessive packaging (like yogurt in
multi-package).
Pack systematically and make sure that foodstuffs do not touch each other (various odors
may mix). Assure adequate air circulation around packages.
Never store flammable, volatile or explosive substances.
Beverages with high alcohol percentage shall be stored in tightly sealed bottles in vertical
position.
Food should not touch the rear wall of the refrigerator.
Foods should be cooled down before storing.
Crispy and delicate foods should be stored in the coldest parts of the refrigerator.
Try not to open the door too often,
Some organic solutions like volatile oils in lemon and orange peel, acid in butter etc. can
cause damage when in contact with plastic surfaces or gaskets for long periods of time.
Unpleasant odors inside the refrigerator are a sign that something is wrong with foods or
that your refrigerator needs cleaning. Unpleasant odors can be eliminated or reduced by
washing the interior of the refrigerator with mild solution of water and vinegar. We also
recommend using activated carbon filters to clean the air or to neutralize odors.
If you are planning a long journey, make sure to remove perishable articles of food out of
the appliance before you leave.
