Epygi Technologies Configuring Grandstream IP Phones on Quadro LAN

Configuring Grandstream IP Phones

on Quadro LAN

Revision Revised By Date

Split form Configuring Tested IP

Phones on Quadro LAN document

Sona Grigoryan 26-09-2007

Quadro variants:

Filename:

Version:

Template: NEWsupportTemplate.dot

Last saved: 9/27/2007 6:08:00 PM by Liana Badalyan

Revision: 1.0

Abstract: This document describes the steps required for Auto-

configuration of the Grandstream IP phones on Quadro LAN.

Please Note: This document contains confidential and proprietary information owned by Epygi Technologies Ltd. Any copying, use or disclosure of

the document or the information contained herein without the written permission of Epygi Technologies Ltd. is strictly prohibited.

Epygi Technologies Configuring Grandstream IP Phones on Quadro LAN

Table of Contents

1Introduction ........................................................................... 4

2Requirements and Preparations.............................................. 4

3Auto-Configuration on Grandstream IP Phones ...................... 5

4Completing Grandstream IP Phones Configuration ................. 7

4.1 Grandstream BT100/200................................................................. 8

4.2 Grandstream GXP2000 ................................................................... 9

5Verifying Configuration........................................................... 9

6Troubleshooting.................................................................... 10

7SIP Phone Uses a Third-Party DHCP Server .......................... 10

7.1 Configuration Changes to a DHCP Server..........................................11

8References............................................................................ 12

PAGE 2 27-Sep-07

Epygi Technologies Configuring Grandstream IP Phones on Quadro LAN

Document Revision History

Revision Date Revision Valid for SW

Valid for models

1.0 27-09-07 Initial version 4.1.x IP PBXs

PAGE 3 27-Sep-07

Epygi Technologies Configuring Grandstream IP Phones on Quadro LAN

1Introduction

Quadro IP PBXs provide the option of using SIP phones along with standard analogue phones. IP

phones are connected to the Quadro LAN interface via Ethernet and serve as additional extensions

similar to onboard FXS extensions (see Figure 1).

This document describes how to configure the Grandstream SIP phones connected to the Quadro

LAN using Auto-configuration option of the Quadro.

Started with Quadro software 3.1.x, an Auto-configuration option is available for a number of

SIP phones particularly the Grandstream IP Phones. This option simplifies SIP phone configuration

procedure eliminating the necessity of manual configuration of the phones. The user only needs to

configure an IP line attached to a desired extension on the Quadro and then reset the SIP phone

to factory defaults. For more information on the Auto-configuration option, please refer to

Section 3.

Figure 1-IP phone connected to the Quadro LAN

2Requirements and Preparations

•Software image 4.1.x running on the Quadro IP PBX.

•Quadro is connected to the network and all network settings are correctly configured.

•SIP phones connected to the Quadro LAN

PAGE 4 27-Sep-07

Epygi Technologies Configuring Grandstream IP Phones on Quadro LAN

3Auto-Configuration on Grandstream IP Phones

The following step-by-step instructions describe how to configure an IP line to allow Grandstream

SIP phones to be auto-configured.

1. Log into the Quadro as an administrator.

2. Open the TelephonyÆLine SettingsÆIP Line Settings page (see Figure 2).

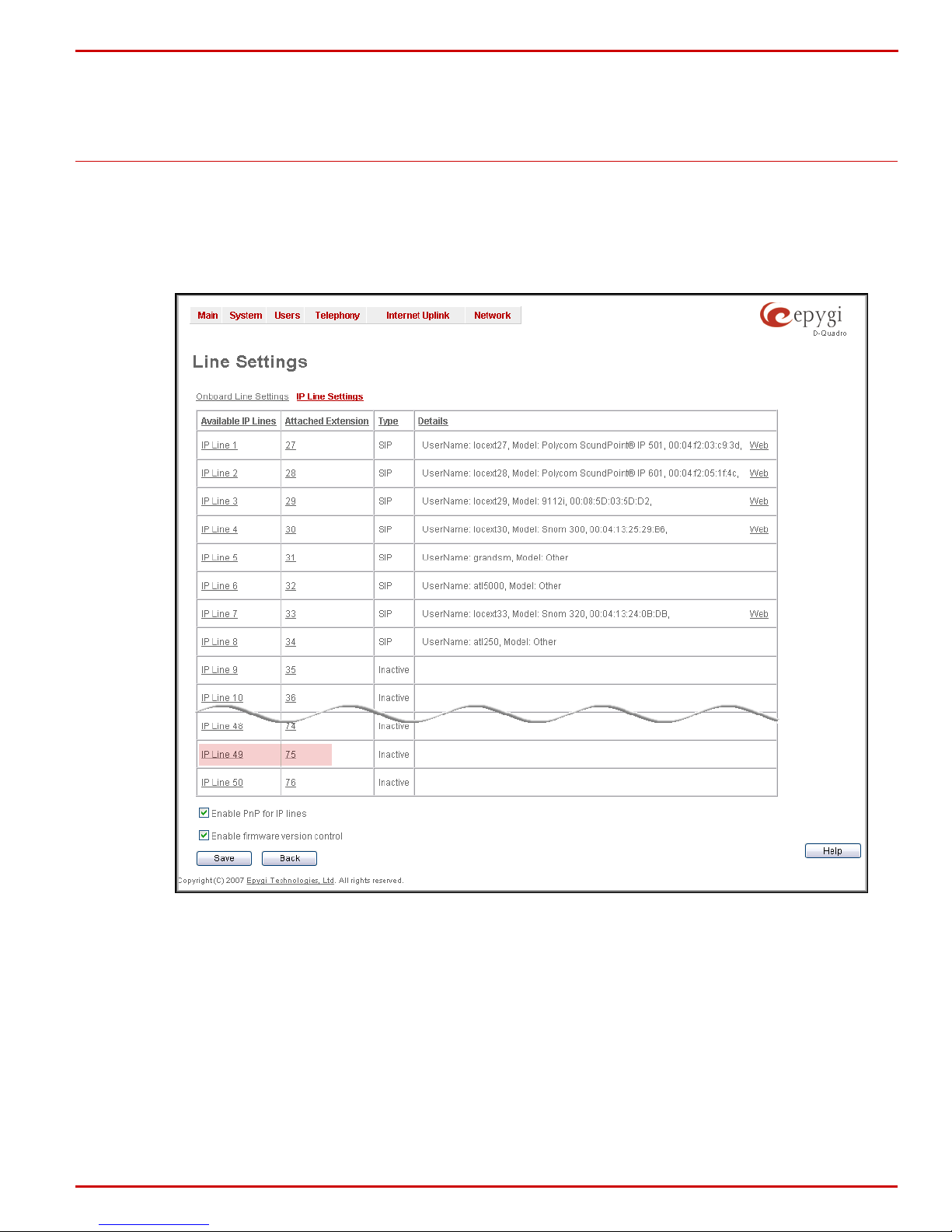

Figure 2-Line Settings page

3. From the Attached Extension column, choose an extension to be assigned to the SIP

phone and click on the corresponding IP line link. Note that the table lists only the

extensions attached to IP lines. If the extension is not listed on this page, open

UsersÆExtensions Settings page and attach an IP line to the extension by editing the

extension settings (see Figure 3).

PAGE 5 27-Sep-07

Epygi Technologies Configuring Grandstream IP Phones on Quadro LAN

Figure 3- Attaching an IP line to an extension

4. On the IP Line Settings page (see Figure 4), select the SIP phone radio button to

activate the line.

5. Select the model of the SIP phone from the Phone Model drop-down list.

Please Note: If the phone model is not included in the Phone Model drop-down list, select

Other and specify a Username and a Password in the respective fields (the same values should

be used when configuring the phone manually).

6. Enter the MAC address of the phone into the appropriate text fields. MAC addresses of IP

phones are usually printed on the back of the phone base unit.

7. Enter the number for simultaneous calls – the total number of active and held calls, in the

Line Appearances text box. If this field is set to 1, only one active call will be possible to

have on the phone. Making or accepting a second call while the other is on hold will not be

allowed.

Please Note: This number cannot exceed the number of simultaneous calls supported by the

phone. For Grandstream GXP2000 it is 11, for Grandstream BT 100/200 it is 2.

8. The Quadro identifies each SIP phone located on its LAN by a unique username and a

password specified on the IP Line Settings Page (see Figure 4). In case of auto-

configuration, they are specified on the Quadro and are automatically included in the

phone’s configuration file generated by the Quadro. By default the Quadro assigns a unique

username and password to each IP line. The user may either keep these values or specify

new ones.

9. Check the Use Session Timer checkbox to enable SIP Session Timer for this line.

10. Click Save to submit the changes.

Once a corresponding IP line is configured, factory reset the phone to complete Auto-

configuration. For instructions on how to reset a Grandstream SIP phone, please refer to Section

PAGE 6 27-Sep-07

Epygi Technologies Configuring Grandstream IP Phones on Quadro LAN

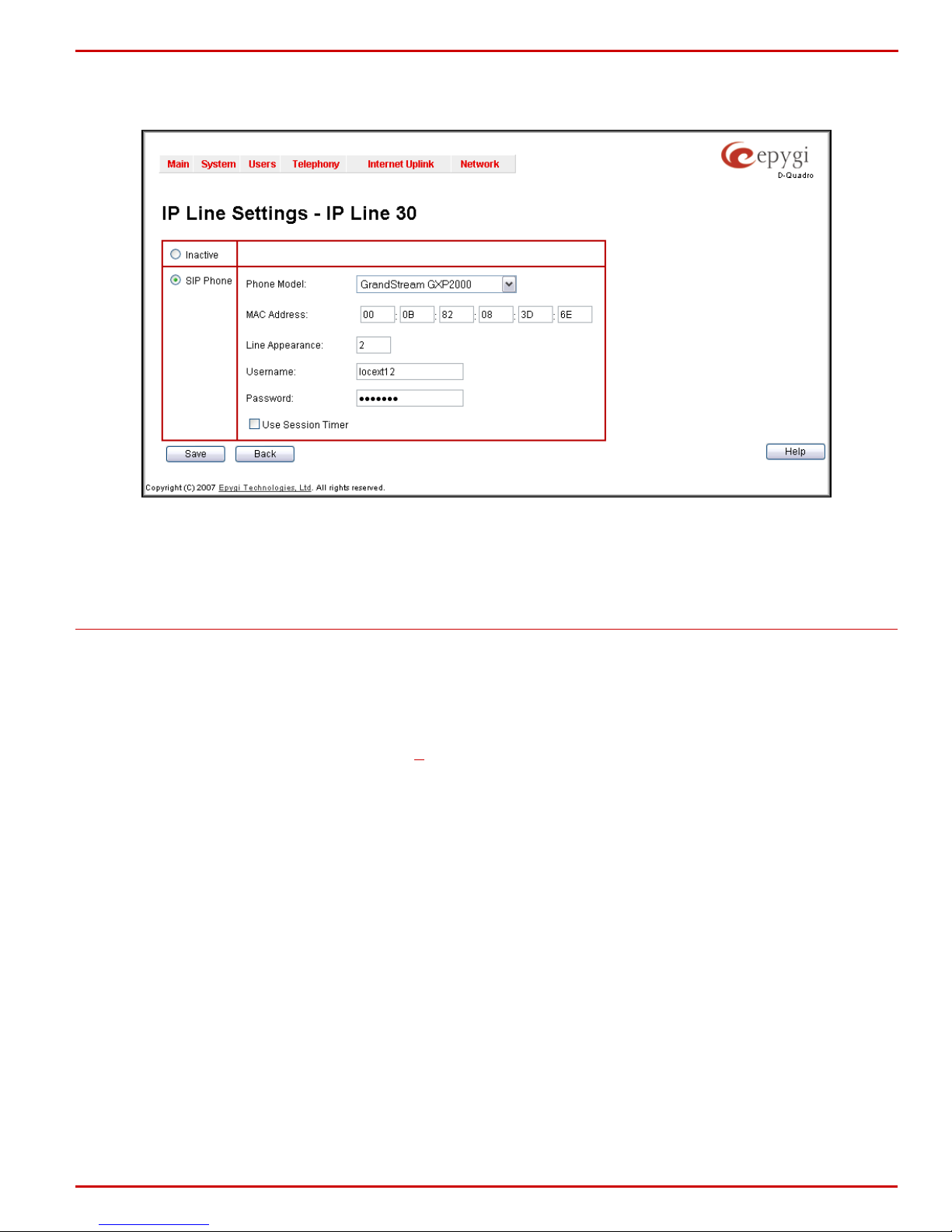

Figure 4-Configuring an IP line

4Completing Grandstream IP Phones Configuration

To complete Grandstream IP phone configuration using Auto-configuration option, reset the phone

to factory default settings. Please see the instructions below that describe how to restore the

default configuration on the Grandstream SIP phones.

Please note: If a SIP phone obtains its basic network parameters from a DHCP server other than

the Quadro’s built-in DHCP server, certain configuration changes will be required on the DHCP

server in use. Please refer to Section 7.

PAGE 7 27-Sep-07

Epygi Technologies Configuring Grandstream IP Phones on Quadro LAN

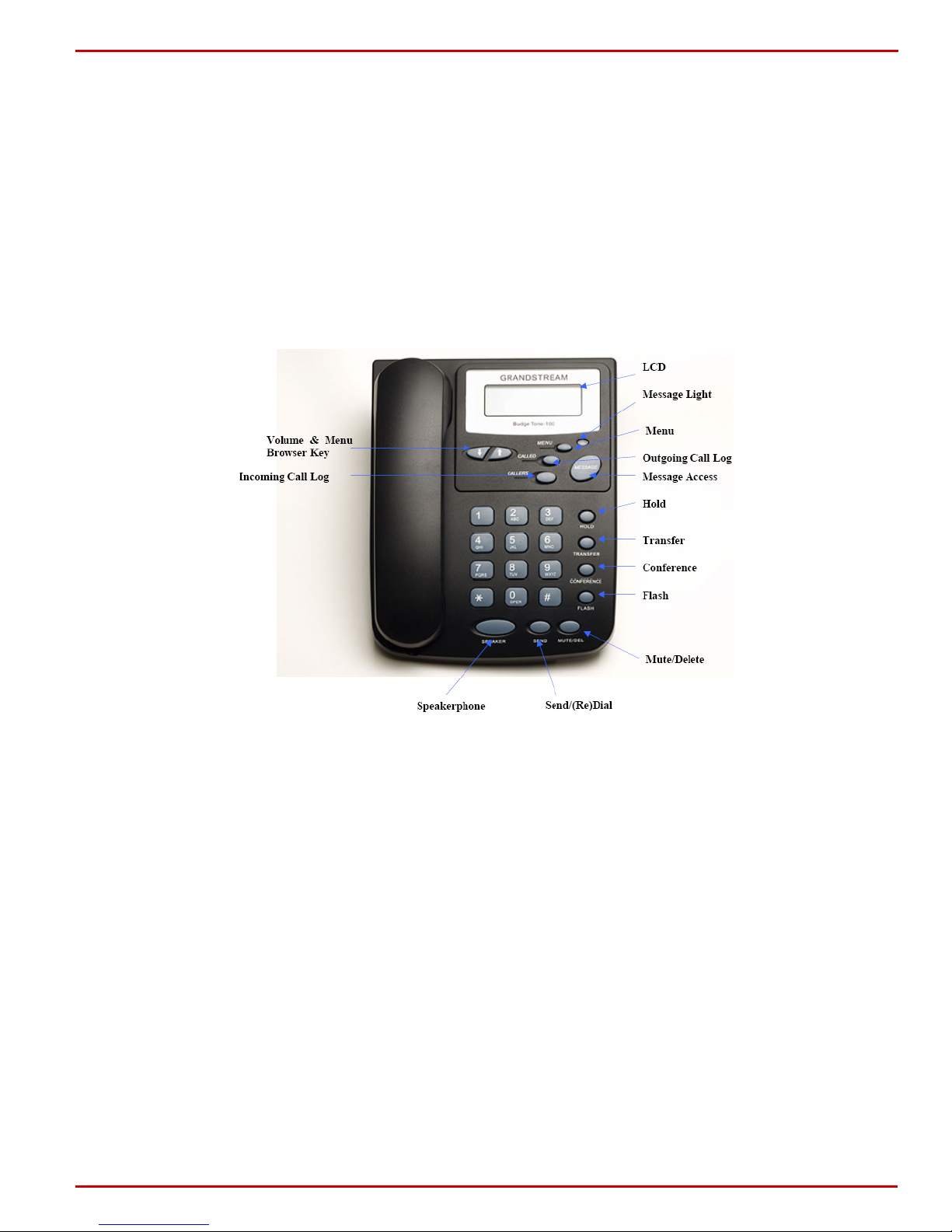

4.1 Grandstream BT100/200

To complete the automatic configuration on Grandstream BT100/200, reset the phone to factory

default settings as detailed below:

1. Press the Menu button on the phone for Key Pad Menu options.

2. Press the Up or Down button to see Reset.

3. Just after the rESEt” is seen on the phone LCD, enter the MAC address of the phone using

the key pad (It is a 12 digits HEX number located on the bottom of the unit).

4. Press the Menu button again to confirm the Reset.

5. Wait for phone reboot and the LCD backlight finish flashing.

Please Note: Use the following mapping for Grandstream phones to enter the MAC address:

0-9: 0-9

•A: 22 (press the “2” key twice, ”A” will show on the LCD)

•B: 222

•C: 2222

•D: 33 (press the “3” key twice "D” will show on the LCD)

If there are digits 22 in the MAC, you need to type 2then press Æright arrow key to move the

cursor or wait for 4 seconds to continue to key in another 2.

•E: 333

•F: 3333

PAGE 8 27-Sep-07

Epygi Technologies Configuring Grandstream IP Phones on Quadro LAN

4.2 Grandstream GXP2000

To complete the automatic configuration on Grandstream GXP2000, reset the phone to factory

default settings as detailed below:

1. Press the OK key to bring up the key pad configuration UI menu, select the Config,

2. Press the OK key to enter the submenu and select Factory Reset.

3. Key in the MAC address printed on the bottom of the sticker (see the Please Note:

above).

4. Press the OK key again to move the cursor to OK button.

5. Press the OK key again to confirm. If the MAC address is correct the phone will reboot.

Otherwise, it will exit to previous keypad menu interface.

5Verifying Configuration

This section describes how to verify the Grandstream IP phone successful configuration:

•Go to Quadro StatusÆSIP Registration statusÆRegistered IP Lines to see if the IP

Line registration is successful.

•Dial *74 to get the line information.

•Make outgoing and accept incoming calls.

Make sure the default username set for an assigned IP

•line is displayed on the phone

display (by default it has the ‘locextNumber’ format).

PAGE 9 27-Sep-07

Epygi Technologies Configuring Grandstream IP Phones on Quadro LAN

6Troubleshooting

The IP phone fails to reboot/restart

Some IP phones may fail to reboot when the reboot is initiated from the phone’s LCD-based

interface. The only way to recover the phone from the permanent reboot is to unplug the power

cable from the base unit of the phone and plug it in again.

If there is a problem with auto configuration of Grandstream BT100 phones, after resetting the

phone there is a need to set the configuration server by hand from the GUI of the phone.

Advanced Settings -> Firmware Upgrade and Provisioning:

Firmware Server Path: should be changed from fm.grandstream.com/gs to Quadro LAN IP (e.g. 172.30.0.1)

Config Server Path: should be changed from fm.grandstream.com/gs to Quadro LAN IP (e.g. 172.30.0.1).

7SIP Phone Uses a Third-Party DHCP Server

To allow a SIP phone to be configured using auto-configuration options, the phone should be able

to download the configuration file from the Quadro’s HTTP/TFTP server. This requires that the boot

server address of the phone be set to the IP address of the Quadro’s LAN interface. In network

configurations where the SIP phone obtains its network parameters from the Quadro’s DHCP

server (recommended, see Figure 5), the boot server address is set automatically by the Quadro.

Apart from the steps mentioned in Sections 4 no additional steps are required to complete SIP

phone configuration.

Figure 5-Recommended configuration for SIP phone setup

If the SIP phone uses a third-party DHCP server, the DHCP server should be configured to notify

the phone of the Quadro’s location. An example of such network configuration is shown in Figure 6.

In this example, the LAN of the Quadro, the dedicated DHCP server, and SIP phones are in the

same subnet. For the instructions on how to make appropriate changes to a third-party DHCP

server, please see Section 0.

PAGE 10 27-Sep-07
