GRP2603 / GRP2603P

Quick Installation Guide

3-Line Essential IP Phone

Content

English...............................................................................1

~1~ ~2~

The GRP2603/GRP2603P is not pre-congured

to support or carry emergency calls to any type of

hospital, law enforcement agency, medical care unit

(“Emergency Service(s)”) or any other kind of Emer-

gency Service. You must make additional arrange-

ments to access Emergency Services. It is Your

responsibility to purchase SIP-compliant Internet

telephone service, properly congure the GRP2603/

GRP2603P to use that service, and periodically test

Your conguration to conrm that it works as You ex-

pect. If You don’t do so, it is Your responsibility to

purchase traditional wireless or landline telephone

services to access Emergency Services.

GRANDSTREAM DOES NOT PROVIDE CON-

NECTIONS TO EMERGENCY SERVICES VIA THE

GRP2603/GRP2603P. NEITHER GRANDSTREAM

NOR ITS OFFICERS, EMPLOYEES OR AFFILI-

ATES MAY BE HELD LIABLE FOR ANY CLAIM,

DAMAGE, OR LOSS, AND YOU HEREBY WAIVE

ANY AND ALL SUCH CLAIMS OR CAUSES OF AC-

TION ARISING FROM OR RELATING TO YOUR

INABILITY TO USE THE GRP2603/GRP2603P TO

CONTACT EMERGENCY SERVICES, AND YOUR

FAILURE TO MAKE ADDITIONAL ARRANGE-

MENTS TO ACCESS EMERGENCY SERVICES IN

ACCORDANCE WITH THE IMMEDIATELY PRE-

CEDING PARAGRAPH.

PACKAGE CONTENTS:

OVERVIEW:

1x Phone Main Case 1x Handset

1x Phone Cord

1x Ethernet Cable

1x Phone Stand

1x 5V Power adapter

(With GRP2603 only)

1x Quick Installation Guide

PRECAUTIONS:

Part of the GRP series of Carrier-Grade IP Phones, the GRP2603 is an

essential 3-line model designed with zero-touch provisioning for mass

deployment and easy management. It features a sleek design and a

suite of next-generation features including: 4-way voice conferencing

to maximize productivity, integrated PoE (GRP2603P), full HD audio on

both the speaker and handset to allow users to communicate with the

utmost clarity, EHS support for Plantronics & Jabra & Sennheiser head-

sets and multi-language support. The GRP series includes carrier-grade

security features to provide enterprise-level sec urity, including secure

boot, dual rmware images and encrypted data storage. For cloud pro-

visioning and centralized management, the GRP2603 is supported by

Grandstream’s Device Management System (GDMS), which provide

s a centralized interface to congure, provision, manage and monitor

deployments of Grandstream endpoints. Built for the needs of desktop

workers and designed for easy deployment by enterprises, service pro-

viders and other high-volume markets, the GRP2603 o󰀨ers an easy-to-

use and easy-to-deploy voice endpoint.

WARNING: Please DO NOT power cycle the GRP2603/GRP2603P dur-

ing system boot up or rmware upgrade.You may corrupt rmware im-

ages and cause the unit to malfunction.

WARNING: Use only the power adapter included in the GRP2603 pack-

age. Using an alternative non-qualied power adapter may possibly

damage the unit.

~3~ ~4~

PHONE SETUP:

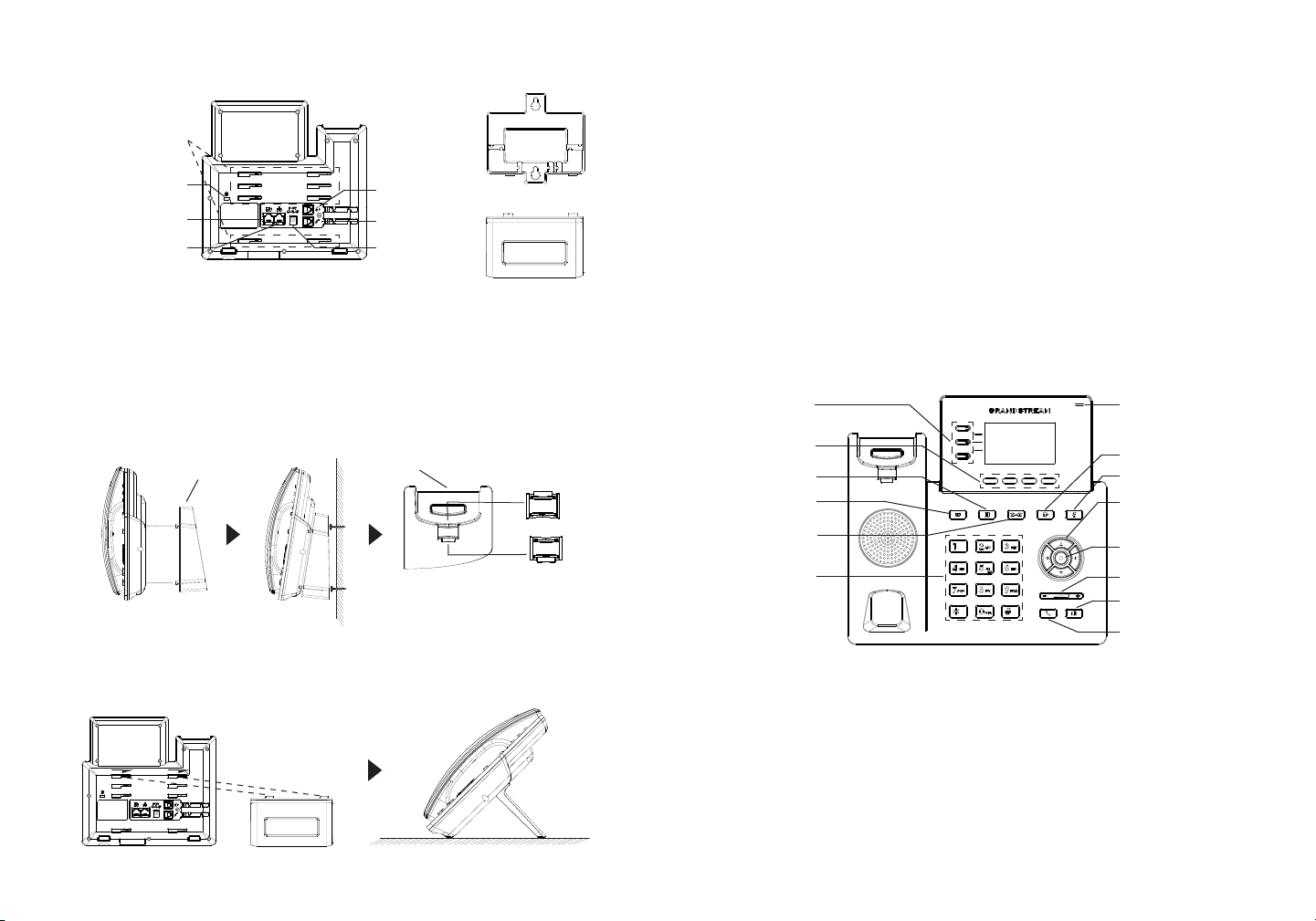

Installing the phone (Wall Mount *sold separately):

1. Attach the wall mount spacers to the slot for wall mount spacers on the back

of the phone.

2. Attach the phone to the wall via the wall mount hole.

3. Pull out the tab from the handset cradle (See gure below).

4. Rotate the tab and plug it back into the slot with the extension up to hold the

handset while the phone is mounted on the wall (See gure below).

Tab with

extension up

Handset Rest

Tab with

extension down

Slots for the

wall mount

spacers and

phone stand

For installing the phone on the table with the phone stand, attach the phone stand

to the bottom of the phone where there is a slot for the phone stand. (Upper half,

bottom part).

Installing the phone (Phone Stand) :

Wall mount

Phone Stand

PC Port

Kensington Lock

LAN Port Power

Headset Port

Handset Port

To setup the GRP2603/GRP2603P, follow the steps below::

1. Connect the handset and main phone case with the phone cord.

2. Connect the 5V DC output plug to the power jack on the phone; plug the pow-

er adapter into an electrical outlet. If PoE switch is used in step 3 (GRP2603P

only), this step could be skipped.

3. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a

router (LAN side of the router) using the Ethernet cable.

4. The LCD will display Grandstream logo. Before continuing, please wait for the

date/time display to show up.

5. Using the phone embedded web server or keypad conguration menu, you

can further congure the phone using either a static IP or DHCP.

CONNECTING THE PHONE:

PHONE DESCRIPTION:

1. Ensure your phone is powered up and connected to the Internet.

2. Press the “UP” button t o display the IP address .

3. Type the phone’s IP address in your PC browser.

4. Enter admin’s username and password to access the conguration menu.

(The factory default username is “admin” while the default random password

can be found on the sticker at the back of the unit).

PHONE CONFIGURATION:

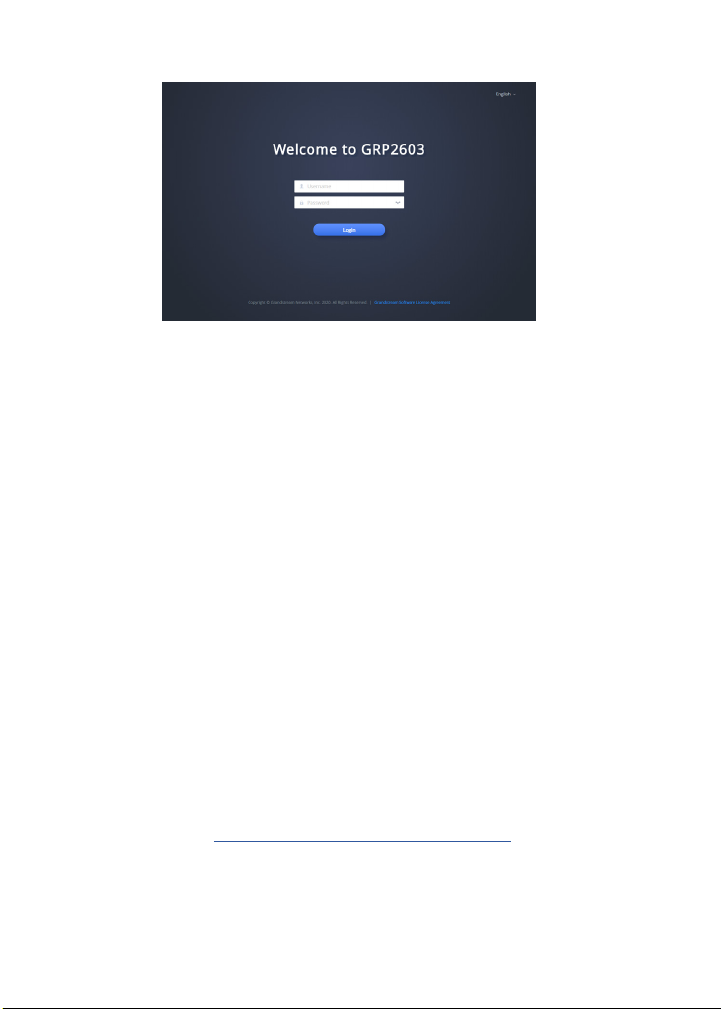

Congure the GRP2603/GRP2603P using a Web Browser:

Line keys

Soft keys

Standard

keypad

Navigation keys

Transfer

Hold

Headset

Message

Message Waiting

Indicator

Menu/OK key

Volume

Speaker

Send

Mute

~5~

1. Make sure the phone is idle.

2. Press the MENU key to access the keypad MENU to congure the phone.

3. Select MENU → SETTINGS → ACCOUNT SETTINGS to congure settings

for SIP Proxy, Outbound Proxy, SIP User ID, SIP Auth ID and SIP Password.

4. Follow MENU options to congure the basic features of the phone. For ex-

ample: the IP address if using a static IP. For details, please check GRP260X

series User Manual.

5. Please contact your ITSP for additional settings that may be necessary to

congure the phone.

Congure the GRP2603/GRP2603P using the Keypad:

Refer to online documents and FAQ for more detailed information:

http://www.grandstream.com/our-products

The GNU GPL license terms are incorporated into the device rmware and

can be accessed via the Web user interface of the device at

http(s)://IP/gpl_license.

To obtain a CD with GPL source code information please submit a written

request to [email protected]

This product is covered by one or more of the U.S. patents (and any foreign patent

counterparts thereto) identied at www.cmspatents.com

For certification information, please refer to User Manuals:

http://www.grandstream.com

U.S. FCC Part 68 Regulatory Information

This equipment complies with Part 68 of the FCC rules. Located on the equipment is a label

that contains, among other information, the ACTA registration number and ringer equivalence

number (REN.) If requested, this information must be provided to the telephone company.

The REN is used to determine the quantity of devices which may be connected to the

telephone line. Excessive REN’s on the telephone line may result in the devices not ringing in

response to an incoming call. In most, but not all areas, the sum of the REN’s should not

exceed five (5.0). To be certain of the number of devices that may be connected to the line, as

determined by the total REN’s contact the telephone company to determine the maximum

REN for the calling area.

This equipment cannot be used on the telephone company-provided coin service. Connection

to Party Line Service is subject to State Tariffs.

If this equipment causes harm to the telephone network, the telephone company will notify you

in advance that temporary discontinuance of service may be required. If advance notice isn’t

practical, the telephone company will notify the customer as soon as possible. Also, you will

be advised of your right the file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations, or

procedures that could affect the operation of the equipment. If this happens, the telephone

company will provide advance notice in order for you to make the necessary modifications in

order to maintain uninterrupted service.

If the trouble is causing harm to the telephone network, the telephone company may request

you to remove the equipment from the network until the problem is resolved.

This equipment uses the following USOC jacks: RJ45C.

It is recommended that the customer install an AC surge arrester in the AC outlet to which this

device is connected. This is to avoid damaging the equipment caused by local lightening

strikes and other electrical surges.

Since this device has the HAC function, the earpiece is easy to absorb small, please take care

to avoid scratching.

If trouble is experienced with this equipment, please contact (Agent in the US):

Company Name: Grandstream Networks, Inc.

Address: 126 Brookline Ave, 3rd Floor Boston, MA 02215, USA

Tel: 1-617-5669300

Fax: 1-617-2491987

U.S. FCC Part 15 Regulatory Information

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause

undesired operation.

Any Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

—Consult the dealer or an experienced radio/TV technician for help.

Canada Regulatory Information

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,

Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject

to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired

operation of the device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux

CNR d’Innovation, Sciences et Développement économique Canada applicables aux

appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions

suivantes :

1) L’appareil ne doit pas produire de brouillage;

2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible d’en compromettre le fonctionnement.

CAN ICES-3 (B)/NMB-3(B)

Altri manuali per GRP2603

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Grandstream Networks Telefono IP

Grandstream Networks

Grandstream Networks GRP2601 Manuale utente

Grandstream Networks

Grandstream Networks GXP2160 Manuale utente

Grandstream Networks

Grandstream Networks GXV-3000 Manuale utente

Grandstream Networks

Grandstream Networks GXV-3000 Guida all'installazione

Grandstream Networks

Grandstream Networks GXV3175 Manuale utente

Grandstream Networks

Grandstream Networks GXP1610 Manuale di istruzioni

Grandstream Networks

Grandstream Networks GXV-3140 Manuale utente

Grandstream Networks

Grandstream Networks 100 Sereis Manuale utente

Grandstream Networks

Grandstream Networks GDS3710 Manuale utente

Grandstream Networks

Grandstream Networks GXP-1400 Manuale utente

Grandstream Networks

Grandstream Networks GDS3710 Manuale utente

Grandstream Networks

Grandstream Networks GXP2130 Series Manuale di istruzioni

Grandstream Networks

Grandstream Networks GXP1630 Manuale utente

Grandstream Networks

Grandstream Networks GXP2170 Manuale utente

Grandstream Networks

Grandstream Networks GXP1610 Manuale utente

Grandstream Networks

Grandstream Networks GXP2140 Manuale di istruzioni

Grandstream Networks

Grandstream Networks UCM6 series Manuale utente

Grandstream Networks

Grandstream Networks GXV3240 Manuale utente

Grandstream Networks

Grandstream Networks GXV317X Manuale utente

Grandstream Networks

Grandstream Networks GXP1760 Manuale di istruzioni

Grandstream Networks

Grandstream Networks Grandstream GXP-2010 Manuale utente

Grandstream Networks

Grandstream Networks GXP2130 Series Manuale di istruzioni

Grandstream Networks

Grandstream Networks GXP1610 Manuale utente

Grandstream Networks

Grandstream Networks GXP2130 Series Manuale utente

Manuali Telefono IP popolari di altre marche

Alcatel

Alcatel 4028 Manuale utente

Polycom

Polycom Polycom VVX 600 Manuale utente

Polycom

Polycom SoundPoint IP 450 Manuale utente

Cisco

Cisco SPA-500 Series Manuale utente

Polycom

Polycom SoundPoint IP 650 Manuale utente

Proximus

Proximus Maestro 3016 IP Manuale utente

Fanvil

Fanvil X4 Manuale utente

Cisco

Cisco 7962 Manuale utente

Snom

Snom 320 Manuale utente

Yealink

Yealink Yealink SIP-T46G Manuale utente

Avaya

Avaya 4625SW Manuale utente

Yealink

Yealink SIP-T52S Manuale utente

Nortel

Nortel 1140E Manuale utente

Nexotek

Nexotek NT-P500 Manuale utente

Avaya

Avaya Integral 5 R3.0 Manuale utente

GE 28320EE2 - Dect 6.0 InfoLink 2 Manuale utente

Avaya

Avaya 4600 Series Manuale di servizio

Mitel

Mitel MIVOICE OFFICE 400 6940 SIP Manuale utente
