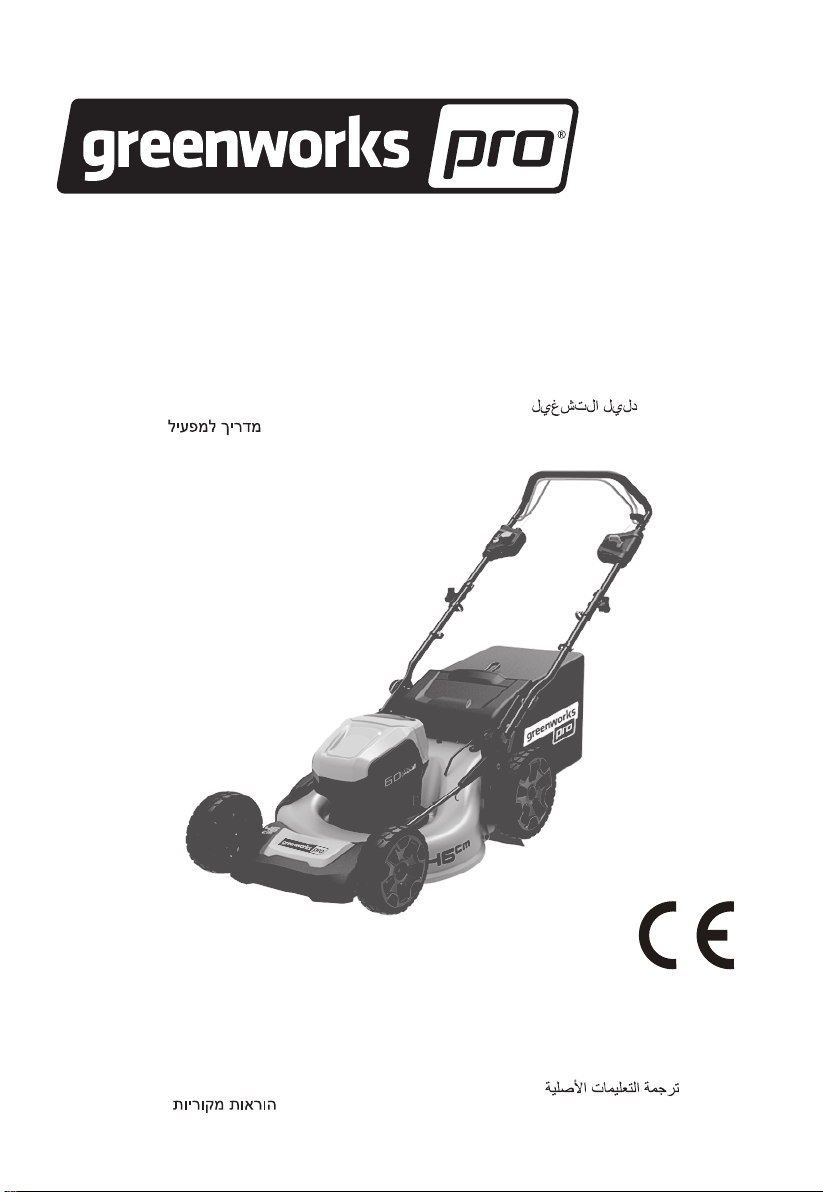

GreenWorks Pro LMC410 Manuale utente

LMC410

GD60LM46SP

OPERATOR MANUAL / BEDIENUNGSHANDBUCH / MANUAL DEL OPERARIO /

MANUALE DELL’OPERATORE / MANUEL OPÉRATEUR / MANUAL DE UTILIZAÇÃO /

GEBRUIKSAANWIJZING / РУКОВОДСТВО ОПЕРАТОРА / KÄYTTÖOPAS /

ANVÄNDARHANDBOK / BRUKERVEILEDNING / BRUGSVEJLEDNING / INSTRUKCJA

UŻYTKOWNIKA / NÁVOD K OBSLUZE / NÁVOD NA OBSLUHU / Uporabniški priročnik /

PRIRUČNIK ZA RUKOVANJE / HASZNÁLATI ÚTMUTATÓ / MANUAL DE UTILIZARE /

РЪКОВОДСТВО НА ОПЕРАТОРА / ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ / / KULLANIM

KILAVUZU / / OPERATORIAU VADOVAS / LIETOTĀJA ROKASGRĀMATA /

KASUTUSJUHEND

OriginalInstructions / Übersetzung der Originalanweisungen/ Traduccióndelasinstruccionesoriginales/ Traduzione delleistruzionioriginali/ Traductiondes

instructionsd'origine/ Traduzidoa partir dasinstruçõesoriginais/ Vertalingvande originelegebruiksaanwijzing/ Перевод оригинальных инструкций/

Alkuperäistenohjeidenkäännös/ Översättningavoriginalinstruktionerna/ Produsentensinstruksjoner/ Oversættelseafdeoriginalevejledninger/ Tłumaczenie

oryginalnej instrukcji/ Překladoriginálníhonávodu/ Prekladoriginálnehonávodu/ Prevodoriginalnih navodil/ Prijevod izvornihuputa/ Azeredetiutasítás

fordítása/ Traducerea instrucţiunilororiginale/ Преводнаоригиналните инструкции/ Αυθεντικέςοδηγίες/ / Orijinal

TalimatlarınTercümesi/ / Originaliųinstrukcijųvertimas/ Instrukcijutulkojums nooriģinālvalodas/ Originaalkasutusjuhenditõlge

1 Description.........................................4

1.1 Purpose.............................................................. 4

1.2 Overview........................................................... 4

2 Safety.................................................. 4

3 Installation......................................... 4

3.1 Unpack the machine.......................................... 4

3.2 Unfold the lower handle.................................... 4

3.3 Install the upper handle .....................................4

3.4 Install the grass catcher......................................5

3.5 Install the mulch plug........................................ 5

3.6 Install the side discharge chute..........................5

3.7 Set the blade height............................................5

3.8 Install the battery pack.......................................5

3.9 Remove the battery pack................................... 5

4 Operation........................................... 5

4.1 Start the machine............................................... 5

4.2 Stop the machine............................................... 6

4.3 Operate the self-propel system.......................... 6

4.4 Empty the grass catcher.....................................6

4.5 Operate on slopes...............................................6

4.6 Operation tips.................................................... 6

5 Maintenance.......................................6

5.1 General maintenance......................................... 7

5.2 Lubrication.........................................................7

5.3 Replace the blade...............................................7

5.4 Store the machine.............................................. 7

6 Troubleshooting.................................7

7 Technical data....................................8

8 Warranty............................................8

9 EC Declaration of conformity..........8

English EN

1 DESCRIPTION

1.1 PURPOSE

This machine is used for domestic lawn mowing. The cutting

blade must be approximately parallel to the ground. All four

wheels must touch the ground while you mow.

1.2 OVERVIEW

Figure 1 - 12.

1Handle knob

2Lower handle

3Upper handle

4Knob

5Bolt

6Grass catcher

7Rear discharge door

8Mulch plug

9Side discharge chute

10 Side discharge door

11 Height adjustment lever

12 Battery door

13 Battery pack

14 Safety key

15 Battery release button

16 Start button

17 Bail switch

18 Self-propel lever

19 Speed control button

20 Wrench

21 Mounting screw

22 Blade

23 Wood

24 Hook

25 Door rod

26 Pivot

27 Recesses

28 Mulch plug handle

29 Grass catcher handle

2 SAFETY

WARNING

Make sure that you do/obey all safety instructions.

Refer to Safety Manual.

3 INSTALLATION

WARNING

Do not change or make accessories that are not

recommended by the manufacturer.

WARNING

Do not put in the safety key or the battery pack until you

assemble all the parts.

3.1 UNPACK THE MACHINE

WARNING

Make sure that you correctly assemble the machine before

use.

WARNING

• If the parts are damaged, do not use the machine.

• If you do not have all the parts, do not operate the

machine.

• If the parts are damaged or missing, speak to the service

center.

1. Open the package.

2. Read the documentation in the box.

3. Remove all the unassembled parts from the box.

4. Remove the machine from the box.

5. Discard the box and package in compliance with local

regulations.

3.2 UNFOLD THE LOWER HANDLE

Figure 2.

1. Pull and turn the handle knobs 90°.

2. Unfold the lower handle.

3. Line up the handle knobs in one of the three positions on

the brackets.

4. Turn the handle knobs 90° until they engage the holes in

the brackets.

NOTE

Make sure that the two handle knobs are in the same

position.

WARNING

Do not make damage to the cables when you fold or unfold

the handle.

3.3 INSTALL THE UPPER HANDLE

Figure 3.

1. Align the holes in the upper handle and the lower handle.

English

2. Put the bolts through the holes.

3. Tighten the knobs onto the bolts.

4. Do the same operation on the other side.

3.4 INSTALL THE GRASS CATCHER

Figure 4.

1. Remove the mulch plug.

2. Remove the side discharge chute.

3. Open the rear discharge door and hold it.

4. Hold the the grass catcher by its handle and engage the

hooks on the door rod.

5. Close the rear discharge door.

3.5 INSTALL THE MULCH PLUG

Figure 5.

1. Remove the grass catcher.

2. Open the rear discharge door and hold it.

3. Hold the mulch plug by its handle and fit it in the

discharge chute.

4. Close the rear discharge door.

3.6 INSTALL THE SIDE DISCHARGE

CHUTE

Figure 6

CAUTION

When you use the side discharge chute,

• Do not install the grass catcher.

• Keep the mulch plug installed.

1. Open the side discharge door and hold it.

2. Line up the recesses of the side discharge chute below the

pivot.

3. Close the side discharge door.

3.7 SET THE BLADE HEIGHT

The machine can be set to different blade heights.

Figure 7.

1. Pull the height adjustment lever rearward to increase the

blade height.

2. Pull the height adjustment lever forward to decrease the

blade height.

3.8 INSTALL THE BATTERY PACK

Figure 8.

WARNING

• If the battery pack or charger is damaged, replace the

battery pack or the charger.

• Stop the machine and wait until the engine stops before

you install or remove the battery pack.

• Read, know, and follow the instructions in the battery

and charger manual.

1. Open the battery door.

2. Align the lift ribs on the battery pack with the grooves in

the battery compartment.

3. Push the battery pack into the battery compartment until

the battery pack locks into place.

4. When you hear a click, the battery pack is installed.

5. Close the battery door.

NOTE

The engine starts only when you put in the safety key.

3.9 REMOVE THE BATTERY PACK

Figure 8.

1. Open the battery door.

2. Remove the safety key.

3. Push and hold the battery release button.

4. Remove the battery pack from the machine.

4 OPERATION

WARNING

Wear eye protection during operation.

4.1 START THE MACHINE

Figure 9.

1. Put in the safety key.

2. Push and hold the start button.

3. While you hold the start button, pull the bail switch in the

direction of the handle bar.

4. Release the start button to start the machine.

Soft-Start

This Li-ion machine has a “soft-start” feature.

When you start the machine, it goes to full speed after

approximately 3 seconds.

NOTE

If the machine does not start, remove the battery pack and

examine the mower deck to make sure that:

• no grass catches on the blade.

• the blade can turn freely by hand.

English EN

4.2 STOP THE MACHINE

Figure 9.

1. Release the bail switch to stop the machine.

WARNING

Wait until the blades fully stop before you start the machine

again. Do not quickly turn the machine off and on.

WARNING

Always remove the safety key and battery pack after you

complete the work.

4.3 OPERATE THE SELF-PROPEL

SYSTEM

Figure 9.

NOTE

The machine is built with a thermal protector to stop the

self-propelled motor when overload occurs. It’s a device

calibrated to open the self-propelled motor circuit upon

reaching a certain temperature/current. Re-setting the

protector requires both cool down below the calibration

point and removal of power supply. When the protection

happens, the operator should release the self-propel bail

lever immediately ,then restart the mower after at least 30

minutes.

1. Start the machine.

2. While you hold the bail switch, push the self-propel lever

in the direction of the handle bar.

3. Hold the bail switch and the self-propel lever at the same

time with your right hand.

4. Adjust the speed control button with your left hand.

• Push the speed control button in the direction of the

Cougar Symbol to increase the speed.

• Pull the speed control button in the direction of the

Turtle Symbol to decrease the speed.

5. Release the self-propel lever to close the self-propel

system.

4.4 EMPTY THE GRASS CATCHER

Figure 10.

1. Stop the machine.

2. Remove the safety key.

3. Remove the battery pack.

4. Open the rear discharge door and hold it.

5. Hold the grass catcher by its handle and unhook it from

the door rod.

6. Close the rear discharge door.

7. Empty the grass catcher.

4.5 OPERATE ON SLOPES

WARNING

Do not mow on the slopes with incline more than 15°. If

you are not comfortable, do not mow on a slope.

WARNING

Please keep a low self-propelled speed when you mow on a

slope.

• Do not go up and down on a slope, mow across the face

of the slope. Be careful when you change the direction on

a slope.

• Monitor the holes, ruts, rocks, and other hidden objects

that can cause you to fall. Remove all obstacles such as

rocks and tree limbs.

• Make sure that your footing is stable. If you are out of

balance, release the bail switch immediately.

• Do not mow near drop-offs, ditches, or embankments.

4.6 OPERATION TIPS

• Do not try to override the operation of the start button or

bail switch.

• Do not tilt the machine when you start it.

• Do not put hands or feet near or below the turning parts.

• Keep the discharge chute clean.

• Do not cut wet grass.

• Higher blade height is necessary for new or thick grass.

• Clean the bottom of the mower deck after each use.

Remove grass clippings, leaves, dirt, and other debris.

5 MAINTENANCE

WARNING

Remove the safety key and battery pack from the machine

before maintenance.

WARNING

Keep the motor and battery pack free from grass, leaves or

too much grease.

CAUTION

Use only approved replacement parts.

CAUTION

Do not let brake fluids, gasoline, petroleum-based materials

touch the plastic parts. Chemicals can cause damage to the

plastic, and make the plastic unserviceable.

CAUTION

Do not use strong solvents or detergents on the plastic

housing or components.

English

NOTE

Recommended tightening torque (blade): 33-37 Nm.

5.1 GENERAL MAINTENANCE

• Before each use, examine the machine for damaged,

missing, or loose parts such as screws, nuts, bolts and

caps.

• Tighten correctly all the fasteners and caps.

• Clean the machine with a dry cloth. Do not use water.

5.2 LUBRICATION

Apply sufficient quantity of high grade lubricant to all

bearings. No more bearing lubrication is necessary in usual

operation conditions.

WARNING

Do not lubricate the wheel components. Lubrication can

cause damage to the wheel components during operation.

5.3 REPLACE THE BLADE

Figure 11-12.

WARNING

Use only approved replacement blades.

WARNING

Wear heavy gloves or wind cloth around the blade when

you touch the blade.

1. Stop the machine.

2. Make sure that the blades fully stop.

3. Remove the safety key and battery pack.

4. Turn the machine to its side.

5. Use a piece of wood to prevent the movement of the

blade.

6. Remove the mounting screw with a wrench or socket.

7. Remove the blade.

8. Install the new blade. Make sure that the arrows engage

the holes in the blade.

9. Put in the mounting screw and tighten it.

5.4 STORE THE MACHINE

• Clean the machine before storage.

• Make sure the engine is not hot when you put the

machine into storage.

• Make sure that the machine does not have loose or

damaged parts. If it is necessary, do these steps/

instructions:

• Replace the damaged parts.

• Tighten the bolts.

• Speak to a person of an approved service center.

• Store the machine in a dry area.

• Make sure that children cannot come near the machine.

You must lower the handle before you put the machine into

the storage.

1. Fully loosen the handle knobs on the sides of the handle.

2. Put the upper handle down.

3. Push on each side of the lower handle.

4. Lift the sides of the lower handle around the edges of the

handle mounting brackets. Do not pinch or trap the

cables.

6 TROUBLESHOOTING

Problem Possible cause Solution

The handle is not

in position.

The bolts are not

engaged correctly.

Adjust the height

of the handle and

make sure that the

knobs and bolts

are aligned cor-

rectly.

The machine does

not start.

The battery ca-

pacity is low.

Charge the battery

pack.

The bail switch is

defective.

Replace the bail

switch.

The battery key is

not put in.

Put in the battery

key.

The machine cuts

grass unevenly.

The lawn is rough. Examine the mow-

ing area.

The blade height is

not set correctly.

Move the wheels

to a higher posi-

tion.

The machine does

not mulch correct-

ly.

Wet grass clip-

pings attach to the

deck.

Wait until the

grass dries before

mowing.

The mulch plug is

missing.

Install the mulch

plug.

The machine is

hard to push.

The grass is too

tall, or the blade

height is too low.

Increase the blade

height.

The grass catcher

and the blade

drags in thick

grass.

Empty the grass

clippings from the

grass catcher.

English EN

Problem Possible cause Solution

There is a high vi-

bration in the ma-

chine.

The blade is un-

balanced and

worn.

Replace the blade.

The motor shaft is

bent.

1. Stop the mo-

tor.

2. Remove the

safety key and

battery pack.

3. Disconnect the

power source.

4. Inspect for

damage.

5. Repair the ma-

chine before

you start it

again.

The machine stops

during mowing.

The blade height is

too low.

Increase the blade

height.

The battery pack is

out of power.

Charge the battery

pack.

The grass clip-

pings attach to the

deck or the blade.

Remove the bat-

tery pack and

check the deck.

Operation temper-

ature of the ma-

chine is too high.

Cool the machine.

* If you cannot find the solution to these problems, go to the

service center.

7 TECHNICAL DATA

Voltage 60 V

No load speed 2800 / min

Cut width 460 mm

Cut height 25 - 80 mm

Self-propelled speed 0,7 - 1,35 m/s

Grass catcher capacity 55 L

Weight (without battery

pack)

28 kg

Measured sound pressure

level

LPA= 73 dB(A) , K = 3

dB(A)

Guaranteed sound power lev-

LWA.d= 96 dB(A)

Vibration < 2,5 m/s2 , K = 1,5 m/s2

Battery model 2918307/2918407 and other

BAC series

Charger model 2918507 and other CAC ser-

ies

Double-insulated construc-

tion

IPX IPX4

8 WARRANTY

(The full warranty terms and conditions can be found on

Greenworks webpage)

The Greenworks warranty is 3 years on the product, and 2

years on batteries (consumer/private usage) from the date of

purchase. This warranty covers manufacturing faults. A faulty

product under warranty might be either repaired or replaced.

A unit that has been misused or used in other ways then

described in the owner’s manual might be rejected for

warranty. Normal wear, and wear parts are not considered as

warranty. The original manufacturer warranty is not affected

by any additional warranty offered by a dealer or retailer.

A faulty product must be returned to the point of purchase in

order to claim for warranty, together with the proof of

purchase (receipt).

9 EC DECLARATION OF

CONFORMITY

Name and address of the manufacturer:

Name: GLOBGRO AB

Globe Group Europe

Address: Riggaregatan 53, 211 13 Malmö, Sweden

Name and address of the person authorised to compile the

technical file:

Name: Peter Söderström

Address: Riggaregatan 53, 211 13 Malmö, Sweden

Herewith we declare that the product

Category: Lawn Mower

Model: 2502907(LMC410)

Serial number: See product rating label

Year of Construction: See product rating label

• is in conformity with the relevant provisions of the

Machinery Directive 2006/42/EC.

• is in conformity with the provisions of the following

other EC-Directives:

• 2014/30/EU

• 2000/14/EC & 2005/88/EC

• 2011/65/EU & (EU)2015/863

English

Furthermore, we declare that the following parts, clauses of

harmonised standards have been used:

• EN 60335-1, EN 60335-2-77, EN 62233, EN ISO 3744,

EN 55014-1, EN 55014-2, ISO 11094, IEC 62321-3-1,

IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC

62321-7-1, IEC 62321-7-2. IEC 62321-8

Conformity assessment method to Annex VI Directive

2000/14/EC.

Measured sound power level LWA: 85,5 dB(A)

Guaranteed sound power level LWA.d : 96 dB(A)

Place, date: Malmö,

3.3.2020

Signature: Ted Qu, Quality Director

English EN

1 Beschreibung....................................11

1.1 Verwendungszweck......................................... 11

1.2 Überblick......................................................... 11

2 Sicherheit..........................................11

3 Montage............................................11

3.1 Maschine auspacken........................................ 11

3.2 Unteren Griff ausklappen.................................11

3.3 Oberen Griff montieren .................................. 11

3.4 Grasfangvorrichtung montieren.......................12

3.5 Mulcher montieren.......................................... 12

3.6 Seitenauslaufschacht montieren...................... 12

3.7 Messerhöhe einstellen......................................12

3.8 Akkupack einsetzen.........................................12

3.9 Akkupack entfernen.........................................12

4 Bedienung.........................................12

4.1 Maschine starten..............................................12

4.2 Maschine anhalten........................................... 13

4.3 Bedienung des Selbstfahrersystems.................13

4.4 Grasfangvorrichtung entleeren........................ 13

4.5 Betrieb an Hängen........................................... 13

4.6 Tipps zur Bedienung........................................13

5 Wartung und Instandhaltung.........14

5.1 Allgemeine Wartung........................................14

5.2 Schmierung......................................................14

5.3 Ersetzen Sie das Messer.................................. 14

5.4 Maschine lagern...............................................14

6 Fehlerbehebung...............................15

7 Technische Daten.............................15

8 Garantie........................................... 16

9 EG-Konformitätserklärung........... 16

Deutsch

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali GreenWorks Pro Taglia erba

GreenWorks Pro

GreenWorks Pro MO802524 Manuale utente

GreenWorks Pro

GreenWorks Pro Optimow 50H Manuale utente

GreenWorks Pro

GreenWorks Pro MO80L06 Manuale utente

GreenWorks Pro

GreenWorks Pro ULTRAPOWER MO60L07 Manuale utente

GreenWorks Pro

GreenWorks Pro 2502402 Manuale utente

GreenWorks Pro

GreenWorks Pro 2500402CTBT Manuale utente

GreenWorks Pro

GreenWorks Pro MO60L410 Manuale utente

GreenWorks Pro

GreenWorks Pro 2508002CT Manuale utente

GreenWorks Pro

GreenWorks Pro MO60L00 Manuale utente

GreenWorks Pro

GreenWorks Pro LMB408 Manuale utente

GreenWorks Pro

GreenWorks Pro MO60L05 Manuale utente

GreenWorks Pro

GreenWorks Pro 2510802 Manuale utente

GreenWorks Pro

GreenWorks Pro GLM801600 Manuale utente

GreenWorks Pro

GreenWorks Pro MO60L08 Manuale utente

GreenWorks Pro

GreenWorks Pro RZ42M60 Manuale utente

GreenWorks Pro

GreenWorks Pro MO80L00 Manuale utente

GreenWorks Pro

GreenWorks Pro ULTRAPOWER 60V MO60L01 Manuale utente

GreenWorks Pro

GreenWorks Pro RZ48 Manuale utente

GreenWorks Pro

GreenWorks Pro 60V Pro Series Manuale utente

GreenWorks Pro

GreenWorks Pro CRT426 Manuale utente

GreenWorks Pro

GreenWorks Pro CRZ426 Manuale utente

GreenWorks Pro

GreenWorks Pro CrossoverZ Zero Turn Manuale utente

GreenWorks Pro

GreenWorks Pro CRZ426 Manuale utente

GreenWorks Pro

GreenWorks Pro MO80L410 Manuale utente

Manuali Taglia erba popolari di altre marche

RHINO

RHINO 1958 Manuale utente

Wolf Garten

Wolf Garten Compact plus 40 B Manuale utente

Cub Cadet

Cub Cadet LTX 1045 Manuale utente

Craftsman

Craftsman 917.378461 Manuale utente

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuale utente

Challenge

Challenge CH18V2 Istruzioni operative

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuale utente

DEWEZE

DEWEZE ATM-725 Manuale operativo

Weed Eater

Weed Eater 180083 Manuale utente

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuale utente

Better Outdoor Products

Better Outdoor Products Quick Series Manuale utente

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuale operativo

MTD

MTD 795, 792, 791, 790 Manuale utente

Toro

Toro Groundsmaster 3505-D Manuale utente

Dennis

Dennis FT 610 Manuale utente

AIRFORCE

AIRFORCE F-15 Gen 3 Manuale utente

MTD

MTD 126-220-000 Manuale utente

Toro

Toro 74806 Manuale utente
