Grindmaster B-DGP Manuale utente

Digitally controlled gravity container brewer holds brew temperature to + 1°F throughout

brew cycle. Brew temperature, brew volume, operator defined pre-infusion/pulse brewing,

and low temp/no brew are programmable from the front display.

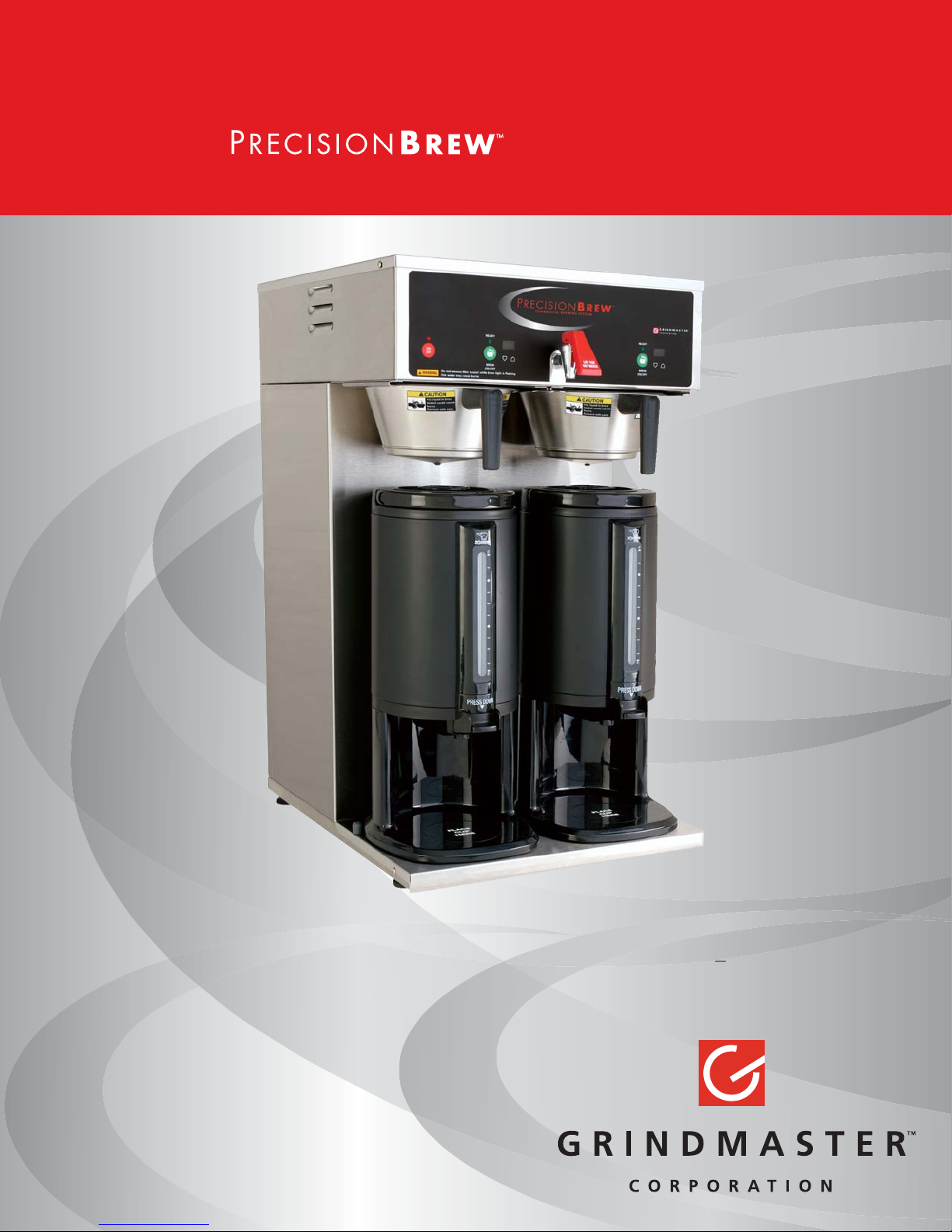

Model B-DGP

Dual Thermal

Gravity Container Brewer

Model B-DGP

(Containers sold separately)

Grindmaster® Coffee Grinders and Brewers • Espressimo® Espresso Machines • Crathco® Hot Beverage Dispensers

Crathco® Cold and Frozen Beverage Dispensers • American Metal Ware® Coffee and Tea Systems

Tel (502) 425-4776 • Fax (502) 425-4664 • 1-800-695-4500 (USA & Canada only)

P.O. Box 35020 • Louisville, KY 40232 • USA

www.grindmaster.com • email: info@grindmaster.com

Features

•Model B-DGP is a twin, digitally controlled brewer. It

brews into 2.5L (85oz.) vacuum insulated gravity

containers (Containers sold separately).

•Vacuum insulated gravity container model GP-2.5 is

portable and holds fresh coffee for hours without

adding heat.

•High productivity - 6,000 watts of heating capacity.

•Precise Brew Temperature - The brewer will hold the brew

temperature to +/- 1°F during the complete brew cycle.

•Brew Volume - Can be set by ‘teach’ mode to eliminate

trial-and-error set-up.

•Pulse brewing/pre-infusion - Allows brew sequence to

extract up to 20% more dissolved solids per batch of

coffee. Programmable: number of pulses, pulse-on time

and pulse-off time. Changing the pulse sequence does

not affect the brew volume.

•Low Temp/No Brew - Allows the brew cycle to begin only

when the water has reached the optimum brew temperature.

•Cycle Counter - The brewer counts the total number of

brew cycles.

•Programming Lock-Out - The brewer settings can be

“locked” to prevent tampering.

•Gourmet Brew basket, (pn 71431) available as an option.

•Warranty - 2 years parts and labor on the brewer. 4 years

part warranty on the control board.

Specification Model B-DGP

Electrical

120/240V, 6000W, 25A

120/208V, 4492W, 21.6A

European voltages available

Brew Capacity

(# of 2.5 liter containers / hour)

@ 240V: 26

@ 208V: 20

Water Line 1/4” Flare

Water Line Pressure 30 to 80 psi

Tank Drain Yes

Tank Size 4.3 Gallons

Dimensions (H x W x D) 29” H x 16-1/4” W x 17-3/4”D (73 cm x 41 cm x 45 cm)

Ship Dimensions (H x W x D) 32” H x 21” W x 24”D (81 cm x 53 cm x 61 cm)

Weight 46 lbs (21 kg)

Ship Weight 55 lbs (25 kg)

Listings UL, CUL, NSF, (CE for E models only)

0905 Form # AM-298-05

PRINTED IN USA

Model B-DGP

Specifications are subject to improvement or change without notice.

0.38 - 0.63"

28.5

17.7

GOURMET

BASKET

16.2

2.7 17.8

BASKET

18.6

STD

18.8

FRONT VIEW SIDE VIEW
