Introduction

The Model G0625 Extension Table extends the

bed length of the Model G0624 10" Benchtop

Lathe to 38" between centers.

Inventory: (Figure 1)

A. Extension Bed ............................................ 1

B. Rubber Feet ............................................... 2

C. Cap Screws M8-1.25 x 35 .......................... 4

D. Flat Washers 8mm ..................................... 4

E. Hex Wrench 6mm ...................................... 1

Installation:

1. Install the feet into the bottom of the exten-

sion table.

2. Align the mounting holes in the extension

table and the tailstock end of the Model

G0624 bed.

3. Thread four cap screws with flat washers

through the extension table and lathe, and

finger tighten.

4. Center the tailstock over the extension table

and lathe as shown in Figure 2.

5. Tighten the cap screws with the hex wrench,

to bring the bed extension and lathe surfaces

even with the bottom of the tailstock.

6. Slide the tailstock over the bed.

—If the tailstock catches on the area where

the lathe and extension table meet, loosen

the fasteners and repeat Steps 3-5 until

the tailstock slides smoothly.

MODEL G0625

BENCHTOP LATHE

EXTENSION TABLE

INSTRUCTION SHEET

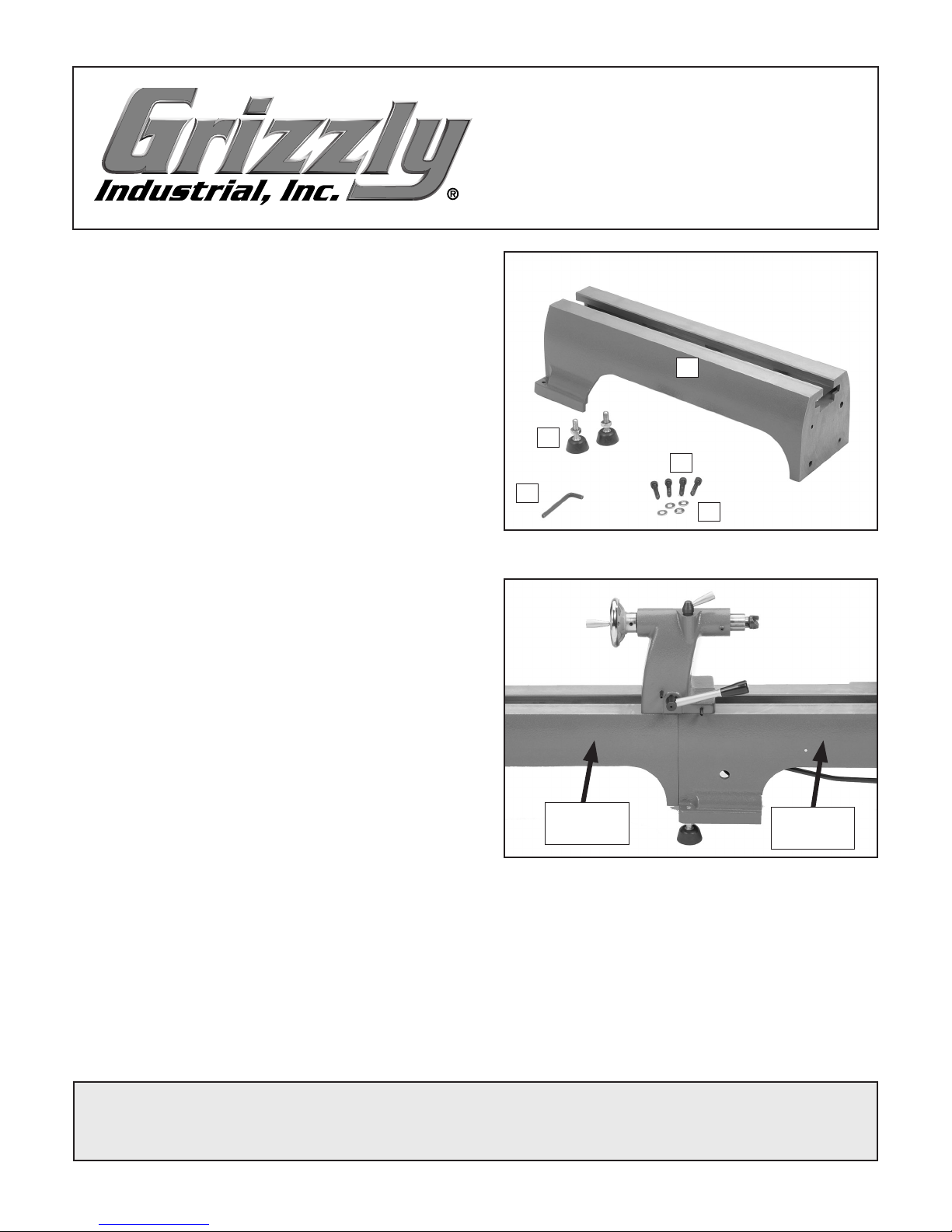

Figure 1. Model G0625 inventory.

Figure 2. Tailstock centered over extension

table and lathe.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#BL8694 PRINTED IN CHINA

Model

G0624

Extension

Table

7. Place a straightedge over the extension table

and lathe beds and check to see if both are

parallel and aligned.













REF PART # DESCRIPTION

1 P0625001 BED EXTENSION

2 P0625002 RUBBER FOOT

3 PN08 HEX NUT 3/8-16

4 PW01M FLAT WASHER 8MM

5 PSB40M CAP SCREW M8-1.25 X 35

6 PAW06M HEX WRENCH 6MM

Refer to the Model G0624 manual for instructions

on operating the lathe.

If you need help with your new extension table,

call our Tech Support at: (570) 546-9663.

— If the extension table tilts down, use a

strip of masking tape along the bottom

edge of the lathe to shim the table up

(Figure 3).

— If the extension table tilts up, use a strip

of masking tape along the top edge of the

lathe to shim the table down (Figure 4).

— If the extension table is skewed to the left

or right, use a vertical strip of masking tape

along the corresponding edge of the lathe

to make the extension table parallel with

the lathe (Figure 5).

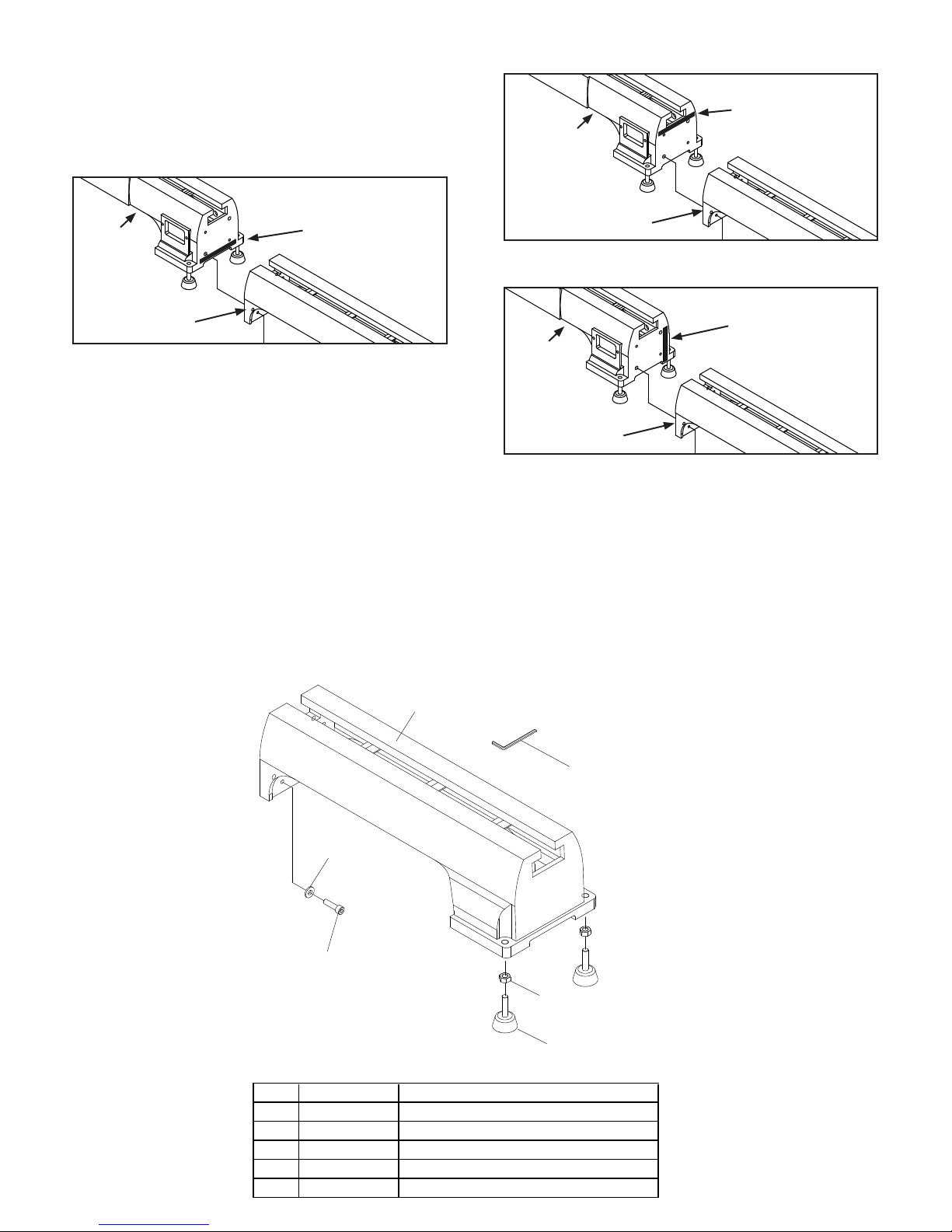

Figure 3. Shimming extension table up.

Figure 4. Shimming table down.

Figure 5. Shimming table to the left.

Masking

Tape

Masking

Tape

Masking

Tape

G0625 Parts Breakdown and List

Lathe

Extension

Table

Lathe

Extension

Table

Lathe

Extension

Table
