Grizzly G9971 Manuale utente
38
39
40
41
101 XPB03 HEX BOLT 5⁄16"-18 X1"
102 XPW07 FLAT WASHER 5⁄16"
103 X167103 SPRING
104 X16732104 BRACKET
105 X1673105 BAR SETTING PLATE
107 X1673107 SPECIAL WASHER
108 X1673108 BODY
109 X1673109 SPECIAL NUT
110 X167310 SPRING
111 X1673111 QUICK-HANDLE LEVER
112 XPRP49M ROLL PIN 5 X 25
113 X1673113 TENSION BOLT
114 X1673114 GUIDE ROD
115 XPR39M EXT RETAINING RING 8MM
116 X1673116 UPPER WHEEL BASE
117 X1673117 UPPER WHEEL SHAFT
118 X1673118 UPPER WHEEL
119 XPR21M INT RETAINER RING 35MM
120 XP6202 BEARING 6202ZZ
122 X1673122 RUBBER TIRE
123 X1673123 SHOPFOX PLAQUE
125 X1673125 UPPER WHEEL GUARD
126 X1673126 HINGE
127 X1673127A SWITCH
127A X1673127B SWITCH PLATE
127B X1673127C SWITCH KEY
128 XPS01 PHLPHD SCREW 10-24 X 1⁄2"
129 X1673129 TRACKING KNOB
REF PART # DESCRIPTION
130 XPN02 HEX NUT 5⁄16"-18
131 XPN06 HEX NUT 1⁄2"-12
132 XPLW07 LOCK WASHER 1⁄2"
133 XPLW02 LOCK WASHER 1⁄4"
134 XPSB17 CAP SCREW 1⁄4"-20 X 3⁄8"
135 XP6204 BEARING 6204ZZ
136 XPK12M KEY 5 X 5 X 30MM
137 X1673137 SHAFT
138 X1673138 DRIVE WHEEL
139 X1673139 LEFT HANDED NUT 3⁄4"-16
140 X1673140 LOWER WHEEL GUARD
141 XPB35 HEX BOLT 3⁄8"-16 X 21⁄2"
142 XPN08 HEX NUT 3⁄8"-16
143 XPB09 HEX BOLT 5⁄16"-18" X 1⁄2"
144 XPLW01 LOCK WASHER 5⁄16"
145 X1673145 PIN 6 X 16
146 X1673146 GUARD LOCKING KNOB
147 X1673147 SPECIAL SCREW
148 X1673148 STRAIN RELIEF
149 X1673149 KNOB
150 XPWRCRD110V 110V LONG POWER CORD
151
XPWRCRDRECP
POWER CORD W/RECP
152
XPWRCRDPLUG
POWER CORD W/PLUG
153 XPLW03 FLAT WASHER
3
⁄
16
"
155 XPB11 HEX BOLT
5
⁄
16
"-18 X 1
1
⁄
2
"
156 X1673156 ADJUSTING SCREW
157 XPN04 HEX NUT
5
⁄
8
"-11
158 X1673158 BEARING HOUSING
REF PART # DESCRIPTION

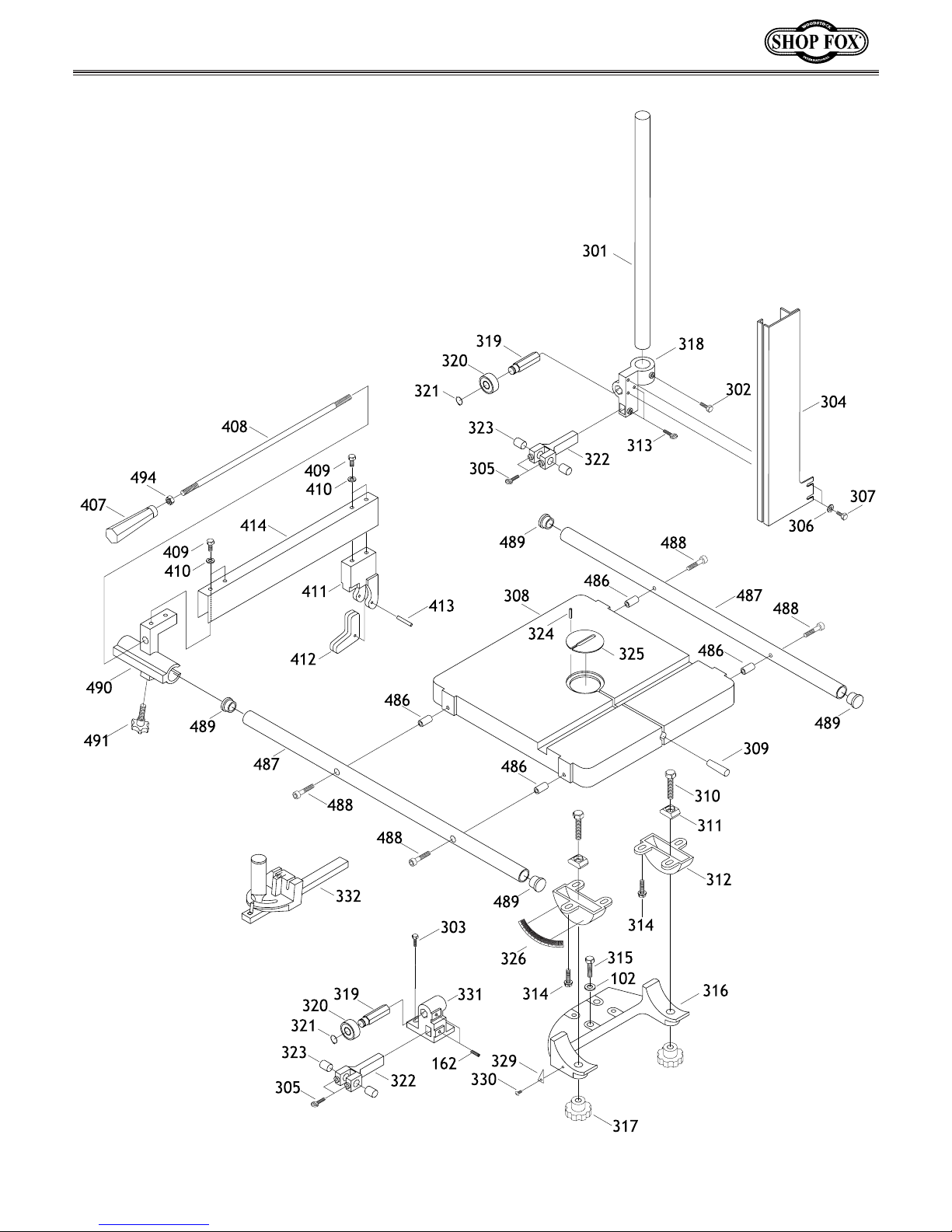

42
315 XPB12 HEX BOLT
5
⁄
16
"-18 X 1
1
⁄
4
"
316 X1673316 TABLE BRACKET
317 X1673317 TABLE LOCKING KNOB
318 X1673318 UPPER BRACKET
319 X1673319 BEARING BRACKET
320 XP6200 BEARING 6200Z
321 XPRO1M RETAINING RING 10MM
322 X1673322 BLADE GUIDE BODY
323 X1673323 GUIDE BLOCK
324 XPRP44M ROLL PIN 3 X 10
325 X1673325 TABLE INSERT
326 X1673326 GAUGE
329 X1673329 INDICATOR
330 XPS18 PHLPHD SCREW 10-24 X
1
⁄
4
"
331 X1673331 LOWER BRACKET
332 X1673332 MITER GAUGE
467 XPCB12 CARRIAGE BOLT 3⁄8"-16 X 3⁄4"
486 X1673486 SLEEVE M6 X 15
487 X1673487 GUIDE RAIL
488 XPSB07M CAP SCREW M6-1 X 30
489 X1673489 GUIDE RAIL CAP
490 X1673490 FENCE HEADSTOCK
491 X1673491 KNOB
494 XPN08 HEX NUT 3⁄8"-16
495 X1673495 DO NOT OPEN COVER LABEL
496 X1673496 W1673 ID/WARNING LABEL
497 X1673497 WEAR SAFETY GLASSES LABEL
498 X1673498 CAUTION ELECTRICITY LABEL
REF PART # DESCRIPTION

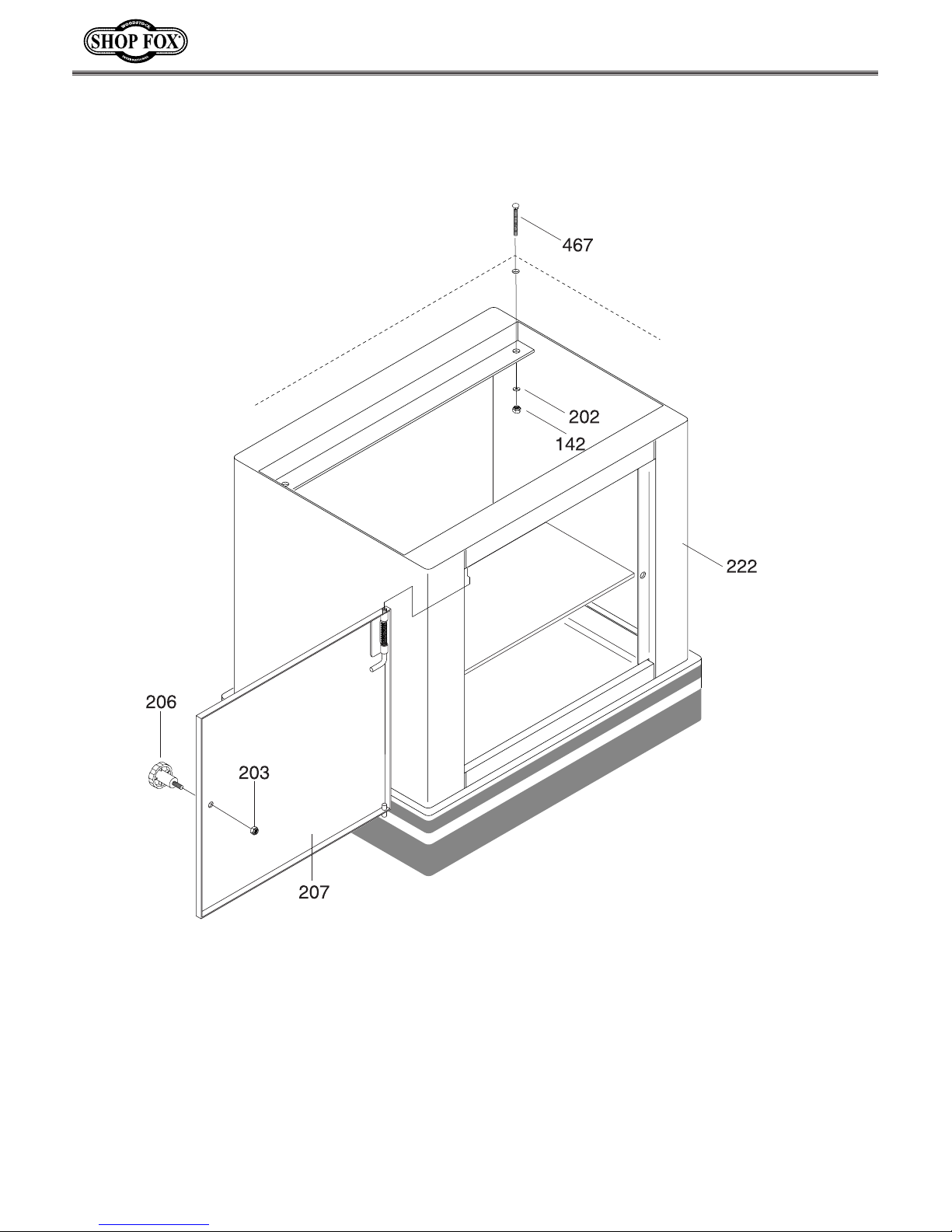

159 X1673159 ADAPTER
162 XPSS11 SETSCREW
1
⁄
4
"-20 X
1
⁄
4
"
163 X1673163 IDLER PULLEY
164 XPVA31 V-BELT A-31
201 XPCB11 CARRIAGE BOLT
5
⁄
16
"-18 X 1"
202
XPW02 FLAT WASHER 3⁄8"
203 XPLN03 LOCK NUT
5
⁄
16
"-18
206 X1673206 KNOB
207 X1673207 GUARD
211 XPK34M KEY 5 X 5 X 20
213 X1673213 MOTOR PULLEY
214 X1673214 MOTOR
215 XPLW01 LOCK WASHER
5
⁄
16
"
222 X1673222 STAND
301 X1673301 GUIDE BAR
302 XPB19 HEX BOLT
1
⁄
4
"-20 X
1
⁄
2
"
303 XPB05 HEX BOLT
1
⁄
4
"-20 X
3
⁄
4
"
304 X1673304 BLADE COVER
305 XPTS002 THUMB SCREW
1
⁄
4
"-20 X
1
⁄
2
"
306 XPW06 FLAT WASHER 1⁄4"
307 XPB51 HEX BOLT
1
⁄
4
"-20 X
3
⁄
8
"
308 X1673308 TABLE
309 X1673309 TABLE PIN
310 XPB66 HEX BOLT
3
⁄
8
"-16 X 2
1
⁄
4
"
311 X1673311 TRUNNION CLAMP
312 X1673312 TRUNNION
313 XPTS006 THUMB SCREW
1
⁄
4
"-20 X
3
⁄
4
"
314 X1673314 CPTD HXSCREW
1
⁄
4
"-20 X
5
⁄
8
"
REF PART # DESCRIPTION
