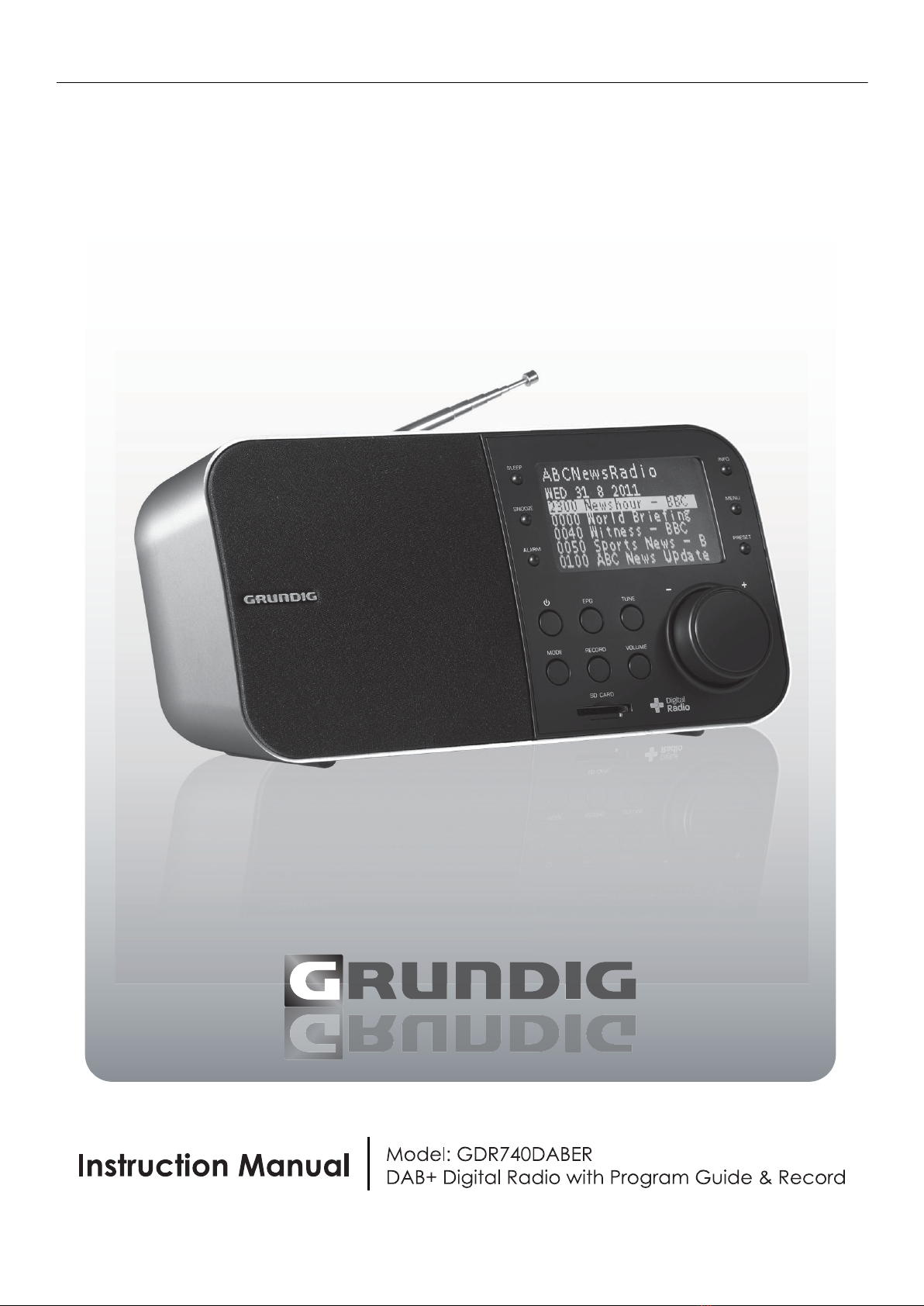

Grundig GDR740DABER Manuale utente

REPLAY Series

Congratulations

Congratulations on purchasing this GRUNDIG product, which is designed to give you many years of trouble-free

service.

You may already be familiar with using a similar unit, but please take time to read these instructions.

Safety is important

Your safety and the safety of others is very important.

Please therefore, ensure you read the “Safety Instructions” before you operate this unit.

Warranty

In the unlikely event that your product fails to work normally, please call the below free phone number to discuss

the problem with one of our qualified service engineers.

Australia

GRUNDIG Warranty: 1800 509 394

New Zealand

GRUNDIG Warranty: 0800 450 259

REPLAY Series

Ensure that you read all of the safety instructions before using this unit.

Safety Considerations

Position the power cable and other connected cables so that they are not likely to be walked on, pinched or where items

can be placed on or against them.

Do not use the unit in humid or damp conditions.

Do not allow the unit to get wet. You must keep it away from dripping or splashing water.

Do not place exposed to direct sunlight or close to heat radiating appliances such as electric heaters.

Never allow children to insert foreign objects into holes or slots on the unit.

Do not cover the ventilation holes with items such as tablecloths, curtains, etc. This may cause the unit to overheat.

Do not place it on top of other stereo equipment that radiates too much heat.

Do not place it a object which constantly vibration.

No naked flame sources, such as candles, should be placed on or near the unit.

Do not place objects filled with liquids, such as vases or jugs, on or near the unit.

Do not place the unit in a closed cabinet without proper ventilation.

Operate turning controls and switches as instructed in the manual.

Before turning on the power for the first time, make sure the power cord is properly installed.

Caution

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to

qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside, refer all

servicing to qualified service personnel.

Cleaning

Disconnect the unit from the mains supply before cleaning.

Do not use any liquids or aerosol cleaners, as this may damage the unit. Use a soft, dust free cloth.

Servicing

There are no user serviceable parts in the unit. When servicing, refer to qualified service person.

Consult your retailer if you are ever in doubt about the installation/operation/safety of the product.

Safety Instructions

REPLAY Series

Safety Instructions …..………………………………………………………………………….……………....………………..…………….……………

Your DAB+ Radio …..………………………………………………………………………….……………....…………………..……….…………….....

What is DAB+……………………………………………………………………..…………….……………...………………..…………….…………….....

Getting Started ………………………………………………………………….……………...………………………………..…………….……………...

Using DAB+ Radio...……………………..………………………………………….……………...………….…..……………..…………….…………….

Presets …………….....……………………..………………………………………….……………...………….…..……………..…………….…………….

Setting Timed Recordings ………………………………………………………………………………………………………………………

Using and Recording from the EPG ………………………………………………………………………………………………..………

Setting a One Touch Recording ………………………………………………………………………………………………………………

Using FM Radio …………………………………………………………………….……………...……………..……………….…………….……………..

Playing AUX IN. ………………………………………………………….……………...………………………………..…………….……………………….

SD Card Playback …………………………………………………………………….……………...……………..……………….………………………..

System Settings………………………………………………………………….……………...………………..………………..………..…..................

Troubleshooting and Technical Specification……………………………….……………...…………………………………..……………..

Warranty…………………………………………………………………….……………...……………………………………..…………….……………........

Contents

REPLAY Series

Front

Back

No.

Button & sockets

Descriptions

STANDBY Button

Press to turn On/Off Radio

MODE Button

Press to switch between modes (DAB+/FM/Aux In/SD Card)

RECORD Button

Press to record and set recordings (in DAB+ and FM mode only)

SD CARD slot

Input SD Card in order to record to this device

EPG Button

The Electronic Program Guide (EPG) provides start/finish times and program

information similar to that provided for digital TV broadcasts. Please note that it is

not currently broadcast on all stations.

VOLUME Button

Press to activate volume function using the select dial.

TUNE Button

DAB+ Mode: Press to modify stations using the select dial

FM Mode: Press to adjust frequency using the select dial

SELECT Dial

Turn it to adjust the volume level.

During system setting, turn it to browse options.

Press the dial to confirm options from the menu.

While a track from SD is playing, press and hold to fast forward or rewind.

PRESET Button

In DAB+ and FM Mode press to activate preset functions

MENU Button

Press to access the Main Menu or select other menus

INFO Button

In DAB+ and FM Mode press to browse station information

LCD Display

High resolution dot matrix display

SLEEP Button

Press to set the sleep timer

SNOOZE Button

When the alarm is sounding, press to postpone for 9 minutes

ALARM Button

Press to set alarm 1, press again to set alarm 2

DC Socket

Connect to DC adapter

AUX IN Socket

This socket allows your radio to be used as an external amplifier for MP3 players,

compact disc players and similar devices.

Headphone Socket

Connect to Headphone

R/F Audio socket

Connect to R/F audio cord

Your DAB+ Radio

REPLAY Series

Antenna

Position Antenna for better signal of DAB+/FM programs of your radio

DAB+ was developed in Europe by a consortium of broadcasters and manufacturers. DAB+ uses digital compression

techniques to transform the source material, i.e. music and speech, into better quality audio.

Interference Free Reception

Analogue systems suffer from an effect called “multipath distortion”. This is because waves do not behave in an

orderly fashion, but bounce and reflect off buildings etc. DAB+ sees this as an advantage and uses the directed and

reflected signals to reinforce the end result, allowing for better service more of the time.

No Need to Re-tune

A single DAB+ frequency can be used to cover the whole of the Australia, so solving many problems experienced

with the earlier analogue system. DAB+ scans automatically and tunes-in all of the available stations in your area.

Scrolling Text

Broadcasters can transmit text to your radio. This way you can read the name of the DJ, artist, song title or any other

information they choose.

DAB+ Coverage

Check your local coverage at www.digitalradioplus.com.au via the online postcode checker, or alternatively text your

postcode to 0409-DRPLUS to receive an SMS confirming whether you reside in a DAB+ broadcast area.

What is DAB+

REPLAY Series

Carefully remove your DAB+ Receiver from the box. You may wish to keep the packaging for future use.

In the Box

Inside the box you will find:

DAB+ Radio (Main Unit)

Power Adapter

User Guide

Positioning your DAB+ Radio

Place your DAB+ Receiver on a flat / stable surface. Make sure it is not subject to vibrations/movement.

Avoid the following locations:

Where it will be close to heat radiating sources.

Where the humidity will be high and/or the ventilation will be poor.

Where it will be dusty.

Where it will be damp or a possibility of water dripping or splashing onto the unit.

Adjusting the Antenna

The antenna should be extended to ensure good reception in both DAB+ and FM radio modes. It may be necessary

to alter the position of the DAB+ Radio and /or antenna to achieve the best signal.

Using Headphones

To listen to your DAB+ Radio via Headphones, you will require headphones with a 3.5 mm diameter stereo plug (not

included). The Headphone Socket is located on the back of the unit. Plug the Headphone Jack into the Headphone

socket, the speaker sound will automatically turn off once the headphone is plugged in.

Getting Started

REPLAY Series

Turning the Unit On

1. Connect the Power Adaptor to the DC socket on the back of the unit. Then insert the Power Adaptor into the

desired wall outlet.

2. Press the Button to turn on the unit, and then carefully extend antenna.

Note: you may want turn off the unit, it simply needs you press the Button again.

3. When you turn on your DAB+ Radio for the first time it will conduct a full station scan and stored all the DAB+

available Radio Stations.

4. The full scan may take 1-2 minutes to complete and store all stations it detected.

Note: a. The DAB+ stations will be displayed in alphanumeric order. The first station in the list will be played after scan.

b. If no DAB+ signal is found in your area, it may be necessary for you to relocate your radio.

Displaying Signal Strength

1. Press the INFO Button during a DAB+ program available, the LCD screen will display a signal bar to show the

signal strength of this program.

The indicator on the signal bar shows the minimum acceptable

signal level.

Note: Stations with signal strength below the minimum signal level

will not provide a steady stream of audio.

Using DAB+ Radio

REPLAY Series

DAB+ Menu Options

Using DAB+ Radio

REPLAY Series

Browsing Station Information

Whilst listening to your desired DAB+ Radio program, you can browse the

station information by pressing the INFO Button repeatedly. Please refer to the

flow chart for direction.

Dynamic Label Segment (DLS):

DLS is the scrolling text information supplied by the DAB+ station or by the

broadcaster.

Program Type (PTY):

This is a description of the type of program provided by the DAB+ station or by

broadcaster.

Multiplex Name:

This will show the multiplex that is broadcasting the program you are listening

to.

Frequency:

This is the transmission frequency of the station you are listening to.

Signal Information:

Shows the digital bit rate and the signal mode.

Signal Strength:

Shows a signal bar with the strength of the current station you are listening to.

Time and Date:

This displays time and date which are provided by the broadcaster.

Using DAB+ Radio
