Grundig Sonoclock 890 WEB Manuale utente

ELECTRONIC

INTERNET

KITCHEN RADIO

Sonoclock 890 WEB

CONTENTS------------------------------------------------------------------------------------------------

4 SONOCLOCK 890 WEB

4 Special features

4 Packing contents

4 CE declaration

5 SET-UP AND SAFETY

6 Environmental Note

7 OVERVIEW

7 Controls

10 The remote control

12 CONNECTION AND PREPARATION

12 Connecting the power cord

12 Connecting an MP3 player or a USB memory stick

12 Connecting an external device

13 Connecting the headphones

13 Inserting batteries in the remote control

14 LAN connection to the Internet

15 WLAN connection to the Internet

16 Mounting the device

16 Mounting the device under a kitchen shelf

17 SETTINGS

17 Menu navigation

17 Selecting the menu language

17 Setting the time and date

19 Registering the device with the WLAN router

21 Settings for the music archive mode with a computer

22 Searching for and saving DAB stations

24 Setting Dynamic Range Control (DRC) for DAB stations

25 Searching for and saving FM stations

26 Restoring the default settings (reset)

27 GENERAL FUNCTIONS

27 Switching on and oﬀ

27 Adjusting the volume

27 Setting the display contrast

28 Listening with headphones or earphones

28 Displaying information

29 INTERNET OPERATION

29 Selecting the Internet radio input source

29 Navigating in the Internet menu

30 Selecting Internet radio stations according to search criteria

32 Saving Internet radio stations to presets

32 Opening preset Internet stations

33 Selecting Internet radio stations for the favourites list

33 Selecting manually added Internet radio stations

33 Opening the most recently selected Internet stations

34 Selecting podcasts

34 Displaying Internet station information

CONTENTS------------------------------------------------------------------------------------------------

ENGLISH

35 MUSIC ARCHIVE

35 Audio streaming ...

35 Selecting the music archive input source

36 Navigating the music archive menu

36 Playback functions

37 DAB OPERATION

37 Selecting the DAB input source

37 Selecting DAB radio stations

37 Selecting stored DAB stations

38 Displaying DAB station information

39 FM MODE

39 Selecting the FM input source

39 Selecting stored FM stations

39 Stereo and mono reception

40 Displaying RDS station information

41 TIMER MODE

41 Switch-on timer

43 Sleep timer

44 Reminder timer

45 SPECIAL SETTINGS

45 Registering on the GRUNDIG homepage

45 Creating lists of favourites

48 Searching for radio stations that are not provided by V-Tuner

49 Calling information

50 Registering the device with the WLAN router with individual settings in

the network

53 INFORMATION

53 Technical data

54 Troubleshooting

56 Licence conditions

56 “Real enabled” licence conditions for end users

57 Glossary

SONOCLOCK 890 WEB ------------------------------------------------

Special features

Your device provides you with access to numerous internet radio

stations via a router. You can connect the device to the internet using

a LAN cable or WLAN.

For Internet operation a DSL connection and DSL ﬂat rate are rec-

ommended.

Music titles archived on a PC or hard drive (NAS – Network Attached

Storage) can be played on the device using a UPnP server or enabled

folders via LAN or WLAN (audio streaming).

The MP3 and WMA music data formats can also be played back

via the USB input using a USB memory stick or an MP3 player. This

function is optional, and is enabled through a software update.

Use the Aux input to connect any other audio sources.

As well as internet radio stations, the device can receive DAB and

RM radio stations.

Packing contents

Sonoclock 890 WEB

Remote control

1 lithium battery 3 V CR 2025

Operating manual

Device holder

CE declaration

You can ﬁnd the CE declaration for Sonoclock 890 WEB in the form

of a pdf ﬁle on the enclosed CD-ROM.

ENGLISH

Please note the following instructions when setting up the system:

This device is designed for the playback of audio signals. Any other

use is expressly prohibited.

If you want to set up the device on wall shelves or in cupboards,

please ensure that the device is adequately ventilated. There must

be at least 10 cm space at the side and at the back of the device.

Do not cover the device with newspapers, table cloths, curtains, etc.

When setting up the device, remember that furniture is often coated

with various types of varnish and plastic, which often contain

chemical additives These additives may cause corrosion to the feet

of the unit. This may leave stains on the surface of the furniture which

can be diﬃcult or impossible to remove.

If the device is exposed to sudden changes in temperature, for

example when taken from the cold into a warm room, wait at least

two hours before using it.

The device is designed for use in dry rooms. If you do use it outdoors,

make sure it is protected from moisture such as dripping or splashing

water.

Only use the device in a moderate climate.

Do not place the device close to heating units or in direct sunlight, as

this will impair cooling.

Do not place any vessels containing liquids (for example, vases) on

the device. Do not place any naked ﬂames such as candles on the

device.

Do not use any cleaning agents as they may damage the housing.

Clean the device with a clean dry cloth.

Never open the appliance under any circumstances. Warranty

claims are excluded for damage resulting from improper handling.

SET-UP AND SAFETY ------------------------------------------------------------

Thunderstorms are a danger to all electrical devices. Even if the de-

vice is switched oﬀ, it can be damaged by a lightning strike to the

mains. Always remove the mains adapter during a thunderstorm.

If malfunctions occur due to static electricity charges or brief mains

voltage surges, reset the device. To do this, pull out the the power

plug and connect it again after a few seconds.

Make sure the power plug is freely accessible.

Environmental Note

This product is manufactured from high-quality parts and materials

which can be reused and recycled.

Therefore, do not dispose of the product along with normal house-

hold waste at the end of its service life. Take it to a collection point

for the recycling of electrical and electronic devices. The symbol on

the product, in the operating manual or on the packaging indicates

recyclability.

Please ﬁnd out about collection points operated by your local

authority.

Help protect the environment by recycling used products.

ENGLISH

OVERVIEW ----------------------------------------------------------------------------------------------

Controls

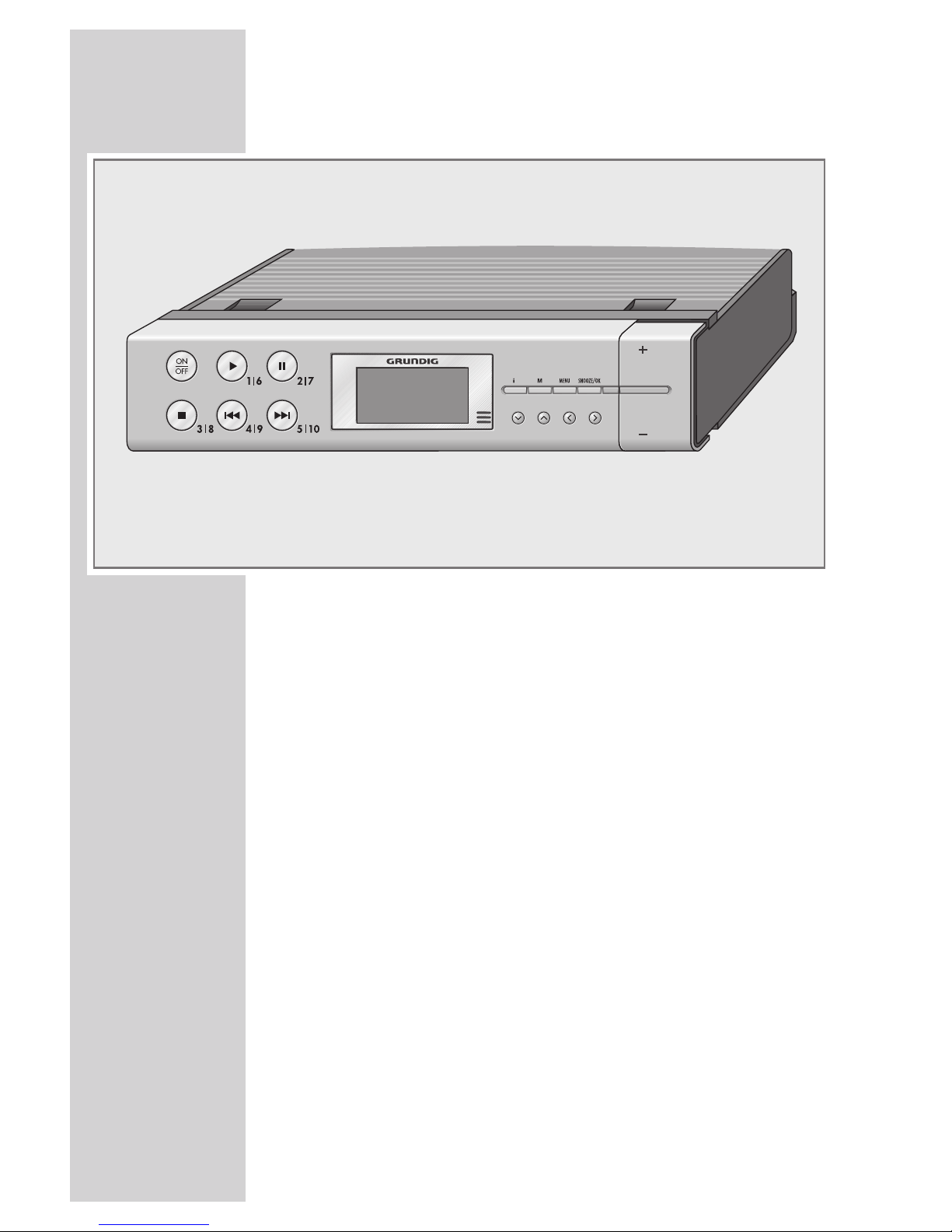

The front of the device

ON/OFF Switches the device in and out of standby

mode.

e 1I6In radio mode: station button 1/6.

In music archive mode: starts playback of a

track.

II 2I7In radio mode: station button 2/7.

In music archive mode: pauses playback.

73I8In radio mode: station button 3/8.

In music archive mode: ends playback.

84I9In radio mode: station button 4/9.

In music archive mode: selects the previous

track.

95I10 In radio mode: station button 5/10.

In music archive mode: selects the next track.

OVERVIEW ----------------------------------------------------------------------------------------------

iDisplays information about the Internet,

DAB and FM radio stations.

Conﬁrms the default settings are restored.

MSwitches between the Internet radio, music

archive, DAB, FM and Aux input sources.

MENU Opens the menu.

SNOOZE/OK In the menu: selects and conﬁrms options.

In alarm mode: interrupts the alarm signal.

+ –Adjust the volume.

&In the menus: moves cursor up.

In radio mode: starts the FM search.

%In the menus: moves cursor down.

Selects options and menu pages in reverse.

Selects options and menu pages forwards.

In radio mode: starts the FM search.

ENGLISH

OVERVIEW ----------------------------------------------------------------------------------------------

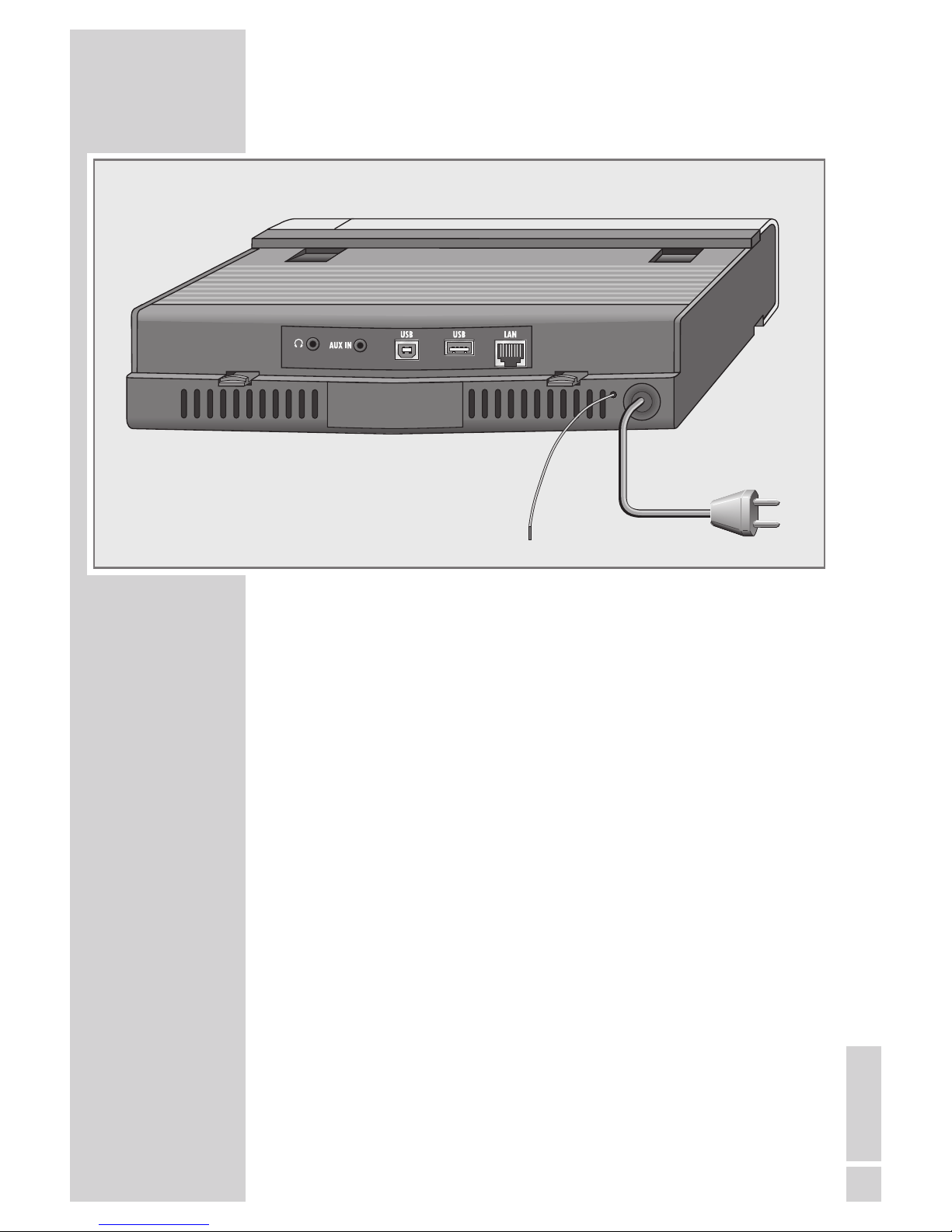

The back of the device

U Headphone jack for connecting a stereo

headphone set with a jack plug (3.5 mm).

The loudspeaker of the device is automatically

switched oﬀ.

AUX IN Audio signal input (stereo/mono) for con-

necting an external device.

USB USB port type B. Only for software

upgrades.

USB USB port type A. For connecting a USB

memory stick or an MP3 player (optional).

LAN Socket for connecting to the Ethernet net-

work via LAN cable.

~Wire antenna for DAB and FM reception.

Power cord.

The only way to disconnect the device com-

pletely from the mains is to pull out the plug.

OVERVIEW ----------------------------------------------------------------------------------------------

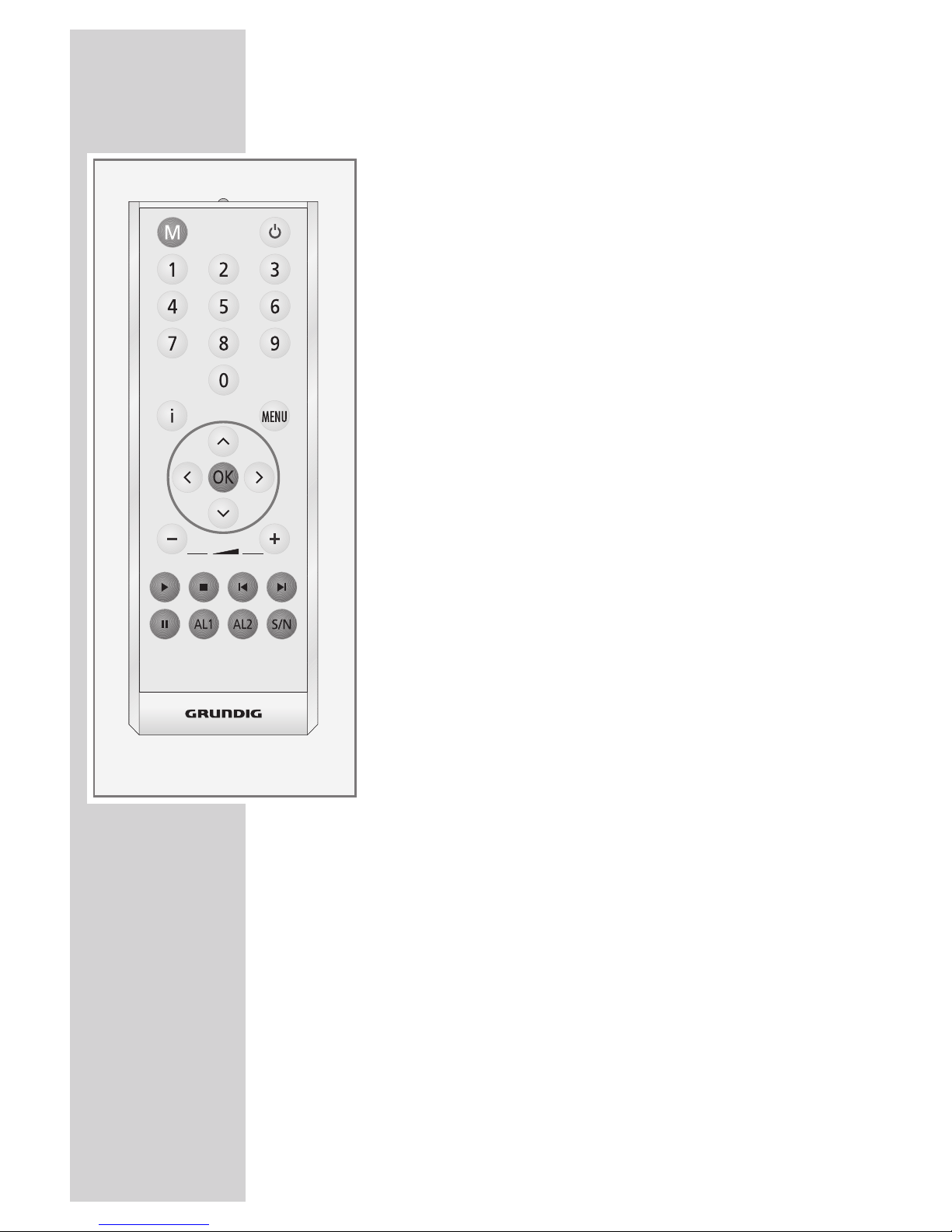

The remote control

8Switches the device to standby mode and from

standby mode to the last input source selected.

MSwitches between the Internet radio, music

archive, DAB, FM and Aux input sources.

1 ... 0 Number buttons for various inputs.

In radio mode: Selects Internet, DAB and FM

stations stored on preset channels 1 to 10.

iDisplays information about the Internet, DAB and

FM radio stations and about the music archive.

Conﬁrms the restoring of the default settings.

MENU Switches between the Internet radio, music

archive, DAB, FM and Aux input sources.

In the menus: moves cursor up.

In radio mode: starts the FM search.

In the menus: moves cursor down.

In radio mode: starts the FM search.

Selects options and menu pages in reverse.

Selects options and menu pages forwards.

OK In the menus: selects and conﬁrms options.

Interrupts the alarm signal.

–

+Adjusts the volume.

e In music archive mode: starts playback of a

track.

7In music archive mode: ends playback.
