Grundig WR 5408 PLL Manuale utente

WORLD

RECEIVER

Yacht Boy 80

WR 5408 PLL

___________________________________________________________________

3 Sicherheit, Informationen 13 Betrieb

4 Auf einen Blick 20 Informationen

8 Stromversorgung 201 Service

9 Einstellungen

21 Safety, Information 31 Operation

22 Overview 38 Information

26 Power supply 201 Service

27 Settings

39 Sécurité, informations 49 Utilisation

40 Vue d’ensemble 56 Informations

44 Alimentation électrique 201 Service

45 Réglages

57 Sicurezza, informazioni 67 Funzionamento

58 In breve 74 Informazioni

62 Alimentazione elettrica 201 Service

63 Impostazioni

75 Segurança, Informações 85 Funcionamento

76 Vista geral 92 Informações

80 Alimentação de corrente 201 Service

81 Regulações

93 Seguridad, información 103 Funcionamiento

94 Vista general 110 Información

98 Alimentación eléctrica 201 Service

99 Ajustes

111 Veiligheid, informatie 121 Gebruik

112 In een oogopslag 128 Informatie

116 Stroomtoevoer 201 Service

117 Instellingen

129 Bezpieczeństwo, informacje 139 Obsługa

130 Przegląd funkcji 146 Informacje

134 Zasilanie 201 Service

135 Programowanie

147 Sikkerhed, informationer 157 Funktion

148 Kort oversigt 164 Informationer

152 Strømforsyning 201 Service

153 Indstillinger

165 Säkerhet, information 175 Användning

166 En överblick 182 Information

170 Strömförsörjning 201 Service

171 Inställningar

183 Turvallisuus/tietoja 193 Asetukset

184 Yleiskatsaus 200 Tietoja

188 Virransyöttö 201 Service

189 Säädöt

DEUTSCH

ENGLISH

FRANÇAIS

ITALIANO

PORTUGUÊS

ESPAÑOL

NEDERLANDS

POLSKI

DANSK

SVENSKA

SUOMI

ENGLISH

Safety

To ensure that this device provides you with long-term satisfaction and

enjoyment, please observe the following instructions.

This device is designed for the playback of audio signals.

Any other use is expressly prohibited.

Protect the device from moisture (water drops or splashes). Do not place any

vessels such as vases on the device. These may be knocked over and spill

fluid on the electrical components, thus presenting a safety risk. Do not

place any objects such as burning candles on the device.

When deciding where to place the device, please note that furniture surfaces

are covered by various types of varnish and plastic, most of which contain

chemical additives. These additives can corrode the device supports,

leaving residues on the furniture surfaces which can be difficult or impossible

to remove.

Do not use any cleaning agent, as this may damage the casing. Clean the

device with a clean, moist leather cloth.

Never open the device casing. Warranty claims are excluded for damage

resulting from improper handling.

The type plate is located on the bottom of the device.

Attention

Continuous use of earphones at high volume can damage the user’s hea-

ring.

Environmental note

As little material as possible was used in the packaging of your device.

It consists of two separate materials: cardboard (box) and polyethylene

(bag). Please observe the local regulations for disposing of the packing

material.

Scope of delivery

1Yacht Boy 80

2Earphones

3External SW antenna

4Leather bag

5Operating manual

Note:

If the radio is fastened to the leather bag, you can use the bag to stand

it. Undo the bag at the front and fold it back. Then stand the radio at an

angle.

SAFETY, INFORMATION _____________________

ENGLISH

! SERVICE !! SERVICE !

RVIC! SERVICE !! SERVICE !

RVIC

ǵYacht Boy 80

LIGHT TUNE/ SSB

MODE

SWPAGE

CLOCK1/2

MEMO

AM/PM

SWSELECT

ON/OFF

SLEEP

DISPLAY

ALARM

LOCK

BAND

321

654

987

TUNING

FINE

•

M.DEL M.SCAN FREQ./ CLOCK

! SERVICE !! SERVICE !

! SERVICE !

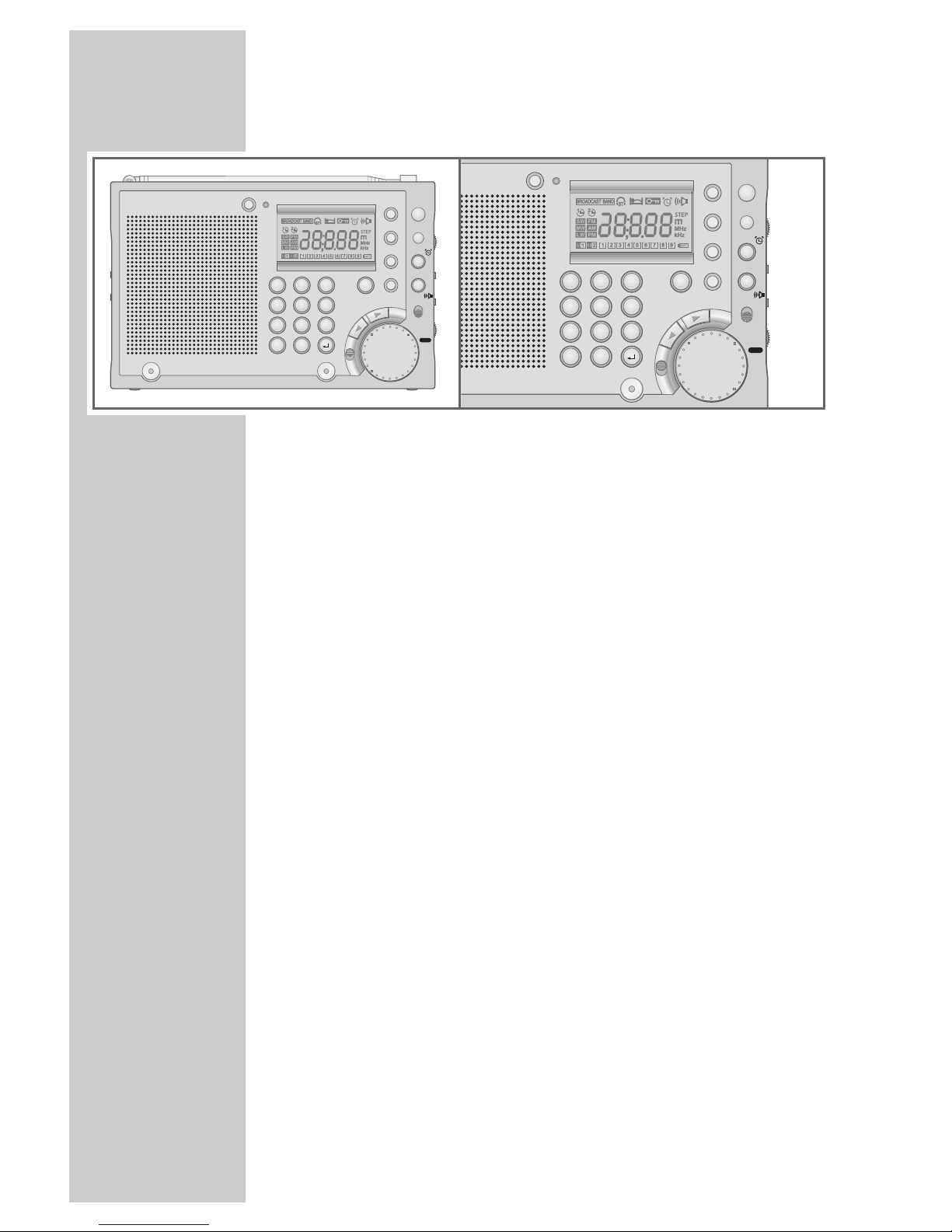

Controls

OVERVIEW ___________________________________________

Front

ON/OFF Switches the device on and off.

SLEEP For setting the sleep timer.

DISPLAY Switches the display between the frequency and time while

the radio is on.

ALARM Selects the signal tone alarm.

ALARM Selects the radio alarm.

LOCK Disables and enables the buttons.

TUNING Control dial for fine tuning to radio stations.

FINE

TUNING Disables and enables the »TUNING FINE« dial.

LOCK

ľı For setting the time.

Press briefly to change the frequency in steps.

Hold down to change the frequency quickly up or down.

MODE For setting various function modes, such as 12 or 24 hour

clock format.

SW PAGE Switches between the first and second memory levels in

CLOCK 1/2 short wave. Switches the clock between local time 1 and

local time 2, for example summer and winter time.

MEMO Activates the memory function and stores settings.

AM/PM Switches between AM and PM in 12-hour clock format.

SW SELECT Selects short wave frequency bands.

BAND Switches between the FM (VHF), SW (short wave),

MW (medium wave) and LW (long wave) frequency

bands.

ǵYacht Boy 80

LIGHT TUNE / SSB

MODE

SW PAGE

CLOCK 1/2

MEMO

AM/PM

SW SELECT

ON/OFF

SLEEP

DISPLAY

ALARM

LOCK

BAND

321

654

987

TUNING

FINE

•

M. DEL M. SCAN FREQ. / CLOCK

ht Boy 80

LIGHT TUNE / SSB

MODE

SW PAGE

CLOCK 1/2

MEMO

AM/PM

SW SELECT

ON/OFF

SLEEP

DISPLAY

ALARM

LOCK

BAND

321

654

987

TUNING

FINE

•

M. DEL M. SCAN FREQ. / CLOCK

ENGLISH

1 ... 9 Numerical buttons for various entries.

Select stored radio stations.

C M. DEL Deletes incorrect entries and preset stations. Switches off

the alarm.

0 M. SCAN Numerical button for various entries. Selects stored radio

stations in sequence (memory scan).

Activates frequency and time settings.

FREQ./CLOCK

LIGHT Switches on the back light of the display.

TUNE/SSB LED lights up green when tuning to radio stations. Lights

•up red when searching for an SSB (Single Side Band) station

on short wave. Lights up orange when receiving an SSB

station.

Right side of device

SSB FINE For fine-tuning SSB stations on short wave.

TUNING

SSB ON/OFF Switches the SSB function on and off.

TONE For setting the tone.

LOW HIGH

VOLUME |Adjusts the volume.

Left side of device

SW EXT. Connection socket for an external SW antenna.

ANT.

DX./LO. Switches between short-range and long-range reception.

STEREO/ Switches between stereo and mono reception.

MONO

OVERVIEW ____________________________________

ht Boy 80

LIGHT TUNE / SSB

MODE

SW PAGE

CLOCK 1/2

MEMO

AM/PM

SW SELECT

ON/OFF

SLEEP

DISPLAY

ALARM

LOCK

BAND

321

654

987

TUNING

FINE

•

M. DEL M. SCAN FREQ. / CLOCK

SSB

OFF ON

TONE

LOW HIGH

VOLUME

SSB

FINE TUNING

STEREO/MONODX. / LQ.SW EXT. ANT. DC 6V

OVERVIEW ____________________________________

0Earphone socket (3.5 mm stereo socket).

Automatically switches off the loudspeaker.

DC 6 V Connection socket for mains adapter (not supplied), input

Óvoltage 6 V (200 mA).

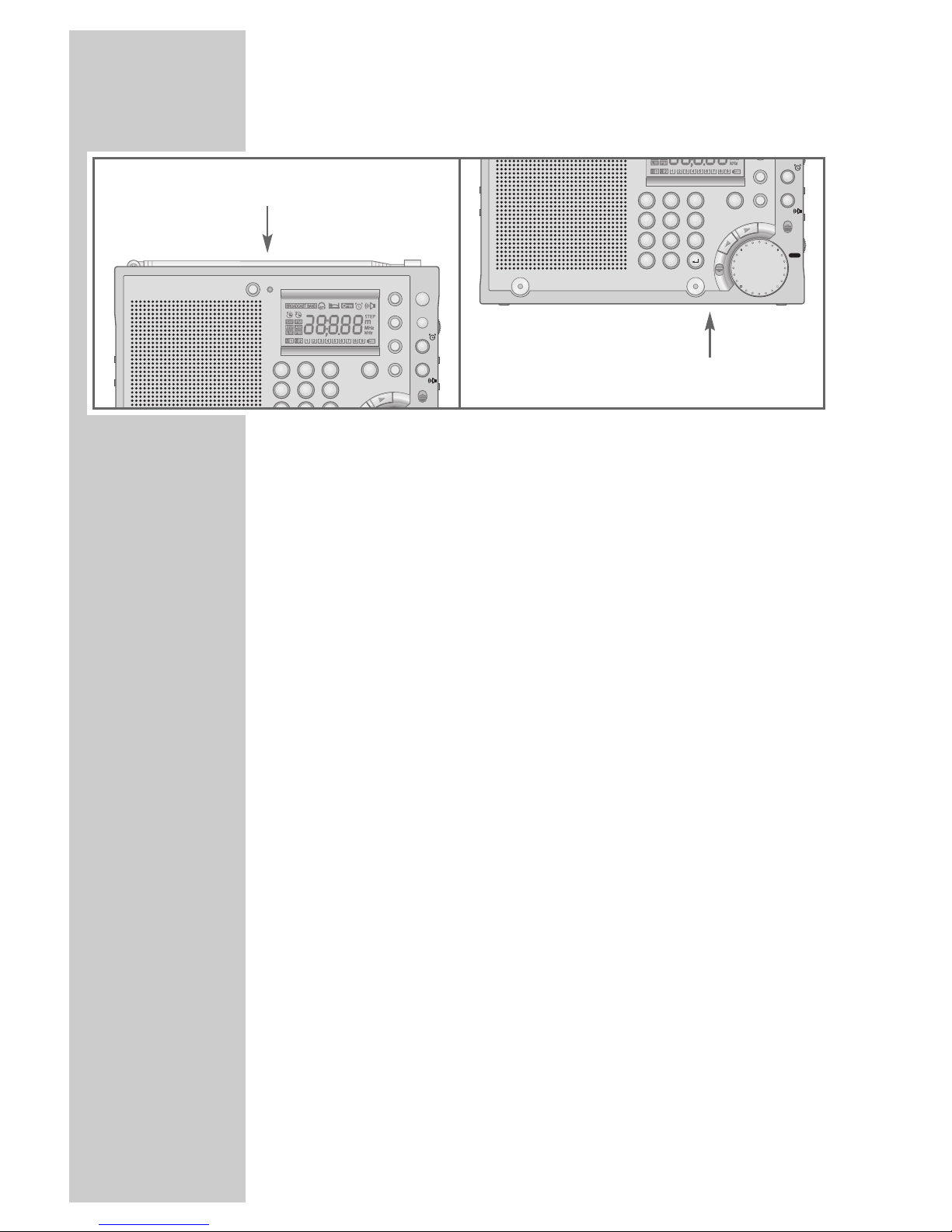

Top of device

ANTENNA Telescopic antenna for FM and SW reception.

Bottom of device

RESET Returns the device to its original setting.

Back of device

Battery compartment

Map of world time zones

Frequency scale

ǵYacht Boy 80

LIGHT TUNE / SSB

MODE

SW PAGE

CLOCK 1/2

MEMO

AM/PM

SW SELECT

ON/OFF

SLEEP

DISPLAY

ALARM

LOCK

BAND

321

654

CLOCK 1/2

MEMO

AM/PM

SW SELECT ALARM

LOCK

BAND

321

654

987

TUNING

FINE

•

M. DEL M. SCAN FREQ. / CLOCK

ANTENNA

RESET

ENGLISH

The display

00:0.0 Frequency, time, alarm time or sleep timer

display

The radio alarm function is activated

The signal alarm function is activated

The key lock is activated

The sleep timer is activated

A stereo FM station is being received

BROADCAST A regular SW (short wave) band is set

BAND

Local time 1 is displayed

Local time 2 is displayed

Displays the SW (short wave) waveband

Displays the FM (VHF) waveband

Displays the MW (medium wave) waveband

Displays the LW (long wave) waveband

Displays the first half of the day in 12-hour format

Displays the second half of the day in 12-hour format

Display memory levels 1 and 2

Preset position displays

Flashes when the batteries are low

kHz Frequency display for MW, LW and SW

MHz Frequency display for FM

mSW frequency band display

STEP Displays the increments in which the frequency is changed

2M1M

OVERVIEW ____________________________________

00000

SW FM

MW AM

M1M2

STEP

MHz

kHz

BROADCAST BAND

123456789

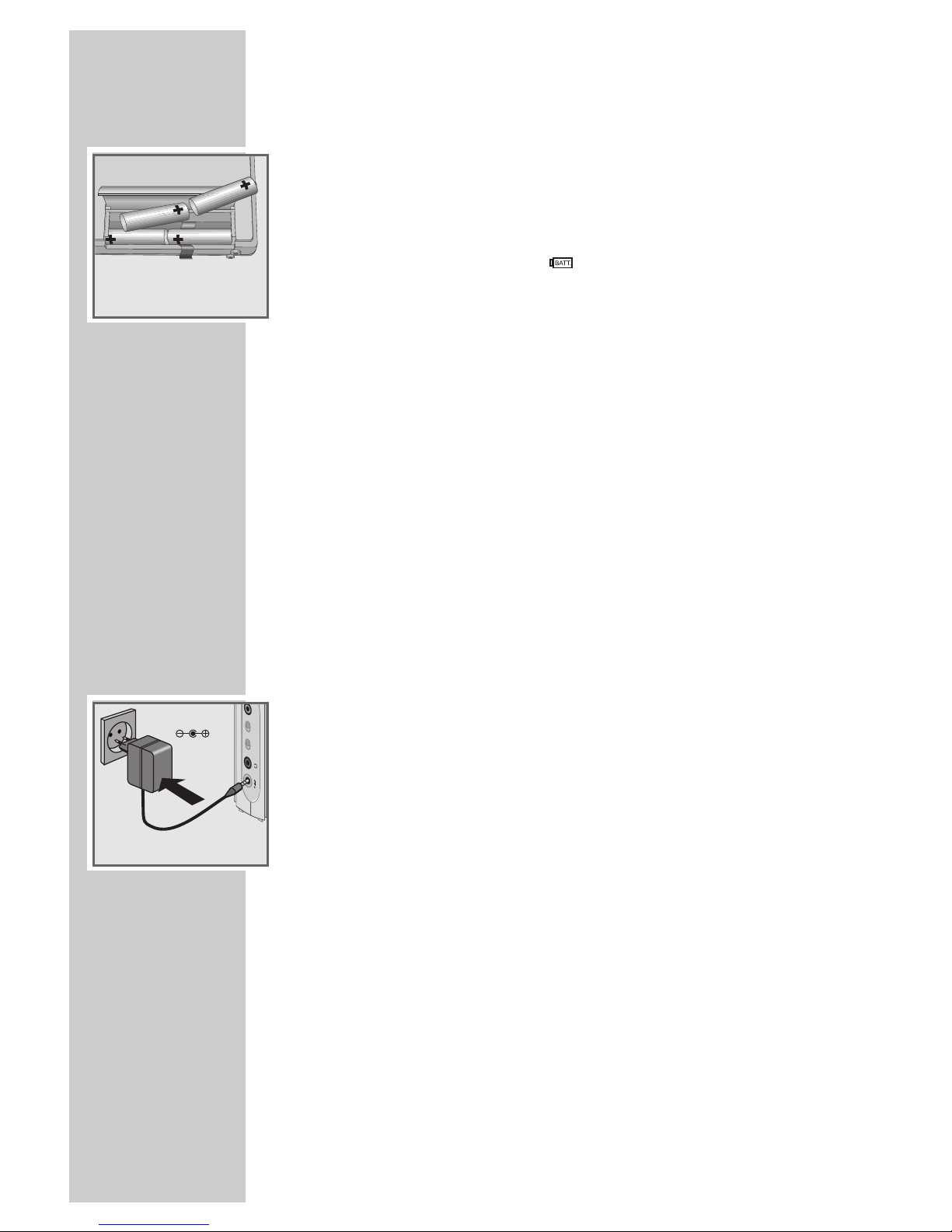

Battery operation

1Open the battery compartment on the back of the device by pressing

the marking and opening the lid.

2Insert the batteries (4 x 1.5 V, Mignon type LR6/AM3/AA).

Notes:

When the batteries are low, » « flashes in the display. Each time

you switch off the radio, the battery charge indicator, for example »3«,

appears for seven seconds. If the charge level falls below »2«, you must

change the batteries. Put in the new batteries within 3 minutes, otherwise

all stored settings will be lost.

Take out the batteries when you know that the device will not be used

for a long period of time. The manufacturer accepts no liability for

damage resulting from used batteries.

Environmental note:

Batteries, including those which contain no heavy metal, may not be

disposed of with household waste. Please dispose of used batteries in

an environmentally sound manner. Find out about the legal regulations

which apply in your area.

Mains operation (with standard 6 V/200 mA

mains adapter)

Check if the mains voltage on the mains adapter type plate corresponds to

your local mains supply. The only way to disconnect the device from the

mains supply is to unplug the adapter.

1Plug the mains adapter cable into the »DC 6 V Ó« socket on the

left of the device.

2Insert the mains adapter plug in the socket.

– The batteries in the compartment are switched off.

POWER SUPPLY___________________________________

STEREO/MONODX. / LQ.SW EXT.ANT.

DC6V

DC IN 6V

ENGLISH

Setting the clock

Due to the earth’s rotation, places to the west of you are behind you in time,

and places to the east are ahead of you. Therefore, the earth is divided into

24 hourly time zones. This system is based on a standard time zone called

UTC (Universal Time Coordinated), previously known as GMT (Greenwich

Mean Time). Short wave stations always give the time according to UTC.

Before you set the clock, find out your local time zone.

You can set two different local times. Local time 1 is the time where you live.

If, for example, you travel to Hong Kong, you can set the time there as local

time 2. The setting for local time 1 is retained.

Setting local time 1

When you first switch on the device, or if it has been without a power supp-

ly for a lengthy period, »0: 00« and » « for local time 1 appear in the

display to indicate that the clock has to be set.

1With the device switched off, keep pressing » FREQ./CLOCK«

until »–: ––« appears in the display and » « flashes.

Note:

If the radio is switched off, press »DISPLAY« to switch the display to

the clock, and start at step 1.

2Enter the time using the numerical buttons »1 …0« in the correct

sequence, for example »12: 30«.

Note:

if you enter the digits incorrectly, a signal sounds and »Err« flashes

briefly in the display. You then have to start again.

3Press » FREQ./CLOCK« to confirm the entry.

Setting local time 2

1With the device switched off, press »SW PAGE CLOCK 1/2«.

– Display: » « flashes for local time 2.

2Press » FREQ./CLOCK«.

– Display: » « stays lit for local time 2.

– The display is now set to local time 2.

3To set local time 2, do the same as for local time 1 (steps 1to 3).

Note:

If you are operating the device in the 12-hour format, you can choose

between »MEMO AM/PM« AM and PM.

SETTINGS __________________________

SETTINGS___________________________________________________

Setting and storing radio stations

There are various ways to set radio stations and store them at preset positions.

1Press »ON/OFF SLEEP« to switch on the device.

– You will hear the radio station last selected.

2Press »BAND« to select the frequency band.

Tuning radio stations directly

1Press » FREQ./CLOCK«.

– Display: »– –.– –«, e.g. » « and »MHz« flash.

2Enter the frequency using the numerical buttons »1 … 0« in four digits,

for example 1, 0, 0, 6 for »100.60«.

3Press » FREQ./CLOCK« to confirm the entry.

– Display: the frequency you entered, for example »100.60«.

– You will hear the selected radio station.

Tuning radio stations manually (1)

1Use the »TUNING FINE« dial to tune to the station you want.

– Display: the frequency in 100 or 200 kHz increments (FM), in 9 or

10 kHz increments (MW), in 3 kHz increments (LW) or in 5 kHz incre-

ments (SW).

2If you want, you can fine tune to the station by briefly pushing in and

turning the »TUNING FINE« dial.

– Display: The frequency changes in 50 kHz increments (FM) or 1 kHz

increments (MW, LW and SW).

3To return to the original mode (for example 100 kHz increments in the

FM band) push in the »TUNING FINE« dial again.

Tuning radio stations manually (2)

1Keep pressing »ľ« or »ı« until you reach the frequency you want.

– Display: the frequency changes in increments

Hold down »ľ« or »ı« until the frequency changes to a rapid run-

through.

– Display: the automatic search stops at the next station with a strong

signal.

Saving radio stations on preset positions

You can store up to 45 radio stations, including 18 on two memory levels

on short wave, and nine each on FM, MW and LW.

1Select the frequency band and the radio station.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Grundig Ricevitore

Grundig

Grundig YB-P 2000 Manuale utente

Grundig

Grundig DSR 3735 CI Manuale utente

Grundig

Grundig Sinio DTR 6110 S Manuale utente

Grundig

Grundig STR 100 DX microSAT Manuale utente

Grundig

Grundig 100 PE Manuale utente

Grundig

Grundig STR 6000 Manuale utente

Grundig

Grundig DSR 4530 HDD Manuale utente

Grundig

Grundig DSR 2410 Manuale utente

Grundig

Grundig DTR 2000 S Manuale utente

Grundig

Grundig YB 218 Manuale utente

Grundig

Grundig DRS 100 CL Manuale utente

Grundig

Grundig M 100-ADPL Manuale utente

Grundig

Grundig DTR 5464 HD Manuale utente

Grundig

Grundig YACHT BOY 400 Manuale utente

Grundig

Grundig STR 631 Manuale utente

Grundig

Grundig DSR 1750 MICRO Manuale utente

Grundig

Grundig STR 6100 Manuale utente

Grundig

Grundig DSR 6454 HD/CD Manuale utente

Grundig

Grundig DSR 1773 CY Manuale utente

Grundig

Grundig CINIO AVR 5200 DD GLO0150 Manuale utente

Grundig

Grundig Yacht Boy 2000 Manuale utente

Grundig

Grundig STR 7100 Manuale utente

Grundig

Grundig DTR 1560-2 MICRO Manuale utente

Grundig

Grundig STR 400 AP Manuale utente

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
