Gtech Pro2 Manuale utente
OPERATING MANUALOPERATING MANUAL
Model number: ATF307
3977_Gtech_Pro_ATF307_Manual_aw.indd 13977_Gtech_Pro_ATF307_Manual_aw.indd 1 14/07/2020 09:5214/07/2020 09:52
1
2
What’s in the box
3
4
Extension tube (x2)
4Power floor head
7
Battery (fitted)
2
Main unit (1 bag fitted)
1Dusting brush
Spare bags
Charger
5
3
Crevice tool
6
8
10
9
7
6
5
Thank you for choosing Gtech
“I started Gtech to create sensible, easy to use products that do a great
job. Your opinion is important to us and we’ll use your feedback to
improve our products and services, and to let other people know what
it’s like to be part of the Gtech family.”
Nick Grey – Inventor, owner of Gtech
Hair removal tool
x1 scented
cartridge
(fitted to lid)
9
10
8
4
3977_Gtech_Pro_ATF307_Manual_aw.indd 43977_Gtech_Pro_ATF307_Manual_aw.indd 4 14/07/2020 09:5214/07/2020 09:52

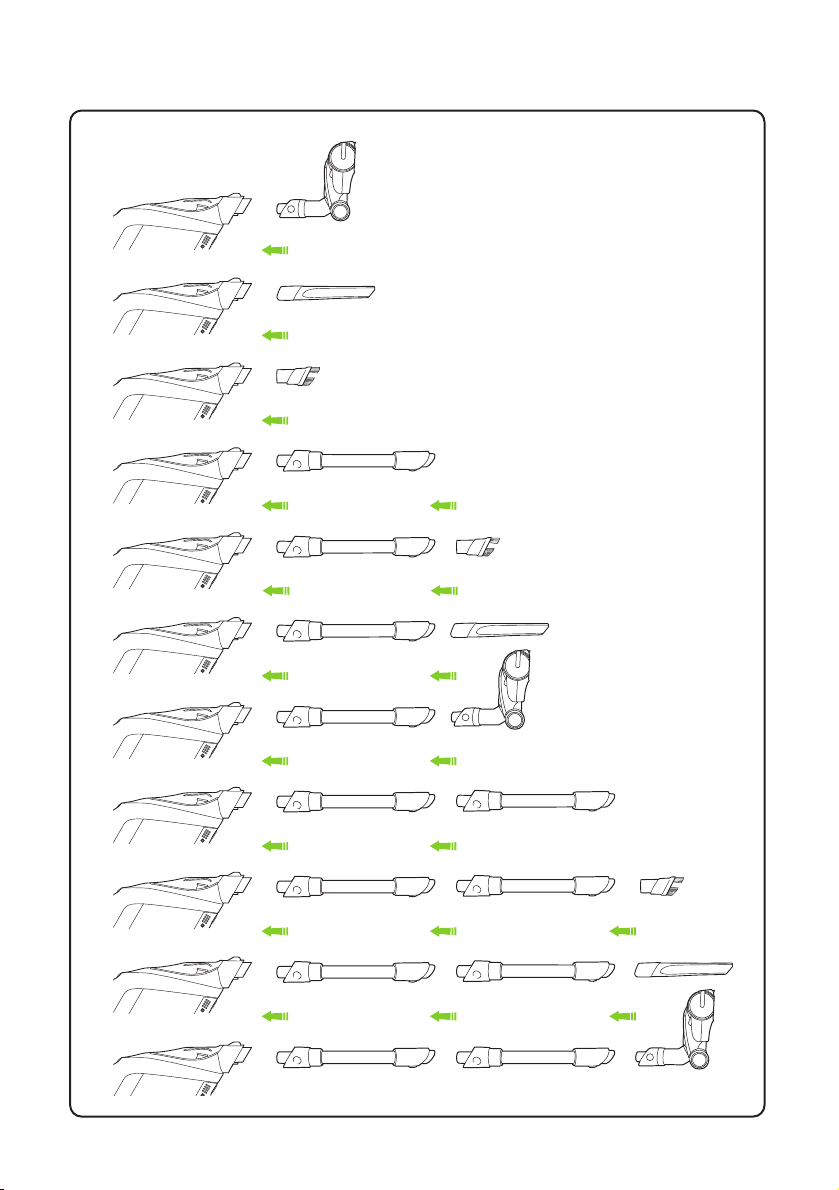

Tool configurations
5
3977_Gtech_Pro_ATF307_Manual_aw.indd 53977_Gtech_Pro_ATF307_Manual_aw.indd 5 14/07/2020 09:5214/07/2020 09:52

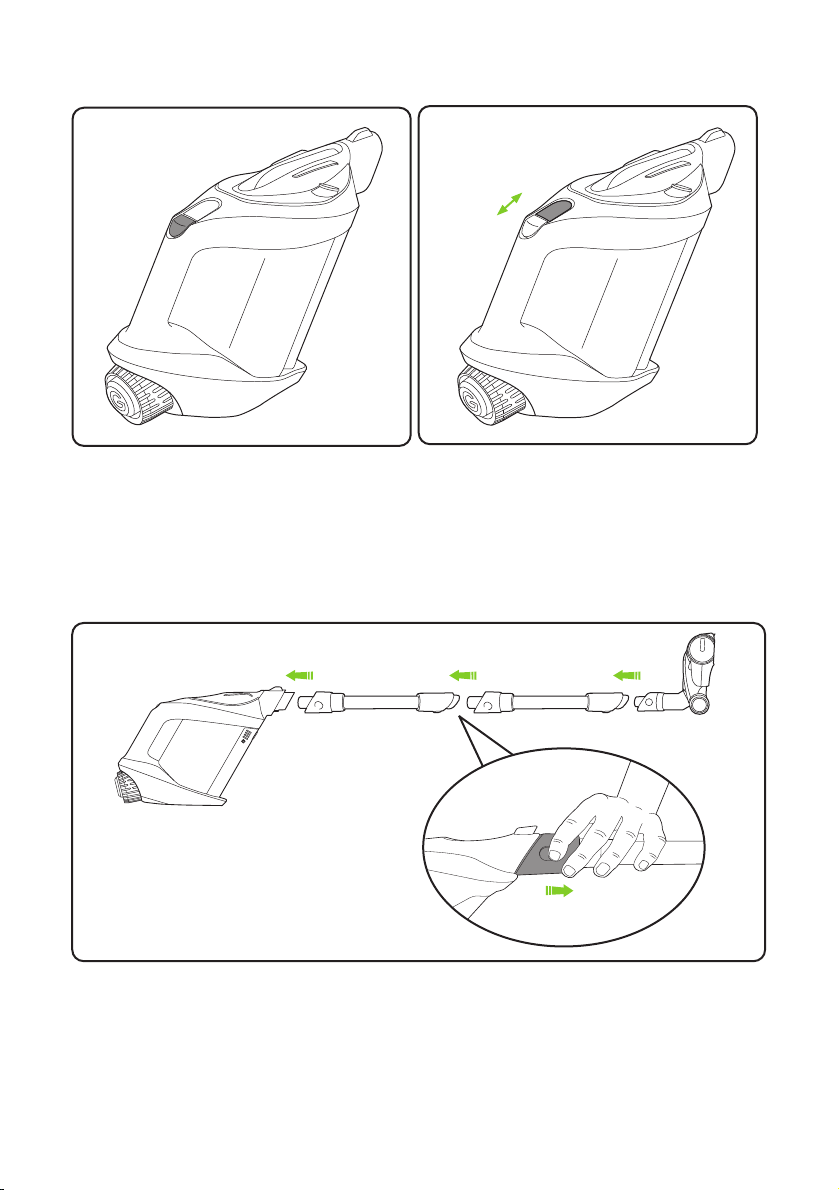

Power floor head assembly
To use the product in floor cleaning mode, join the 2 sections of the extension tube and fit the
power floor head at the end. Ensure all parts are correctly lined up and push them into place.
Ensure the product is switched off before removing or fitting attachments.
To disassemble, place your fingers in the indents of the tube, grip and pull the sections apart.
Disassembly:
Assembly:
6
Operation
Press the large button above the handle to turn
the product on and off.
The product has 2 power settings: Max mode
(higher suction power and shorter runtime) and
Eco mode (lower suction power and longer
runtime). Change modes by sliding the switch
located in front of the On/Off button. The
product will turn on in the mode it was last
used.
Eco
Max
3977_Gtech_Pro_ATF307_Manual_aw.indd 63977_Gtech_Pro_ATF307_Manual_aw.indd 6 14/07/2020 09:5214/07/2020 09:52
Removing and cleaning the brush bar
Before you remove the brush bar, you will
need to remove the power floor head from
the extension tube. Rotate the latch on the
side of the powered floor head to the ‘unlock’
position and pull out the brush bar.
A forward motion will pick up
larger pieces of debris.
Pulling the vacuum back
towards you activates the
AirLOC and picks up
finer particles.
Place your foot gently on the
head of the vacuum and pull
the body back towards you.
You will hear a click.
To remove hair from the brush bar, use the
hair removal tool to cut the hair before pulling
it out. Never operate the power floor head
without the brush bar in place.
7
3977_Gtech_Pro_ATF307_Manual_aw.indd 73977_Gtech_Pro_ATF307_Manual_aw.indd 7 14/07/2020 09:5314/07/2020 09:53
State of charge
LED headlight
The battery state of charge indicator shows
how much charge the product has. As you use
the product, the green lights will turn off in a
downwards direction.
There is a headlight on top of the product to
illuminate the area being cleaned.
While the battery is on charge, the LEDs will
pulsate and illuminate in turn. When the battery is
fully charged, all of the LEDs will be solid green.
100% - 75% 74% - 50%
49% - 25% 24% - 1%
Above the floor cleaning
For above the floor cleaning, you can fit the
crevice tool or dusting brush for reachable areas
or fit the extension tube with an accessory for
high up cleaning
8
3977_Gtech_Pro_ATF307_Manual_aw.indd 83977_Gtech_Pro_ATF307_Manual_aw.indd 8 14/07/2020 09:5314/07/2020 09:53
9
Plug the charger in and connect it to the
charging port on the side of the battery.
Battery charging
Aer 4 hours, all 4 LEDs will show solid green
and charging is complete.
You can also charge the product for 1 hour for
a burst of cleaning.
When a single green light flashes, recharge
the battery.
4
hours
1
hour
boost
3977_Gtech_Pro_ATF307_Manual_aw.indd 93977_Gtech_Pro_ATF307_Manual_aw.indd 9 14/07/2020 09:5314/07/2020 09:53
Pull the latch at the top of the battery to remove.
To replace the battery, slot it into the front of
the product from the bottom first, with the
latch facing outwards.
The battery can be charged on or off the main
unit.
Push the battery into the slot until it clicks into
place. If you want to buy a spare battery, go to
www.gtech.co.uk or call 08081 685 028.
Removing the battery
Refitting the battery
10
3977_Gtech_Pro_ATF307_Manual_aw.indd 103977_Gtech_Pro_ATF307_Manual_aw.indd 10 14/07/2020 09:5314/07/2020 09:53
Bag installation
Remove the lid by pulling gently upwards. Fit the bag collar onto the tube underneath
the lid and push it up firmly.
New bags have a tendency to sit flat when first
attached. Pull the bag down to sit vertically.
To get maximum efficiency from the bag, it is
important to expand the bag before insertion.
Do not use the vacuum without a bag: it
may damage the motor and will invalidate
your warranty.
11
3977_Gtech_Pro_ATF307_Manual_aw.indd 113977_Gtech_Pro_ATF307_Manual_aw.indd 11 14/07/2020 09:5314/07/2020 09:53
Bag removal
Once the bag is attached and straightened,
place the lid back onto the main body, making
sure the bag cap is also inserted.
Carefully remove the bag from the product lid
to avoid squashing contents. Insert the bag
cap to secure contents.
When the bag is full, li the lid and remove it
from the product with bag attached.
Dispose of the bag and replace with a new one.
(You can get more bags at www.gtech.co.uk or
by calling 08081 685 028).
Do not reuse bags as this could damage and
reduce the performance of the product.
12
3977_Gtech_Pro_ATF307_Manual_aw.indd 123977_Gtech_Pro_ATF307_Manual_aw.indd 12 14/07/2020 09:5314/07/2020 09:53
