Gtech HyLite2 SCV300 Manuale utente
OPERATING MANUAL
Model number:
SCV300
4483_HyLite2_Manual_aw.indd 14483_HyLite2_Manual_aw.indd 1 20/08/2020 17:0620/08/2020 17:06
What’s in the box
2
1
1
3
4
5
7
6
8
4
5
3
2
7
8
6
Main unit (with 1 x bag fitted)
Battery (fitted)
Steering module
Handle
Duster
3 x replacement bags
Charger
Hair removal tool
Thank you for choosing Gtech
“I started Gtech to create sensible, easy to use products that do a great
job. Your opinion is important to us and we’ll use your feedback to
improve our products and services, and to let other people know what
it’s like to be part of the Gtech family.”
Nick Grey – Inventor, owner of Gtech
4
Make a note of your product serial number for future reference. You can find this on the
underside of item
_ - _ _ - _ _ _ ~
_ _ _ _ _ ~
_ _ _ _ ~
_ _ ~ _ _ _ _ _ _ _
X-XX-XXX~
XXXXX~
WWYY~
00~0000000
1
4483_HyLite2_Manual_aw.indd 44483_HyLite2_Manual_aw.indd 4 20/08/2020 17:0620/08/2020 17:06
To attach the handle to the main unit there is
no need to li the vacuum from the floor. Just
push the hook on the steering module into
the latch at the back.
Assembly
To fit the steering module to the handle simply
push the end of the handle into the neck of the
steering module until it clicks into place.
5
Press the green button
and pull the handle upwards
to extend.
When the handle is
fully extended, you’ll hear
a ‘click’.
To compress the handle,
simply press and hold the
green button while pushing
downwards, releasing the
green button towards the
bottom. The handle will lock
into place.
4483_HyLite2_Manual_aw.indd 54483_HyLite2_Manual_aw.indd 5 20/08/2020 17:0620/08/2020 17:06
A forward motion will pick up larger pieces of
debris.
Pulling the vacuum back towards you activates
the AirLOC and picks up finer particles.
AirLOC
6
Operation
Place your foot on the le side of the unit and
recline the handle.
Press the power button to turn it on. You
can also do this with your hand when it is in
hand-held mode - be careful of the rotating
brush-bar.
4483_HyLite2_Manual_aw.indd 64483_HyLite2_Manual_aw.indd 6 20/08/2020 17:0620/08/2020 17:06
7
Removing the handle
To remove the handle, hold the main unit
down with your foot and pull upwards on the
handle.
You can also remove the handle while the
steering module is still attached to the main
unit to use the handle with the duster.
To remove the steering module press the
button and pull the handle out.
4483_HyLite2_Manual_aw.indd 74483_HyLite2_Manual_aw.indd 7 20/08/2020 17:0620/08/2020 17:06
8
In the case of a jam, the brush-bar will
automatically eject itself to allow you to
remove any obstructions and prevent
damages. Once the brush-bar ejects, turn the
unit off.
You will then need to reset the eject system by
pushing the button back into place.
Brush-bar eject system
When cleaning surfaces such as carpets and
upholstery, hold the vacuum and slide it back
and forth. Please be aware of the constantly
rotating brush-bar while using this product in
its hand-held mode.
For use on stairs, grip and move the vacuum
over each step. Extra care should be taken
when vacuuming stairs.
Hand-held operation
4483_HyLite2_Manual_aw.indd 84483_HyLite2_Manual_aw.indd 8 20/08/2020 17:0620/08/2020 17:06
9
WARNING: remove battery before carrying out any form of assembly.
Remove the battery before maintaining any
part of your product. Rotate the latch from the
‘locked’ position to the ‘unlocked’ position.
Brush-bar removal
To remove hair from the brush-bar, run the
blade of the hair removal tool between the
brushes to cut the strands.
Pull the latch out to remove the brush-bar.
4483_HyLite2_Manual_aw.indd 94483_HyLite2_Manual_aw.indd 9 20/08/2020 17:0620/08/2020 17:06
10
You can then use the comb end of the hair
removal tool to pull the hair from the brush-bar.
Never operate the product without the brush-
bar in place.
Brush-bar hair removal
When replacing the brush-bar, ensure that it
locates onto the steel pin at the other end of
the head, then turn the latch to the ‘locked’
position.
Battery removal
Press the latch on the top of the battery and
slide it out of the battery-housing.
To refit the battery, line it up and slide it into
the battery housing. The battery will click into
place when correctly fitted.
4483_HyLite2_Manual_aw.indd 104483_HyLite2_Manual_aw.indd 10 20/08/2020 17:0620/08/2020 17:06
11
Plug the charger into the mains and connect it to
the battery. Switch the power on at the mains.
The battery can be charged on or off the main
vacuum unit.
Battery state-of-charge indicator
The battery indicator shows how much charge
remains in the battery.
Whilst charging, the ‘G’ on the battery will
pulsate green. When fully charged, it will show
a solid green colour.
15% - 1%
100% - 16%
Recharging the battery
14.4V
For optimum battery performance, we recommend turning the plug socket
off once the battery is fully charged.
2
hours 2
hours
4483_HyLite2_Manual_aw.indd 114483_HyLite2_Manual_aw.indd 11 20/08/2020 17:0620/08/2020 17:06
12

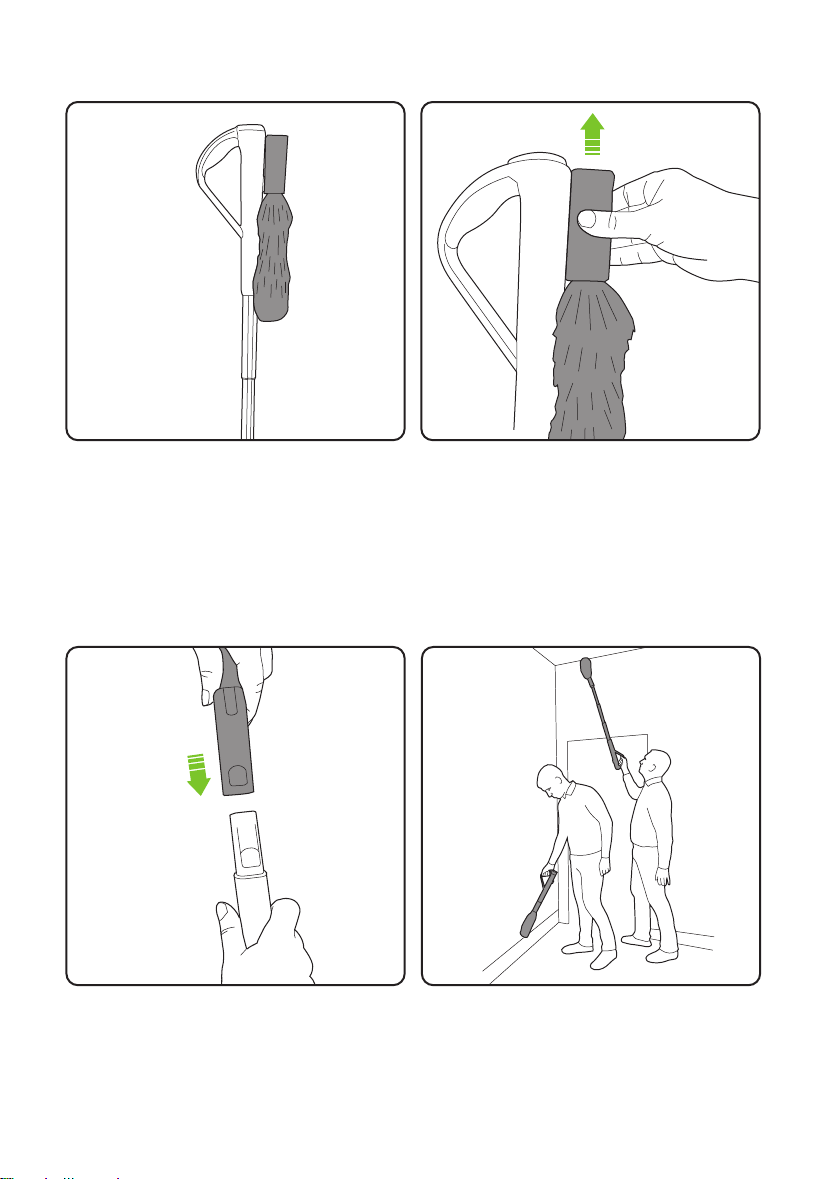

The duster can be stowed on the handle. To remove the duster simply slide it upwards
and off the handle.
Attach the duster to the end of the handle,
clicking the latch into place
This allows you to clean low, or with the handle
extended, up high.
Using the duster
4483_HyLite2_Manual_aw.indd 124483_HyLite2_Manual_aw.indd 12 20/08/2020 17:0620/08/2020 17:06
