GUIL TORO D Series Manuale utente
USER
MANUAL
TORO RANGE D
MATERIAL LIFTERS
GUIL - ENGINEERING FOR LIFTING LOADS
ENGLISH
TORO D-405/C
TORO D-403/C
TORO D-402/C
GUIL - TORO lifters
19
www.guil-lifters.com - GUIL
-
INDEX
INTRODUCTION .......................................................................................................................................................... 19
OWNER AND USER’S OBLIGATIONS ............................................................................................................................ 20
SAFETY RECOMMENDATIONS .................................................................................................................................... 20
SET-UP AND WORKING AREA SAFETY ............................................................................................................ 20
LIFTER USE SAFETY INSTRUCTIONS ................................................................................................................ 21
PRE-OPERATION INSPECTION ..................................................................................................................................... 22
OPERATING INSTRUCTIONS ........................................................................................................................................ 22
SET-UP ............................................................................................................................................................ 22
A.- INSTALLATION WITH FRONT STABILISER LEGS ............................................................................ 23
B.- INSTALLATION WITH BACK STABILISER LEGS ............................................................................... 25
REVERSING THE FORKS .................................................................................................................................. 27
FUNCTION TEST ............................................................................................................................................. 27
MOVING THE LIFTER TO THE WORK AREA .................................................................................................... 2
RAISING THE LOAD ......................................................................................................................................... 2
LOWERING THE LOAD .................................................................................................................................... 29
BLOCKING THE LOAD/SAFETY SYSTEMS ........................................................................................................ 29
AFTER EACH USE ......................................................................................................................................................... 29
TRANSPORT ................................................................................................................................................................ 30
MAINTENANCE ........................................................................................................................................................... 30
RISK ASSESMENT ........................................................................................................................................................ 31
GUARANTEE ................................................................................................................................................................ 35
* ANNEX A: ELECTRIC LIFTING SYSTEM
* ANNEX B: LOAD CHART, DRAWINGS AND CERTIFICATES
INTRODUCTION
Thank you for having chosen a GUIL® material lifter. Your TORO machine has been examined and checked
before leaving our premises to ensure it is in absolutely perfect condition. To maintain this condition and to
ensure a safe use, it is absolutely necessary for the user to read, understand and obey the safety and operating
instructions in this manual as it contains information that will give you a thorough knowledge of the workings of
your TORO lifter and guarantee maximum safety whilst operating it.
TORO lifters are manufactured using high quality components to guarantee maximum durability and safety
during its use.
Damages caused by the disregard of this user manual are not subject to warranty; neither the dealer nor the
manufacturer accepts liability for any resulting damages to property or personal injury.
WARNING!
Failure to comply with the safety or operating instructions in this manual may result in damage to the tower,
the lifted load, personal injury or even death! The instructions laid out in this manual must be followed at all
times.
GUIL - TORO lifters
www.guil-lifters.com - GUIL
-
20
Before putting the lifter into service please make sure that there is no damage caused during transportation.
Should there be any, consult your distributor or the manufacturer (GUIL®) and do not use the TORO lifter until
it is in prefect working condition.
The information contained in this manual is subject to change without previous notification and presents no
obligations or liability for GUIL®. Under no circumstances will GUIL® be responsible for technical or editorial
errors made here, nor for accidental or intentional, direct or indirect damages caused by following this manual
or by incomplete information in this manual. GUIL® will not be held responsible for any errors found in this
manual.
The information in this document is not intended to cover all possible eventualities. The user must use caution
and common sense at all times whilst using the TORO lifter. If any doubt or problem should arise do not hesitate
to contact the manufacturer GUIL®.
OWNER AND USER’S OBLIGATIONS
veryone involved with the installation, operation and maintenance of this lifting tower must:
-Be sufficiently qualified, trained or experienced.
-Read and understand both the winch and the lifter manual and follow the instructions given to use them
correctly.
-Keep this manual and the winch manual for the entire service life of the product.
-Pass both manuals on to every future owner or user of the tower. This manual should be regarded as a
permanent part of your lift and should remain with the lifting tower at all times.
-If either of the manuals are misplaced please contact your dealer or the manufacturer (GUIL®).
SAFETY RECOMMENDATIONS
Prior to set-up, be aware of and avoid the following hazardous situations:
• Drop-offs or holes which impede the lifter being levelled using only the levelling jacks.
• Pot holes, obstacles on the floor or debris.
• Slopes that exceed the adjustment capabilities of the lifter.
• Unstable or slippery surfaces.
• Hazardous locations. Aerial obstacles or overhead electric cables.
• Inadequate surface support to withstand all load forces imposed by the lifter.
• Weather conditions and strong winds.
• The presence of unauthorised personnel.
S T-UP AND WORKING AR A SAF TY
• Do not stand under or allow personnel under the TORO lifter when the load is raised, making
sure a safety area is blocked around the tower, which should have a diameter of 1.5 times the
height of the tower.
• Do not lower the load unless the area below is clear of personnel and obstructions.
• Do not use this lifter outdoors if it is thundering and lightning or in adverse weather conditions.
Never use the TORO lifter in the event of extreme weather conditions. NOTE: Increasing the load
surface area will decrease machine stability in windy conditions.
• Never use the TORO lifter in strong or gusty wind.
GUIL - TORO lifters
21
www.guil-lifters.com - GUIL
-
• Avoid transporting the TORO lifter over uneven surfaces or ground with debris when in the folded position.
• Never use the lifter on moving surfaces or vehicles.
• The TORO lifter must always be set up on firm and even surfaces.
• This material lift is not electrically insulated and does not protect you if it gets close to or comes
into contact with electricity.
• If the TORO lifter comes into contact with electric cable, keep well away. The tower should not
be touched or used until the electricity has been switch off.
• Maintain safe distances away from electrical power lines and apparatus, allowing for mast
movement and electrical line sway or sag, in accordance with applicable local governmental regulations.
• Do not use the lifter as a ground for welding.
• The noise made while using this machine should not exceed 80 dB. If it were to make more noise contact your
supplier.
• Before installing the lifter, make sure the installation area can hold a minimum point load of 5 times the load
to be raised.
LIFT R US SAF TY INSTRUCTIONS
• The installer is responsible for adhering to the load capacity specified by the manufacturer, the safety
requirements in the place of installation and the abilities and experience of co-workers.
• Do not remove the manufacturer’s labels; if removed the guarantee will be null and void.
• Always carry out a thorough inspection of your TORO lifter before each use by following the pre-operation
inspection instructions. Do not use a tower that is damaged or doesn’t work properly.
• Never use the TORO lifter with a worn, frayed, kinked or damaged winch cable.
• Do not replace parts of the TORO lifter that are critical to stability or structure with items of
different strength or specification. If it were necessary to replace components, it is important that it is replaced
with an original spare part.
• Do not exceed the rated load capacity recommended by the manufacturer GUIL®.
• Do not lift the load unless: the blocking hook is unhooked, all the stabiliser legs are correctly
installed and the brakes on the wheels are activated.
• Do not adjust or remove the stabiliser legs while the load is raised.
• Do not raise the TORO lifter unless the load is correctly positioned, centred and secured on the forks. The centre
of gravity should always be along a vertical line.
• nsure the lifter is completely levelled before lifting the load.
• Never raise objects that make a large surface for the wind. If it is absolutely necessary please contact your
dealer or the manufacturer (GUIL®) for safety advice.
• If you are going to leave the TORO lifter unattended with a raised load make sure it can’t be
used by unauthorised personnel. Unauthorised personnel could try to use the tower without
adequate training, causing dangerous situations.
GUIL - TORO lifters
www.guil-lifters.com - GUIL
-
22
• All loads must be secured using a secondary safety system such as slings, cables or chains which must be
oversized i.e. have adequate safety margins, to ensure maximum safety.
• Do not subject the TORO lifter to a horizontal force or side load by raising or lowering a fixed or
overhanging load or resting a ladder or scaffold against any part of the machine.
• Do not use the TORO lifter as a personnel lifting platform.
• Do not climb on the mast sections or sit/stand on the forks.
• Do not tamper with the brake winch. For maintenance or repair
consult your dealer or the manufacturer.
• Keep hands away from all moving parts and pinch points when operating the tower.
• Do not grasp the winch cable while the tower is being used.
NOTE: When using this material lift in public places or industrial areas, a series of safety instructions have to be
followed that this manual can only give in part. The user must therefore inform himself/herself on the current
governmental safety instructions and take them into consideration when planning the installation.
PRE-OPERATION INSPECTION
CAUTION! A pre-operation inspection must be carried out before every use of the tower. Check the tower for
damage, improperly installed or missing parts and unauthorised modifications using the list below.
Do not use the tower if this inspection reveals any adverse conditions that could affect its safety.
WARNING! If damages or malfunctions are found in either the pre-operation inspection or the function test the
tower should be removed from service and repaired by an authorised technician.
Check the following components of the lifter:
-Winch
-Base
-Stabiliser legs, folding stabiliser legs (outriggers) and especially levelling jacks
-Aluminium mast sections
-Cable (kinks, frays or deformations)
-Wheels and castors
-Locking bolts
-Spirit level
-nsure all labels are in place and legible
Check the whole machine for:
-Dents and damage
-Corrosion or rust
-Cracks in welding
OPERATING INSTRUCTIONS
WARNING! Always use logic and common sense when using the lifter. This is a complex product designed for
professional use and should not be operated by amateurs. nsure all personnel are correctly trained and
instructed on the content of the manual and the dangers related with operating the lifter.
S T-UP
The lifter can be used with the stabiliser legs installed in the front of the base (A) or in the back of the base (B).
CAUTION! Check the work area for overhead obstructions or possible hazards before use (signs, cables,
balconies, etc.). ALWAYS follow the set-up and working area and lifter use safety instructions in this manual.
GUIL - TORO lifters
23
www.guil-lifters.com - GUIL
-

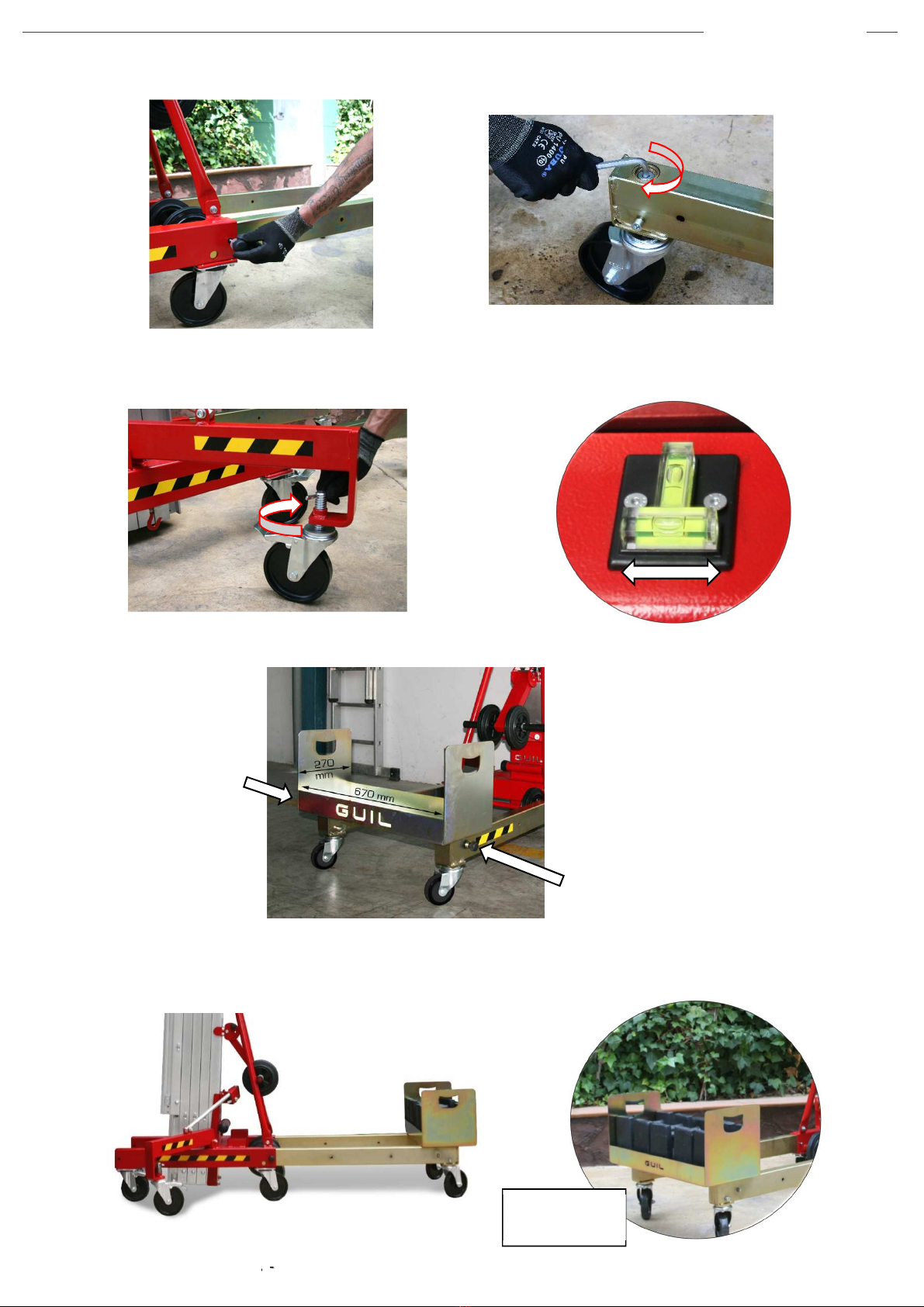

A.- INSTALLATION WITH FRONT STABILISER LEGS
Follow the instructions below for the correct installation of the TORO lifter:
1.- Position the TORO lifter at the desired work site.
2.- Pull the stabiliser legs out of the base.
3.- Insert the legs into the front sockets with the wheels downwards, blocking them with the magnetic locking
bolts.
The stabiliser legs should be fixed at the fully extended position. If any other position is required please consult
the manufacturer (GUIL®).
4.- Level the lifter.
4.1.- Take the Allen key supplied out of the manual holder.
4.2.- Unblock the levelling jack by loosening the M10 bolt found on the side of the leg.
4.3.- Adjust the levelling jacks until the legs are firm and free of wobbling, levelling the lifter from the
front axis with the help of the spirit level.
GUIL - TORO lifters
www.guil-lifters.com - GUIL
-
24
4.4.- Block the levelling jack by tightening the M10 bolt found on the side of the leg but not too tight so
as not to cause any damage to the thread on the screw stem.
5.- Unfold the side stabiliser legs (outriggers):
5.1.- Unfold the leg with the sliding bar that is furthest away from the lifter first.
5.2.- Press the blocking lever that protrudes from the bottom of the adjusting box and at the same time
unfold the outriggers down to the ground.
5.3 Adjust the levelling jacks until the legs are firm and free of wobbling levelling the lifter from the
sideways axis with the help of the spirit level.
SLIDING BAR CLOSEST TO
THE LIFTER
SLIDING BAR FURTHEST
AWAY
ADJUSTING BOX
BLOCKING LEVER
GUIL - TORO lifters
25
www.guil-lifters.com - GUIL
-

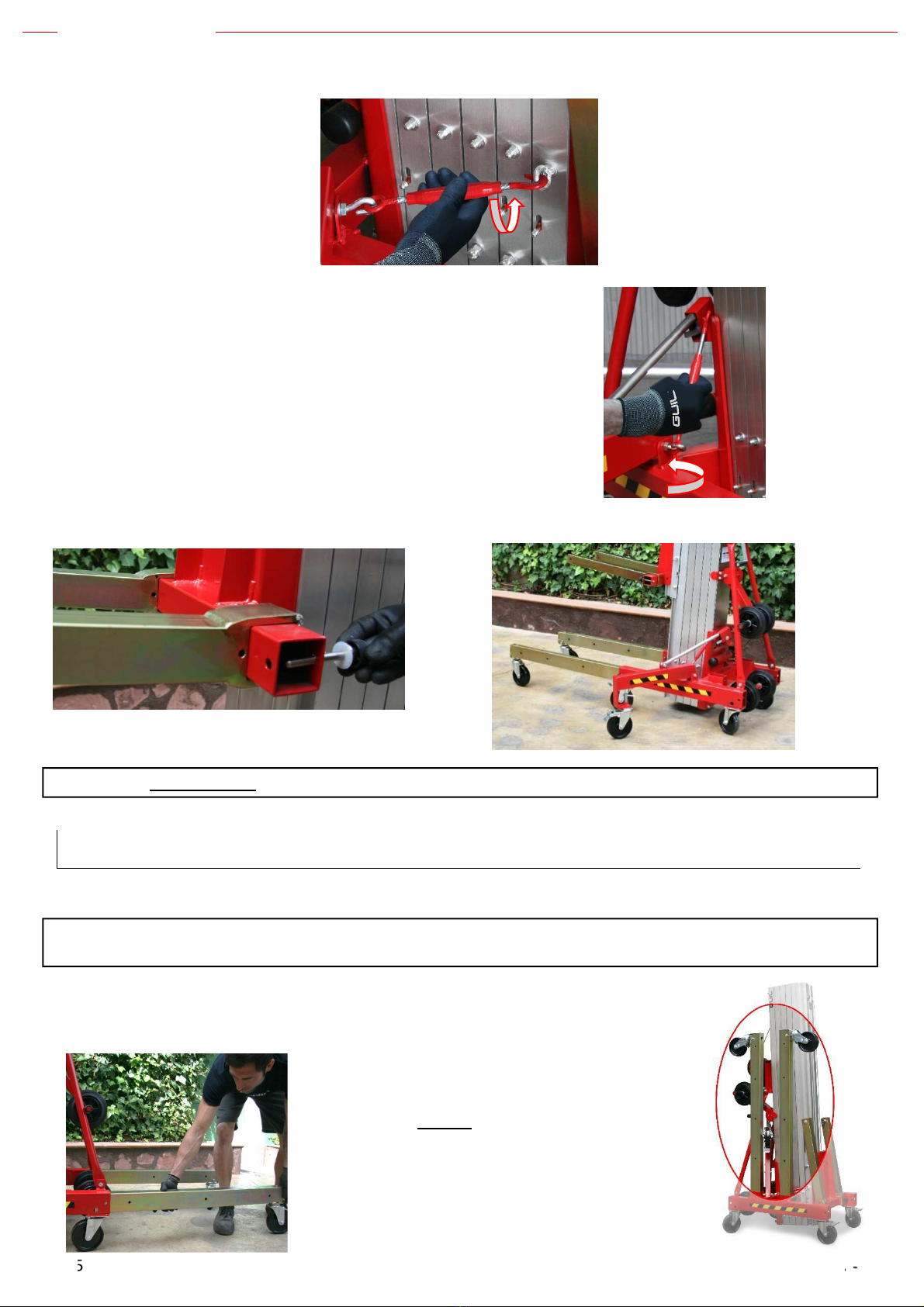

6.- Remove the profile blocking hook by twisting the central part to lengthen it and unhook it from the eye nut.
7.- Hook it on the back part of the mast sections so that it isn’t left loose.
8.- Lastly, put the forks into the horizontal position and secure using the magnetic locking bolts.
9.- Place the load on the forks.
IMPORTANT: When the TORO lifter is raised over 6.5 m the minimum load is 50 kg.
10.- With the load on the lifter ensure it is levelled. If not, adjust the levelling jacks on the legs until it is.
B.- INSTALLATION WITH BACK STABILISER LEGS
This set-up option is applied in case the front legs of the TORO lifter are an obstacle in the work area.
CAUTION! This type of installation requires the use of counterweights. These must always come to a sum of 100
kg.
1.- Position the TORO lifter at the desired work site.
2.- Pull the stabiliser legs out of the base and insert them into the back sockets in the most
extended position.
The legs must always be set in the most extended
position.
GUIL - TORO lifters
www.guil-lifters.com - GUIL
-
26
3.- Insert the magnetic locking bolts and adjust the levelling jacks until the legs are firm and free of wobbling.
4.- Level the lifter on the sideways axis using the spirit level, adjusting the levelling jacks on the outriggers.
5.- Install the counterweight holder at the end of the back stabiliser legs and secure it using the magnetic
locking bolts.
6.- Place 5 weights in the counterweight holder to a total of 100 kg.
5 weights of
20 kg
MAGNETIC LOCKING
BOLT
GUIL - TORO lifters
27
www.guil-lifters.com - GUIL
-
7.- Put the forks into the horizontal position and secure them using the magnetic locking bolts.
8.- Place the load on the forks.
IMPORTANT: When the TORO tower is raised over 6.5 m the minimum load is 50 kg.
9.- With the load on the lifter ensure it is levelled. If not, adjust the levelling jacks on the legs until it is.
R V RSING TH FORKS
1.- Pull out the magnetic locking bolts.
2.- Remove the forks.
3.- Remove the nut and bolt that holds the fork bracket to the
carriage.
4.- Turn the fork bracket 180º, insert back it onto the carriage and
secure the nut and bolt again.
5.- Install the forks in the working position.
When the forks are in the working position they should
slope slightly upwards.
6.- Secure using the magnetic locking bolts.
FUNCTION T ST
1.- Place a load on the forks of the lifter.
2.- Raise and lower the lifter to check the following functions.
2.1.- Check that the winch is working correctly:
2.1.1.- It must operate smoothly and free of hesitation, binding or strange noises.
2.1.2.- All components must be present.
2.1.3.- And above all it, must brake perfectly.
FORK
FORK BRACKET
CARRIAGE
MAGNETIC
LOCKING BOLT
Questo manuale è adatto per i seguenti modelli
3
Indice
Altri manuali GUIL Sistema di sollevamento
Manuali Sistema di sollevamento popolari di altre marche
Genie
Genie Z-60/34 Manuale utente
Screen Technics
Screen Technics INTERFIT Vertical Up Lift Manuale utente
Mortuary Lift
Mortuary Lift ULTIMATE 1000 Manuale utente
Custom Equipment
Custom Equipment Hy-Brid 3 Series Manuale di programmazione
Custom Equipment
Custom Equipment Hy-Brid Lifts 2 Series Manuale di programmazione
Hy-Brid Lifts
Hy-Brid Lifts HB-P3.6 Manuale di programmazione
