H3C CR19000-8 Manuale utente

H3C CR19000-8 Core Router

Installation Guide

New H3C Technologies Co., Ltd.

http://www.h3c.com

Document version: 6W103-20211022

No part of this manual may be reproduced or transmitted in any form or by any means without prior written

consent of New H3C Technologies Co., Ltd.

Trademarks

Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this

document are the property of their respective owners.

Notice

The information in this document is subject to change without notice. All contents in this document, including

statements, information, and recommendations, are believed to be accurate, but they are presented without

warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions

contained herein.

Environmental protection

This product has been designed to comply with the environmental protection requirements. The storage, use,

and disposal of this product must meet the applicable national laws and regulations.

Preface

This document guides you through the installation of the H3C CR19000-8 core router. It includes

instructions on preparing for installation, installing the router, replacing components, and

troubleshooting.

This preface includes the following topics about the documentation:

•

Audience.

•

Conventions.

•

Documentation feedback.

Audience

This documentation is intended for:

•

Network planners.

•

Field technical support and servicing engineers.

•

Network administrators working with the CR19000-8 core router.

Conventions

The following information describes the conventions used in the documentation.

Command conventions

Convention

Description

Boldface Bold text represents commands and keywords that you enter literally as shown.

Italic Italic text represents arguments that you replace with actual values.

[ ] Square brackets enclose syntax choices (keywords or arguments) that are optional.

{ x | y | ... }

Braces enclose a set of required syntax choices separated by vertical bars, from which

you select one.

[ x | y | ... ]

Square brackets enclose a set of optional syntax choices separated by vertical bars,

from which you select one or none.

{ x | y | ... } *

Asterisk marked braces enclose a set of required syntax choices separated by vertical

bars, from which you select a minimum of one.

[ x | y | ... ] *

Asterisk marked square brackets enclose optional syntaxchoices separated byvertical

bars, from which you select one choice, multiple choices, or none.

&<1-n> The argument or keyword and argument combination before the ampersand (&) sign

can be entered 1 to n times.

# A line that starts with a pound (#) sign is comments.

GUI conventions

Convention

Description

Boldface Window names, button names, field names, and menu items are in Boldface. For

example, the New User window opens; click OK.

Convention

Description

> Multi-level menus are separated by angle brackets. For example, File > Create >

Folder.

Symbols

Convention

Description

WARNING! An alert that calls attention to important information that if not understood or followed

can result in personal injury.

CAUTION:

An alert that calls attention to important information that if not understood or followed

can result in data loss, data corruption, or damage to hardware or software.

IMPORTANT:

An alert that calls attention to essential information.

NOTE:

An alert that contains additional or supplementary information.

TIP:

An alert that provides helpful information.

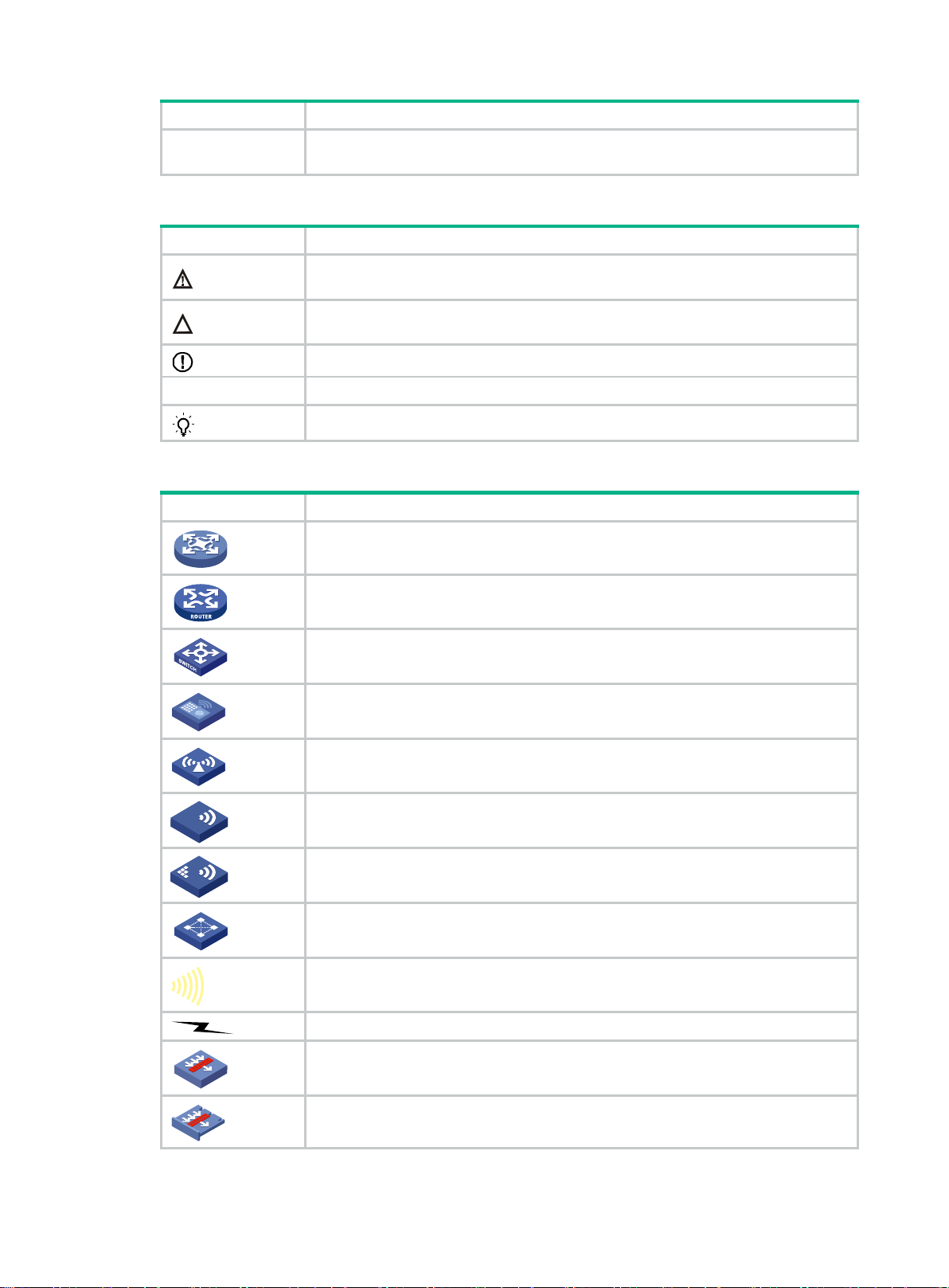

Network topology icons

Convention

Description

Represents a generic network device, such as a router, switch, or firewall.

Represents a routing-capable device, such as a router or Layer 3 switch.

Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that

supports Layer 2 forwarding and other Layer 2 features.

Represents an access controller, a unified wired-WLAN module, or the access

controller engine on a unified wired-WLAN switch.

Represents an access point.

Represents a wireless terminator unit.

Represents a wireless terminator.

Represents a mesh access point.

Represents omnidirectional signals.

Represents directional signals.

Represents a security product, such as a firewall, UTM, multiservice security

gateway, or load balancing device.

Represents a security module, such as a firewall, load balancing, NetStream, SSL

VPN, IPS, or ACG module.

Examples provided in this document

Examples in this document might use devices that differ from your device in hardware model,

configuration, or software version. It is normal that the port numbers, sample output, screenshots,

and other information in the examples differ from what you have on your device.

Documentation feedback

You can e-mail your comments about product documentation to inf[email protected].

We appreciate your comments.

Contents

1 Preparing for installation··········································································1-1

Safety recommendations ································································································································1-1

General safety recommendations···········································································································1-1

Electricity safety······································································································································1-1

ESD prevention·······································································································································1-1

Laser safety·············································································································································1-2

Moving safety··········································································································································1-2

Examining the installation site·························································································································1-3

Weight support········································································································································1-3

Space······················································································································································1-3

Cooling····················································································································································1-5

Power supply···········································································································································1-5

Grounding ···············································································································································1-6

Temperature and humidity······················································································································1-6

Cleanliness··············································································································································1-7

Harmful gas limit ·····································································································································1-7

EMI··························································································································································1-8

Unpacking and inspecting the router ··············································································································1-8

Physical specifications····························································································································1-8

Unpacking the chassis····························································································································1-8

Unpacking and inspecting the components ··························································································1-11

Installation tools ····································································································································1-12

Pre-installation checklist································································································································1-13

1-1

1 Preparing for installation

Safety recommendations

To avoid bodily injury and damage to the router, read all safety recommendations including the

compliance and safety manual for the router carefully before installation. Note that the

recommendations do not cover every possible hazardous condition.

General safety recommendations

•

Keep the chassis clean and dust-free.

•

Do not place the router on a moist area, and avoid liquid flowing into the router.

•

Make sure the ground is dry and flat and anti-slip measures are in place.

•

Ensure good ventilation in the equipment room and keep the air inlet and outlet vents of the

router free of obstruction.

•

When servicing the device, do not wear loose clothing or any other things that could get caught

in the chassis and remove all metal jewelry such as watches, bracelets, and necklaces.

•

Use a screwdriver to fasten screws.

•

After completing the installation, move the empty packaging materials and installation tools

away from the router.

•

Keep the chassis and installation tools away from walk areas.

Electricity safety

•

Clear the work area of possible electricity hazards, such as ungrounded power extension

cables, missing safety grounds, and wet floors.

•

Locate the emergency power-off switch in the room before installation so you can quickly shut

power off when an electrical accident occurs.

•

Remove all external cables, including power cords, before moving the chassis.

•

Do not work alone when servicing the router with power present.

•

Never assume that power has been disconnected from a circuit. Always check.

ESD prevention

CAUTION:

Make sure t

he resistance reading between human body and the ground is in the range of 1 to 10

megohms (Mohms).

Preventing electrostatic discharge

To prevent electrostatic discharge (ESD) damage, follow these guidelines:

•

Ground the router reliably. For how to ground your router, see "Grounding the router."

•

Always wear an ESD wrist strap when installing removable components. Make sure the wrist

strap is reliably grounded.

•

Hold a module by its edges. Do not touch any electronic components or PCB.

1-2

•

Put a module in an antistatic bag and keep it secure if you are not to install it in the chassis.

Attaching an ESD wrist strap

1. Wear the wrist strap on your wrist.

2. Lock the wrist strap tight around your wrist to keep good contact with the skin.

3. Insert the ESD wrist strap into an ESD jack on the chassis.

The router has one ESD jack on both the front and rear panels.

4. Make sure the rack is reliably grounded.

Laser safety

WARNING

•

Disconnected optical fibers or transceiver modules might emit invisible laser light. Do not stare

into beams or view directly with optical instruments when the router is operating.

•

Before you remove the optical fiber connector from a fiber port, execute the shutdown

command in interface view to shut down the port.

CAUTION:

•

Insert dust caps into open optical fiber connectors to protect them from contamination and ESD

damage.

•

Insert dust plugs into open fiber ports and transceiver module ports to protect them from

contamination and ESD damage.

Moving safety

WARNING

Hold the chassis handles firmly to move the router.

CAUTION:

Do not hold

air vents of the chassis, the handle of a fan tray or power supply, or

an ejector lever of a

module to move the router. Doing so might cause equipment damage.

The router is heavy and large. When you move the router, follow these guidelines:

•

Remove all power supplies, modules, and external cables (including power cords) before

moving the chassis.

•

Moving the chassis requires a minimum of four people. As a best practice, use a mechanical lift

to move the chassis.

•

Lift and put down the chassis slowly and never move it suddenly.

•

Pay attention to the safety symbols on the package and handle the router accordingly. (The

symbols in Table1-1 are for illustration only. The symbols on your device packages might differ

from these ones.)

Table1-1 Packing symbols

Symbol Description

Do not stack the devices beyond the specified number (n)

1-3

Symbol Description

Place the device with the arrows up.

The device is fragile. Handle it with care.

Keep the device from humidity, rains, and wet floor.

Examining the installation site

The router must be used indoors. To ensure correct operation and long service life of your router,

make sure the installation site meets the following requirements.

Weight support

Make sure the floor or ground at the installation site can support the combined weight of the router

and the rack. The total weight of the router includes the chassis and its components (for example,

modules, fan trays, power supplies, and cables) and accessories. For the weights of the router and

its components, see "Weights and dimensions."

To mount the switch in a rack, select slide rails that can support the total weight of the router.

To assess the load-bearing requirements for the floor and slide rails, take potential system expansion

(for example, adding more modules) also in consideration.

Space

IMPORTANT:

•

The rack must have a front door (single door as a best practice) and a rear door.

•

For easy installation and maintenance, reserve a minimum clearance of 1200 mm (47.24 in)

between the rack and walls or other devices.

Table1-2 Router dimensions and rack requirements

Model Chassis dimensions Rack requirements

CR19000-8

•Height—843 mm (33.19 in)/19 RU

•Width—440 mm (17.32 in)

•Depth—745 mm (29.33 in)

650 mm (25.59 in) for the chassis

95 mm (3.74 in) from the

rack-mounting surface of the

mounting bracket to the cable

management bracket front end

•A minimum of 1000 m (39.37 in) in depth

(recommended).

•You can also use a rack with a depth of

800 mm (31.50 in) (with the door thickness

not exceeding 25 mm (0.98 in).

•A minimum of 100 mm (3.94 in) between

the front rack posts and the front door.

•A minimum of 650 mm (25.59 in) between

the front rack posts and the rear door.

1-4

Figure1-1 Chassis dimensions

Figure1-2 Rack requirements

Indice

Altri manuali H3C Router di rete

H3C

H3C CR16000-F Manuale utente

H3C

H3C CR16006-F Guida rapida

H3C

H3C CR16000-F Manuale di installazione

H3C

H3C MSR2600-6-X1-GL Manuale utente

H3C

H3C S9500 Series Manuale utente

H3C

H3C MSR 5600 Manuale utente

H3C

H3C SR6600 SPE-FWM Manuale utente

H3C

H3C SR8800 10G Manuale utente

H3C

H3C S9500 Series Manuale utente

H3C

H3C SR6608 Manuale operativo e di manutenzione

H3C

H3C S5500-HI Switch Series Manuale utente

H3C

H3C MSR 930 Manuale operativo e di manutenzione

H3C

H3C S3610 Series Istruzioni per l'installazione

H3C

H3C S3100-52P Manuale utente

H3C

H3C SR8800 IM-FW-II Manuale utente

H3C

H3C S5120-SI Series Manuale di installazione

H3C

H3C H3C S3600 Series Manuale utente

H3C

H3C S5500-SI Series Manuale utente

H3C

H3C S5830V2 series Manuale utente

H3C

H3C MSR810 Manuale di installazione

H3C

H3C S3100-52P Manuale utente

H3C

H3C RA200 Manuale utente

H3C

H3C MSR 20-20 Manuale utente

H3C

H3C SR6600 SPE-FWM Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
