Haier HBF130 Manuale utente

Please read this operation manual

carefully before operation.

Keep it properly for future reference.

For Domestic Use Only

*The manufacturer keeps on developing various types

of refrigerators, so he has the right to modify designs,

products and technical data without further notice.

CONTENT

OPERATING INSTRUCTIONS OF

REFRIGERATOR

MODEL: HBF130

HBF130S

Name of Each Part

Adjusting

Setting up

Operation Instruction

Left/Right - opened door

Reparing

4-6

○○○○○○○○○

○○○○○○○○○○○○○○

○○○○○○○○○○○○○

○○○○○○○

○○○○○○

○○○○○○○○○○○○○

Main Technical Data

○○○○○○○○

(1) Evaporator door

(2) Ice-tray

(3) Evaporator

(4) Drip tray

(5) Shelf

(6) Vegetable box

(7) Bottle rack

(8) Knob of thermostat

Name of each part

.1.

(1)

(2)

(3)

(4)

(5)

(6)

(8)

(7)

Adjusting

If the floor is uneven please adjust the adjustable screws at the

front of the refrigerator by using the spanner to level the

refrigerator. (the spanner is included in the bag).

.2.

Adjusting

WARNING:

If the supply cord is damaged, it must be replaced by the manufacturer, or

authorised service agent or similar qualified person in order to avoid a hazard.

The plug should be accessible after the appliance is positioned.

WARNING:

The appliance is not intended for use by young children or infirm persons with-

out supervision.

WARNING:

Young children should be supervised to ensure that they do not play with the

appliance.

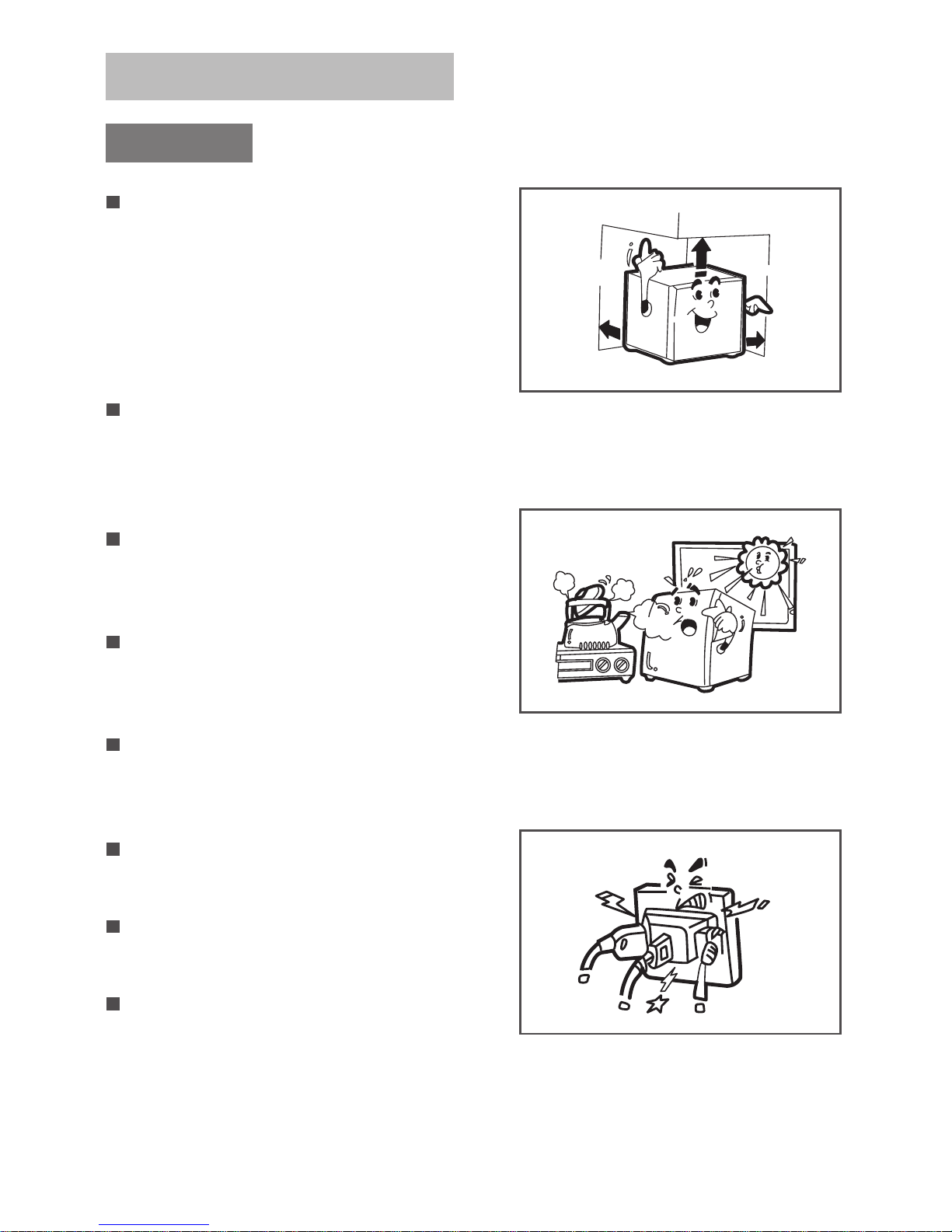

The appliance can’t be placed with its

rear panel directly against the wall.For

good air circulation, the vent grille at the

back of the worktop must not be blocked.

It should be placed on flat and firm

ground lest it gives off higher noise than

usual.

Poorly ventilated rooms are unsuitable.

Avoid positioning the appliance in direct

sunlight or exposing to similar sources

of heat.

Never store anything dangerous in the

appliance,such

combustibles,

exposives, strong acid and alkali.etc.

The appliance is not intended for use by

young children or infirm persons with-

out supervision.

Young children should be supervised to

ensure that they do not play with the

appliance.

The power supply for appliance is

240V~,50Hz single phase.

It is not recommended to use extention

cords.

Connect the appliance with a properly

earthed three-wire plug and socket.

Setting up

.3.

Setting up

>10cm

>2cm

.4.

Operating Instruction

Thermostat

The knob graduation 0, 1, 2, 3, 4, 5, 6, 7,

does not stand for concrete temperature.

The smaller the numbers, the higher the

temperature in the compartment and vice

versa. Usually, it’s better to put the ther-

mostat in Pos. “1”, Pos. “4”, Pos. “0”

shows the power is cut off.

Storing food

The temperature varies within the refrig-

erator are different due to different re-

frigeration distribution. Thus when you

store food, select the best position to

meet your needs.

The coldest position is 1. Temperature

from low to high in order as 2,3,4,5,6,7.

Ice-making

When making ice, add water to the ice

tray until 4/5 full with the grid in it and

place it on the bottom of the ice chamber.

Twist the tray or place it briefly in warm

water to remove the ice cubes.

NOTE

Do not use a knife and the like when re-

moving the ice tray.

Operating Instructions

Notes on storage

Where necessary, food should be packed

in bags, to avoid giving off strong odours

or getting wet or dry.

not

store food too full in the

appliance.Allow space among the pack-

ages of food for perfect refrigerating.

Hot food or liqiud must be cooled to

room temperature before placing in

refrigerator.

.5.

Cleaning

The appliance can only be cleaned when

the net-work plug is removed. Clean it

with luke-warm water containing a little

detergent. In any case do not use hot

water, corrosive scouring agent or any-

thing rough.

NOTE

Do not use anything rough for cleaning.

Put the

plug out.

Operating Instructions

.6.

When defrosting, switch off the

appliance. Remove food from the ice

chamber, it

will

defrosted

automatically. When the defrosting pro-

cess has been compeleted, the drip-tray

should be depleted. Replace the food and

switch on the appliance.

Defrosting

If the appliance remains out of use for

some time, pull out the plug to discon-

nect the appliance from the power

supply. Clean the interior as described

above to prevent odours from forming

inside.

The appliance door should be opened as

little and briefly as possible to reduce

energy consumption.

In the event of a power failure, try to keep

the appliance closed to maintain the re-

frigeration as long as possible.

Note

4~6mm

Left/Right-opened door

.7.

This product is assembled according to the right-opened door

configuration. The right hinge together with its mount is fixed on the

right side of the door body. Take out the door handle from the acces-

sory parts and fix it on the left side of the door body. The two holes on

the right side of the door body shall be stuffed with the handle hole

stoppers, as an item of accessory parts.

In case the left-opened door configuration is required, this can be

achieved by using accessory parts.

Remove the right hinge, hinge mount and the lower hinge from the

door body.

Put stoppers in the holes that occur.

Install the left hinge and hinge mount (two items of accessory parts)

onto the corresponding location at the left upper corner of the refrig-

erator body with screws removed from the right hinge.

Dismantle the shaft from the lower hinge, put it into the hole on the left

side and fasten it securely.

Install the door body with the refitted lower hinge and put the lower

hinge adjusting pad in place.

Install the door handle on the right side of the door body with screws

through two holes and fasten them securely.

Stuff the two holes on the left side of the door body with handle hole

stoppers.

.8.

Repairing

In the event of a fault occurring during operation, check

first if the fault is due to an operation error. You can

repair the following faults yourself.

The appliance does

not run.

The temperature in-

side the appliance is

not low enough.

Excessive noise from

the appliance.

1. It is not switched on properly, or the mains plug

is not properly inserted in the socket.

2. The thermostat knob is turned to position “0”.

3. Supply voltage is too low.

1. The appliance is too full of food.

The appliance is located too close to a source of heat.

3. The door is not properly closed or is opened too

frequently.

4. The vent grille is covered over.

The appliance is not standing securely on the ground.

If it is none of these circumstances and you are not able to

repair the fault, please contact a authorised service agent.

.9.

Main technical data

MODEL

CAPACITY

VOLT

WATT

REFRIGERANT

OVERALL DIMENSION (DxWxH)

ANTI-SHOCK SAFETY CLASSIFICATION

HBF130

117L

240V~,50Hz

125W

R134a 61g

550x500x865mm

HBF130S

117L

240V~,50Hz

125W

R134a 61g

550x500x865mm
