REFRIGERATORS

OPERATING

INSTRUCTIONS

The manufacturer keeps on developing various

types of refrigerators, so he has the right to modify

designs, products and technical data without further

notice.

MODEL HR-180T1

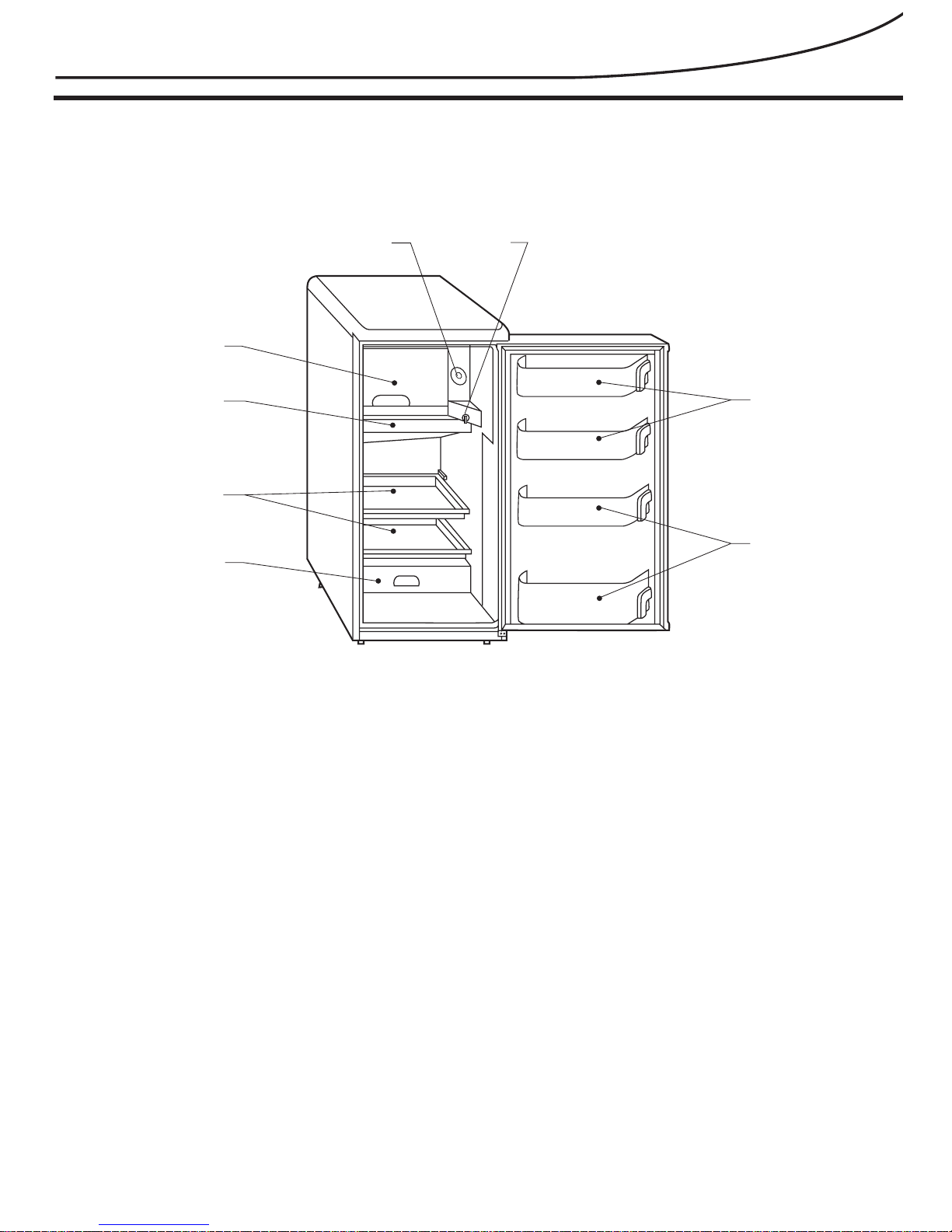

FIGURATION OF THE REFRIGERATOR

The manufacturer reserves the right to improve the

product from time to time without further notice.

1. Low bottle support

3. Vegetable box

5. Drip tray

7. Thermostat

2. High bottle support

4. Shelf

6. Evaporator

8. Light Switch

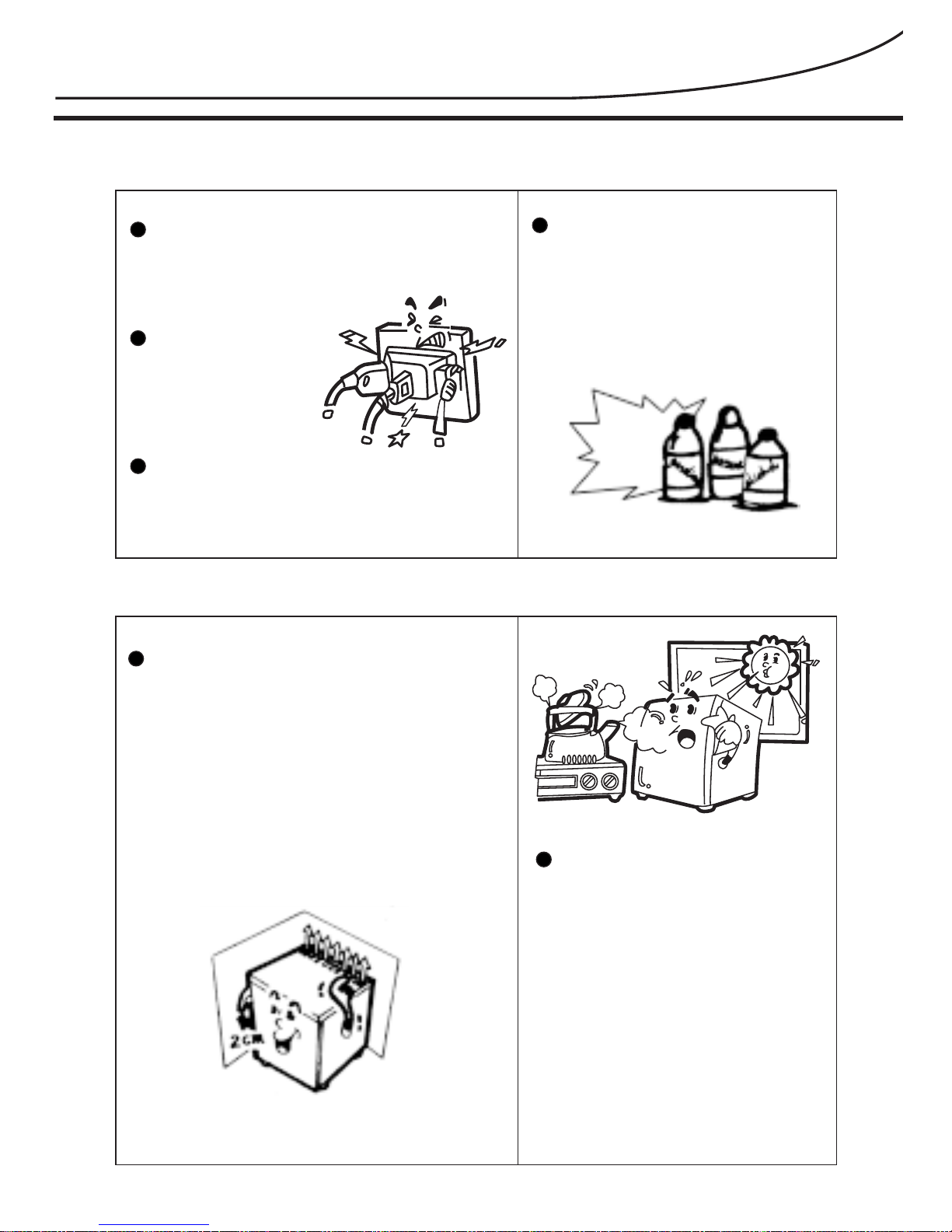

NOTICE

The power supply

HR-180T1 127v,60HZ

HR-180T2 220V, 50/60Hz

Single phase.

It is not

recomended

to use any

extention cords.

Connect the appliance

with a properly earthed three-wire

plug and socket with a special use.

Never store anything dangerous

in the appliance, such as

combustibles, exposives,

strong acid and alkali. etc.

SETTING UP

The appliance can be placed with its

rear panel directly against the wall.

For a good air circulation, the vent

grille at the back of the worktop must

not be blocked, It should be placed on

flat and firm ground lest it gives off

higher noise than usual. Poorly ventilated rooms

are unsuitable. Avoid

positioning the appliance

in direct sunshine or

exposed to similar

sources of heat.

THERMOSTAT

The knob graduation 0, 1, 2, 3, 4, 5, 6, 7,

does not stand for concrete temperature.The smaller

the numbers,the higher the temperature in the

compartment and vice versa.Usually,it’s better to

put the thermostat in Pos. “1”,Pos. “4”.Pos. “0”

shows the power is cut off.

STORING FOOD

The temperatures in different positions inside

the refrigerator are different due to different

refrigeration distribution.Thus when store

food, select proper position to meet your

needs.

The coldest position áë , Temperature

from low to high in order as  !K

ICE-MAKING

When making ice,add water to the ice tray

until 4/5 full with the grid in it and place it

on the bottom of the ice chamber. Twist the

tray or place it briefly in warm water to

remove the ice cubes.

NOTE

Do not use a knife and the like when

removing the ice tray.

NOTES ON STORAGE

Where necessary, food should be

packed in bags, avoiding giving

off strong odours or getting wet

or dry.

Do not store food too full in

the appliance. Allow space among

the packages of food for a

perfect refrigerating.

Hot food or liquid must be allowed

to cool to room temperature

before placing in it.

CLEANING

The appliance can only be cleaned at drawn network plug. Clean it

with lukewarm water containing a little detergent. In any case do

not use hot water,corrosive scouring agent and anything rough.

NOTE

Do not use anything rough

for cleaning.

Pull the

plug out

DEFROSTING

When defrosting, switch off

the appliance. Remove food from

the ice chamber,it will be

defrosted automatically.When

defrosting process has been

completed, the drip-tray should

be depleted. Replace the food

and switch on the appliance.

NOTES

If the appliance

remains out of

use for some time,

pull out the plug

to disconnect the

appliance from

power supply.

Clean the interior

as described

above to prevent

odours from

forming inside.

In the event of power

failure,try to keep

the appliance closed

to maintain the

refrigeration as long

as possible.

The appliance door

should be opened as

little and briefly

as possible to reduce

energy consumption

4~6mm

In the event of a fault occurring during operation, check first if the

fault is due to an operation error. You can repair the following faults

yourself.

The appliance does

not run.

1. It is not switched on properly,

or mains plug properly inserted

in the socket.

2. The thermostat knob is turned to

position “0”.

3. Supply voltage is too low.

The temperature inside

the appliance is not

low enough.

1. The appliance is too full of food.

2. The appliance is located too near

a source of heat.

3. The door is not properly closed or

is opened too frequently.

4. The vent grille is covered over.

Excessive noise

from the appliance. The appliance is not standing

securely on the ground.

If none of these circumstances applies and you are not able to

repair the fault, please Contact the service point.

LAMPAND LAMP REPLACEMENT

ELECTRICAL DIAGRAM

Plug

Lamp

Switch

Thermostat

Starter

(PTC)

Compressor

Overload

Protector

Lamp: HR-180T1 127V,15W. HR-180T2 220V, 15W

Lamp holder: E14 (lamps exceeding 15W must not be used)

When replacing the lamp:

* Unplug to disconnect the power and remove the water tray.

Light Shade

* Press the positioning pin of the lamp

with left hand, and release the shade

from the lamp holder by sliding it

to the right side. Turn the lamp anti-

clockwise for removing.

* Replace the water tray.
