CONTENTS
1. KNOW YOUR REFRIGERATOR..........................................................................1
2. SAFETY SIGN & PRECAUTION .........................................................................3
3. PRODUCT INSTALLATION GUIDELINES.........................................................4
4. TEMPERATURE SETTING GUIDE......................................................................5
5. DEFROSTING.........................................................................................................5
6. FOOD STORAGE GUIDELINES...........................................................................5
7. CLEANING .............................................................................................................6
8. GENERAL SUGGESTIONS ..................................................................................7
9. FACTS......................................................................................................................7
10. TROUBLE SHOOTING BY YOURSELF .............................................................8
11. E-WASTE GUIDELINE MANUAL.......................................................................9
12. WARRANTY CARD
1. KNOW YOUR REFRIGERATOR
Refrigerator capacity Series :170L,181L,190L
Refrigerator E-commerce capacity Series :168L,179L,188L
Refrigerator capacity Series :195L,220L
Refrigerator E-commerce capacity Series :193L,218L
Freezer Box
Chiller Tray
Cabinet
Shelves
Fruit Box
Vegetable
Box
Base Stand
Temperature Control Knob
Door Rack
Top
Utility Rack
Half Rack
Lock
Door Rack
Big
Door Rack
Bottom
Cool Pack
Table Top
VC Fresh
Due to continuos improvements in our Products, specifications shown here are
subject to change without prior notice.
* Available in selected models only.
Drain Funnel
Freezer Box
Chiller Tray
Cabinet
Shelves
Veg. Box
Cover
Vegetable
Box
Adjustable Leg
Temperature Control Knob
Door Rack
Top Small
Lock
Sliding Tray
Door Rack
Middle Big
VC Fresh
Door Rack
Bottom Big
Drain Funnel
1
1. KNOW YOUR REFRIGERATOR
Refrigerator capacity Series :171L,182L,192L
Due to continuos improvements in our Products, specifications shown here are
subject to change without prior notice.
* Available in selected models only.
2
Freezer Box
Chiller Tray
Cabinet
Shelves
Veg. Box
Cover
Vegetable
Box
Adjustable Leg
Temperature Control Knob
Door Rack
Top Small
Lock
Door Rack
Middle Big
Door Rack
Bottom Big
Drain Funnel
Instructions with this sign is prohibited, it may cause damage to the
product or personal safety of the user.
Prohibition
Instructions with this sign is related to safe use of the product and
personal safety of the user. Operational rules should be strictly
followed, or it may cause damage to the product or to personal
safety of the user.
Warning
Attention
Instructions with this sign should be well attended by the user. Any
misuse or ignorance may hurt or seriously injure the user.
Note
Provides information that is not indispensable, but may be valuable
to the reader, such as tips and tricks.

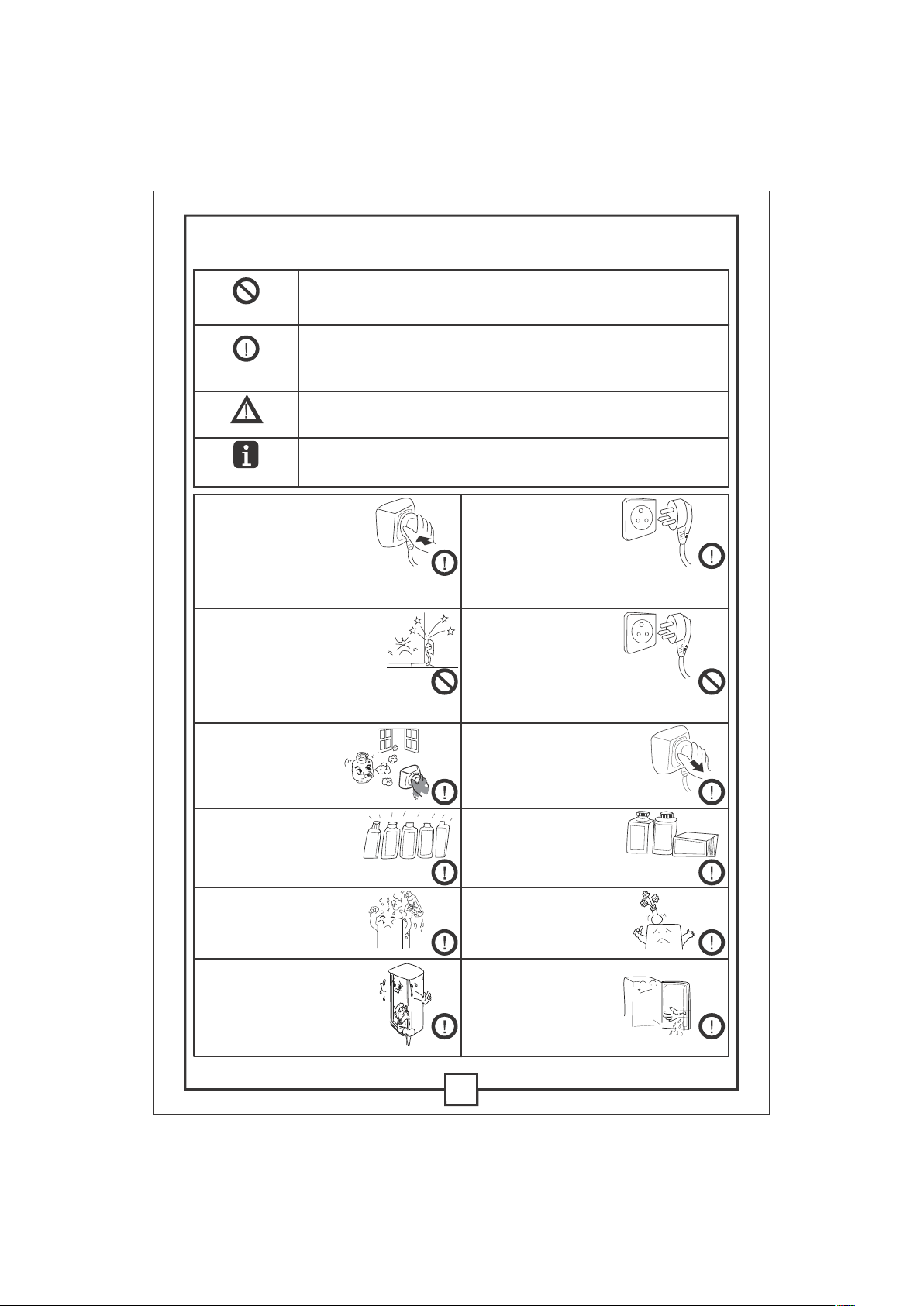

2. SAFETY SIGN & PRECAUTIONS
Don't disconnect the power plug
by pulling cord, instead hold
on the plug firmly and pull
out from the socket. Don't
step on the power cord. Don't allow
power cord be pressed by heavy objects.
Don't touch the power cord with wet hands.
Don't use damaged
power cord or plug.
In case of gas leakage,
don't touch the power
outlet and ventilate the
room immediately.
Disconnect the power plug
before cleaning or repairing.
(repairing to be done by
authorized repair personnel
only)
The power cord is designed
with three wire plug to suit
three pin sockets only,
don’t discard the third wire plug to
insert in two pin sockets. Also make
sure of grounding, improper grounding
may cause breakdown or electric shock.
The fridge runs at 230V/50Hz.
Abnormal voltage
fluctuations may cause the
fridge unable to start or burning
of control panel, compressor or
abnormal noise from compressor, in such
case it is advisable to use voltage stabilizer.
Do not use or store
inflammable, explosives,
corrosive, alkali materials
near or in the fridge.
Do not use this fridge for
non-domestic purpose
medicines or chemicals.
Do not use combustible spray
near fridge to prevent fire.
Do not keep any other electric
appliances or heavy, unstable
objects or liquid containers
on top of the fridge.
Do not cling or hold on tightly to
the door or its shelves to avoid
any damage. Especially refrain
children from doing the same.
Do not touch freezer interior
and ice box with wet hands
to avoid frostbite.
3
Use handle to open and
close the door. Don't allow
children to play with
the door.
Do not place fridge in
wet or humid area where
water or rain drops can
splash on the fridge.
Disassembling, repairing or
any alterations to the fridge
should be done by
authorized repair
personnel only.
Do not put bottled liquid in the
freezer section, it may freeze the
contents and cause frost-cracking.
Close bottle caps tightly if storing
horizontally, to avoid leakage that
may cause ice formation/sweating
issues.
2. SAFETY SIGN & PRECAUTIONS
When you disconnect the power
cord for cleaning or
repairing purpose, reconnect
it after at least 5 minutes to avoid
compressor damage due to quick
transition between ON/OFF states.
Do not touch the compressor while
appliances is in operation.
You may get burn.
3. PRODUCT INSTALLATION GUIDELINES
1) Unpack your refrigerator in the presence of dealer or company personnel and check for
transit damage before installing the refrigerator. In case of damage, inform your dealer
immediately and don't install the unit.
2) If there is no transit damage, remove all the packing material and adhesive tapes from
exterior and interior of the refrigerator.
3) Read user guide manual carefully.
4) Choose appropriate location for your refrigerator that must be away from direct heat
sources and not in environment having temperature <10°C, maintain at least 20cm
distance from all the sides for well ventilation.
5) Level the refrigerator so that it rests firm on the floor, to do so, there are two adjustable
legs one at each front corner. Turn to the left to raise a corner and to the right to lower the
corner.
If you want refrigerator door to close when not held open, adjust front legs in such a way
that front refrigerator side is raised. If you want refrigerator door to remain motionless
when held open, adjust front legs in such a way that all four corners are leveled with each
other.
6) Gently wipe off interior and exterior of the refrigerator with soft cloth and mild detergent,
leave the doors open for a while to let it dry completely and to get rid of plastic smell,
however this smell will go away when refrigerator is cooled sufficiently.
7) Refrigerator could have been tilted during transport/handling, keep it standing for minimum
2 hours before switching it ON to ensure compressor gas stabilization.
8) Tear off transparent film cover from the refrigerator’s cabinet body and don't use any
external cover to protect the exterior of refrigerator, this is to ensure proper heat
dissipation for efficient cooling.
9) Switch ON refrigerator and let it cool sufficiently for 3-4 hours before loading food.
Install the fridge where the temperature is 10°C to 43°C. If your refrigerator is
installed in too low or high temperature, the internal cooling system may not work
properly.
4
MAKING ICE CUBES
1. Fill the ice cube tray with fresh water, being careful not to exceed the water level mark.
2. Place the filled ice cube trays in the freezer.
3. After ice has formed, slightly twist the tray with both hands
to release ice cubes.
4. For faster ice cube formation, use pre-cooled water or
leave behind a couple of ice cubes in the tray.

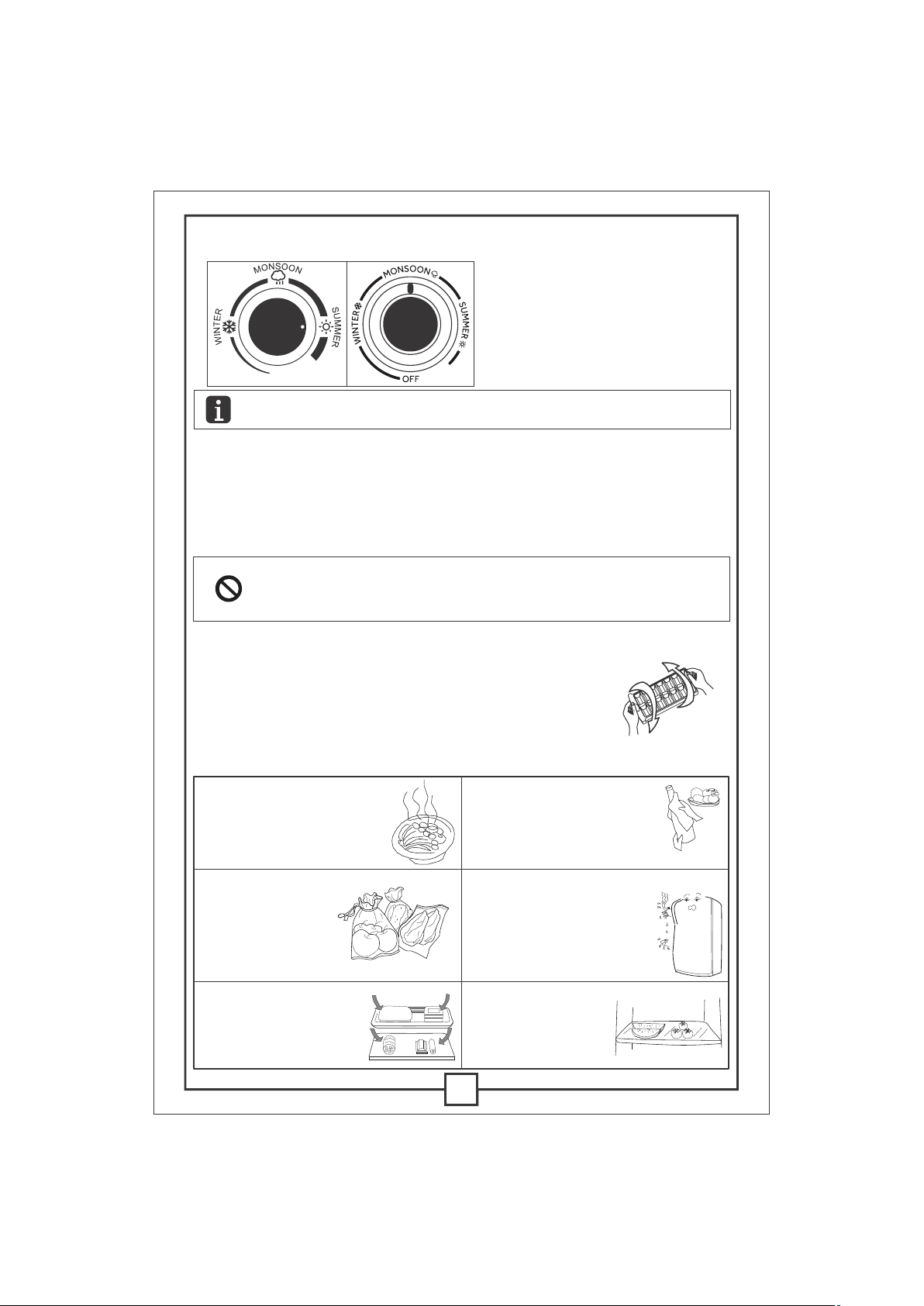

4. TEMPERATURE SETTING GUIDE
5. DEFROSTING
● Your refrigerator needs to be defrosted whenever excess ice forms around the
freezer or if the Defrost Indicator in the freezer gets covered by ice. For best results,
we recommend you defrost at least once in 3 days.
● To defrost, simply press the Defrost Button in the center of the Temperature Control
Knob. The ice will melt and the water will automatically evaporate from the
Evaporation Tray.
Temperature inside refrigerator can
be set by control knob.
Summer is for maximum cooling.
Winter is for minimum cooling.
OFF
1. Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
2. Don't use sharp objects like knife/scissor/blade/cutter etc to remove accumulated
ice from freezer, it can cause damage to the freezer.
Do not keep hot food in fridge,
bring it down to room
temperature before
storing it in. This will help to
reduce power consumption.
Food should be covered up with bags or
other type of containers,
this will help food to
retain its taste and
nutrients for longer
time. Prefer separate
bags / containers for different items.
Do not store food items very close to
each other, keep some
distance between them
for cool air circulation.
Wipe off excessive moisture
gathered on food or containers
or bags, this will lead to retain
food's freshness for longer time.
Try to reduce door opening frequency
and do not keep door open
for longer time.
Avoid placing high moisture contained
food items close to the
fridge walls, rather place
them near to the door to
avoid being frozen.

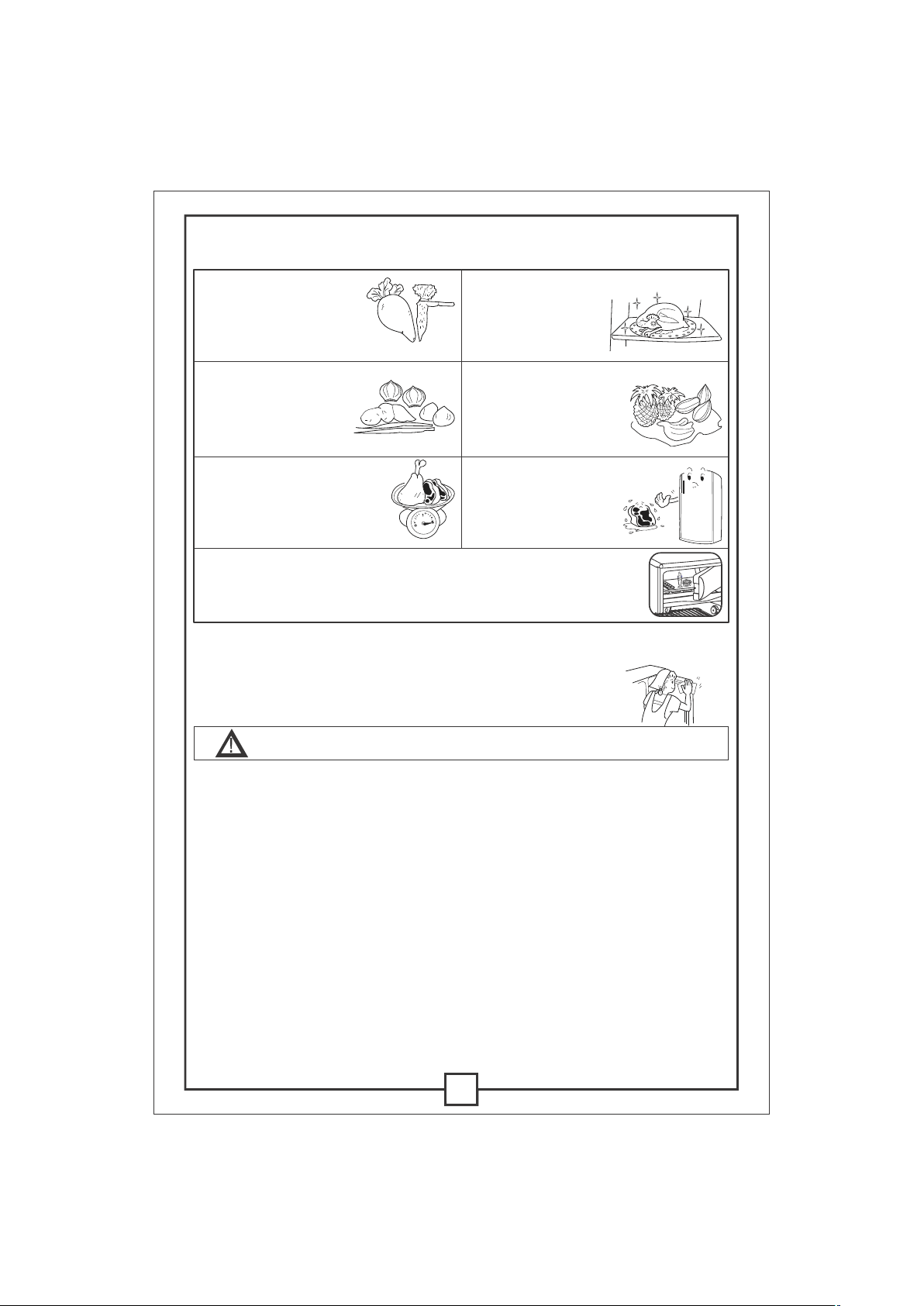

6. FOOD STORAGE GUIDELINES
Once you change temperature settings it needs some time to be stable, this time depends
on ambient temperature, door open frequency and temperature of food kept inside.
5
It is recommended to store root
vegetables (ex. Carrot,
Beetroot) without
their leaves to avoid
water dripping from
their leaves.
When keeping frozen food for thawing,
keep refrigerator
compartment
temperature lower to
save energy.
Food items such as onions, ginger, garlic
can remain fresh for
longer time even at room
temperature. No need
to refrigerate them.
Food items such as banana, pineapple,
papaya, and muskmelon
can turn bad easily if
stored at low temperature.
Avoid refrigerating them for
long time.
While storing large sized food
items, make smaller portions
to freeze it quickly.
Once frozen food is melted prefer
to cook them immediately to
ensure its quality. Do not
choose to freeze
them again.
Do not use covered glass containers for making or storing ice / ice creams.
6. FOOD STORAGE GUIDELINES
1. Disconnect the power cord.
2. In case you want to move the fridge for cleaning, know that it is heavy, make sure you
take necessary precautions to protect the floor when moving the fridge. Keep it up right
when moving.
3. Do not use hard brush or harsh cleanser or hot water or acid to clean the fridge. It is
recommended to use carbonated solution (4L water with a tablespoon of baking soda) to
clean exterior of fridge and use mild soap solution or mild detergent solution to clean
interior parts of the fridge.
4. To remove door utility racks while cleaning, hold it firmly from both the sides and
pull in upward direction. After cleaning place them in exact reverse manner.
5. Do not use extreme hot water to clean cold glass shelves to avoid great temperature
difference that may lead to glass burst.
6. Gaskets are easy to become dirty, clean it at least twice a year, wash it with mild
detergent solution using soft cloth.
7. Wipe interior and exterior parts with soft, clean, dry cloth.
8. Please clean the drain tray frequently as water & dust tend to accumulate in it, you can
use a dry piece of cloth to absorb accumulated water and avoid water spillage on the floor.
9. To avoid blockage in drain funnel with foreign particles, clean the funnel and chiller tray
regularly, don't use sharp objects to clean.
Food residue within the fridge will cause unpleasant odour,
to overcome this, regular cleaning is recommended.
For safety purpose, disconnect the power cord before cleaning.
7. CLEANING
6
8. GENERAL SUGGESTIONS
1. During power-off
Even during power off, food can remain well for several hours,
to ensure this try-
a) To keep door opening frequency as minimum as possible.
b) To put ice cubes container at the top side of refrigerator
compartment.
2. During disuse
If fridge is not in use for long time-
a) Disconnect the power cord.
b) Clean interior properly.
c) Keep each door open to avoid odour formation.
It is better to not opt for disusing the fridge to avoid shortening of its service life.
3. During Holidays
a) During moderate length holidays, leaving fridge in normal operation is preferable.
b) During long holiday period, it is recommended to take out all food items,
disconnect the power, clean interior properly and leave each door open to
prevent adour formation.
c) To operate again after holidays, keep fridge running for 3-4 hours before
storing food.
4. During Shifting
a) Disconnect the power supply.
b) Take out all the food items.
c) Fasten all shelves and boxes of both the compartments with the help of adhesive tape.
d) Fasten each door with the help of adhesive tape or lock the doors.
e) For safety reasons it is recommended that two people should
carry the fridge and inclination angle shouldn't be more than 45˚.
f) Do not move fridge by holding it’s handles.
Prohibited: Never keep the fridge flat parallel to the ground.
7
9. FACTS
During summer, increase in
power consumption is normal
due to increase in amount
of food storage, door
opening frequency and
ambient temperature.
Condensing pipe is situated at sides, back &
top of Refrigerator internally, it is used to
extract heat from the interior to outside air
due to which exterior surface may get hot
however it is totally normal condition & does
not affect performance of the product.
Water drops may appear
on the exterior of the
fridge when air humidity
is high specially in
monsoon season and
in coastal cities.
When compressor starts or shuts off, relay
may create some switching noise.
Also evaporator pipe may create noise during
temperature changes.
Indice
Altri manuali Haier Frigorifero
Haier
Haier PBFS21EDAP/S/E Manuale utente
Haier
Haier HRQ16N3BGS Manuale utente
Haier
Haier HSE01WNA Manuale utente
Haier
Haier HRF-222AA Manuale utente
Haier
Haier HRF-688FF Manuale utente
Haier
Haier HBF130 Manuale utente
Haier
Haier HC17SF15R Manuale utente
Haier
Haier HR-907C Manuale utente
Haier
Haier HCR17BG Manuale utente
Haier
Haier HRF-661FF/ASS Manuale utente
Haier
Haier HSSR-4D1 Manuale utente
Haier
Haier RF-8888-193 Manuale utente
Haier
Haier HRF08WND Manuale utente
Haier
Haier HSE03WNA Manuale utente
Haier
Haier JR-130A Manuale utente
Haier
Haier HMD440X Manuale utente
Haier
Haier HRF-522IS6 Manuale utente
Haier
Haier HBR-1301AA Manuale utente
Haier
Haier HBM315WH1 Manuale utente
Haier
Haier HB21TNN Manuale utente
