Haier HRF-288K Series Manuale utente

Operation Manual

HRF-288K/318K/348K

Household Refrigerator

Serial Number:0060506138

·Please read this operation manual

carefully before using the appliance.

·Keep this manual in a safe place.

·Appearance, color and layout of the door according to the prodct.

Table of ContentsTable of Contents

Table of Contents

Before using the appliance

Primary features----------------- Inside front cover

Diagram of parts -------------------------------------1

Safety precautions--------------------------------2~4

Location-------------------------------------------------5

Preparation---------------------------------------------6

Operation------------------------------------------------7

Functions-------------------------------------------8~12

Instructions for refrigerating storage

Refrigerating storage compartment--------------13

Refrigerating storage precautions----------------14

Suggestions-------------------------------------------15

Instructions for freezer zone 1

Freezor zone 1 compartment---------------------16

Instructions for freezer zone 2

Freezing storage compartment-------------------17

Freezing storage precautions---------------------18

Defrosting, cleaning and vacation

Defrosting---------------------------------------------19

Cleaning------------------------------------------------20

Vacation-------------------------------------------21~22

Question answering and Troubleshooting

Question answering---------------------------23~24

Troubleshooting------------------------------25~26

Primary features

①Four temperature zones

Four temperature zones for satisfaction of varied storage needs.

②Chiller zone

Unique refrigeration technology for -2oC~+3oC storage condition suitable to

preserve fresh food nutrition.

③Freezer zone 1

Defrosting is not required before service for the food stored in the -7oC freezer

zone.

④Fuzzy operation mode

If this mode is set, the appliance will adjust inside temperature automatically

according to ambient temperature to optimize the storage condition.

⑤Over-temp alarm

Enabling the user to identify abnormal performance of the appliance.

Diagram of parts

Dear customer:

Thank you for your purchasing Haier product.

Please read this manual carefully before using the electrical appliance that you have just

purchased.

①

②

④

⑤

⑥

⑦

③

⑧

⑨

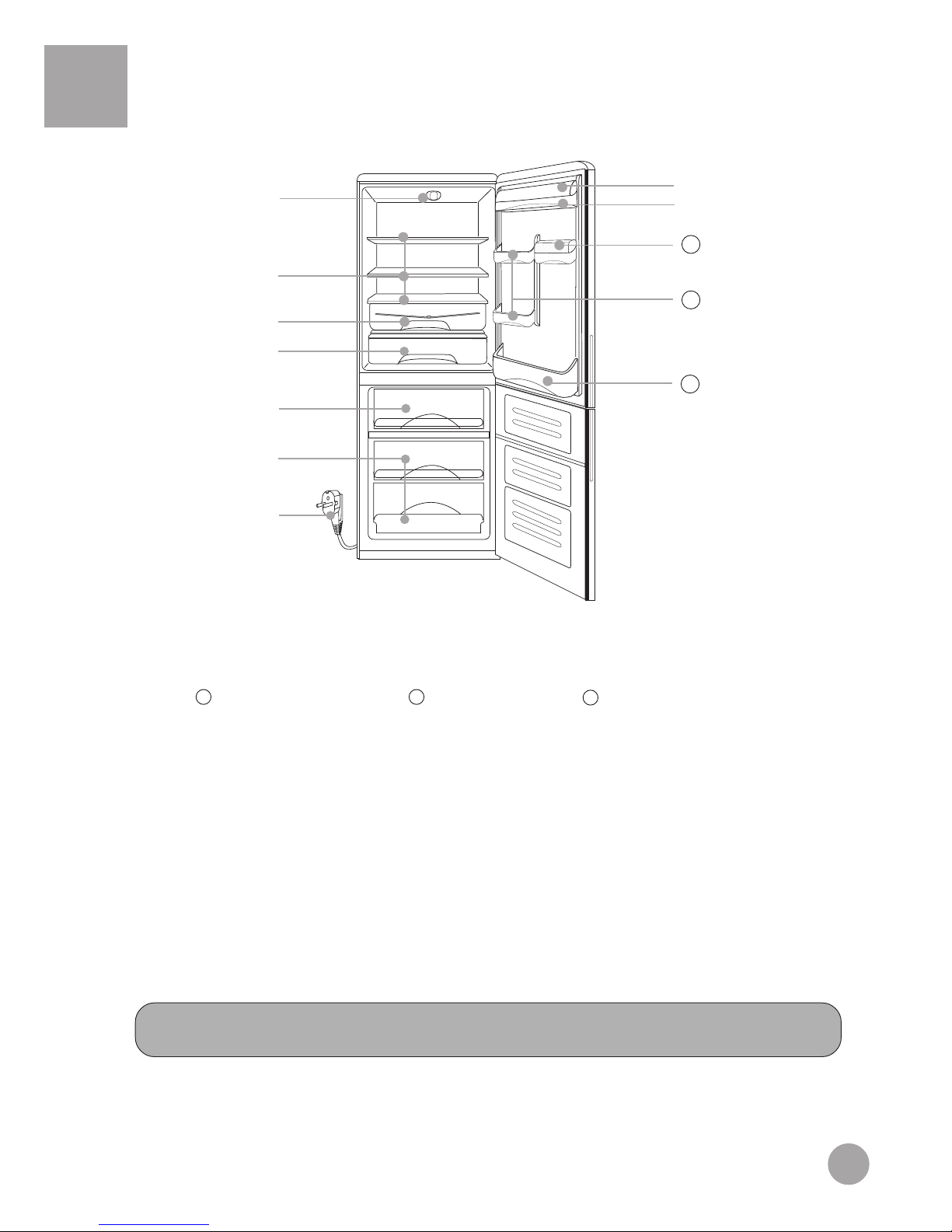

① Light ② Shelves ③ Crisper ④ Chiller zone (-2oC~+3oC zone)

⑤Freezer zone 1 (-7oC) ⑥ Freezer zone 2 (-16oC~-26oC) ⑦ Plug

⑧Low bottle holder cover ⑨ Low bottle holder

Small bottle holder cover Small bottle holder High bottle holder

10 11 12

Due to product moditication, your purchased Haier refrigerator may have some

difference with which shown in the manual. We apologize here.

Safety precautions

Inflammable gas leakage in the vicinity of the refrigerator

●Turn off any leaking valve.

●Open the doors and windows.

●Do not, under any circumstances, unplug electrical

appliances in the vicinity of the leak.

This refrigerator requires a 220V/50Hz power supply.

Care for external cable

● Hold the plug, not the electric cable, when unplugging

the refrigerator.

● Ensure that the electric cable is not trapped by the

refrigerator. Do not step on the cable.

● Avoid damage to the electric cable when moving the

refrigerator.

Damaged electric cable

When the electrical cable is damaged or worn, turn off

the refrigerator and consult to an authorized service agent

for replacement.

Unplug the refrigerator for the following:

● Cleaning or maintenance.

● Replacement of lamp.

It is required to use seporate dedicated outlet with

securely grounding.

220V〜

50Hz

Safety precautions

Do not swing on or apply excessive pressure to the

refrigerator door.

Never store inflammable, explosive or corrosive materials

in the refrigerator.

Do not install the refrigerator near gasoline or other

inflammable articles..

Don't place electrical plugs, regulators or microwaves on

top of the refrigerator. Don't use electric appliances inside

the refrigerator.

Don't place heavy or unstable articles or water containers

on top of the refrigerator.

This refrigerator should be used for food storage. It is

not recommended to place microbiological or chemical

materials, which have special requirement in temperature

setting.

Mousse

Spray

Gas

Acid

Alkali

Bacterin

Vaccine

Chemical

Agent

Safety precautions

Do not spray or splash the refrigerator when cleaning the

refrigerator, nor place the refrigerator in a damp area.

Disassembly, renovation or cooling system maintenance

of refrigerator must be authorized.

Never store bottled beer or beverages in the freezer

compartment.

Unplug the refrigerator in the event of a power interruption

or during cleaning. Allow at least 5 minutes lapse before

restarting the refrigerator.

Remove the refrigerator door and door gasket if the

refrigerator is discarded to prevent accidental entering a

child in the refrigerator.

Avoid prolonged contact with the surface in the freezer

compartment when the refrigerator is operational,

especially with wet hands. Hands may freeze onto the

surface of the frozen parts.

Never place the refrigerator near to a water source.

Clean and dry any water splashes and stains with soft

cloth.

The refrigerator should be placed in a well-ventilated

area, and a space of 10cm or more should be allowed

around the refrigerator.

The refrigerator shall be placed away from heat sources

or direct sunlight.

Location

Space

Min. 10cm

The refrigerator should be placed on a flat and solid surface. If the refrigerator is to be leveled, a flat, strong and fire-

resistant material must be used. The front foot of the refrigerator can be adjusted clockwise or anti-clockwise to lift or

lower the refrigerator if it is placed on an uneven surface.

Never place the refrigerator in an area with an ambient

temperature below 5°C. Never operate the refrigerator

outdoors or in rain.

Clockwise Anti-clockwise

Adjustable Foot

Preparation

Unpacking

Remove all packing materials.

Check attached accessories and

materials.

Check if all accessories specified in the

Packing List are available. Contact the local

distributor if shortage is found.

Ensure that the refrigerator

is properly located.

(See section "Location")

Time lapse before power

supply

Connect the refrigerator to power source

at least 30 minutes after the refrigerator

is sited and cleaned.

Clean the refrigerator before

using.

(See section "Cleaning")

①

②

③

⑤

④

Some time will be required for the refrigerator to reach the set point when the

temperature is adjusted. The length of this period is determined by difference in

the existing and set temperatures, the ambient temperature, the frequency with

which the door is opened and closed and the amount of food in storage.

Caution

Operation

Connection to power supply

When the appliance is first connected to power supply, the fuzzy operation mode

is set automatically, the super freezing icon is not displayed, super freezing mode

cannot be set, the lock-on icon is not displayed and the lock-on mode is not

activated. However the over-temp alarm icon is displayed.

①

Loading the refrigerator with

food

Load the refrigerator with food when the set

temperature of the refrigerator compartments

is reached and the over-temp alarm icon

extinguishes..

③

Either of the following operation modes can be selected.

(1) Fuzzy operation mode: If there is no requirement for a specific operation setting,

the fuzzy operation mode is recommended. Hold the Fuzzy Operation Mode button

pressed for 3 seconds after the lock-off mode is set, the mode will be activated

with the icon displayed. (See section "Functions")

(2) Manual adjustment mode: Press the temperature setting button to set the

temperature when the lock-off mode is set. (See section "Functions")

Setting of operation mode

②

Regardless of irrespective fluctuations in ambient temperature,

selection of the Fuzzy Operation Mode will guarantee the most

efficient and energy-saving operation of the refrigerator.

Suggestion

！

Functions

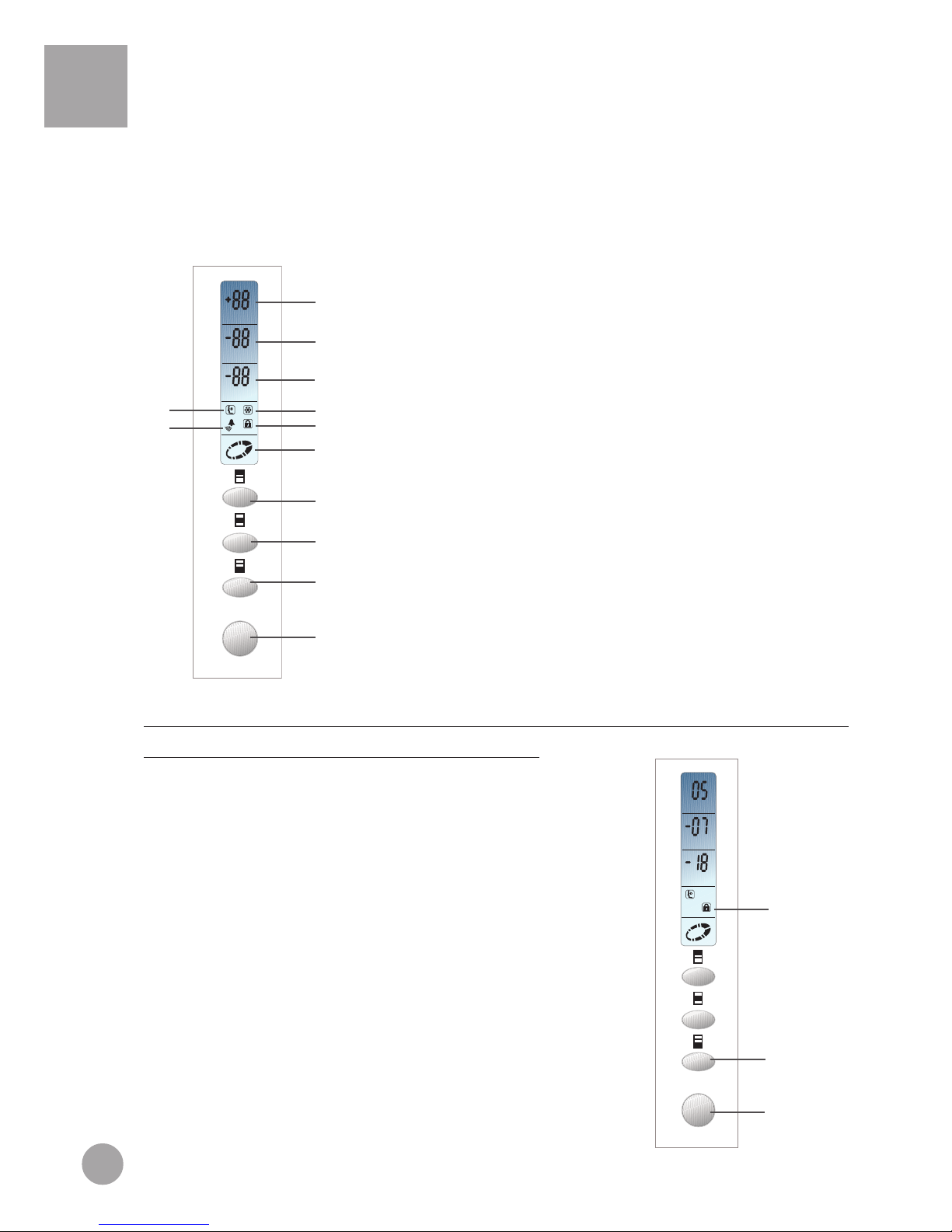

Control panel

⑴

⑵Lock-on and Lock-off

modes

Note: These block English letters in front of the phrases above listed will be used

hereinafter to represent the phrases thereof.

A------Refrigerating temperature setting / (Pressed for 3 seconds under lock-on

mode) Refrigerator compartment on/off

B------Freezer zone 1 temperature setting / (Pressed for 3 seconds under lock-on

mode) Freezer zone 1 compartment on/off

C------Freezer zone 2 temperature setting / (Pressed for 3 seconds under lock-on

mode) Super freezing setting

D------Fuzzy operation setting / (Pressed for 3 seconds under lock-on mode)

display screen off

C+D------Lock-on/Lock-off

E------Refrigerator average temperature display

F------Freezer zone 1 average temperature display

G------Freezer zone 2 average temperature display

H------Fuzzy operation mode icon

I------Super freezing mode icon

J------Lock-on icon

K------Over-temp and error alarm icon

L------ Operation icon

FUZZY

℃

FUZZY

If button C and D are pressed under the lock-off mode, icon J

will be displayed and lock-on mode is set. If button C and D

are pressed again under the lock-on mode, icon J will be

disappear and lock-off mode is set.
