Haier HRF-356 Manuale utente

HRF-356 HRF-396

Primary features

Efficient ice making

Unique chiller compartment design

Automatic defrosting

Unique external layout

Refrigerator air curtain cooling design

Multiple venting system for efficient cooling achievements

Separate control for refrigerating and freezing storage

On the top of the refrigerator compartment is a chiller drawer

designed for convenient access.

This appliance features air-cooling system for automatic

defrosting.

Unique designs of streamline and curve refrigerator doors with

reverse C shaped handle.

Air curtain surround cooling adjusting refrigerator temperature

(difference within 2 ).

Multiple vents are designed in the air circulation channels for

efficient distribution of coldness in each compartment.

The refrigerating and freezing compartments are controlled

separately to optimize cooling efficiency and economic

operation.

A semi-automatic icemaker is installed in the freezer

compartment and ice cubes can be made efficiently.

(1) Ice maker

(2) Freezer air channel cover

(3) Freezer shelf

(4) Freezer air outlet

(5) Freezer air backflow outlet

(6) Chiller bin

(7) Refrigerator air channel

(8) Refrigerator fan

(9) Control panel

(10) Refrigerator shelf

(11) Light and lampshade

(12) Crisper

(13) Adjustable foot

(14) Freezer bottle holder

(15) Refrigerator bottle holder

(16) Air curtain

Diagram of parts

The appliance must be positioned so that the plug is accessible.

If the supply cord is damaged,it must be replaced by the manufacturer,

its service agent or similarly qualified persons in order to avoid to a hazard.

Warning Keep ventilation openings,in the appliance enclosure or in the

built-in structure,clear of obstruction.

Warning Do not use mechanical devices or other means to accelerate the

defrosting process,other than those recommended by the manufacturer.

Warning Do not damage the refrigerant circuit.

Warning Do not use electrical appliance inside the food storage

compartments of the appliance,unless they are of the type recommended

by the manufacturer.

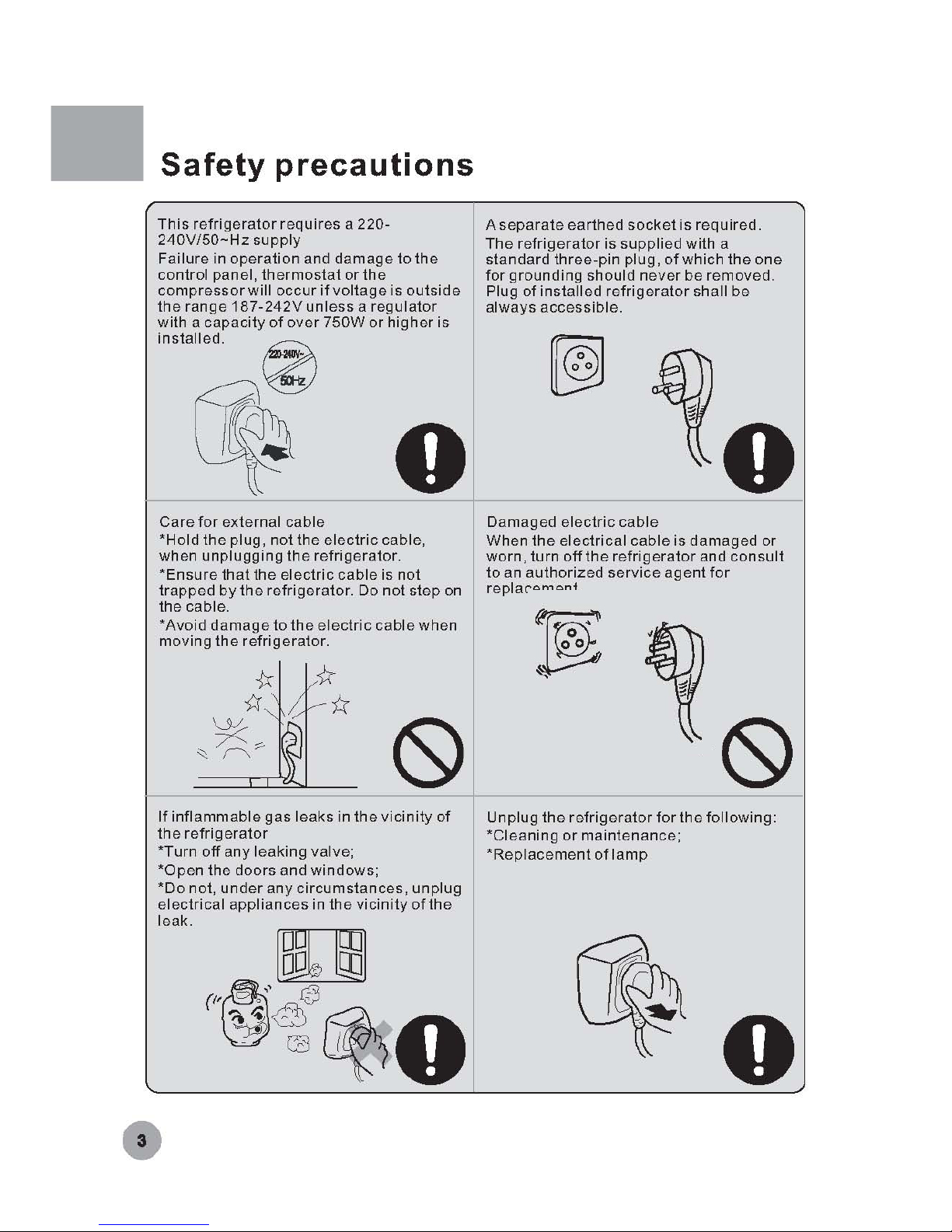

Safety precautions

Never store inflammable, explosive or

corrosive materials in the refrigerator.

Do not install the refrigerator near

gasoline or other inflammable articles.

Do not swing on or apply excessive

pressure to the refrigerator door.

This refrigerator should be used for food

storage. It is not recommended to place

microbiological or chemical materials,

which have special requirement in

temperature setting.

Don't place heavy or unstable articles or

water containers on top of the refrigerator.

Don't place electrical plugs, regulators or

microwaves on top of the refrigerator.

Don't use electric appliances (Except

those allowed by manufacturer) inside the

refrigerator.

Mousse

Spray

Gas

Acid

Alkali

Bacterin Vaccine

Chemical Agent

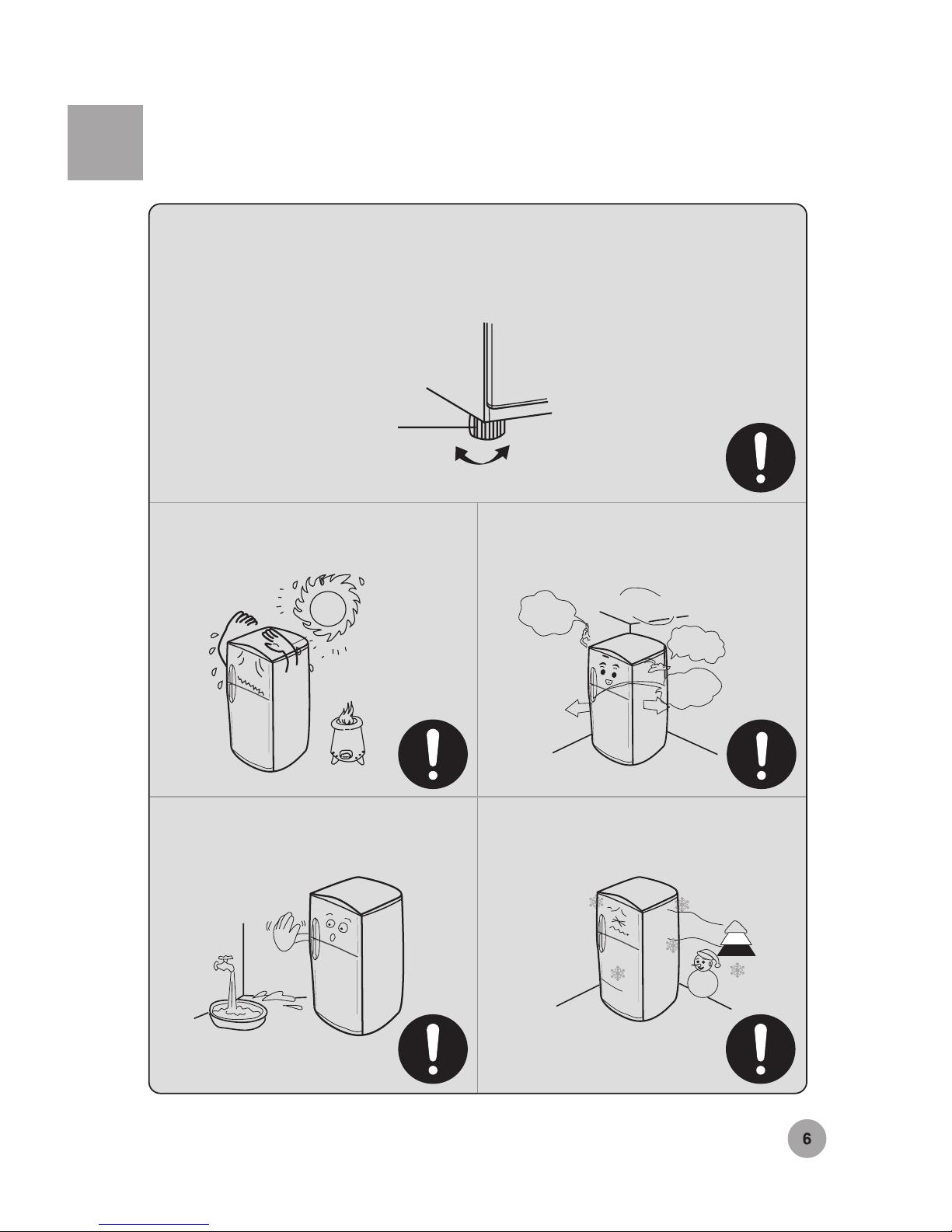

Location

The appliance should be placed on a flat and solid surface. If the refrigerator is

placed on a plinth, flat, strong and fire-resistant materials must be used. The front

black foot of the refrigerator can be adjusted clockwise or anti-clockwise to lift or

lower the refrigerator if it is placed on an uneven surface.

Clockwise Anti-clockwise

Adjustable Foot

The refrigerator shall be placed away

from heat sources or direct sunlight.

The refrigerator should be placed in a

well-ventilated area, and a space of 10cm

or more should be allowed around the

refrigerator.

Never place the refrigerator near to a

water source. Clean and dry any water

splashes and stains with soft cloth.

Never place the refrigerator in an area

with an ambient temperature below zero.

Never operate the refrigerator outdoors or

in rain.

>10cm

Unpacking

Check attached accessories and

materials.

Ensure that the refrigerator is properly

located.

Clean the refrigerator before using.

Time lapse before power supply

Remove all packing materials.

Connect the refrigerator to power source at

least 30 minutes after the refrigerator is

sited and cleaned.

Check if all accessories specified in the

Packing List are available. Contact the

local distributor if shortage is found.

(See section Location )

(See section Cleaning )

Caution: After unpacking, write down the model and manufacture

number of the refrigerator on the Warranty Certificate which will be

required if technical services are applied for.

Preparation

Operation

Manual

Warranty

Certificate

Quality

Certificate

Operation

1. UI definition

1.1 Buttons and functions

Refrigerator and freezer scale; super freeze function

Press the following 3 buttons to set up desired performances:

a. C- refrigerator: setup of refrigerator performance

b. B-freezer: setup of freezer performance

c. A-super freeze: setup of super freeze performance

d. Refrigerator button + Freezer button + Super freeze button

(once/twice/thrice): setup test 1/test 2/exit

Power supply

Adjusting temperature

Operation

3.2 Freezer temperature setup

Every press of freezer button (effect when released) will result in 1 scale increase,

and one after another of freezer indicators will light from left to right until scale 5 is

reached (5 indicators on). If the button is pressed again, the cycle will start from

scale 1 (left end indicator on).

1.2 Indicator

3.1 Refrigerator temperature setup

a. Super freeze: the largest indicator lights on the top, super freeze mode

activated;

b. Refrigerator sensor 1 error: first one from left of refrigerator scale indicators

blinks at 1Hz

c. Refrigerator sensor 2 error: second from left of refrigerator scale indicators

blinks at 1Hz

d. Freezer sensor error: first from left of freezer scale indicators blinks at 1Hz

e. Defrost sensor error: second from left of freezer scale indicators blinks at

1Hz

f. Ambient temperature sensor error: third from left of freezer scale indicators

blinks at 1Hz

When the appliance is initialized, both refrigerator and freezer are set at scale 3

automatically with super freeze mode inactivated. If freezer sensor temperature is

between the points for turning on and off, the refrigerator will start operation when

temperature rises to the point for turning on.

Every press of refrigerator button (effect when released) will result in 1 scale

increase, and one after another of refrigerator indicators will light from left to right

until scale 5 is reached (5 indicators on). If the button is pressed again, the cycle

will start from scale 1 (left end indicator on).

2. Initial status requirements

3. Ordinary temperature setup control

Scale

Temperature
