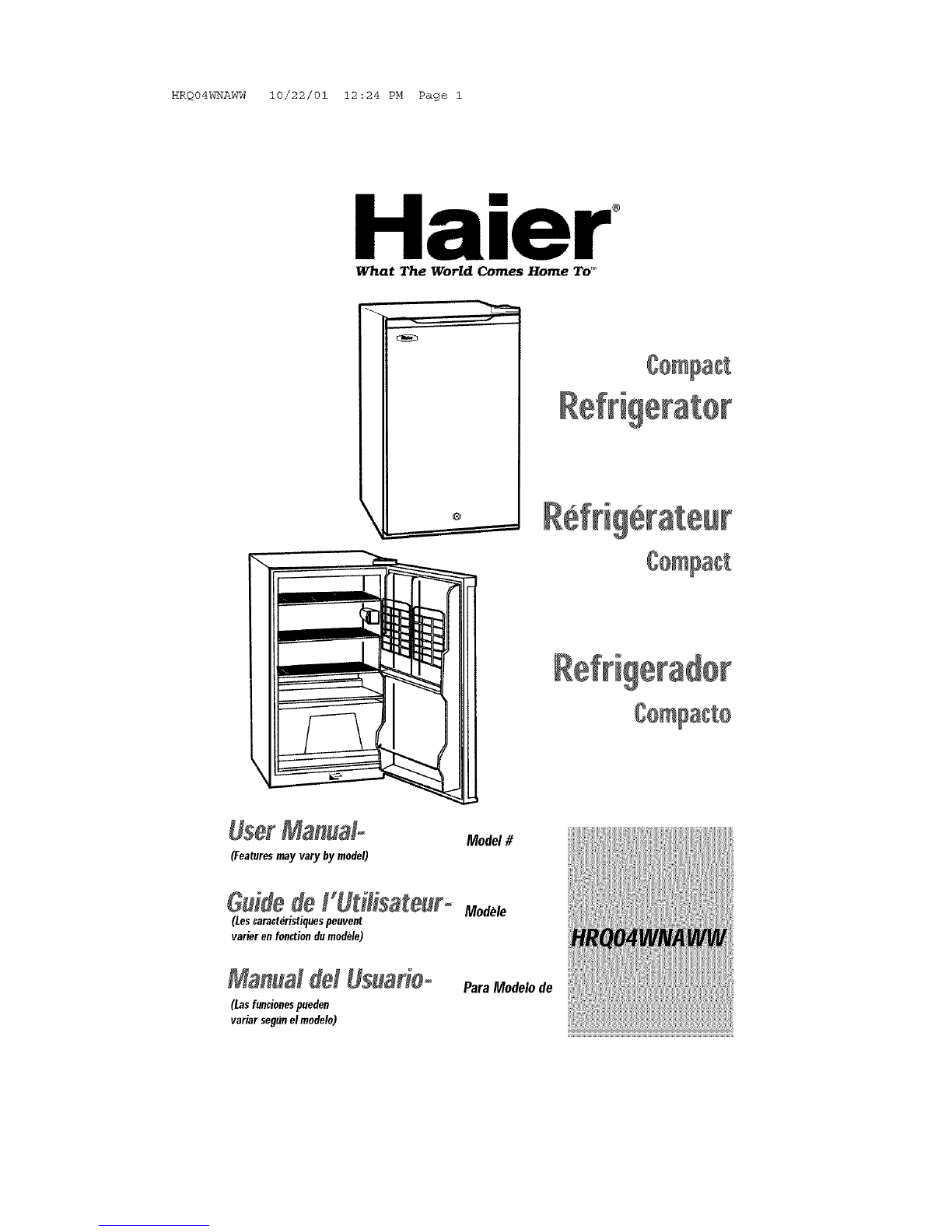

Haier HRQ04WNAWW Manuale utente

HRQ04WNAWW 10/22/01 12:24 PM Page i

Haier

What The World Comes Home To _

UserManual°

(Features may vary by model)

Model#

GuidedeFUt#isateuroMode_e

(Lescaracteristiquespeuvent

varier en fonction dumod#le)

Man.aldelUs.arieo

(Las funcionespueden

variar seg,unel modelo)

ParaModelode

HRQ04WNAWW 10/22/01 12:24 PM Page 2

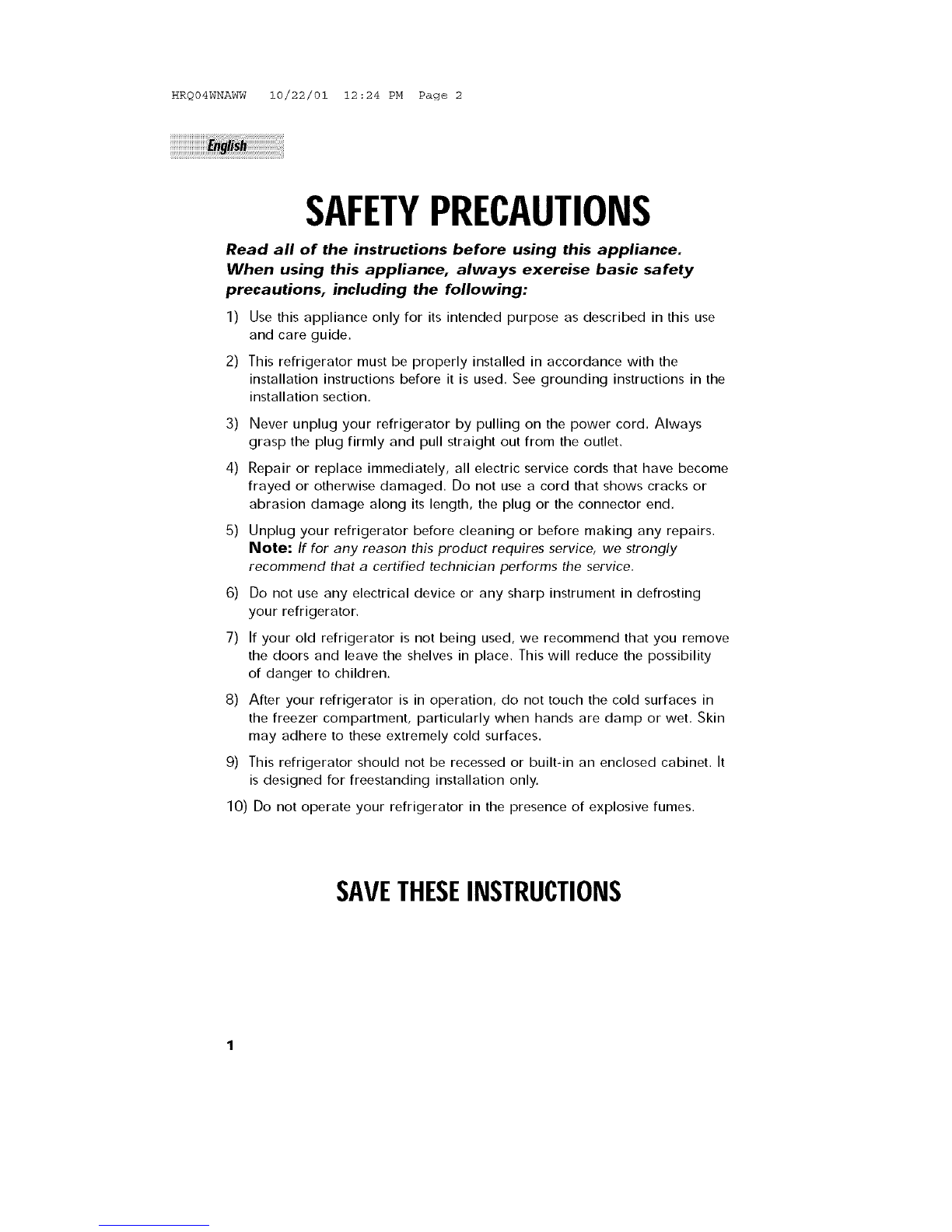

SAFETYPRECAUTIONS

Read all of the instructions before using this appliance.

When using this appliance, always exercise basic safety

precautions, including the following:

1) Use this appliance only for its intended purpose as described in this use

and care guide.

2) This refrigerator must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the

installation section.

3) Never unplug your refrigerator by pulling on the power cord. Always

grasp the plug firmly and pull straight out from the outlet.

4) Repair or replace immediately, all electric service cords that have become

frayed or otherwise damaged. Do not use a cord that shows cracks or

abrasion damage along its length, the plug or the connector end.

5) Unplug your refrigerator before cleaning or before making any repairs.

Note: If for any reason this product requires service, we strongly

recommend that a certified technician performs the service.

6) Do not use any electrical device or any sharp instrument in defrosting

your refrigerator.

7) If your old refrigerator is not being used, we recommend that you remove

the doors and leave the shelves in place. This will reduce the possibility

of danger to children.

8) After your refrigerator is in operation, do not touch the cold surfaces in

the freezer compartment, particularly when hands are damp or wet. Skin

may adhere to these extremely cold surfaces.

9) This refrigerator should not be recessed or built-in an enclosed cabinet. It

is designed for freestanding installation only.

10) Do not operate your refrigerator in the presence of explosive fumes.

SAVETHESEINSTRUCTIONS

HRQ04WNAWW 10/22/01 12:24 PM Page 3

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii,i ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii

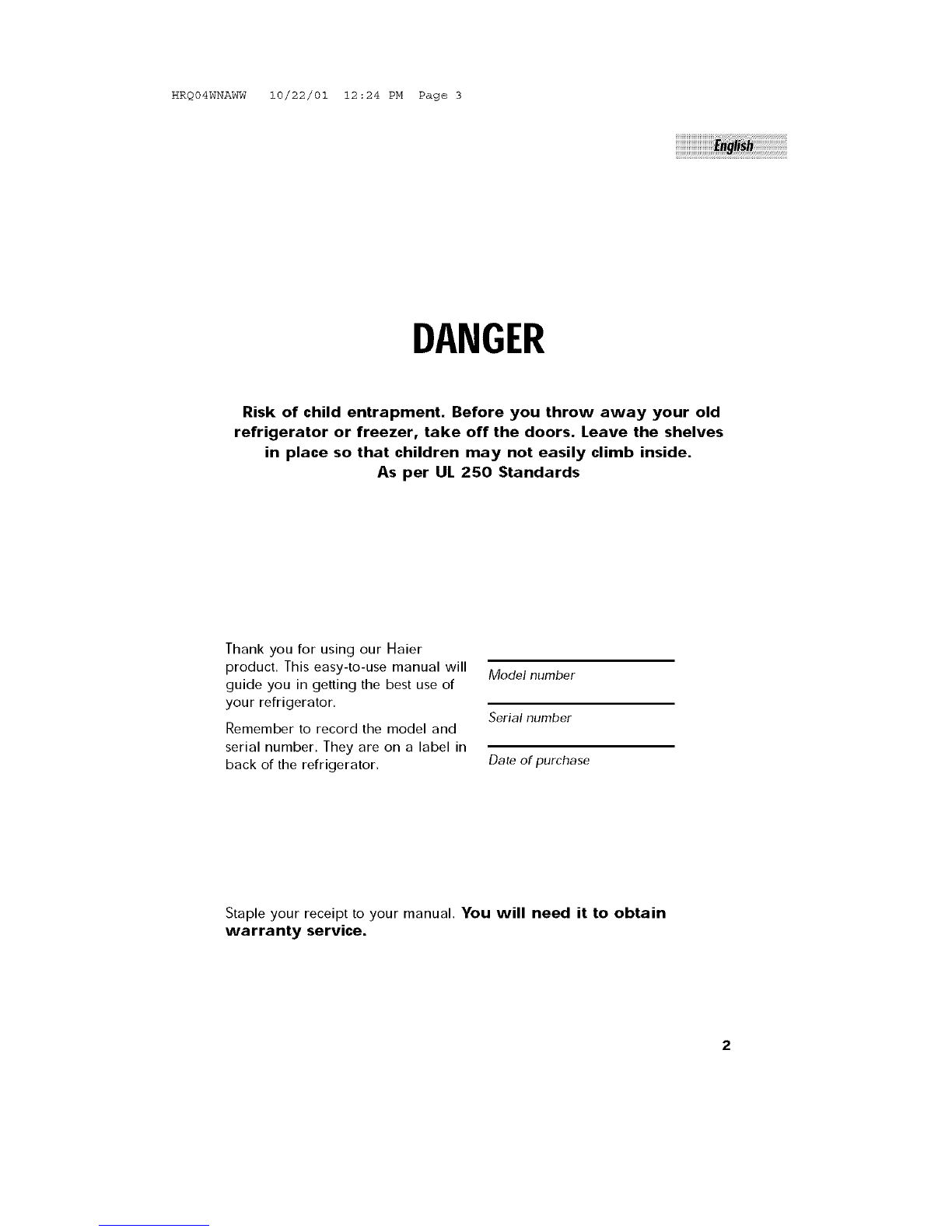

DANGER

Risk of child entrapment. Before you throw away your old

refrigerator or freezer, take off the doors. Leave the shelves

in place so that children may not easily climb inside.

As per UL 250 Standards

Thank you for using our Haier

product. This easy-to-use manual will

guide you in getting the best use of

your refrigerator.

Remember to record the model and

serial number. They are on a label in

back of the refrigerator,

Model number

Serial number

Date of purchase

Staple your receipt to your manual, Vou will need it to obtain

warranty service.

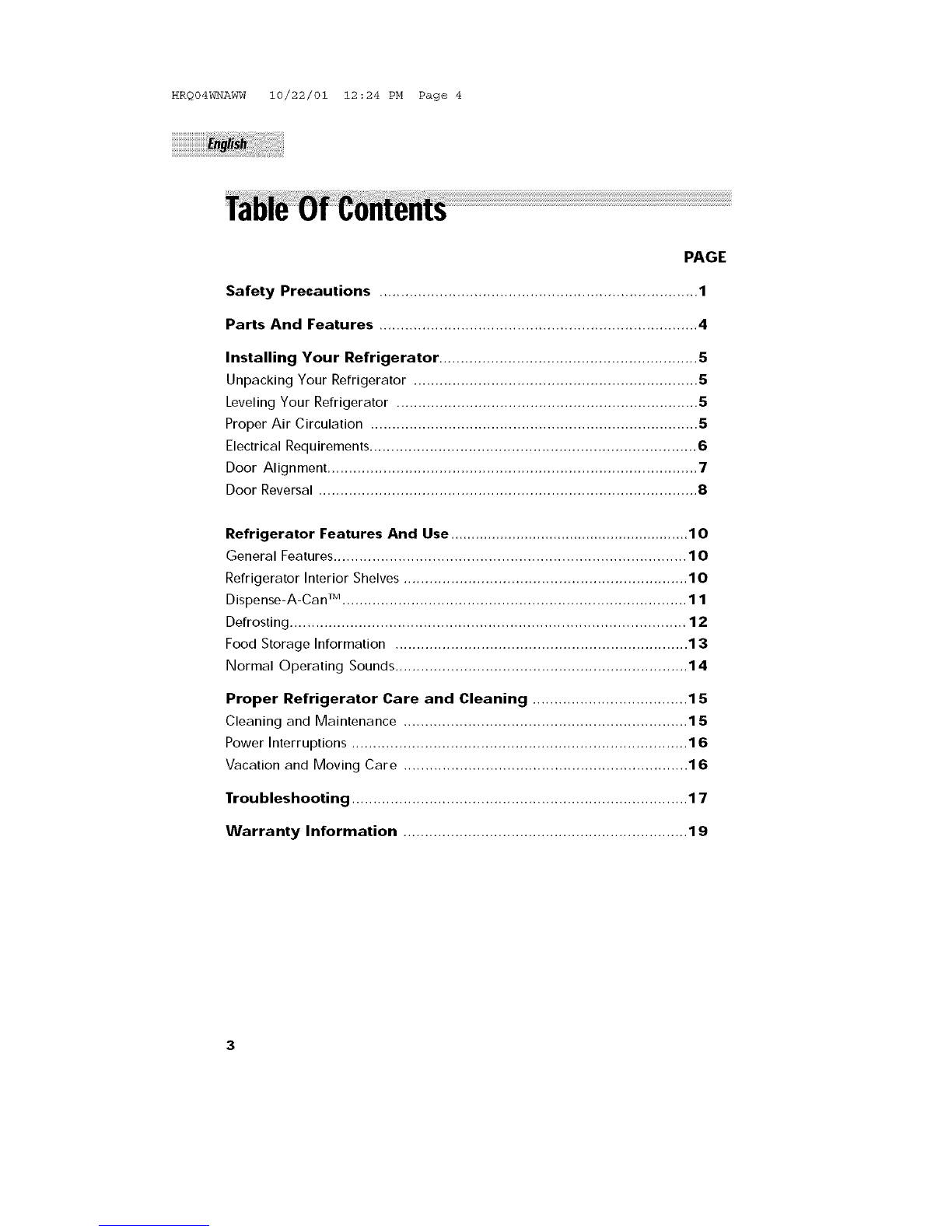

HRQ04WNAWW 10/22/01 12:24 PM Page 4

PAGE

Safety Precautions .......................................................................... 1

Parts And Features .......................................................................... 4

Installing Your Refrigerator ............................................................ 5

Unpacking Your Refrigerator .................................................................. 5

Leveling Your Refrigerator ...................................................................... 5

Proper Air Circulation ............................................................................ 5

Electrical Requirements ............................................................................ 6

Door Alignment ...................................................................................... 7

Door Reversal ........................................................................................ 8

Refrigerator Features And Use .......................................................... 10

General Features.................................................................................. 10

Refrigerator Interior Shelves .................................................................. 10

Dispense-A-Can TM ................................................................................ 11

Defrosting ............................................................................................ 12

Food Storage Information .................................................................... 13

Normal Operating Sounds .................................................................... 14

Proper Refrigerator Care and Cleaning .................................... 1 5

Cleaning and Maintenance .................................................................. 15

Power Interruptions .............................................................................. 16

Vacation and Moving Care .................................................................. 16

Troubleshooting .............................................................................. 17

Warranty Information .................................................................. 19

HRQ04WNAWW 10/22/01 12:24 PM Page 5

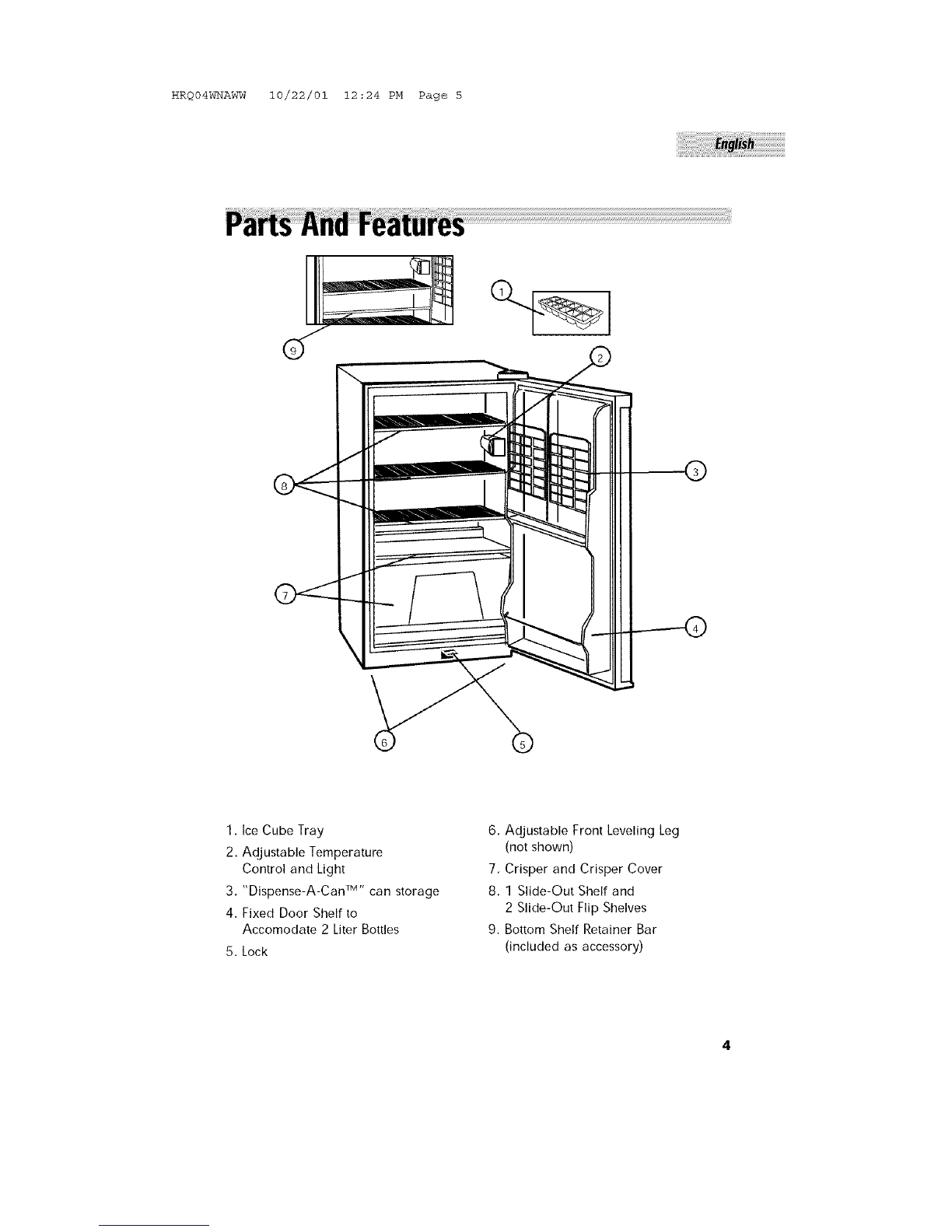

1. Ice Cube Tray

2. Adjustable Temperature

Control and Light

3. "Dispense-A-Can TM" can storage

4. Fixed Door Shelf to

Accomodate 2 Liter Bottles

5. Lock

6. Adjustable Front Leveling Leg

(not shown)

7. Crisper and Crisper Cover

8. 1 Slide-Out Shelf and

2 Slide-Out Flip Shelves

9. Bottom Shelf Retainer Bar

(included as accessory)

HRQ04WNAWW 10/22/01 12:24 PM Page 6

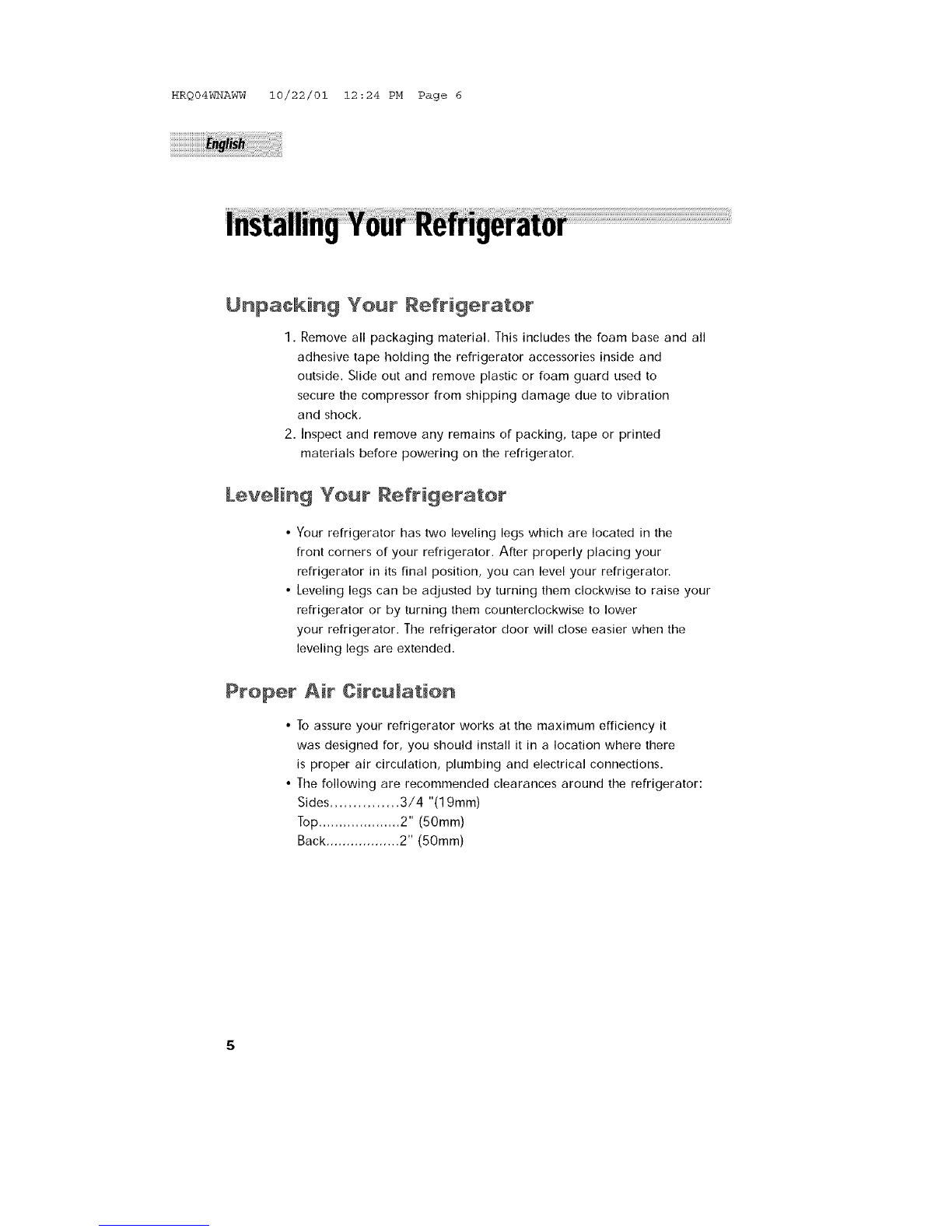

Unpacking Your Refrigerator

1, Remove all packaging material. This includes the foam base and all

adhesive tape holding the refrigerator accessories inside and

outside. Slide out and remove plastic or foam guard used to

secure the compressor from shipping damage due to vibration

and shock,

2. inspect and remove any remains of packing, tape or printed

materials before powering on the refrigerator.

Leve ing Your Refrigerator

• Your refrigerator has two leveling legs which are located in the

front corners of your refrigerator. After properly placing your

refrigerator in its final position, you can level your refrigerator,

• Leveling legs can be adjusted by turning them clockwise to raise your

refrigerator or by turning them counterclockwise to lower

your refrigerator. The refrigerator door will close easier when the

leveling legs are extended.

Proper Air Oir¢u_ation

• To assure your refrigerator works at the maximum efficiency it

was designed [or, you should install it in alocation where there

is proper air circulation, plumbing and electrical connections.

• The following are recommended clearances around the refrigerator:

Sides ............... 3/4 "(19mm)

Top .................... 2" (50mm)

Back .................. 2" (50ram)

HRQ04WNAWW 10/22/01 12:24 PM Page 7

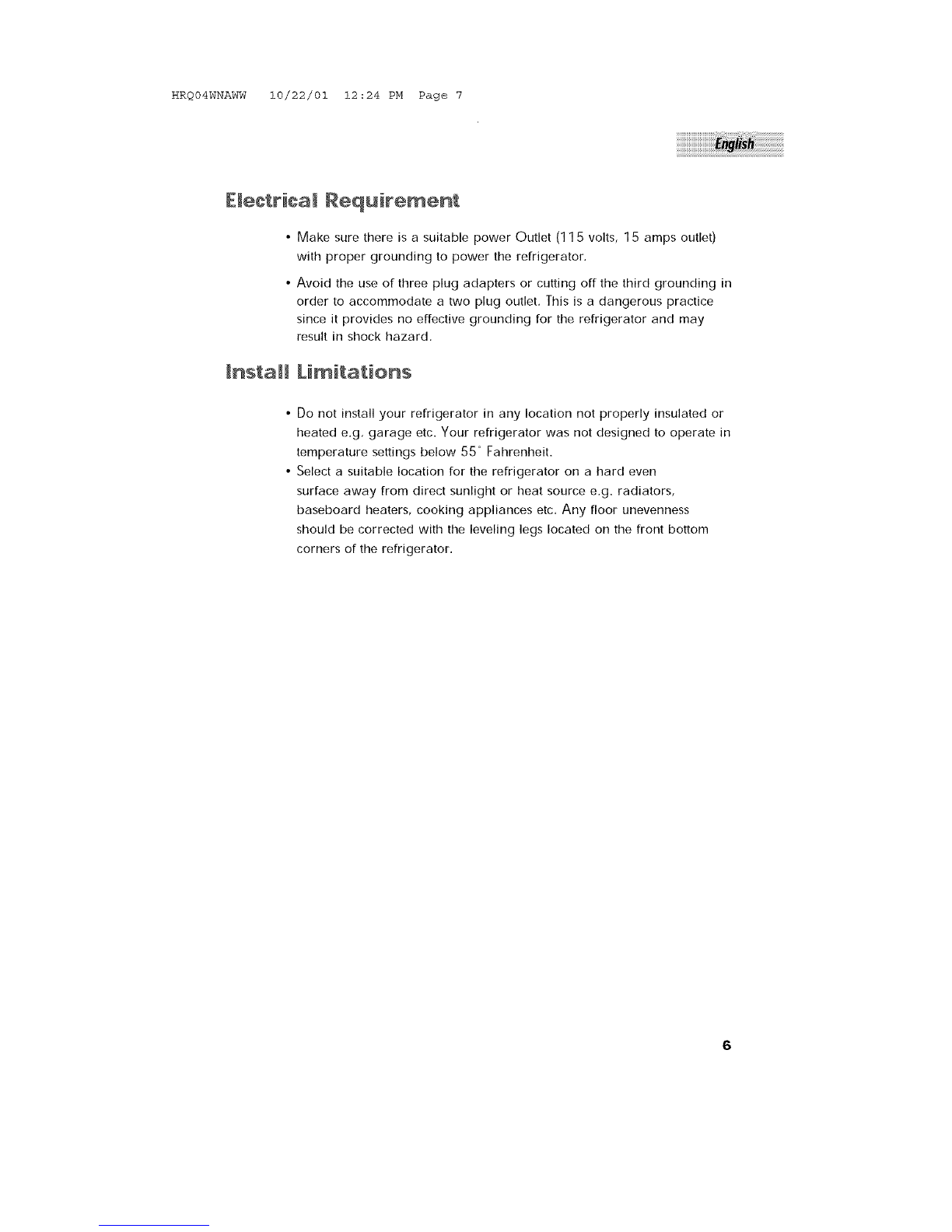

£me{[ri{aRequiremen[

Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)

with proper grounding to power the refrigerator.

Avoid the use of three plug adapters or cutting off the third grounding in

order to accommodate a two plug outlet, This is a dangerous practice

since it provides no effective grounding for the refrigerator and may

result in shock hazard.

install [imitations

Do not install your refrigerator in any location not properly insulated or

heated e.g, garage etc. Your refrigerator was not designed to operate in

temperature settings below 55 ° Fahrenheit.

Select a suitable location for the refrigerator on a hard even

surface away from direct sunlight or heat source e.g. radiators,

baseboard heaters, cooking appliances etc, Any floor unevenness

should be corrected with the leveling legs located on the front bottom

corners of the refrigerator.

HRQ04WNAWW 10/22/01 12:24 PM Page 8

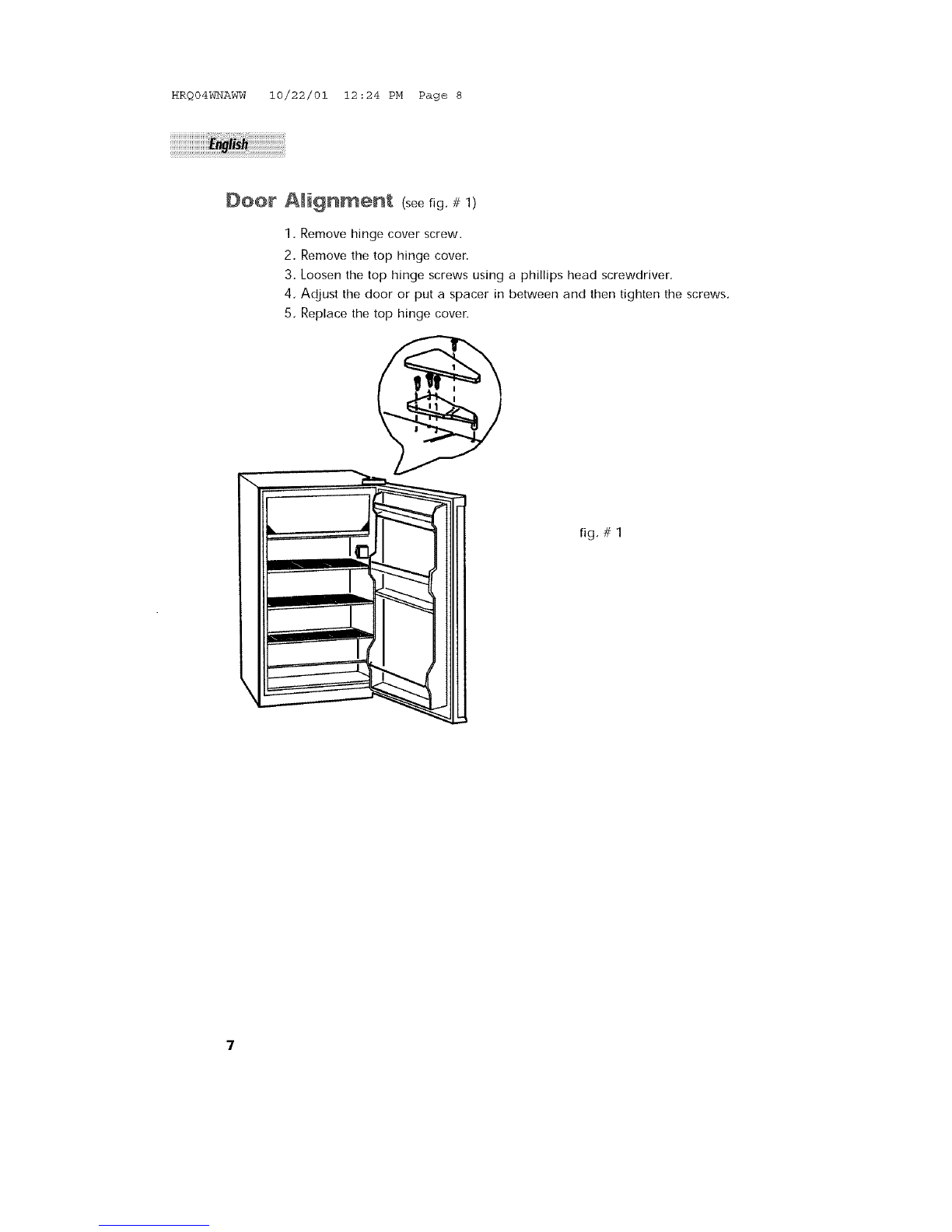

Door Alignment (see fig, #1)

1. Remove hinge cover screw.

2. Remove the top hinge cover.

3. Loosen the top hinge screws using a phillips head screwdriver.

4, Adjust the door or put a spacer in between and then tighten the screws,

5, Replace the top hinge cover.

fig, #1

HRQ04WNAWW 10/22/01 12:24 PM Page 9

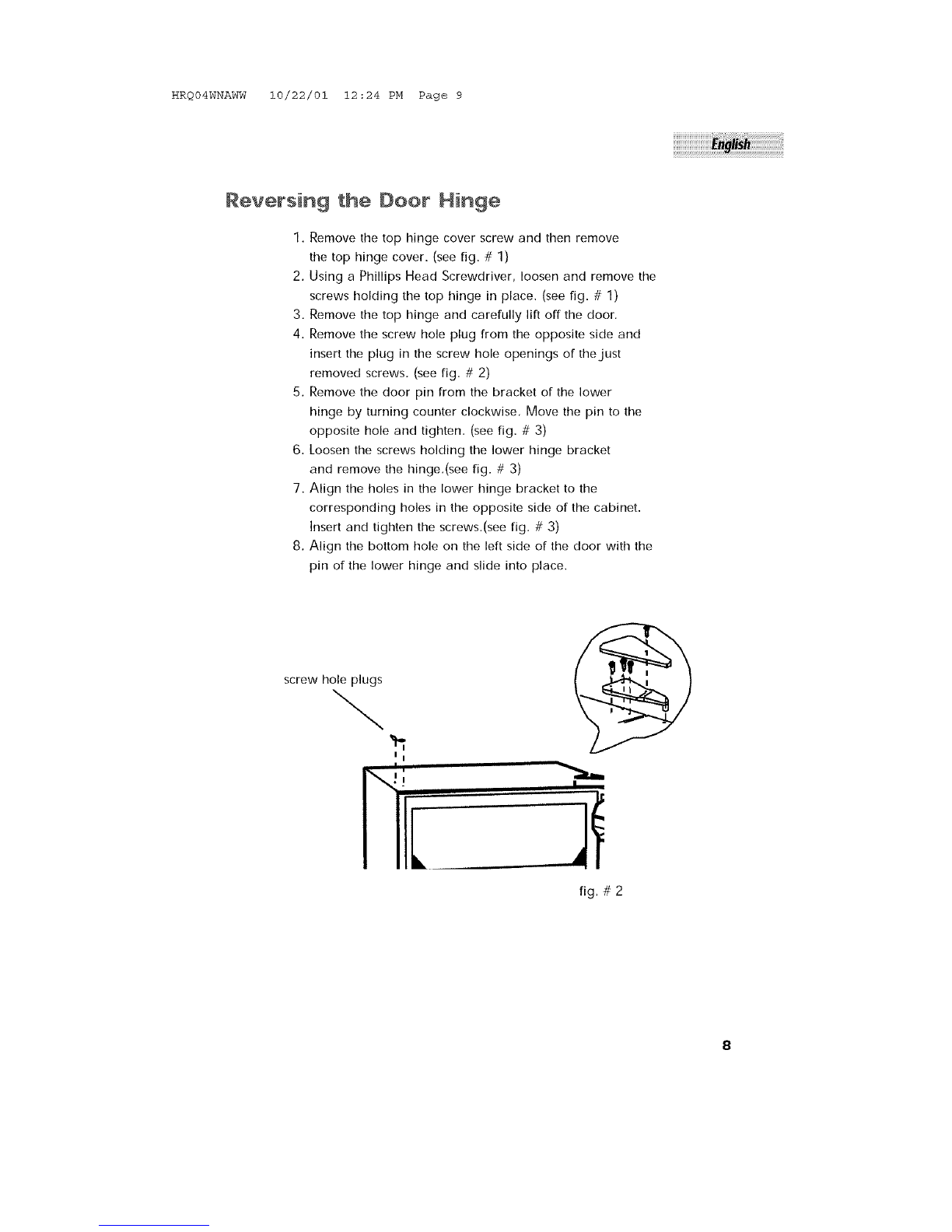

Reversing the Door Hinge

1. Remove the top hinge cover screw and then remove

the top hinge cover. (see fig. # 1)

2, Using a Phillips Head Screwdriver, loosen and remove the

screws holding the top hinge in place. (see fig. # 1)

3. Remove the top hinge and carefully lift off the door,

4, Remove the screw hole plug from the opposite side and

insert the plug in the screw hole openings of the just

removed screws. (see fig. # 2)

5, Remove the door pin from the bracket of the lower

hinge by turning counter clockwise, Move the pin to the

opposite hole and tighten, (see fig. # 3)

6, Loosen the screws holding the lower hinge bracket

and remove the hinge,(see fig. # 3)

7. Align the holes in the lower hinge bracket to the

corresponding holes in the opposite side of the cabinet.

Insert and tighten the screws.(see fig. # 3)

8, Align the bottom hole on the left side of the door with the

pin of the lower hinge and slide into place.

screw hole plugs

I I

fig. # 2

HRQ04WNAWW 10/22/01 12:24 PM Page 19

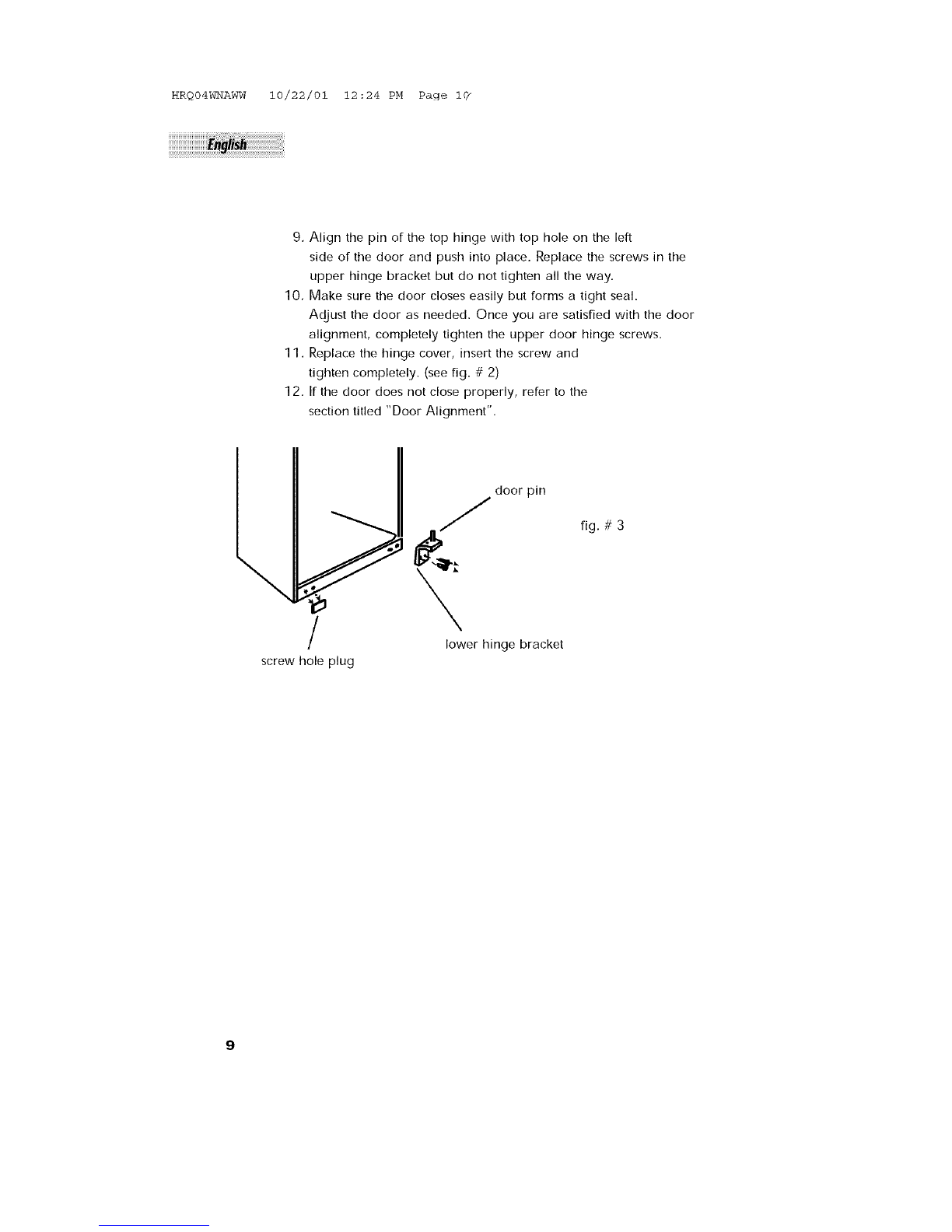

9. Align the pin of the top hinge with top hole on the left

side of the door and push into place. Replace the screws in the

upper hinge bracket but do not tighten all the way,

10. Make sure the door closes easily but forms a tight seal.

Adjust the door as needed. Once you are satisfied with the door

alignment, completely tighten the upper door hinge screws,

11, Replace the hinge cover, insert the screw and

tighten completely. (see fig. #2)

12. If the door does not close properly, refer to the

section titled "Door Alignment".

screw hole plug

door pin

lower hinge bracket

fig. #3
