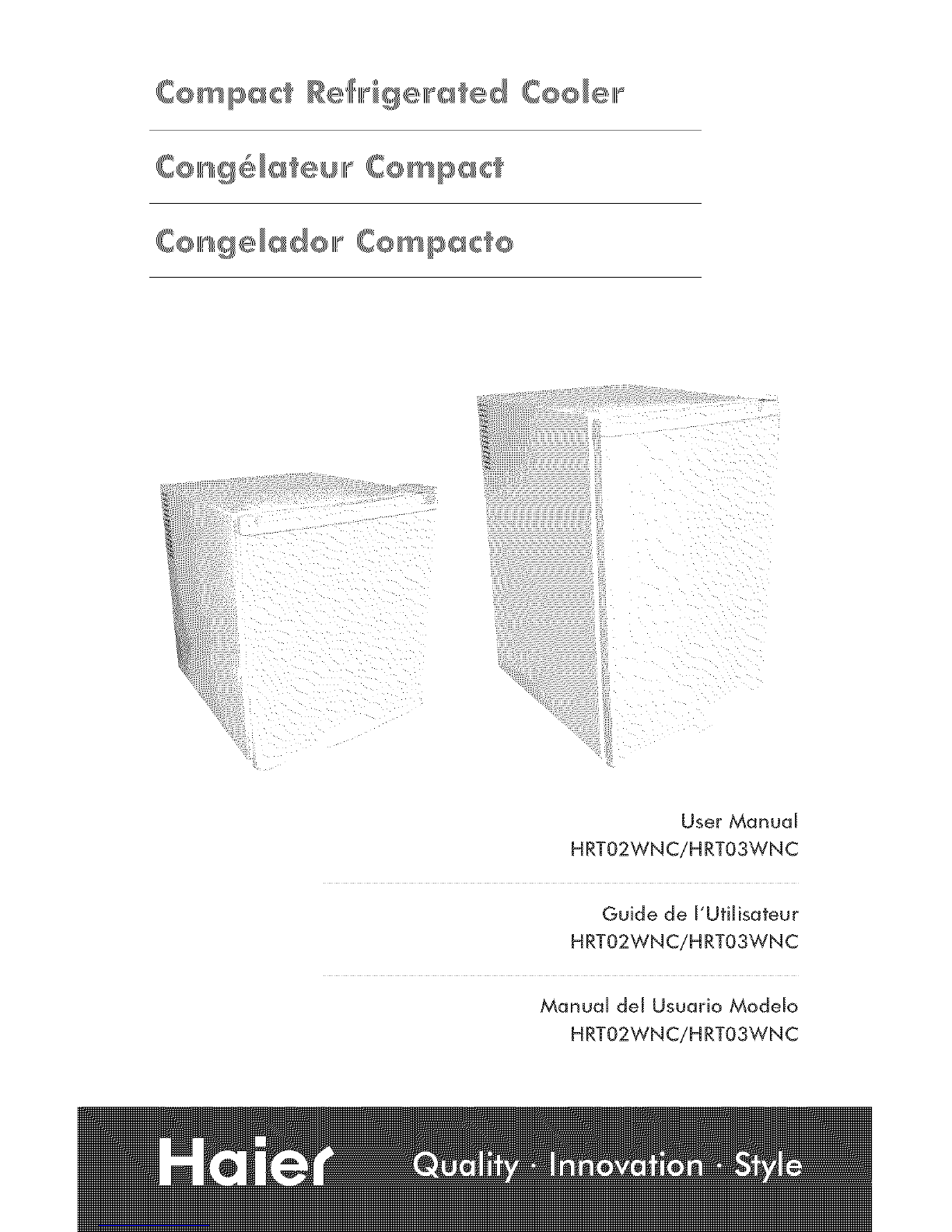

Haier HRT02WNC Manuale utente

Comps@ _÷friger_ted Coo_÷r

Ceng@_te_r Cemp_¢t

Cenge_der Cemp_@@

User Manual

HRT02WNC!HRT03WNC

Guide de J'Utilisateur

HRT02WNC!HRT03WNC

ManuaJ del Usuario ModeJo

HRT02WNC!HRT03WNC

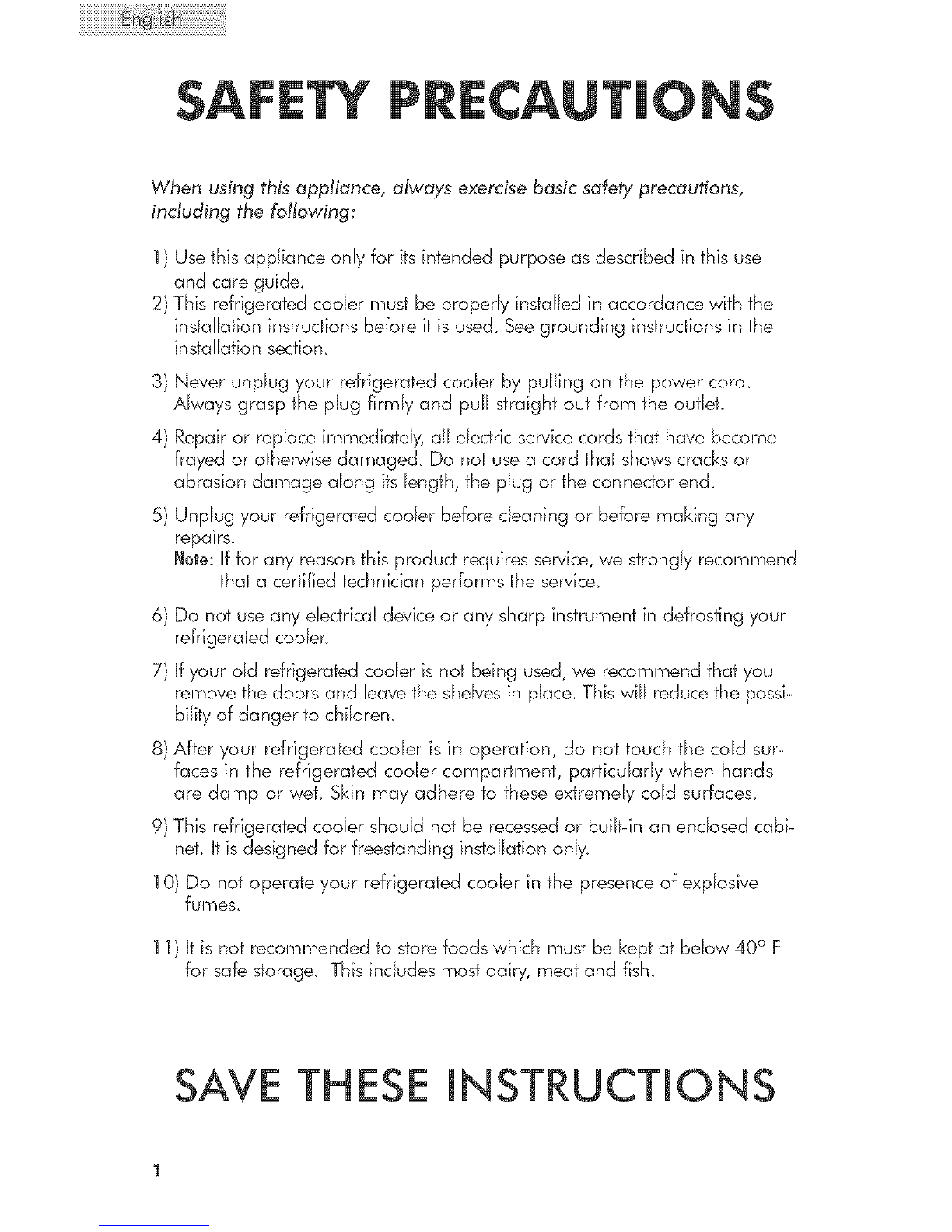

When using this appliance, always exercise basic safety precautions,

including the fdlawing:

1) Use this appliance only for its intended purpose as described in this use

and care guide.

2) This refrigerated cooler must be properly installed in accordance with the

installation instructions before it is used. Seegrounding instructions in the

installation secfion_

3) Never unplug your refrigerated coder by pulling on the power cord.

Always grasp the plug firmly and pull straight out from the outlet.

4) Repair or replace immediately, all electric servicecords that have becorne

frayed or otherwise damaged. Do not use a cord that showscracks or

abrasion darnage along its length, the plug or the connector end.

Unplug your refrigerated coder before cleaning or before making any

repairs_

Note:If for any reason this product requires service,we strongly recommend

that a cedified technician performs the service.

Do not use any dedrical device or any sharp instrument in defrosting your

refrigerated coolen

If your old refrigerated coder is not being used, we recommend that you

remove the doors and leavethe shelvesin place. This will reducethe possi-

bility of danger to children.

8) After your refrigerated coder is in operation, do not touch the cold sur-

faces in the refrigerated coder compartment, padicularly when hands

are damp or wet. Skin may adhere to these extremely cold surfaces.

9) This refrigerated coder should not be recessedor buiJtdnan endosed cabi-

net. It isdesigned for freestanding installation only_

10) Do not operate your refrigerated coder in the presence of explosive

furnes_

11) It is not recornrnended to store foods which rnust be kept at below 40° F

for safe storage_ This includes most dairy, meat and risk

SAVE THESE INSTRUCTIONS

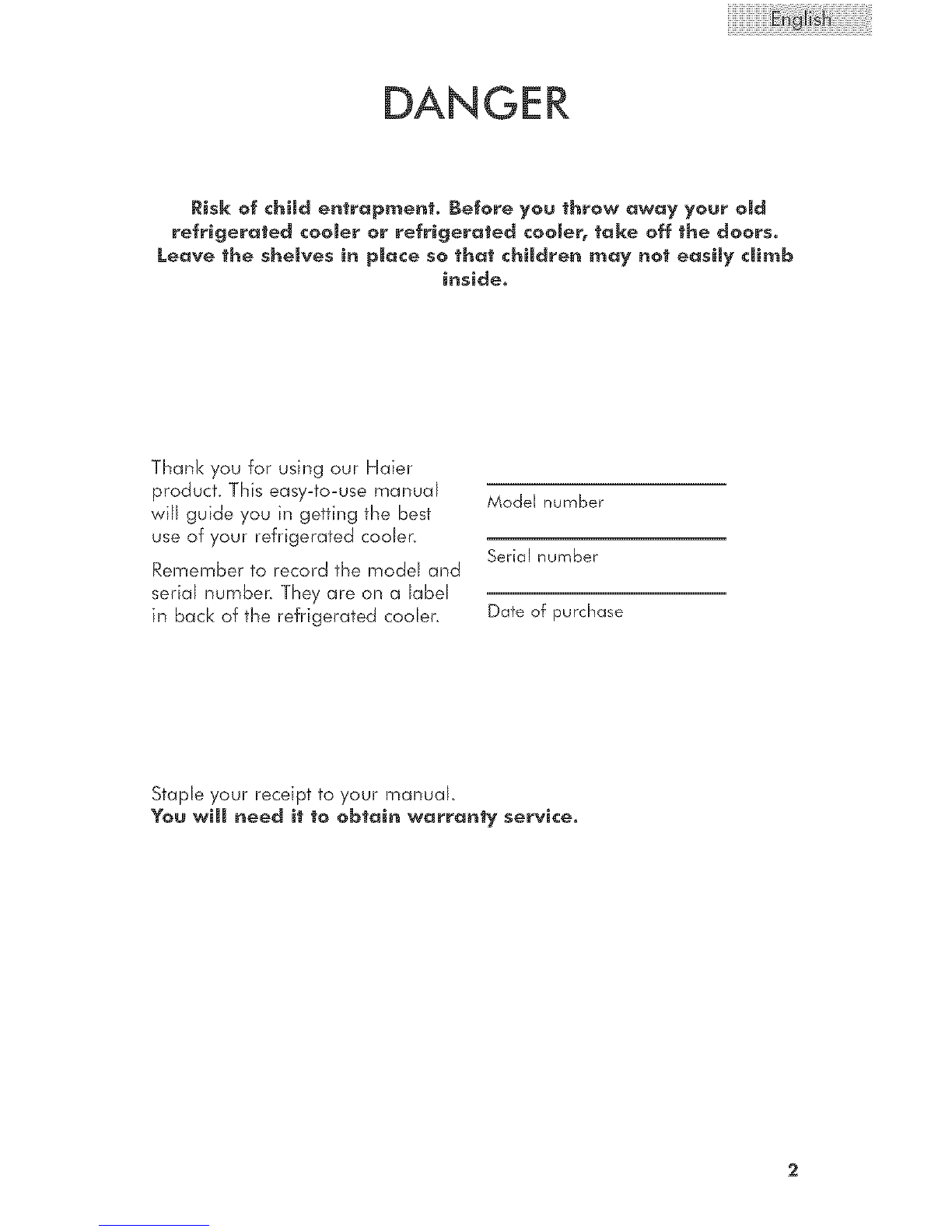

DANGER

Thank you for using our Haier

product_ This easy-to-use manual

will guide you in getting the best

use of your refrigerated coden

Remember to record the model and

serial number. They are on a label

in back of the refrigerated cooler_

Model number

Serial number

Date of purchase

Staple your receipt to your rnanuak

You will neocl it to obtain warrant,/sorvico.

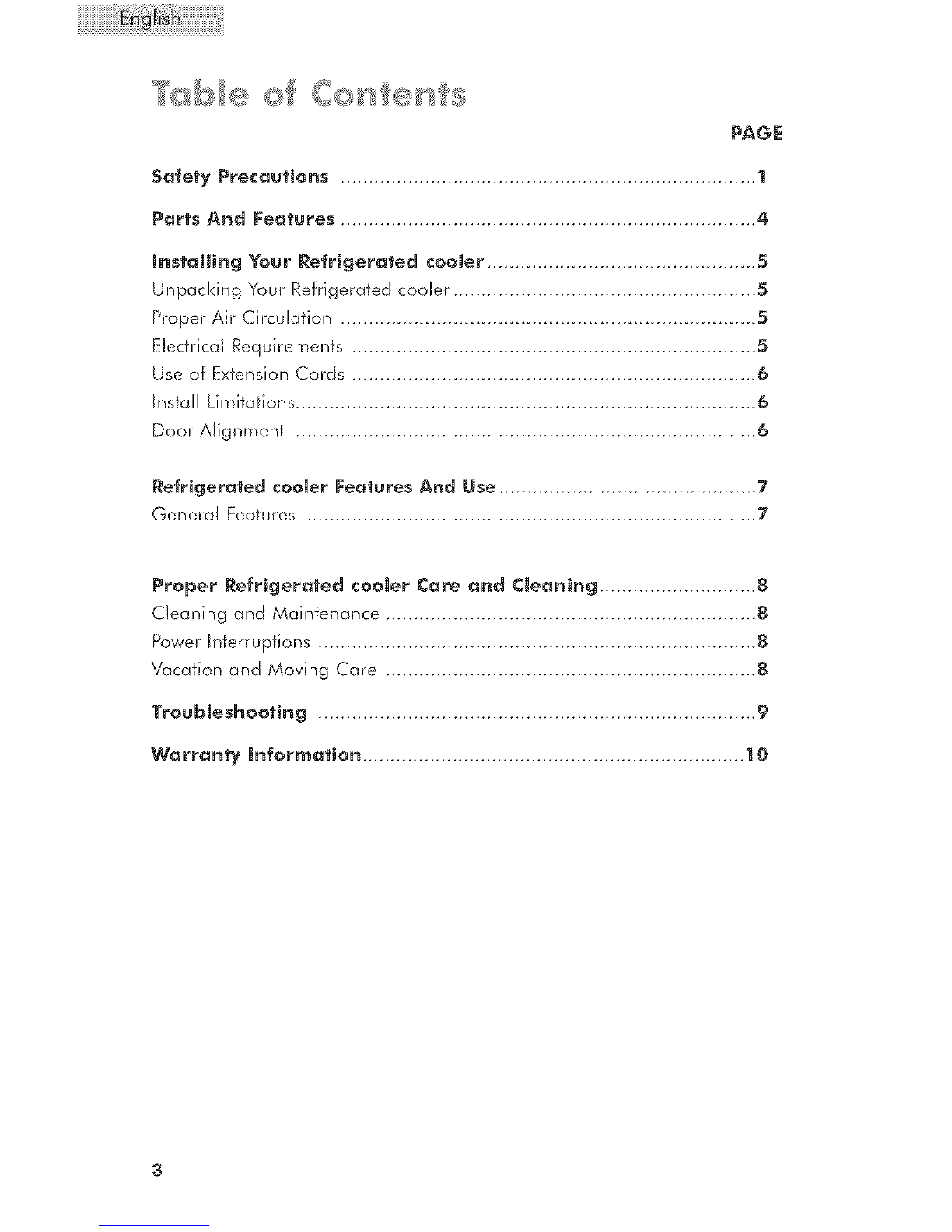

PAGE

Safety Precautior_s .......................................................................... 1

Parts And Features .......................................................................... 4

Jr_staJling Your Refrigerated cooler ................................................ 5

Unpacking Your Refrigerated cooler ...................................................... 5

Proper Air Circulation .......................................................................... 5

Electrical Requirements ........................................................................ 5

Use of Extension Cords ........................................................................ 6

Install Limitations .................................................................................. 6

Door AJignment .................................................................................. 6

RefrigeratecJ ¢aomer Features And Use .............................................. 7

Generd Features ................................................................................ 7

Proper J_efrigerated cooler Care arid CJeaning ............................ 8

CJeaning and Maintenance .................................................................. 8

Power Interruptions .............................................................................. 8

Vacation and Moving Care .................................................................. 8

lrroubJeshooting .............................................................................. 9

Warranty Jnformatior_ .................................................................... 10

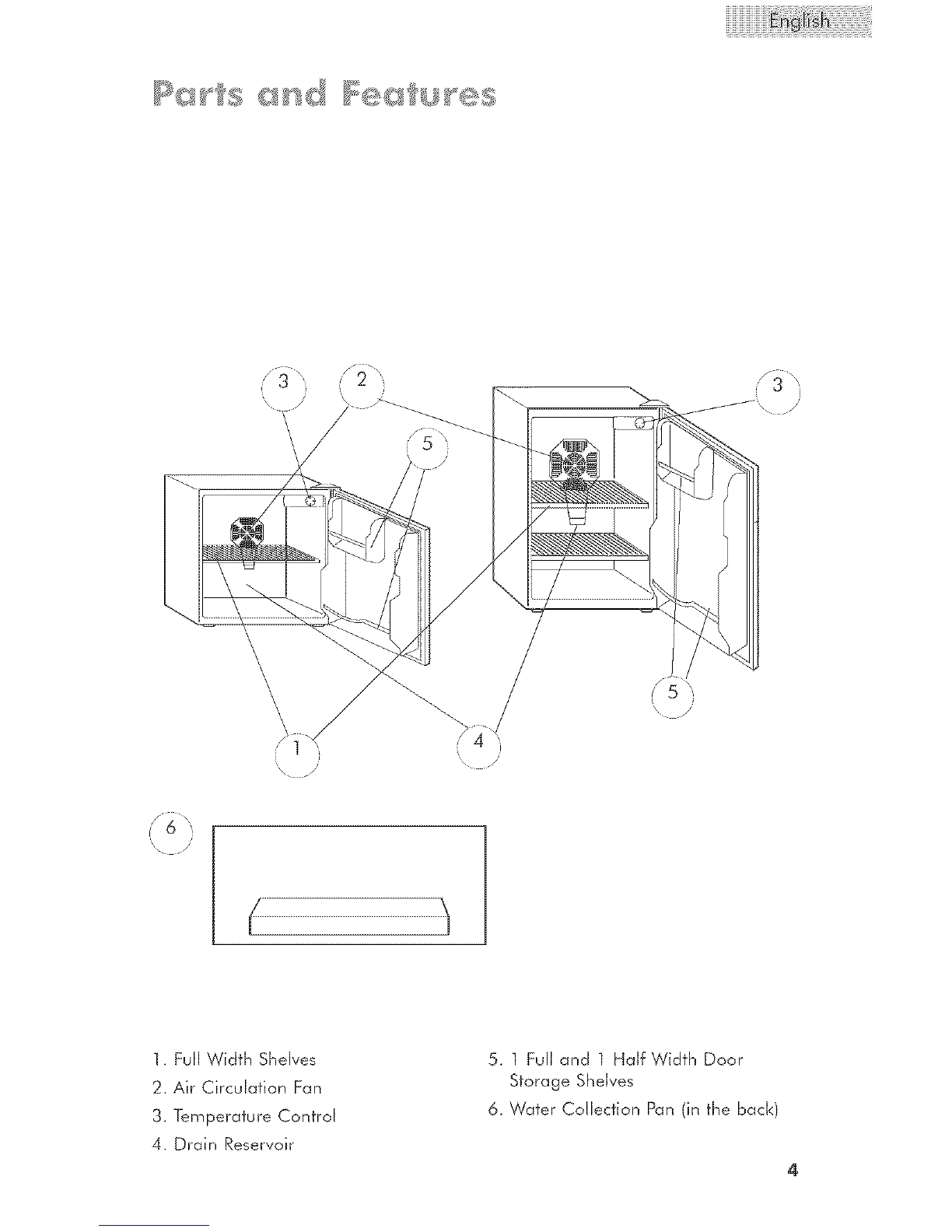

1. Full Width Shelves

2. Air Circulation Fan

3. Temperature Control

4. Drain Reservoir

5. 1 Full and I Half Width Door

Storage Shelves

6. Water Collection Pan (in the back)

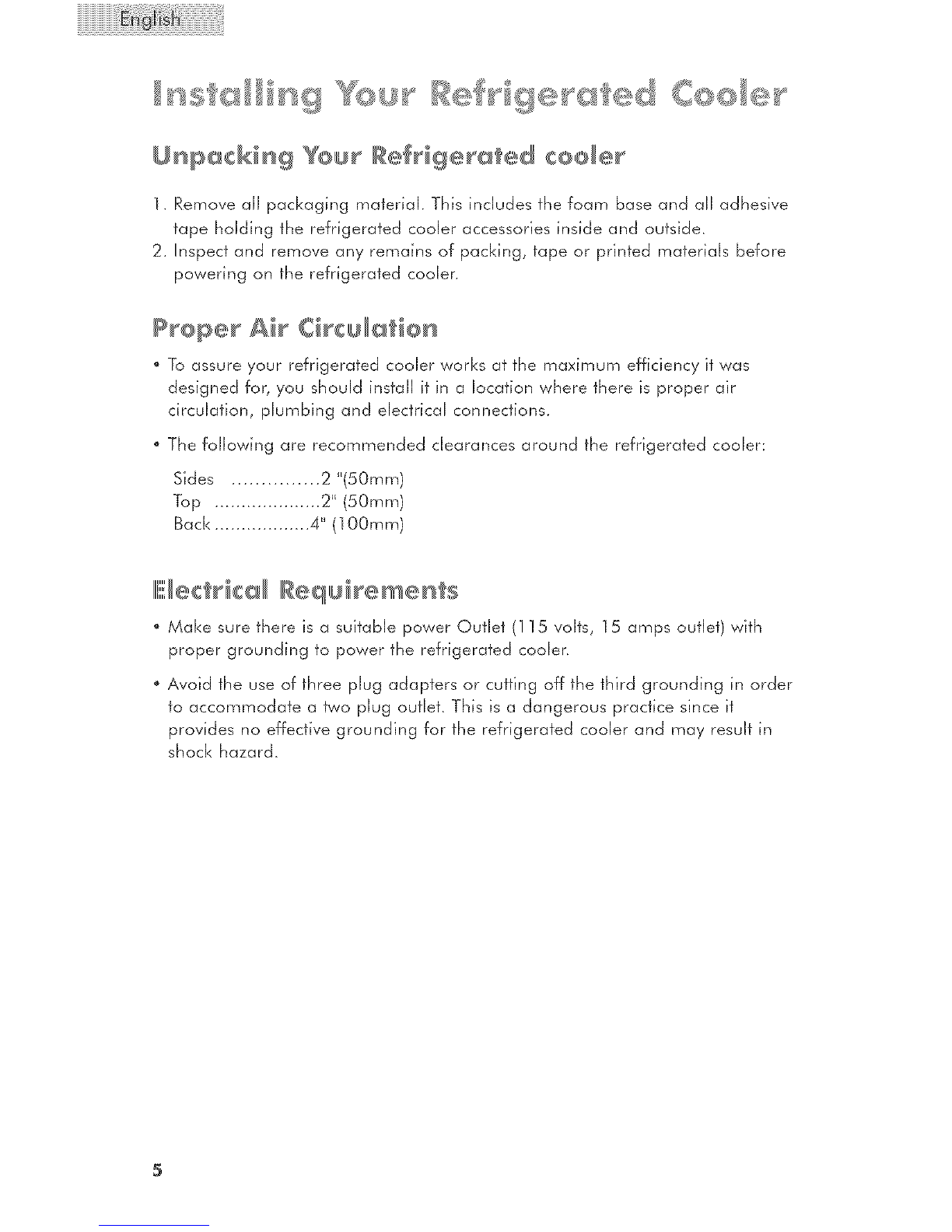

1. Remove all packaging material. This includes the foam base and all adhesive

tape holding the refrigerated cooler accessories inside and outside.

2. Inspect and remove any remains of packing, tape or printed materials before

powering on the refrigerated cooler.

P_ope_ A_ Ci_¢o_tio_

" To assure your refrigerated cooler works at the maximum efficiency it was

designed for, you should install if in a location where there is proper air

circulation, plumbing and electrical connections.

The following are recommended clearances around the refrigerated cooler:

Sides ............... 2 "(50ram)

Top .................... 2" (50mm)

Back .................. 4" (100mm)

IIIE_e@_c_ _equ_e_e_ts

" Make sure there is a suitable power Outlet (1 !5 volts, 15 amps outlet) with

proper grounding to power the refrigerated cooler.

" Avoid the use of three plug adapters or cutting off the third grounding in order

to accommodate a two plug outlet. This is a dangerous practice since it

provides no effective grounding for the refrigerated cooler and may result in

shod< hazard.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii ii i!ill

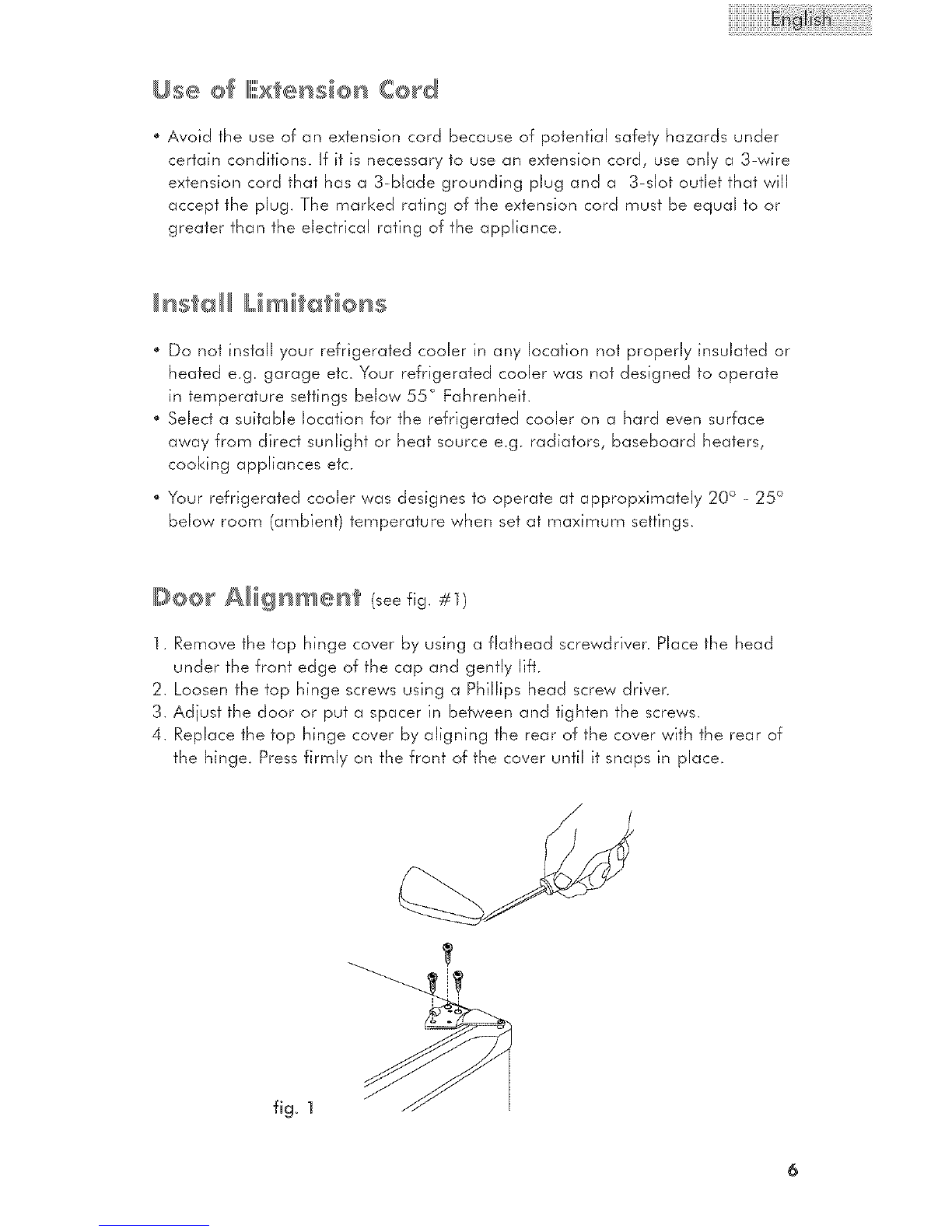

Use e_ IIIl!!!x_e_sioH Co_d

" Avoid the use of an extension cord because of potential safety hazards under

certain conditions. Jf it is necessary to use an extension cord, use only a 3-wire

extension cord that hasa 3-bladegrounding plug anda 3-dot outlet that will

accept the plug. The marked rating of the extension cord must be equal to or

greater than the electrical rating of the appliance.

I_st_/ Limit_tioHs

Do not install your refrigerated cooler in any location not properly insulated or

heated e.g. garage etc. Your refrigerated cooler was not designed to operate

in temperature settings below 55 ° Fahrenheit.

Select a suitable location for the refrigerated cooler on a hard even surface

away from direct sunlight or heat source e.g. radiators, baseboard heaters,

coddng appliances etc.

Your refrigerated cooler was designes to operate at appropxima_ely 20° - 25 °

below room (ambient) temperature when set at maximum settings.

_@@_ _lig_m@_t (see fig. #1)

1. Remove the top hinge cover by using a flathead screwdriver. Place the head

under the front edge of the cap and gently lift.

2. Loosen the top hinge screws using a Phillips head screw driver.

3. Adiust the door or put a spacer in between and tighten the screws.

4. Replace the fop hinge cover by aligning the rear of the cover with the rear of

the hinge. Press firmly on the front of the cover until it snaps in place.

fig. 1

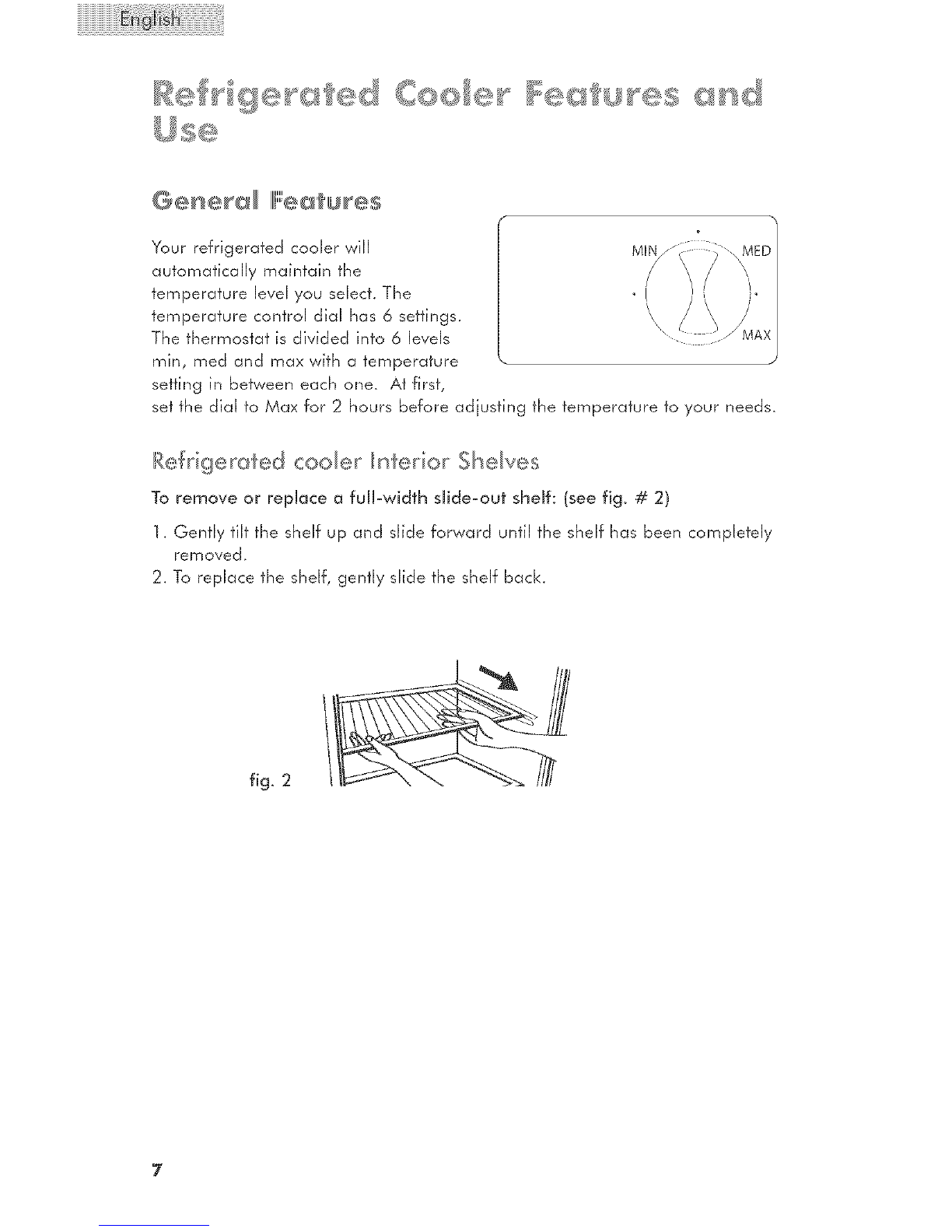

GeHe_ IIIFeete_es

Your refrigerated cooler will MIN

automatically maintain the

temperature level you select. The

temperature control dial has 6 settings.

The thermostat is divided into 6levels

rain, reed and max with a temperature

setting in between each one. At first,

set the dial to Max for 2 hours before adjusting the temperature to your needs.

Refrige_'e_ed cooler Interior Shelves

To remove or replace a fuJlowidth slideoout shelf: (see fig_ # 2)

1. Gently tilt the shelf up and slide forward until the shelf has been completely

removed.

2. To replace the shelf, gently slide the shelf back.

fig. 2

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

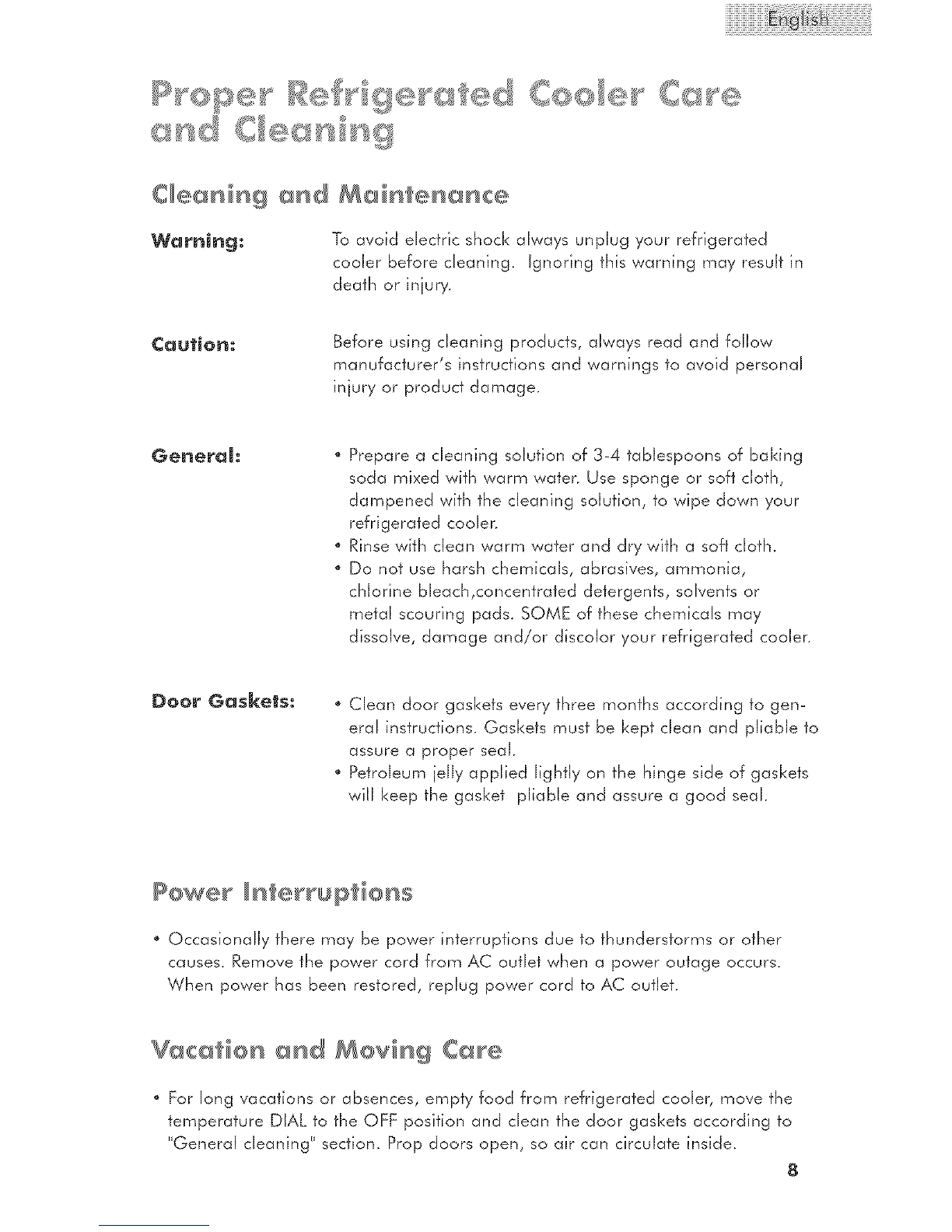

W_r_J_g: To avoid electric shock always unplug your refrigerated

cooler before cleaning. Ignoring this warning may result in

death or injury.

¢_tion: Before using cleaning products, always read and follow

manufacturer's instructions and warnings to avoid personal

iniury or product damage.

Ger_er_J: Prepare a cleaning solution of 3-4 tablespoons of baiting

soda mixed with warm water. Use sponge or soft cloth,

dampened with the cleaning solution, to wipe down your

refrigerated cooler.

Rinse with clean warm water and dry with a soft cloth.

Do not use harsh chemicals, abrasives, ammonia,

chlorine bleach,concentrated detergents, solvents or

metal scouring pads. SOME of these chemicals may

dissolve, darnage and/or discolor your refrigerated cooler.

Door @_sJ{ets: Clean door gaskets every three months according to gen-

eral instructions. Gaskets must be kept clean and pliable to

assure a proper seal.

Petroleum ielly applied lightly on the hinge side of gaskets

will keep the gasket pliable and assure a good seal.

Pewe_ _te_pt_e_s

" Occasionally there may be power interruptions due to thunderstorms or other

causes. Remove the power cord from AC outlet when a power outage occurs.

When power has been restored, replug power cord to AC outlet.

For long vacations or absences, empty food from refrigerated cooler, move the

temperature DIAL to the OFF position and clean the door gaskets according to

"General cleaning" section. Prop doors open, so air can circulate inside. 8

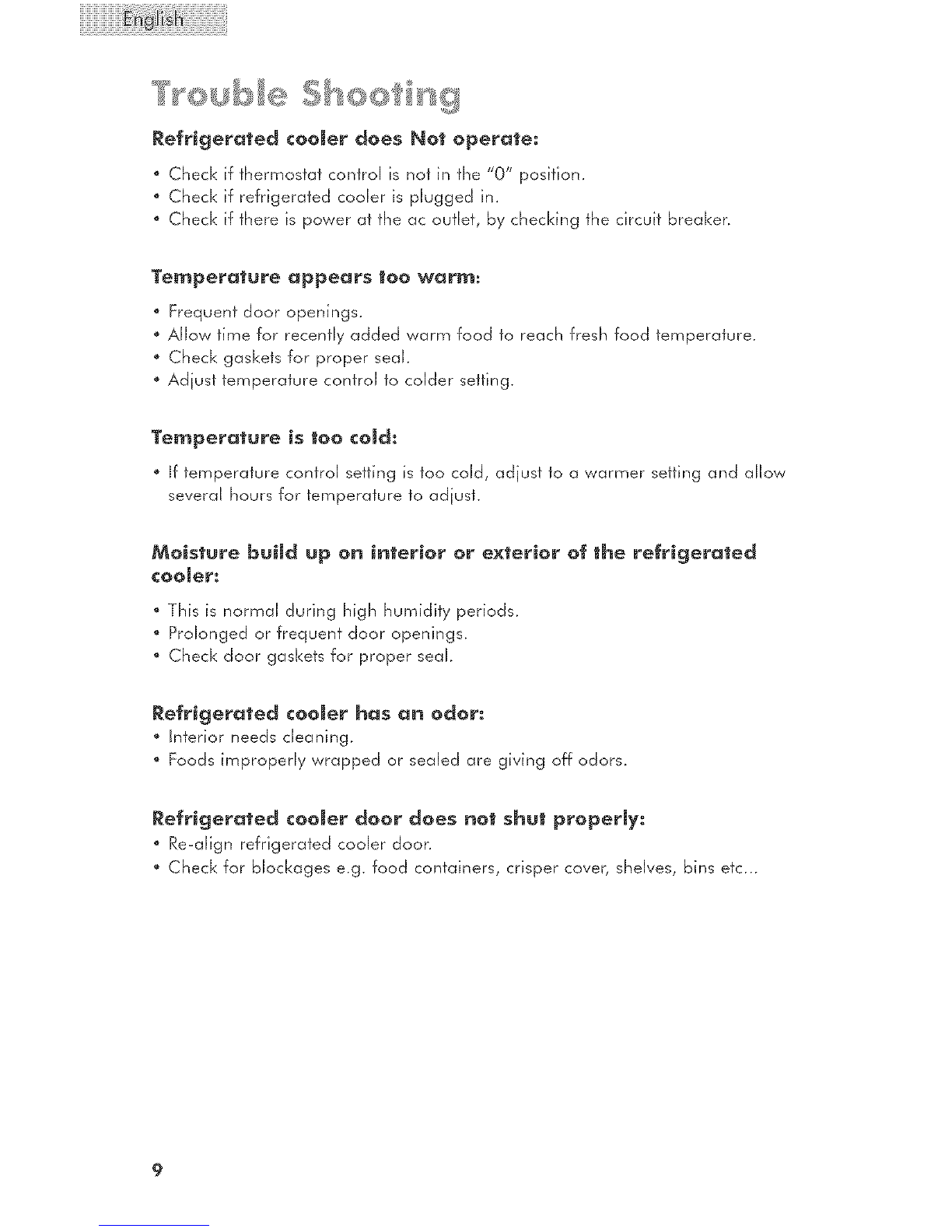

lefrigeralet cooler toes Iol operale:

"Check if thermostat control is not in the "0" position.

Check if refrigerated cooler is plugged in.

Check if there is power at the ac outlet, By checking the circuit Breaker.

Temperature appears too warm:

"Frequent door openings.

Allow time for recently added warm food to reach fresh food temperature.

Check gaskets for proper seal.

Adiust temperature control to colder setting.

Temperature is too ¢o_d:

"If temperature control setting is too cold, adiusf to a warmer setting and allow

several hours for temperature to adiust.

Moisture buld up on interior or e×teHor of _he refrigerated

¢oo_er:

This is normal during high humidity periods.

Prolonged or frequent door openings.

Check door gaskets for proper seal.

Refrigerated cooler has an odor:

"Interior needs cleaning.

Foods improperly wrapped or sealed are giving off odors.

Refrigerated ¢oomer door does not shut properly:

"Re-align refrigerated coder door.

Check for blockages e.g. food containers, crisper cover, shelves, bins etc...
