Haier HTE21W Manuale utente

HAIER

REFRIGERATOR

Service Manual

PART# RF-8888-38

HAIER AMERICA TRADING, LLC

www.haieramerica.com

Table Of Contents

Contents 2

Product Code Explanation And Series Introduction 3

Specification 4

Safety Precautions 5

Parts And Functions 9

Function Schedule 10

System Flow Chart 11

Circuit Diagram 12

Maintenance And Troubleshooting 13

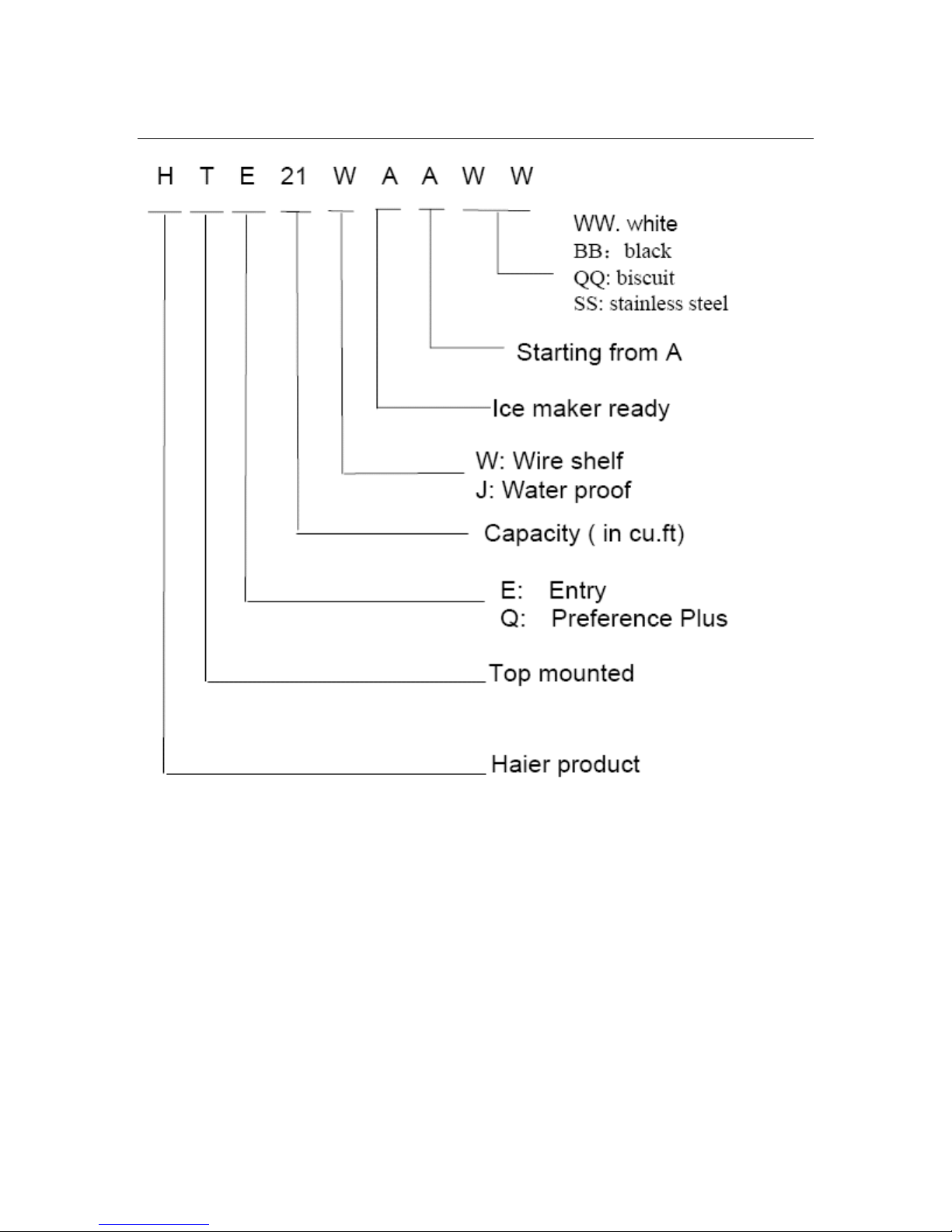

Product Code Explanation And Series Introduction

Specifications

Models HTE21W HTQ21J

Net capacity (Ft3) 20.7 20.7

Color

WW: white

BB: black

QQ: biscuit

SS: stainless steel

WW: white

BB: black

QQ: biscuit

SS: stainless steel

Power Supply

(V/Hz) 115~/60 115~/60

Rated Input Power

(W) / /

Power Consumption

(kW.·h/24h) 1.40 1.40

Net Weight (lbs) 247 247

Gross Weight (lbs) 265 265

Unit Dimension

(D*W*H) (inch) 33 x 31¼ x 65 7/8 33 x 31¼ x 65 7/8

Packing Dimension

(inch) (D*W*H)

35 x 34 7/16 x

66 7/32

35 x 34 7/16 x

66 7/32

Container Quantity

40’HC (PCS) 42 42

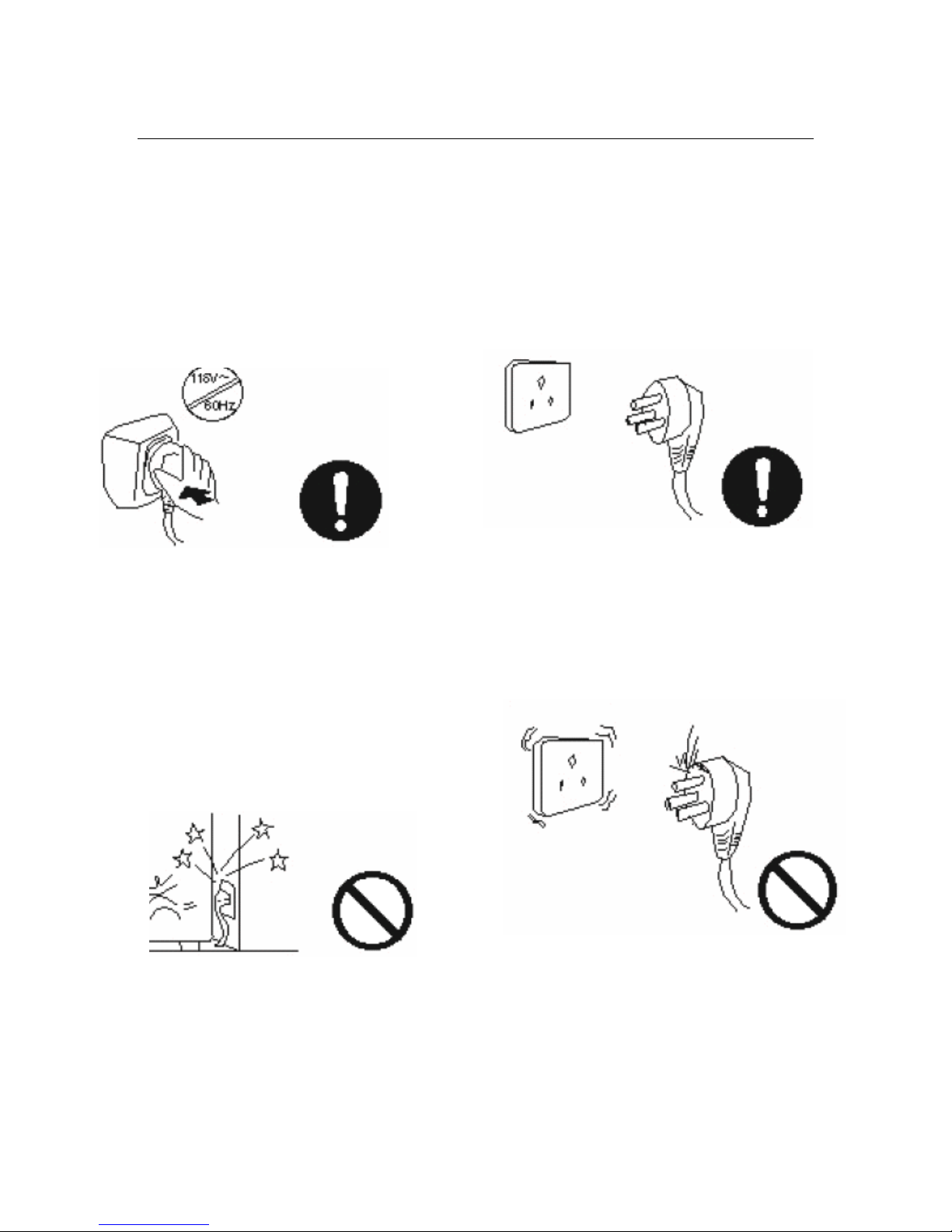

SAFETY PRECAUTIONS

WARNING!

This appliances uses 115V~/60Hz AC for

power supply.

Voltage has excessive variations, which is

likely to prevent malfunctions like abnormal

noise by processor. It is advisable to use a

750-voltage regulator or a higher power

voltage.

WARNING!

It is advisable to use a separate, dedicated

and secured grounding outlet.

Power cable is filed with three core (grounding)

plugs complying with three core grounding

outlet. In no case should the third plug pin

(grounding) of the power cable be removed.

WARNING!

Do not damage power cable.

Be sure not to unplug unit by power cable.

Hold plug firmly to unplug

Do not let the body of the unit have contact or

press power cable. Take care of power cables

to avoid damage when moving unit.

WARNING!

In case the power cable is damaged.

Worn out cables should not be used.

Replace such damaged cables.

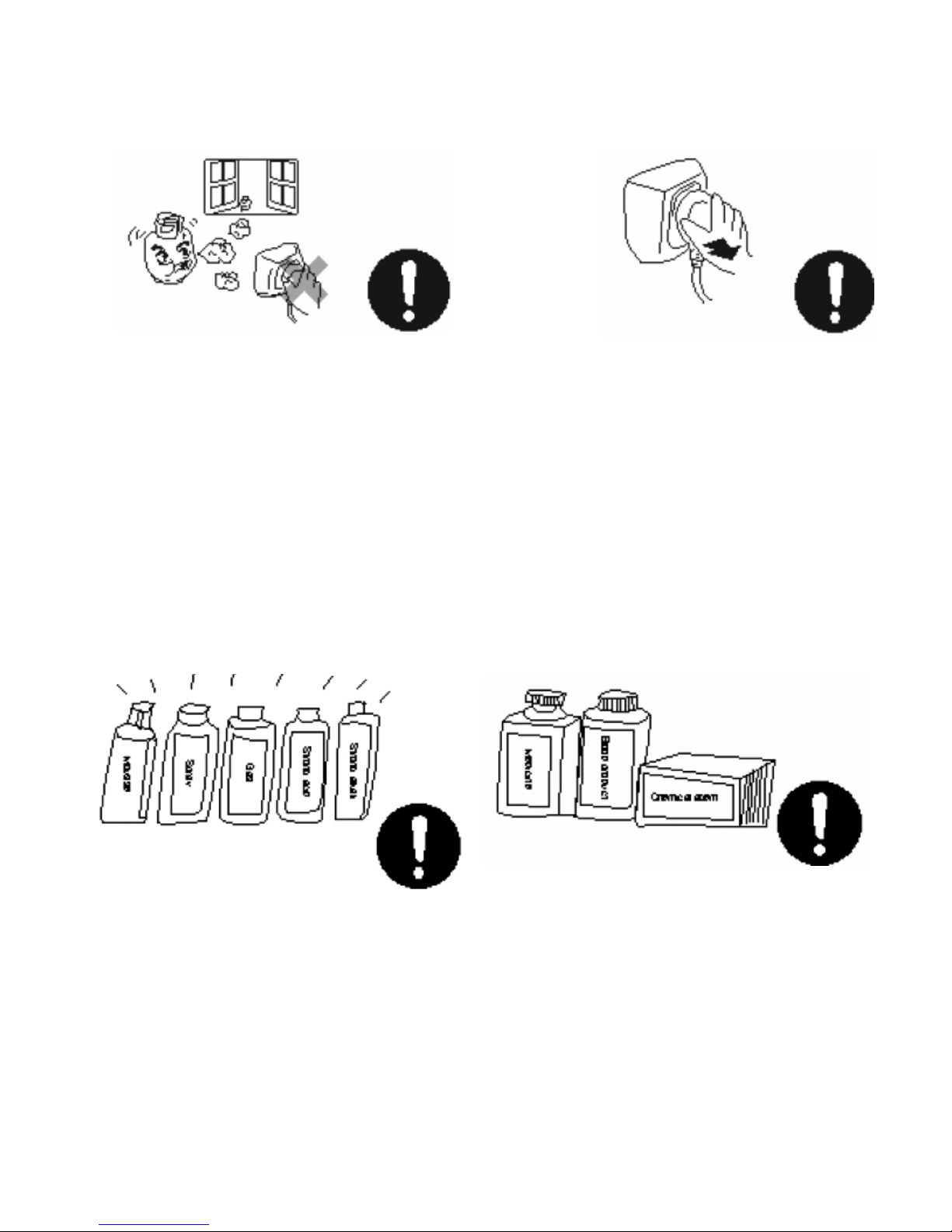

WARNING!

In the case of the leakage of an

inflammable gas

1. Access leaking area.

2. Open door and windows.

3. Do not temper with unit or plug any

electrical device such as refrigerator.

WARNING!

Unplug power in these situations

1. Unplug unit prior to cleaning or repairing.

2. Unplug unit before replacing damaged

Lamp to prevent electrical shock.

WARNING!

It is not advisable or prohibited to keep

hazardous, inflammable or explosive items like

acid or alkali into refrigerators.

WARNING!

Do not keep medicine, vaccines or chemical

reagents in refrigerator. This refrigerator is

household use and cannot store items with strict

temperature requirements.

Do not place any electrical plugs, regulators or

microwaves on top of the refrigerator. Do not

use any other electric appliance (except the

one the manufacturer has stated) inside the

refrigerator.

Do not store or use gasoline or other flammable

substances in the vicinity of the refrigerator to

avoid fire outbreak.

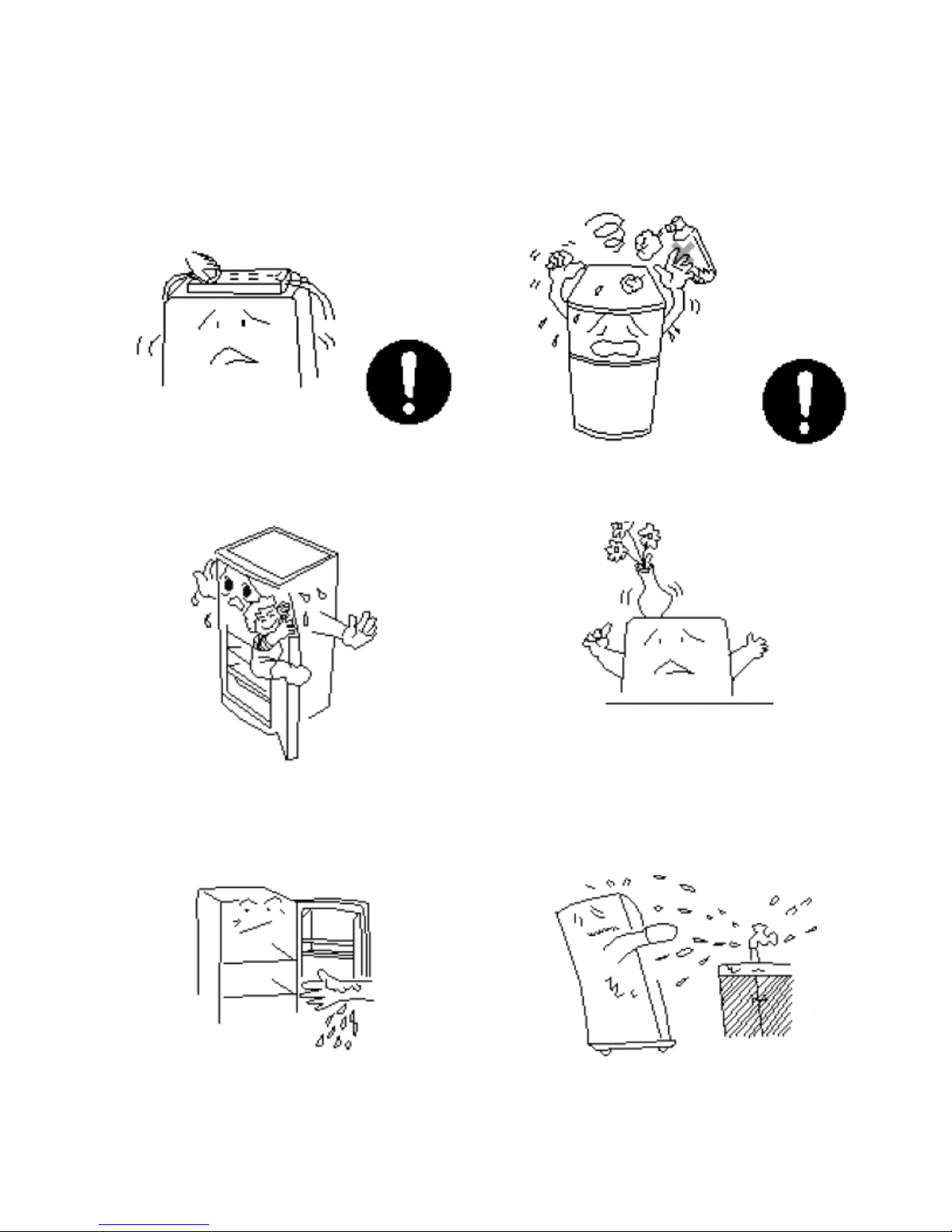

WARNING!

Do not play with the door to avoid damage.

WARNING!

Do not keep heavy objects on refrigerator.

WARNING!

Do not touch refrigerator with your wet hands

when it is in operation to avoid your hand

form getting stuck to the freezer.

WARNING!

Do not spray water onto the unit or install unit

at a wet place to avoid interferences with the

power source.

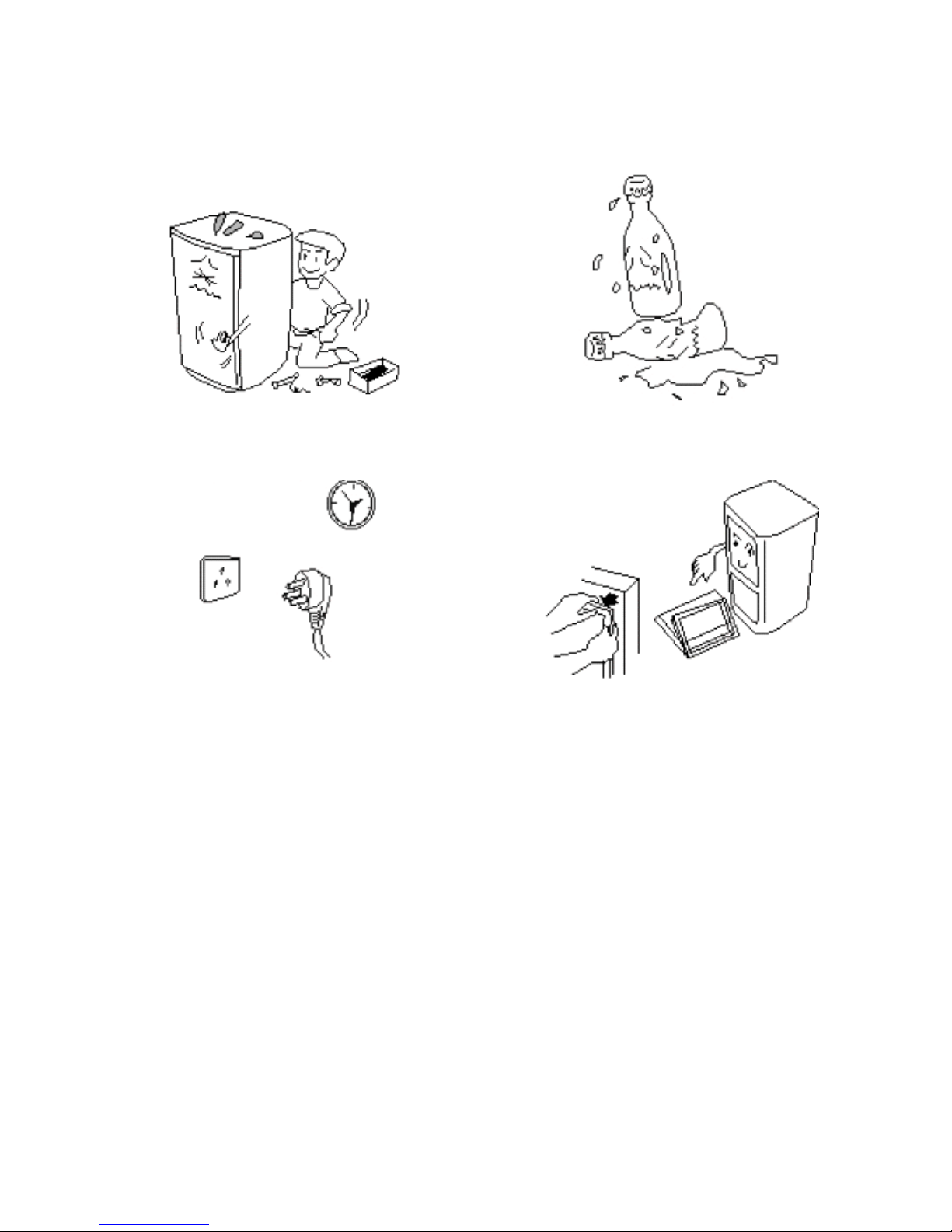

WARNING!

Do not temper with refrigerator when you do

not have any technical know how. Seek

professional advice in case the refrigerator gets

damaged.

WARNING!

Do not keep bottled items in the freezer

compartment to avoid frost crack.

WARNING!

Unplug power supply when carrying out

cleaning. Switch power on 5 minutes after to

prevent any damage.

WARNING!

Dismantle door and door gasket

before disposing off a refrigerator to avoid damag

unsuspecting persons or children

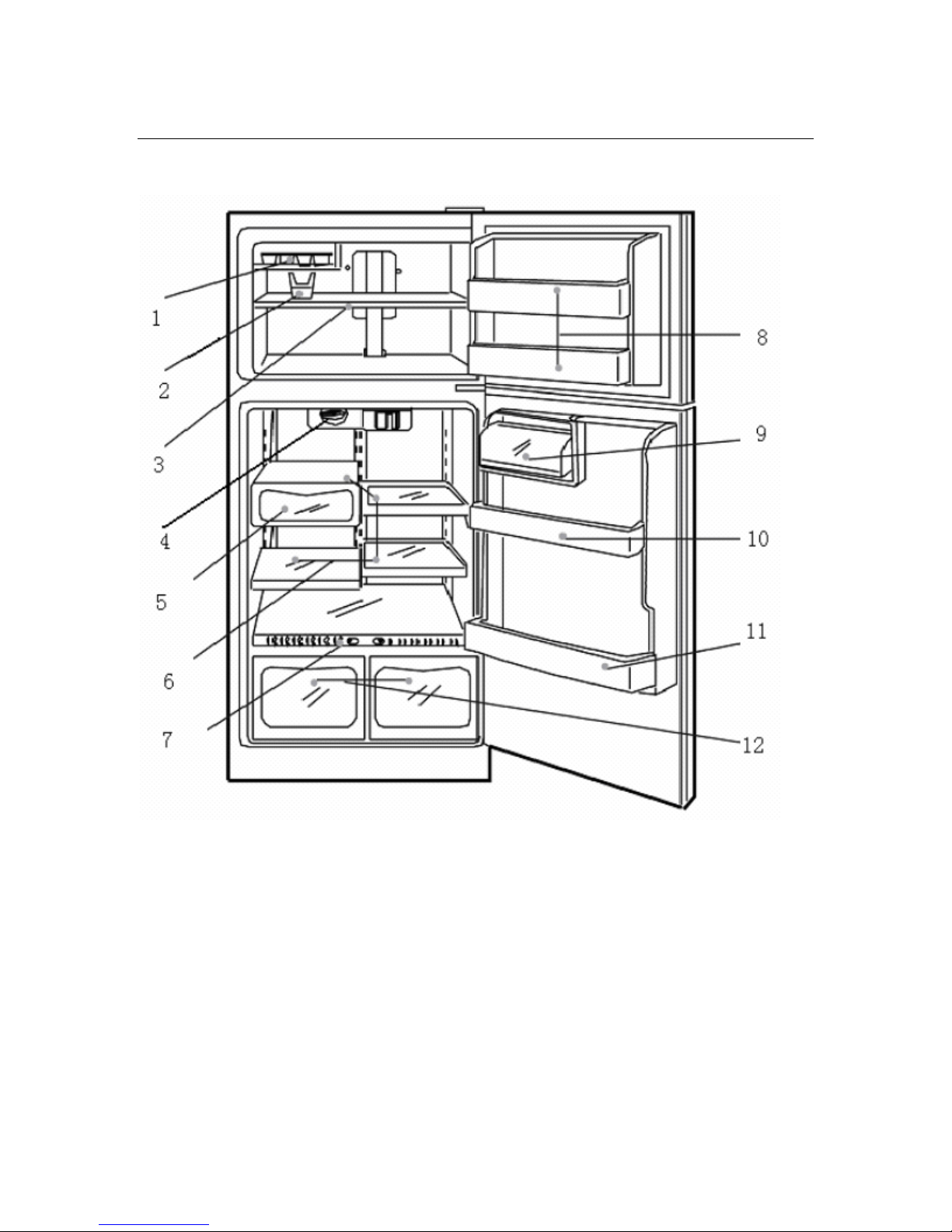

Parts and Functions

3-1. Description of Components

1. Ice Making Ware

2. Ice Storage Box

3. Wire Shelf

4. Refrigerator Lamp

5. Snack Ware

6. Cantilever Shelf

7. Humidity Adjusting Slide

8. Door Rack

9. Egg Tray

10. Bottle Rack

11. Tall Bottle Rack

12. Humidity Maintaining Box

Function Schedule

1. Air-cooling and automatic defrosting

2. Round door design and fashion handles

3. Energy-saving

4. Adjustable humidity crisper

5. Isolated food shelf

6. Crisper with adjustable moisture

Moisture in the crisper can be adjusted for satisfaction of vegetables and fruits

storage
