1

HAIER

REFRIGERATOR

Service Manual

PART # RF-8888-279

HAIER AMERICA TRADING, LLC

www.haieramerica.com

2

Table Of Contents

Contents 2

Features 3

Product Code Explanation And Series Introduction 4

Specifications 5

Safety Precaution 6

Parts And Functions 10

Function Schedule 11

System Flow Chart 12

Circuit Diagram 13

Maintenance Service And Troubleshooting 14

Troubleshooting And Repairs 16

3

Features

 Flat-Back Design

 Freezer Compartment With Ice Cube Tray

4

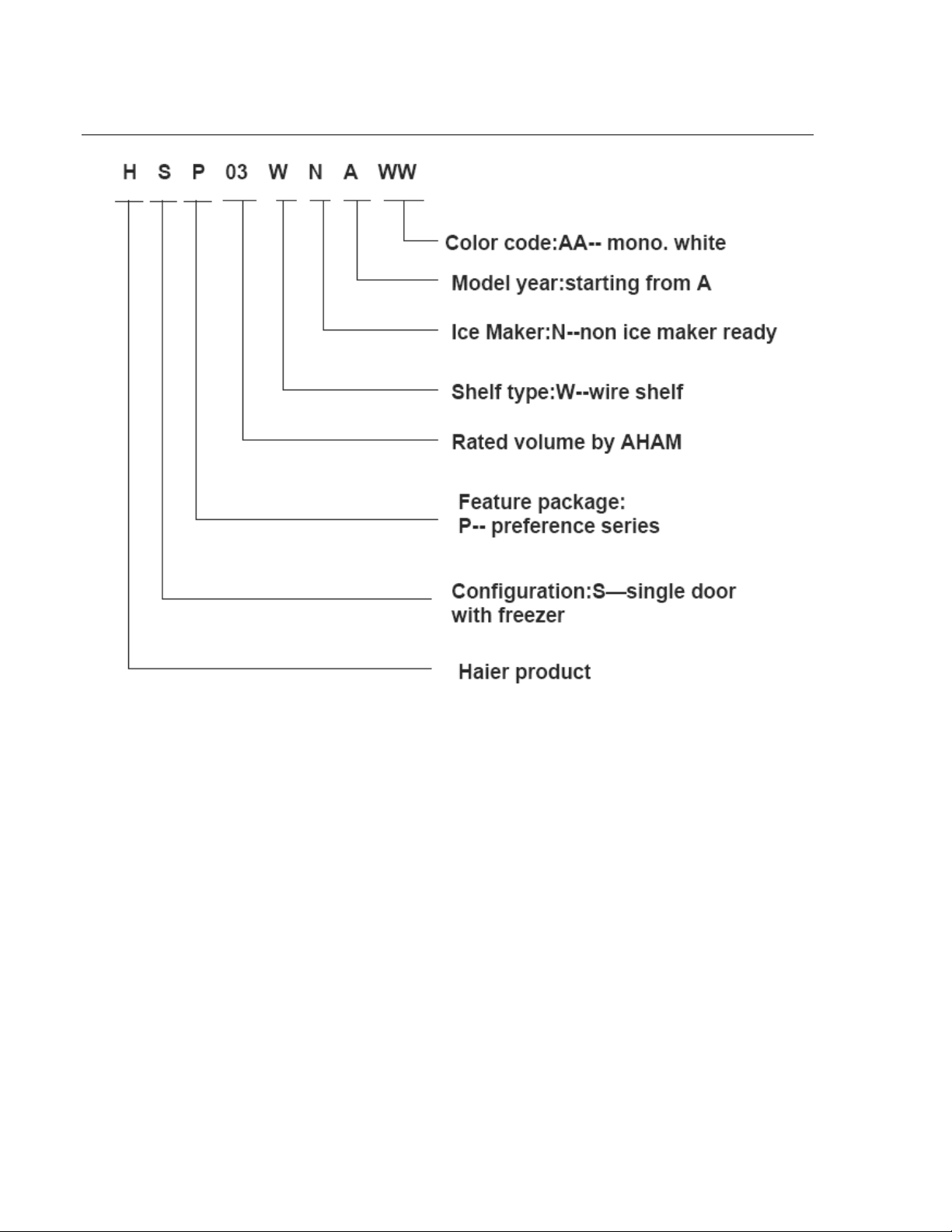

Product code Explanation and Series Introduction

5

Specifications

Model HSP03WNAWW

Capacity (Cu.Ft) 2.7

Color White

Power Supply (V/Hz) 115V/60Hz

Rated Input Power (W) 161

Power Consumption (kW·h/year) 307

Net Weight (lbs) 61.7

Gross Weight (lbs) 70.5

Unit Dimension (WXDXH inches) 19 23/32”X19 23/32”X26 5/16”

Packing Dimension (DXHXW inches) 20 1/4”X23 1/2”X27”

Container Quantity (40’) 331

Container Quantity (40’HC) 331

6

Safety Precautions

WARNING!

This appliance uses 115V~/60Hz AC for

power supply.

Voltage has excessive variations, which is likely

to prevent malfunctions like abnormal noise by

processor. It is advisable to use a 750-voltage

regulator or a higher power

voltage.

WARNING!

It is advisable to use a separate, dedicated and

secured grounding outlet.

Power cable is filed with three core (grounding) plugs

complying with three core grounding outlet. In no case

should the third plug pin (grounding) of the power cable be

removed.

WARNING!

Do not damage power cable.

Be sure not to unplug unit by power cable.

Hold plug firmly to unplug

Do not let the body of the unit have contact or

press power cable. Take care of power cables to

avoid damage when moving unit.

WARNING!

In case the power cable is damaged.

Worn out cables should not be used.

Replace such damaged cables.

7

In the case of the leakage of an

inflammable gas

1. Access leaking area and close leaking gas

valve

2. Open door and windows.

3. Do not temper with unit plug any electrical

device such as refrigerator.

Unplug power in these situations

1. Unplug unit prior to cleaning or repairing.

2. Unplug unit before replacing damaged

lamp to prevent electrical shock.

WARNING!

It is not advisable or prohibited to keep

hazardous, inflammable or explosive items like

acid or alkali into refrigerators.

WARNING!

Do not keep medicine, vaccines or chemical reagents in

refrigerator.

This refrigerator is for household use and cannot store

items with strict temperature requirements.

8

Do not store or use gasoline or other flammable

substances in the vicinity of the refrigerator to

avoid fire outbreak.

Do not place any electrical plugs, regulators or microwaves

on top of the refrigerator. Do not use any other electric

appliance (except the one the manufacturer has stated)

inside the refrigerator.

WARNING!

Do not play with the door to avoid damage.

WARNING!

Do not keep heavy objects on Refrigerator

WARNING!

Do not touch refrigerator with your wet hands when it

is in operation to avoid your hand form getting stuck

to the freezer.

WARNING!

Do not spray water onto the unit or install

Unit at a wet place to avoid interferences with the

power source.

9

WARNING!

Do not temper with refrigerator when you do not

have any technical know how. Seek professional

advice in case of the refrigerator gets damaged.

WARNING!

Do not keep bottled items in the freezer compartment

to avoid frost crack.

WARNING!

Unplug power supply when carrying out cleaning.

Switch power on 5 minutes after to prevent any

damage.

WARNING!

Dismantle door and door gasket before disposing off a

refrigerator to avoid damage to unsuspecting persons

or children.

10

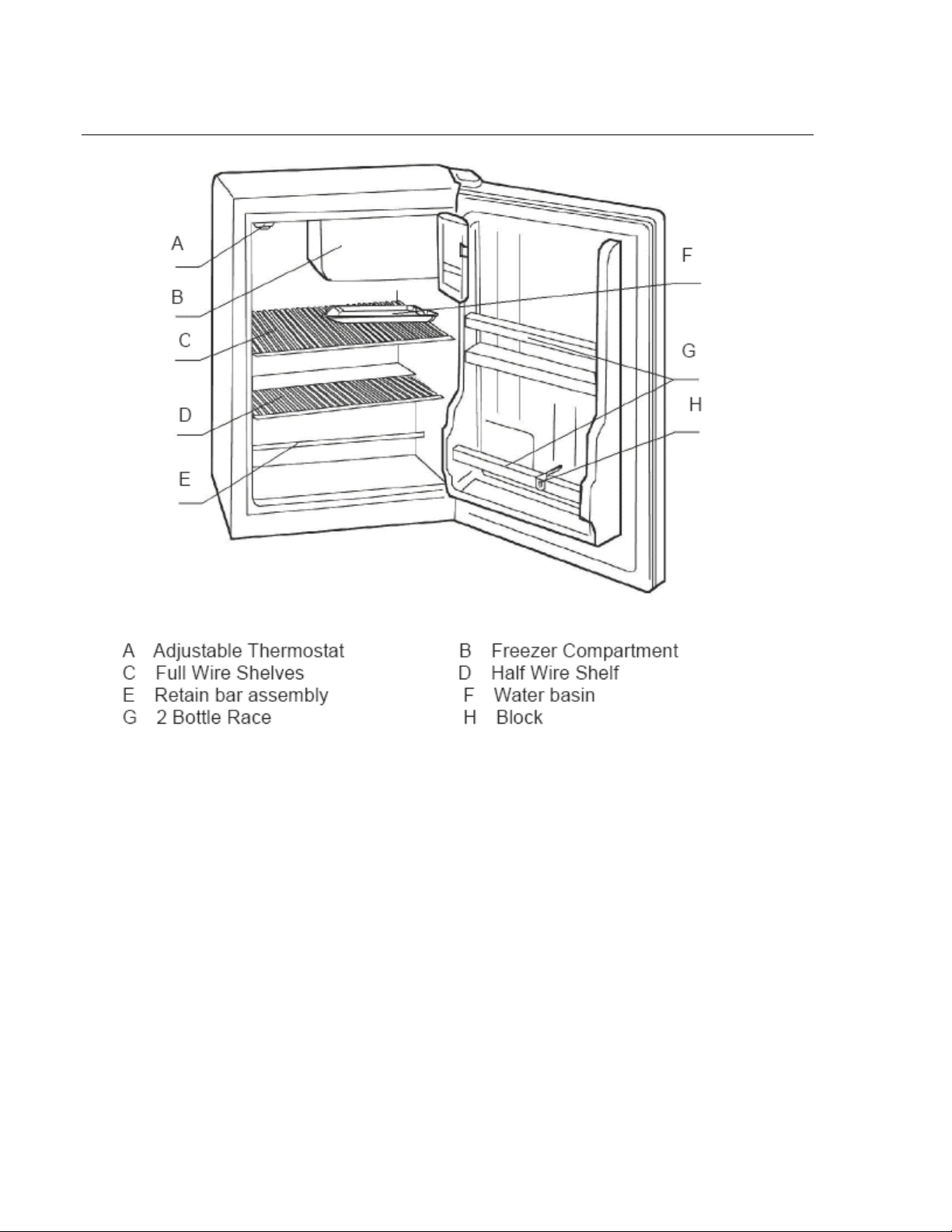

Parts and Functions
