Haier D34FV6 Manuale utente

Side AV terminal

S-video input terminal: Special video S-VIDEO AUDIO: L/MONO Track L/MONO ,R Track R

AV output terminals: VIDEO AUDIO L/MONO Track L/MONO ,R Track R

AV2 input terminals MONITOR : VIDEO AUDIO :L/MONO Track L/MONO ,R Track R

Av1 input terminals MONITOR :VIDEO AUDIO :L/MONO Track L/MONO ,R Track R

DVD component terminals:

Interleaved signal Y CbCrAUDIO L/MONO Track L/MONO ,R Track R

Progressive signal YPbPrAUDIO L/MONO Track L/MONO ,R Track R

HDTV input terminals: YPbPrterminal AUDIO L/MONO Track L/MONO ,R Track R

D29FV6 , D34FV6 Model

VGA input terminal

D29FV6 Model

Position of Buttons and Plug-ins

Front and Side panel

Volume up/ down

Channel position up/down

TV/Video

(input selector

Infrared receiver

Power indicator

Power switch

Back panel

D34FV6 Model

Antenna input

AV output terminals

AV2 input terminals

AV1 input terminals

DVD component terminals

HDTV input terminals

S-video input terminal

VGA input terminal Antenna input

AV output terminals

AV2 input terminals

AV1 input terminals

DVD component terminals

HDTV input terminals

S-video input terminal

1.When the S-video terminal and the Video 1 terminals are connected

at the same time, the S-video terminal is preferential.

2.When the side AV is connected, please select the Video 2 terminal.

DVI IN

DVI input terminal

DVI IN

DVI input terminal

CH+

CH-

VOL- VOL+

SCAN

SWAP

B/G

144MHz

NORMAL

B/G

144MHz

NORMAL

B/G

144MHz

NORMAL

Program swap

1. Suppose the channel number

you used just now is 8 and the

channel number you are using

is 18 (as shown in the figure).

2. If you want to return to the

last watched program channel

8, you can simply press the

SWAP button.

3. If you want to return to

channel 18, press the button

again. Through this function,

you can easily change

between the channel you are

using and the channel you

used last time.

Auto program scan

1. Press the SCAN button to

scan through all the memorized

TV channels. The TV set screen

displays 12 pictures at the same

time. Press the S.STD button to

scan next page, and press the

P.STD to scan last page.

2.Press the CH+/- buttons and

VOL-/+ buttons to select the

program that you desired, and

press the MENU button to

confirm.

Watching TV Programs (continued)

Swap function enables quick swap to the last watched program.

Auto scan function enables automatic successive scanning of the programs in memory

with (There are 12 pictures display on the screen at the same time)."OFF" skip status

Program swap and auto scan functions

CH+

CH-

VOL- VOL+

CH+

CH-

VOL- VOL+

CH+

CH-

VOL- VOL+

Prog NO. 008

Skip OFF

Sound Sys. B/G

Fine Tune

Auto Search

TUN.

Search 001

125.00MHz

CALL

After searching (Continued)

Press the CH+/- buttons to check channels.

If the colour or sound is abnormal in a certain channel, it may be

because that the colour or sound system has not been set

properly, then, you may adjust it to proper system (Refer to

page 8).

TUNE

Tuning (Continued)

B/G

144MHz

NORMAL

1. Press the CH+/- buttons or Direct

select button to select the desired

channel number.

2. Press the TUNE button, the tuning

menu will appear on the screen.

( For example, the auto search mode I.)

. Press the CH+/- buttons to

move the indicator to "Search". Prog NO. 008

Skip OFF

Sound Sys. B/G

Fine Tune

Auto Search

TUN.

4. Press the VOL+ or VOL- buttons,

the TV set will begin to search up or

down, when the TV set has searched

a program, the TV set will stop

searching. If the program is not the

one you need, you can press the

button again, let the TV set continue

to search until it has searched the TV

signal you need.

Note:

Usually, five seconds after the channel has been changed, the channel

number will disappear automatically. If you want to know which channel

you are watching, just press the CALL button once.

CH+

CH-

VOL- VOL+

CH+

CH-

VOL- VOL+

SOUND

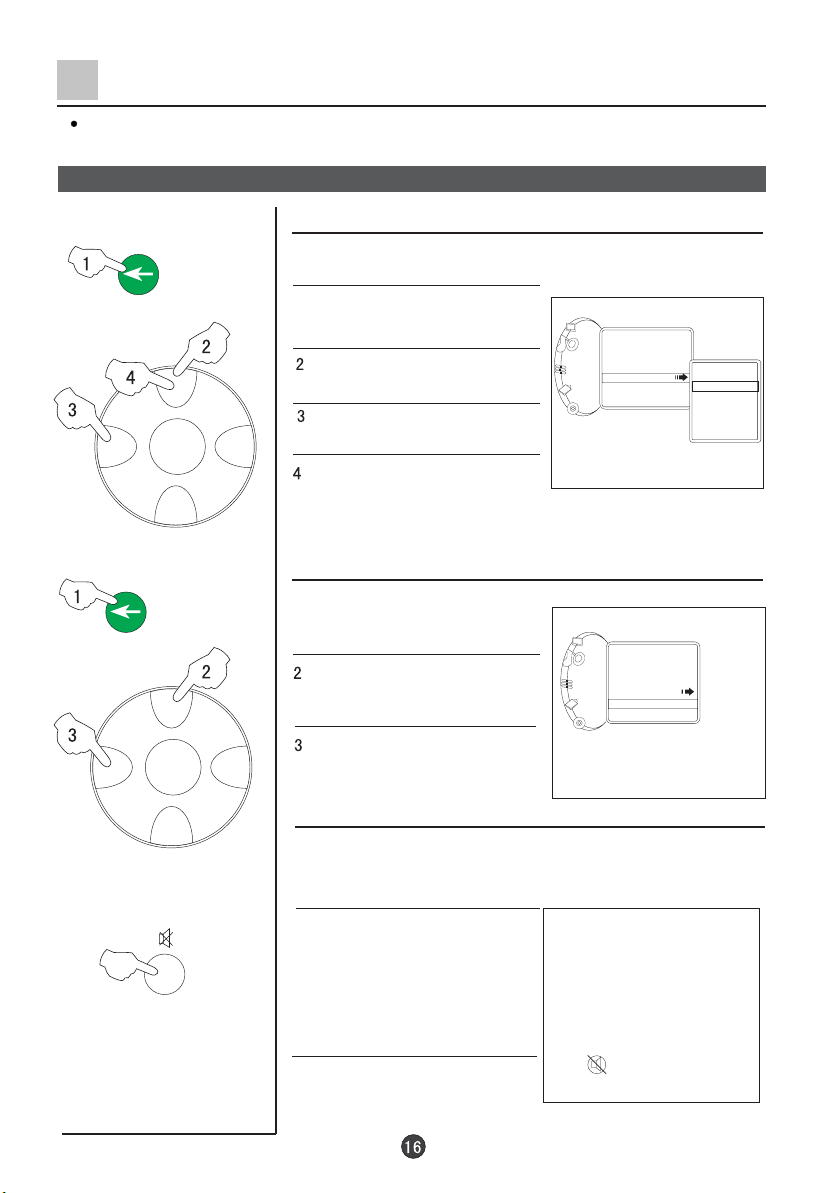

1. Press the SOUND button, the

Sound menu will appear on the

screen.

. Press the CH+/- buttons to move

the indicator to "Sound Effect".

. Press the VOL+ button to

sub-menu.

. Press the CH+/- buttons to select

the desired option, then the sound effect of the TV set turn to the

sound effect selected. Press MENU button to exit the sub-menu.

Convenient Picture and Sound Controls (Continued)

Surround effect chip has been employed to form a vivid and real space surroundsound

effect.

Sound Effect, Surround and Mute functions

SOU.

Treble 50

Bass 50

Balance 50

Sound Effect

Surround ON

Stereo

V.SRS

Mono

Sound Effect function

There are Stereo, V.SRS and MONO sound effect for the

TV set. You may select the desired option.

SOU.

Treble 50

Bass 50

Balance 50

Sound Effect

Surround ON

Surround Function

1. Press the SOUND button, the

Sound menu will appear on the

screen.

. Press the CH+/- buttons to move

the indicator to " Surround ".

. Press the VOL-/+ buttons to turn

the " Surround " function ON.

How to use the Mute function

When you want to listen to the sound nearby, or when you are

answering the telephone, or talking with your friends, you may use

the mute function.

1. Press the MUTE button once, a

sign of mute will appear on the

screen, and then the sound will be

eliminated to half; press the MUTE

button again the sound will be

eliminated completely .

2. Press thevolume button or

press the MUTEbutton again,

and the soundwill be recovered.
