Haier DWE-3120A Manuale utente

User's manual

DWE-3120A

Computerized Full-auto

Washing Machine

Contents

Before using

Using Process

Packing list................................................17

Specification table The back cover

Names of the parts..........................The 2nd cover

Safety precautions...............................................1

Ins Tallation and adjustment.................................3

Install the water inlet hose....................................5

Preparation before washing.................................7

Put in the laundries..............................................8

Usage of the detergent........................................9

Use the operation buttons.................................10

Close the top lid................................................14

Finish washing..................................................14

Disposal after washing......................................15

Trouble shooting*answer to question................16

Please read this manual carefully before using.

Retain it for future reference

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

The manufacturer will not bear the responsibility for

those risks occurred from not obeying this manual.

Contents marked with that symbol are related to the safety of the product and the personal

safety of the users. Please operate in strict conformity to the contents, otherwise it may

result in damage of the machine or influence the personal safety of the users.

Contents marked with that symbol are actions forbidden to perform. Performing of those

actions may result in damage of the machine or influence the personal safety of the users.

Accessories

Meaning and description of the symbols

Before Using

Names of the parts

(one piece)

Water inlet hose

Water inlet hose joint

the end connectingto the washingmachine

jointer connecting the water

inlet hose andthe water faucet

the end connectingto the waterinlet hose jointer

Top lid, I

Detergent box

Lint filter(Installed

by user)

Control panel seat

Inner tub

Control panel film

Pulsator

Cabinet

Lower cabinet

Top lid, II

Adjustable foot

Power cord

Drain hose

Fixing foot

(three)

Water absorption cushion Water inlet valve

Handle

Drain hose hanging hole

Back cover

Lint filter

(one piece)

Level meter

The ventilation

holes at the bottom

Soft object

Before Using

Safety precautions

Do not put the machine at damp place like

the bathroom. Never wash it with water.

In case the washing machine is installed on ground with

carpet, do not block the ventilation hole with carpet.

Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the

plugging into the receptacle is loose, do not use the plug any more.

Do not wash water-proof laundries like the raincoat,

bike covers etc. to avoid abnormal vibrations in spinning.

Do not use water hotter than 50 C .

Please plug thepower plug onspecial

receptacle. Be sure to use three-pins

power receptacle.Ensure that the earthing

prong of the power receptacle is earthed

reliably. Use leakage protector if possible.

In normal usage of thewashing machine,

the power plug shall be ready to be pulled

or plugged with hand. Be sure to pull the

plug off and close the water faucet in

following cases: power failure, delivering

the machine, setting the machine idle or

cleaning the machine. Do not plug

or pull the power plug with wet hand.

Do not bend, stretch, twist, bind the power cord by force,

or reform it. Do not press or clamp it with heavy items. If the

power cord and power plug are bad, or the receptacle is loose,

be sure to have it replaced by the technicians of ourspecial shop

or our agent, or the after-sales service department for the sake

of avoiding any risk. Keep the prong of the power plug clean.

If dustis found on the power plug, please wipeit offwith dry cloth.

Earth

Do not stretch hands into the working machine.

It is dangerous even if the rotation is slow.

Take special care of the children.

Do not decompose, repair or alter the machine

by yourself.

Do not put any hot or heavy items (such as the kettle

with hot water) on the washing machine

Do not wash laundries with volatile materials

(such as thinner, petrol etc.).

Keep the machine away from direct sunlight and

heat source like the heater.

The handicapped or children without care shall not

use the machine.

The lint filter shall be kept in good condition, and

installed to proper position. If the lint filter is lost

or damaged, please contact the local after-sales

service department of our company.

Benzene

Before Using

Safety precautions

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Before Using

Installation and adjustment

Install the lint filter

After opening the package, please take out the

lint filter from the document bag and install it

into the Filter frame of the inner tub. See to the right Figure.

Lint filter

Filter frame

The largest allowed slope of the shank base of the machine is 2 . The slanting or rough ground will result in

unstable running or stoppage of the machine. Please adjust it with following methods:

Confirm it's horizontal

Hang the plumb to confirm it's horizontal

Adjust the Installation position

Adjust the adjustable foot

(1) To twist the adjustable foot at the right front of

the cabinet (front the sight of front), please first

lift up the side of the foot slightly, loosen the

adjustable nut, and twist the foot.

(2) Fasten the nut after adjustment.

Loosen Fasten

High Low

adjustable nut

adjustable foot

Confirm it's horizontal:

If the bulb of the level meter at the balance display

position is inside the standard circle, it indicates that

the machine is horizontal. Otherwise you need to

adjust the adjustable leg of the machine.

Air bubble

Standard circle

Suitable Not suitable

Before Using

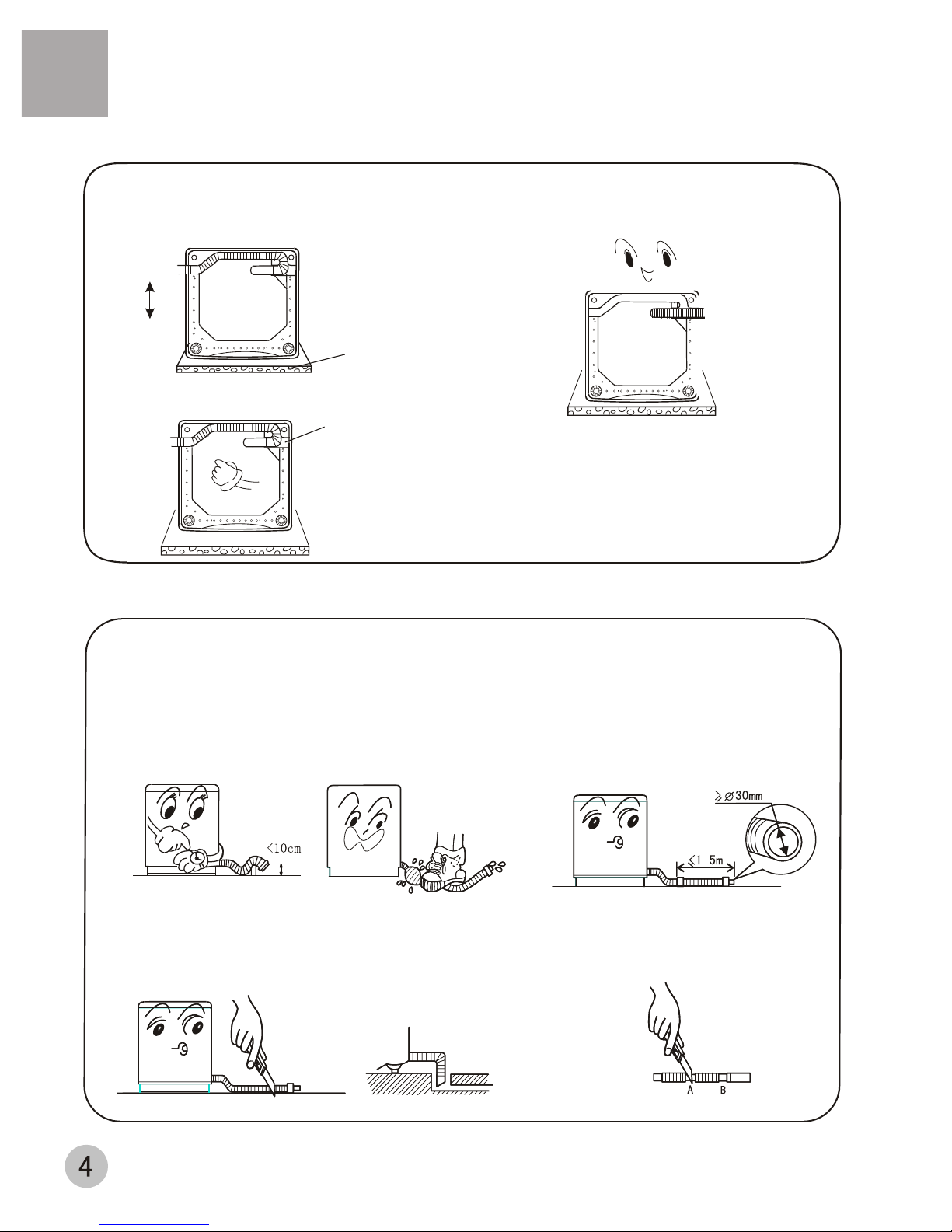

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not ramp or press the drain hose.

3.If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 30mm, and the length shall

not exceed 1.5m.

1.Lean the machinedown gently withthe front

surface facing theground.

3.Extend the drain hose from the left side. Push the

drain hose into the groove with hands.

2.Pull out the drain hose from the groove at the left side.

Back

Front

Soft item

Use groove at

this side after

direction changing

How to change the direction of the drain hose

Usage of the drain hose

The drain hose shall drain smoothly

5.If the extra hose is too long, cut it

either at Aor at B point.

The exit end face of the faucet

Confirm the water faucet

Connection between the water inlet hose jointer and the water faucet

water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.

2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.

See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen

the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth, otherwise

it may leak water. See to Figure 3.)

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the

water inlet hose component. See to Figure 1.

3.Fasten the four screws evenly. See to Figure 4.

about 4mm after twisting

Remark: .Before twisting the fastening nut, the threading is 4mm above the upper

surface of the nut. After twisting, the threading is less than 2mm above the upper

surface of the nut. See to Figure 6

About above 2mm after twisting

water inlet hose jointerwater inlet hose jointer

Screw knife

Screw

Bushing

Nameplate

Screw nut

water inlet hose Figure 1

Figure 4

Figure 2

Figure 5

Figure 3

Figure 6

Slider

Lock level

Before Using

Install the water inlet hose

4 Take off the nameplate. Twist the fastening nut as per the indication of the figure

to seal up the exit end face of the faucet. See to Figure 5.

Connection between the water inlet hose and the washer

Dismantle the water inlet hose

Connection between the jointer of the water inlet hose

and the water inlet hose

Check the connection between the jointer of the water inlet hose

and the water faucet

1.Do not take off the water absorption cushion. Please check if the

cushion is dropped or damaged before each usage. If it happens

please contact our after-sale department immediately.

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

1.Push down the slider. Insert the water inlet hose into the jointer.

2 Hang the lock lever to the jointer. Release the slider till a click sound is heard.

Locking level

Slider

water absorption cushion.

nut of the waterinlet hose

the jointer of the water inlet hose

Slider

Locking level

jointer of the waterinlet valve

1. Close the water faucet.

2. Press the locking lever. Push down the slider. Then pull of the water inlet hose.

If the machine is used frequently, the jointer of the water inlet hose can be kept

on the faucet to prevent damaging the fixing screw.

Before Using

2 Put the nut of the water inlet hose on the valve jointer.

3 Fasten the nut. Swing it gently to confirm if it's suitable.

4.Before each usage please check if the connection

between the jointer of the water inlet hose and the

water faucet, and the installation of the water inlet

hose are firm, so as to prevent dropping from

improper installation position.

Using process

1 Preparation before washing

Pay attention to followings before washing the laundries

Preparation before washing

1.Connect the water inlet hose. Open the water faucet.

2.Confirm that the washing machine is earthed reliably.

Then insert the power plug into the receptacle. The

earth terminal shall not link to gas pipeline and

faucet water pipeline.

3.Put down the drain hose.

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like mud or dust.

For the parts with heavy soil, please apply detergent on them in advance, which

can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn it over before

putting in.

f. Do not put those laundries polluted by chemicals into the washing machine directly.

Pay attention to following before washing

Reference weight of the laundries:

working suit up,down

jeans about 800g

The capacity ofwashing and spinning of the machine

refer to the largest weight of the standard laundries

under dry condition that can be washed or spinning

in one time. One time washing quantity shall belower

than the rated capacity. The largest capacity of this

machine is 12.0kg.

The thickness, size,type of the cloth will influence the

actual washing capacity. It is suitable for one time

washing to put in reasonable amount of laundries

and the laundries can beturned round in washing.

Do not select above 8 water level for laundries small

than 2.0kg, so as to avoid splashing of water.

blending coat

about 800g

shirt jacket

single bed sheet

socking

underpants

undershirt

pajamas

blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

about 200g

Using process

2 Put in the laundries

cotton,about 1120g

Indice

Altri manuali Haier Rondella

Haier

Haier HWM170-B278S6 Manuale utente

Haier

Haier HW100-B14636N Manuale utente

Haier

Haier HW50-1010W Manuale utente

Haier

Haier HNS1260TVE Manuale operativo e di manutenzione

Haier

Haier HWM90-0566 Manuale utente

Haier

Haier XQB50-20 Manuale utente

Haier

Haier HWM60-20B Manuale utente

Haier

Haier HWM120-35FF Manuale utente

Haier

Haier XQG50-600SW Manuale utente

Haier

Haier HWM80-35 Manuale utente

Haier

Haier HW-DS50TVE Series Manuale utente

Haier

Haier HWM62-0566 Manuale utente

Haier

Haier Thermocool HMS1000TVE Manuale utente

Haier

Haier HWM6000 Manuale utente

Haier

Haier HWM20-A Manuale

Haier

Haier HVS1200 Manuale utente

Haier

Haier HW80-B14939S8 Manuale utente

Haier

Haier HWM65-828 Manuale utente

Haier

Haier HLP21E - Pulsator Wash With Tub Manuale utente

Haier

Haier AWT-70LI Manuale utente

Haier

Haier HW80-B14266 Manuale utente

Haier

Haier XPB90-99GS Manuale utente

Haier

Haier HBF1255TVE Manuale utente

Haier

Haier HWM120-1678ES5 Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
