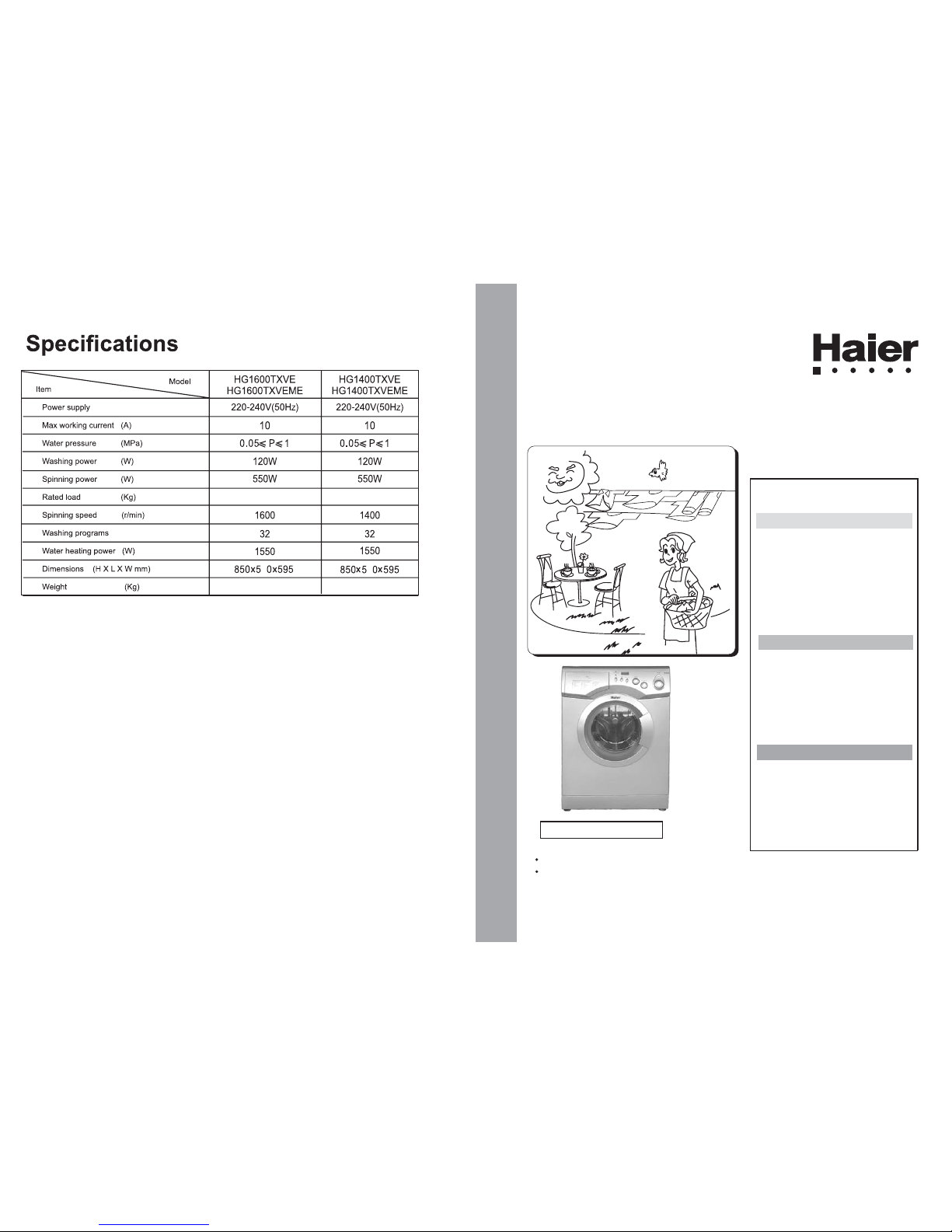

Service Manual

Automatic Drum Washing Machine

HG1600TXVE

HG1600TXVEME

HG1400TXVE

HG1400TXVEME

Table of Contents

Before Use

Washing Machine Diagram ...... Inside front cover

Matters Needing Attention ........... 1-3

Please read this manual carefully before use.

in a safe place

Installation .....................................4-5

Control Panel Operational Function......6-7

Guide to Operational Program Selection..8

During Use

Preparations

...............................................9

Washing Methods............................10

Hints for Saving Energy....................11

Washing Instructions.......................12

Other Functions...............................13

Maintenance

Maintenance .............................14-15

Troubleshooting .............................16

Electric Diagram.............................17

Specifications ...................Back cover

Patent No

82 82

IPX4 IPX4

7$



Service Manual

Automatic Drum Washing Machine

HG1600TXVE

HG1600TXVEME

HG1400TXVE

HG1400TXVEME

Table of Contents

Before Use

Washing Machine Diagram ...... Inside front cover

Matters Needing Attention ........... 1-3

Please read this manual carefully before use.

in a safe place

Installation .....................................4-5

Control Panel Operational Function......6-7

Guide to Operational Program Selection..8

During Use

Preparations

...............................................9

Washing Methods............................10

Hints for Saving Energy....................11

Washing Instructions.......................12

Other Functions...............................13

Maintenance

Maintenance .............................14-15

Troubleshooting .............................16

Electric Diagram.............................17

Specifications ...................Back cover

Patent No

82 82

IPX4 IPX4



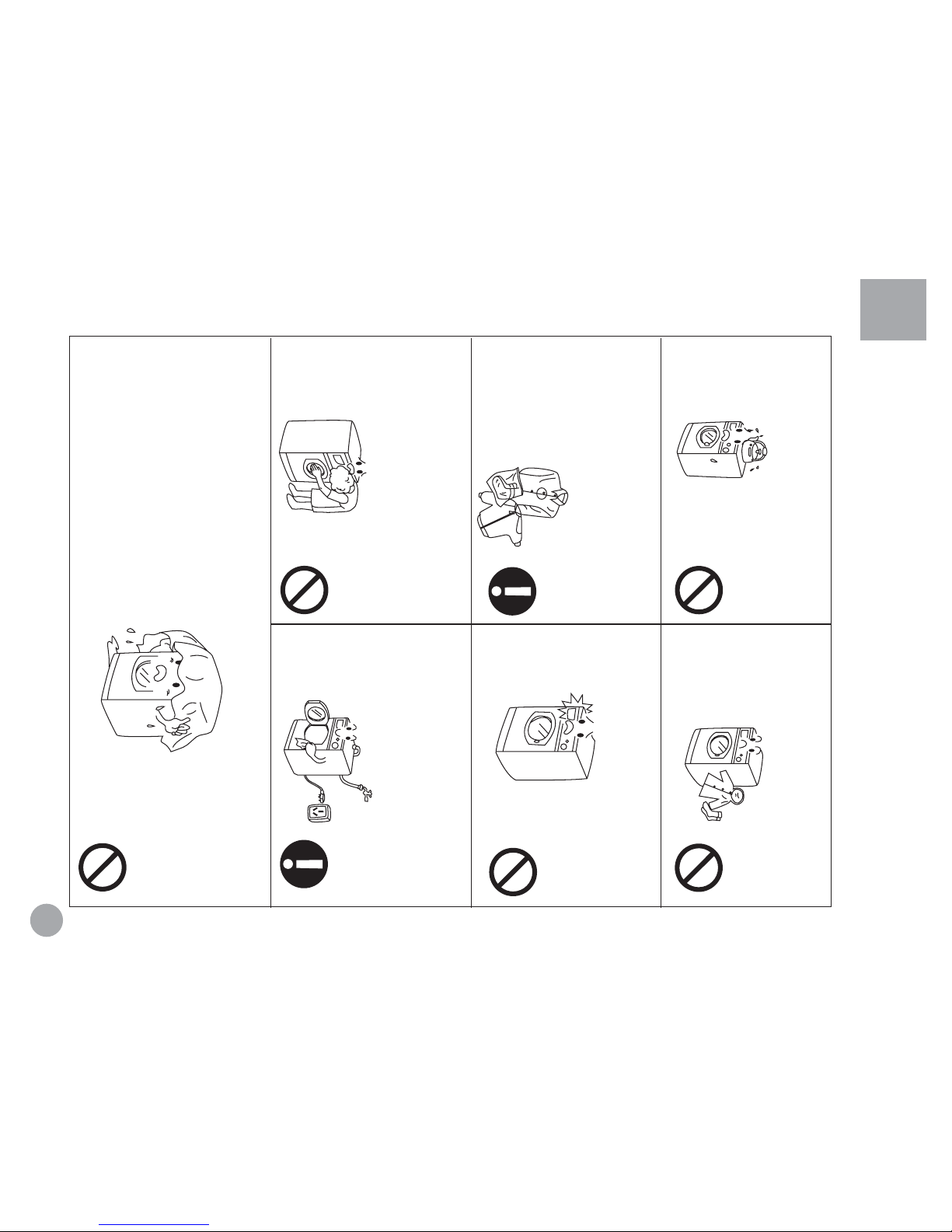

Matters Needing Attention

Safety

1. A separate earthed socket is required for the

power supply. The socket should be reachable

by the power cable of the machine.

2. Hold the plug and not the electric cable

when unplugging the washing machine.

3. Fuses in the power circuit should be rated for

15A. Refer to a washing machine technician or a

Haier designated service point for power cable

replacement.

4. Do not touch or use the washing machine

bare-footed or when the hands or feet are wet.

5. Do not use flammable detergent or dry cleaning

agent; do not use flammable spray in close vicinity

to the washing machine; do not remove or insert

the plug in the presence of flammable gas.

6. The door of the washing machine will become

hot during the heating process. Avoid contact with

the door during the heating process. For safety,

keep children away from the washing machine.

7. The machine is not intended for use by young children or infirm persons without supervised.

Keep children away from the packing materials after unpacked.Young children should be

supervised to ensure that they do not play with the appliance.



Matters Needing Attention

8. The washing machine should not be installed

outdoors or in a damp place. In the event of

water leakage or splashes allow the machine to

dry naturally.

9. Do not place the washing machine directly

on a carpet, or close to a wall or furniture.

10. Keep away from heat sources and direct

sunlight to prevent plastic and rubber components

from aging.Use the new hose and the old hose

should not be reused.

11. During installation, ensure that the electric

cable is not trapped by the washing machine and

avoid damage to the electric cable. For built-in

appliance, the socket should be kept far away

from the solenoid valve.

During Use

1. Before use, check the joints of the filling hose,

the tap and the drainage hose for possible

problems from water pressure fluctuations. If

joints are loose or there is leakage, turn off the

tap and repair. Do not use the washing machine

until the hoses are properly fixed.

2. To select a washing program, turn the knob

clockwise after the power is switched off.

When you close the door, please hold the

handle and lightly push the porthole shut.

Never force to close the door.

If the appliance is supplied from a cord

extension set or electrical portable

outlet device the cord extension

set or electrical portable outlet

device should be positioned to

splashing or ingress of moisture.



Matters Needing Attention

3. Do not place heavy, heating source or wet

articles on the top of the washing machine.

4. Do not hot wash foam rubber or sponge-like

materials.

5. Before washing, do up zippers, buttons and

clothes straps and put small articles, such as

socks, laces or bras, into a washing bag or a

pillow.

Steel wires in bras will

pop out during washing;

never wash bras

containing steel wires.

6. Do not open the detergent distribution drawer

during a wash program.

7. The door is fitted with a self-lock device and

will not open until 2~3 minutes after the washing

machine stops. Do not force the door open. Do

not open the door if water level can reach the

porthole.

8. After each wash program, turn off the tap to

prevent leakage; and unplug the washing machine

and wipe clean the lower part of the porthole. Ensure

carpet does not obstruct the opening in the bases.

9. Do not cover the washing machine with a plastic cover when it is not in use so that the inside

dampness will not be kept in.

HG1600TXVEME

HG1400TXVEME

HG1600TXVE

HG1400TXVE

four

2. turn the packaging bolts clockwise or counter-

clockwise 90 degree, and then take it out.

The installation of the built-in appliance

There must be enough space around the washing machine for us to install, and the

dimension may be no less than those as shown in figure 4.

10cm 10cm

5cm

Fig.4



from



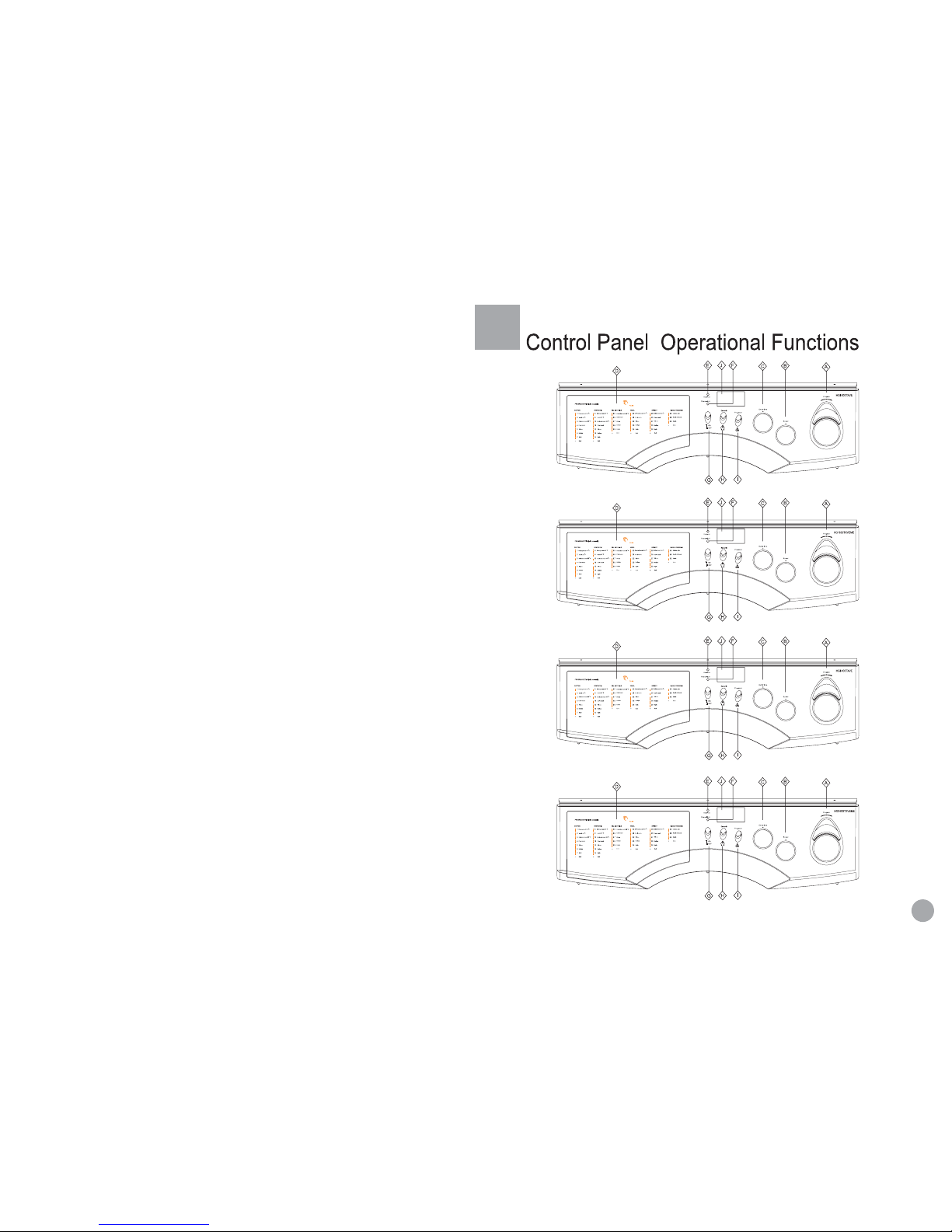

Such information as remaining time during a wash cycle or a delay wash program, speed and temperature

setting and error message will be shown(refer to Page 14).

Work light

program is running , the light is on.
